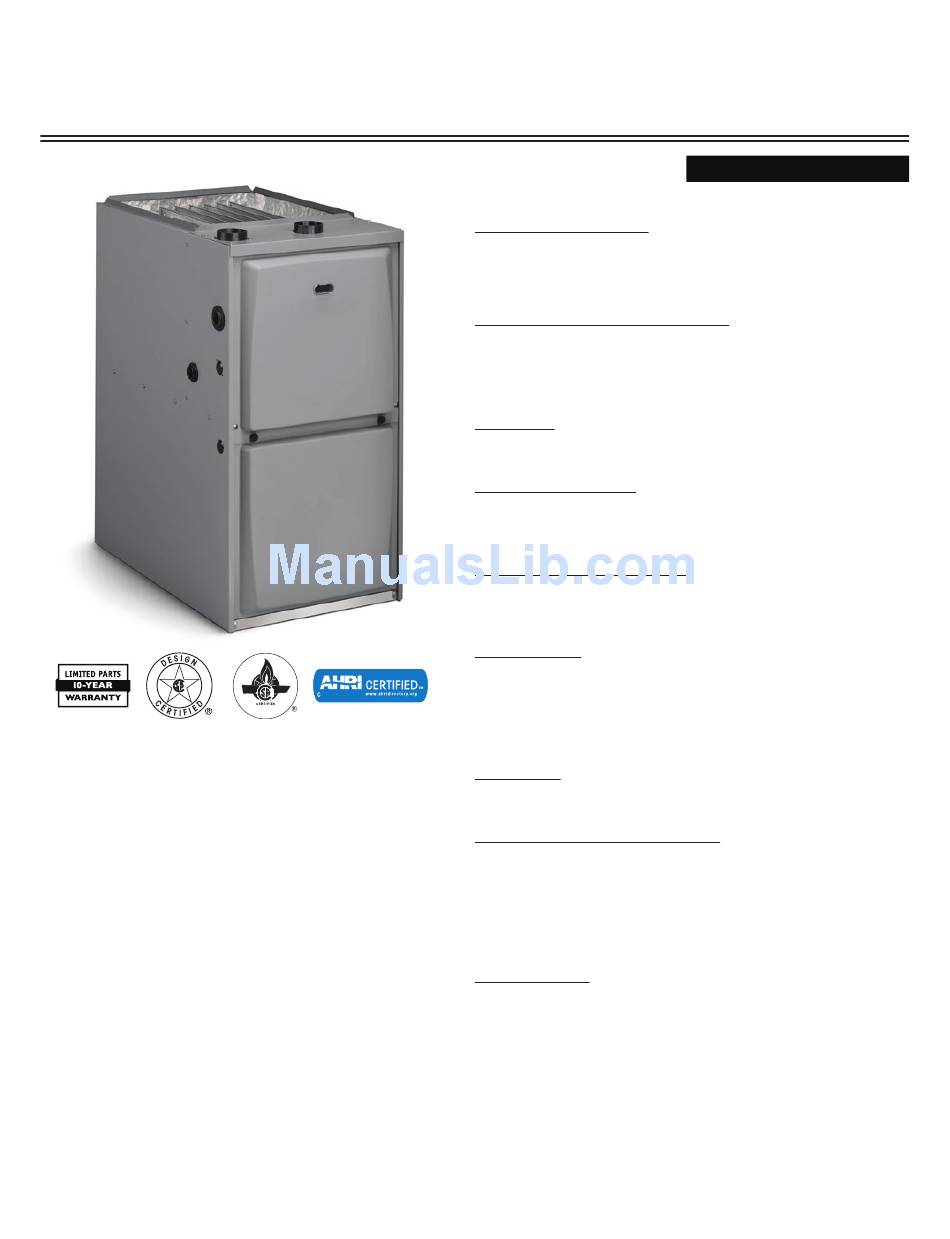

95G1
PRODUCT SPECIFICATIONS
CONFIGURATIONS
• Upflow/Horizontal
• Downflow
HEAT EXCHANGER DESIGN
• Aluminized steel design primary heat exchanger with crimped no
weld construction
• AL 29-4C Stainless steel secondary heat exchanger
BURNER
• Aluminized steel inshop burners for smooth fit
CABINET DESIGN
• Compact 33" height
• Standardized widths for easy coil fit
AIR DELIVERY SYSTEM
• Multi-speed PSC blower motor
• Easily removable slide-out blower design
CONTROLS
• Single Stage Gas Valve
• Self diagnostics saves last 5 fault codes regardless
of power interruption
• Control features electronic air cleaner and humidifier terminals
VENTING
• Designed certified for direct and non direct applications
INSTALLATION FEATURES
• Left or right utility connection
• Designed certified for direct and non-direct vent applications
• Zero step horizontal conversion
• Removable floor base for bottom return air
WARRANTY
10 year limited parts warranty / lifetime heat exchanger warranty available.
See limited warranty document for details.
Page 1

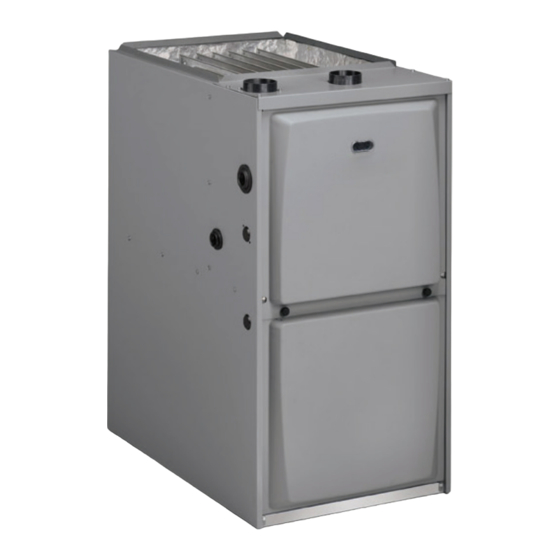

SINGLE STAGE
GAS FURNACE
FORM NO. 95G1-100 (08/2015)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ducane 95G1
Summary of Contents for Ducane 95G1
- Page 1 95G1 SINGLE STAGE PRODUCT SPECIFICATIONS GAS FURNACE FORM NO. 95G1-100 (08/2015) CONFIGURATIONS • Upflow/Horizontal • Downflow HEAT EXCHANGER DESIGN • Aluminized steel design primary heat exchanger with crimped no weld construction • AL 29-4C Stainless steel secondary heat exchanger BURNER • Aluminized steel inshop burners for smooth fit CABINET DESIGN • Compact 33"...
- Page 2 95% GAS FURNACE 95G1 MODEL NUMBER GUIDE 95 G 1 UH 110 C P 16 -01 AFUE NUMERIC CODE 95 = 95% EFFICENCY REVISION CODE NOM. CFM X 100 G = GAS 08 = 2TON ADD ON COOLING 12 = 3TON ADD ON COOLING...
-
Page 3: Blower Performance Data
95% GAS FURNACE 95G1 BLOWER PERFORMANCE DATA CFM @External Static Pressure - " w.c. Motor Temp Blower Blower Model Size Rise Size Speed (hp) (°F) 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 High 1125 1090 1065 1020 Med/High 95G1UH045BP08... - Page 4 95% GAS FURNACE 95G1 BLOWER PERFORMANCE DATA CFM @External Static Pressure - " w.c. Motor Temp Blower Blower Model Size Rise Size Speed (hp) (°F) 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 High 1500 1450 1350 1300 1195 1140...
- Page 5 95% GAS FURNACE 95G1 DIMENSIONS (IN.) Front View Model 95G1UH045BP08 17-1/2 16-3/8 7-5/8 95G1UH045BP12 17-1/2 16-3/8 7-5/8 95G1UH070BP12 17-1/2 16-3/8 7-5/8 95G1UH090CP12 19-7/8 19-1/2 9-3/8 95G1UH090CP16 19-7/8 19-1/2 9-3/8 95G1UH110CP16 19-7/8 19-1/2 9-3/8 95G1UH110CP20 19-7/8 19-1/2 9-3/8 95G1UH135DP20 24-1/2 23-3/8...
-
Page 6: Accessory List
For vent length and clearances to combustibles, please reference installation instructions. 1-800-448-5872 All specifications and illustrations subject to change without notice and without incurring obligations. FORM NO. 95G1-100 (08/2015) ©2015 Allied Air Enterprises LLC, a Lennox International Inc. Company Printed in the U.S.A. Page 6...
