Armstrong TRI-PAK ts110 Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CEILING SYSTEMS
Installation Manual
TRI-PAK™ TS-110

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRI-PAK ts110 and is the answer not in the manual?

Questions and answers

Related Manuals for Armstrong TRI-PAK ts110

Summary of Contents for Armstrong TRI-PAK ts110

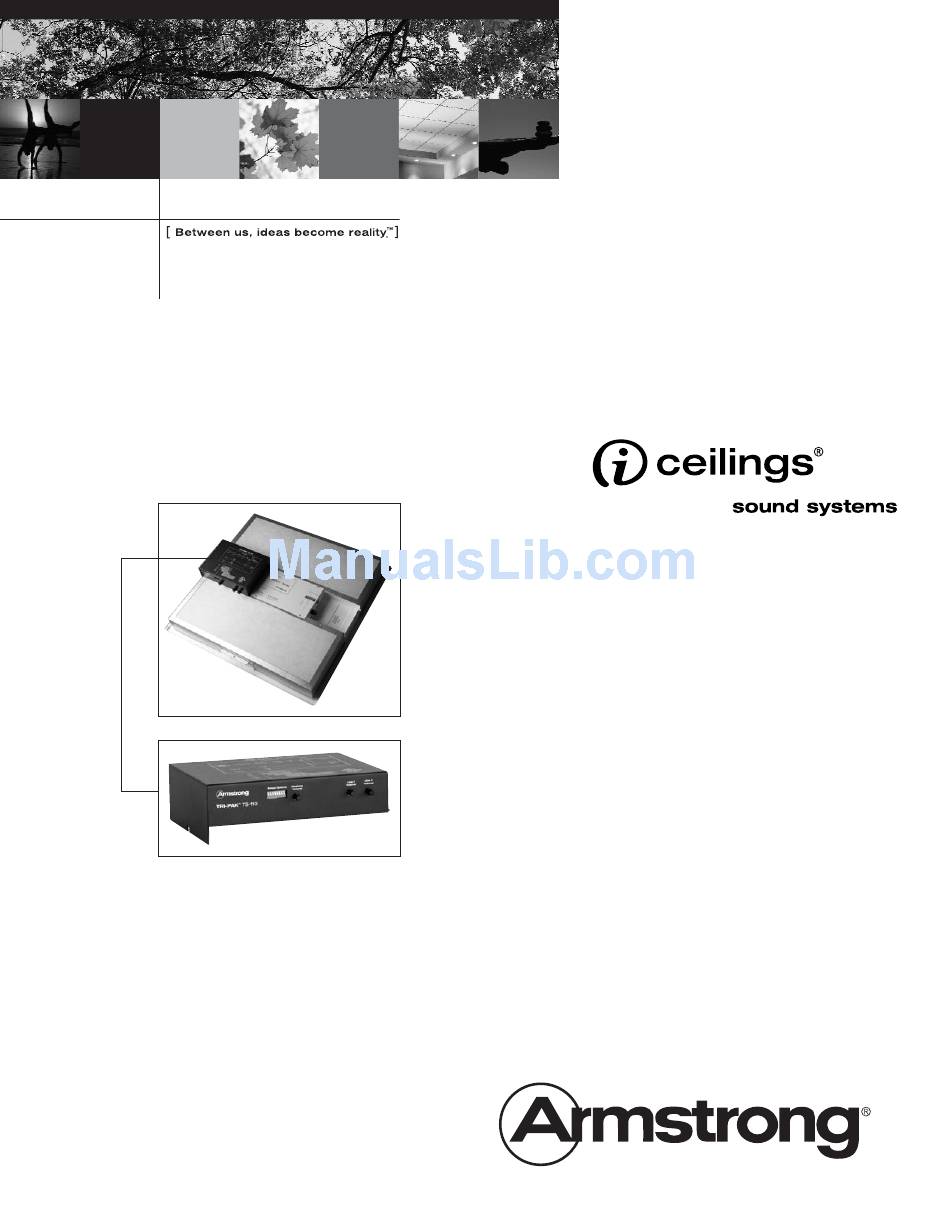

  • Page 1 CEILING SYSTEMS Installation Manual TRI-PAK™ TS-110...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS WARNING FOR YOUR PROTECTION PLEASE READ THE FOLLOWING: 1) Read these instructions. 2) Keep these instructions. Make all wiring connections prior to AC connection and power up. 3) Heed all warnings. 4) Follow all instructions. WARNING: 5) Do not use this apparatus near water. To reduce the risk of fire or electric 6) Clean only with dry cloth.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SECTION: PAGE: 1. Introduction ....................1 2. Block Diagram and Product Views ............2 3. Truth Table and Factory Default Settings..........4 4. Installation Guide ...................5 5. Application Guides.................8 5A. Sound Masking .................8 5B. Paging: ..................10 5B.1. Via microphone (pre-amplified)........10 5B.2.

  • Page 4: Introduction

    –4 dB per octave or NC40 via switch selection. Multiple line/music The TS-110 is a low-voltage system installed directly level inputs are provided. Switch selectable into the chassis of an Armstrong ESSENTIALS ™ equalization for the Armstrong P-25 and E-5 PRIVACY ™...

  • Page 5: Block Diagram And Product Views

    SECTION 2: BLOCK DIAGRAM AND PRODUCT VIEWS BLOCK DIAGRAM: SIDE PANEL: Masking Music/Line 2 Volume Control Volume Control DIP Switch Music/Line 1 Setup Options Volume Control TS-110 Installation Manual - Page 2...
  • Page 6 SECTION 2: BLOCK DIAGRAM AND PRODUCT VIEWS INTERNAL CONNECTIONS AREA: All input/output connections will be made in this area. All connections will be contained in this cover when it is installed properly on an Armstrong PRIVACY (P-25 model) or ESSENTIALS (E-5 model) speaker. Line...

  • Page 7: Truth Table And Factory Default Settings

    Factory Default Settings: (DIP Switches 1-8 all down) –4 dB noise pre-filter • Normal noise level • Armstrong P-25 speaker equalization • Normal space equalization • HOW TO SELECT OPTIONS USING THE DIP SWITCHES: The setup options are selected via DIP switches which can be accessed with a small screwdriver. In the truth table, “on”...

  • Page 8: Installation Guide

    SECTION 4: INSTALLATION GUIDE The TS-110 is designed for installation on the Armstrong P-25 or E-5 model speaker panels. The set-up procedure is the same for each option. Follow these steps: Remove cover plate from speaker and discard. Place all input and output cables through knockouts and secure with strain relief. Leave at least 6"-10"...
  • Page 9 SECTION 4: INSTALLATION WIRING DIAGRAMS FIGURE 1: CONNECTION OF TS-110 SPEAKER OUTPUT TO MASTER PRIVACY SPEAKER Connect the TS-110 speaker output TS-110 (100V, 70V, or 25V) to the master speak- er. The PRIVACY speaker requires use of the 2-pin connector. Ensure that the voltage matches the slide switch selection of 70V or 25V (70V shown).
  • Page 10 SECTION 4: INSTALLATION WIRING DIAGRAMS FIGURE 3: CONNECTION OF TS-110 SPEAKER OUTPUT TO MASTER ESSENTIALS SPEAKER Connect the TS-110 speaker output TS-110 (100V, 70V, or 25V) to the master speaker. The ESSENTIALS speaker requires use of electrical wire nuts. Ensure that the voltage matches the slide switch selection of 70V or 25V (70V shown).

  • Page 11: Application Guides

    The factory default settings are as folows: –4 dB noise pre-filter • Normal noise level • Armstrong P-25 speaker equlization • Normal space equalization • OPEN PLAN SET-UP PROCEDURE For an open plan application, the set-up process is as follows: 1) Turn the masking volume down on the side panel.
  • Page 12 SECTION 5A: SOUND MASKING APPLICATION GUIDE CLOSED PLAN SET-UP PROCEDURE For a closed plan application, it is usually recommended to have one P-25 model speaker installed per room (unless it is a larger room, in which case as many as four P-25 speakers may be used).

  • Page 13: Paging

    SECTION 5B: PAGING APPLICATION GUIDE 5B.1. VIA MICROPHONE (PRE-AMPLIFIED) Connect microphone to a microphone preamplifier. Connect the mic preamp to Line 1 or Line 2 input. Connect speaker output (100V, 70V, or 25V) to main speaker. Daisy chain to secondary speaker(s). Set voltage switch on speaker to match power selected for TS-110 and make speaker tap setting selection.

  • Page 14: 4. Via Tr-230 For Telephone Paging

    SECTION 5B: PAGING APPLICATION GUIDE 5B.4. VIA TR-230 FOR TELEPHONE PAGING Connect telephone system to Armstrong TR-230 phone system input section (See TR-230 manual). Connect TR-230 Balanced Line Out to line input(s). Connect speaker output (100V, 70V, or 25V) to main speaker, daisy chain to secondary speaker(s), set switch on speaker to match power (100V, 70V, or 25V) and select speaker tap setting.

  • Page 15: Music

    SECTION 5C: MUSIC APPLICATION GUIDE To use the TS-110 to drive background music, follow these steps: Connect the music source to the Line 1 or Line 2 input. Connect speaker output (100V, 70V, or 25V) to main speaker. Daisy chain to secondary speaker(s).

  • Page 16: Connection To External Volume Control

    SECTION 5E: CONNECTION TO EXTERNAL VOLUME CONTROL TS-110 P-25 SPEAKER SPEAKER POWER SUPPLY INPUT OUTPUT FOR PAGING AND MUSIC SYSTEMS: Connect speaker output at 100V, 70V, or 25V to input section of hi-level volume control (70V to + / Com to -). Connect hi-level volume control to speaker input of master speaker (where TS-110 is mounted).

  • Page 17: Technical Specifications

    PRODUCT APPROVALS • UL Listed • Plenum-rated when installed with the Armstrong P-25 or E-5 speaker under UL 2043 • This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 18: Troubleshooting Guide

    D. If output sounds odd, check to be sure that the left and right input signals are not wired into + and - inputs, respectively. E. If you are still experiencing difficulty, please call TechLine at 1-877-ARMSTRONG (1-877-276-7876). TS-110 Installation Manual - Page 15...
  • Page 19 NOTES: TS-110 Installation Manual - Page 16...

  • Page 20: Glossary Of Terms

    Dual Tone Multi Frequency, commonly referred to as “Touch Tone” DUCKING Lowering level of background music below that of an incoming page Armstrong ESSENTIALS model speaker panel Electronic Industry Association (based in Washington DC) Federal Communications Commission International Electrotechnical Commission (based in Geneva, Switzerland)
  • Page 21 NOTES: TS-110 Installation Manual - Page 18...

  • Page 22: Warranty Information

    This limited warranty is void if the label bearing the electronic unit’s date of manufacture is removed or defaced. You must notify Armstrong of any electronic unit failure covered by this warranty within 30 days of first observation of failure by writing to the following address: Armstrong World Industries, Inc.
  • Page 23 Contact TechLine at 1-877-ARMSTRONG ™ (1-877-276-7876) with questions or for technical assistance. Patents pending. Features and specifications subject to change without notice. LA-295778-905 © AWI Licensing Company, 2005 Printed in the United States of America...
