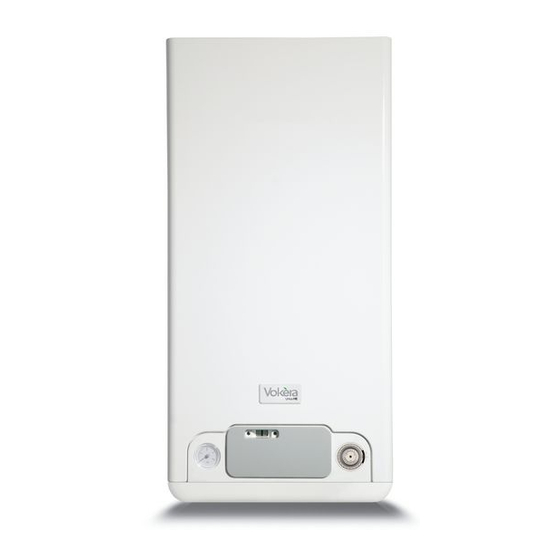

High efficiency combi boiler
Hide thumbs Also See for Unica HE:
Table of Contents

Advertisement

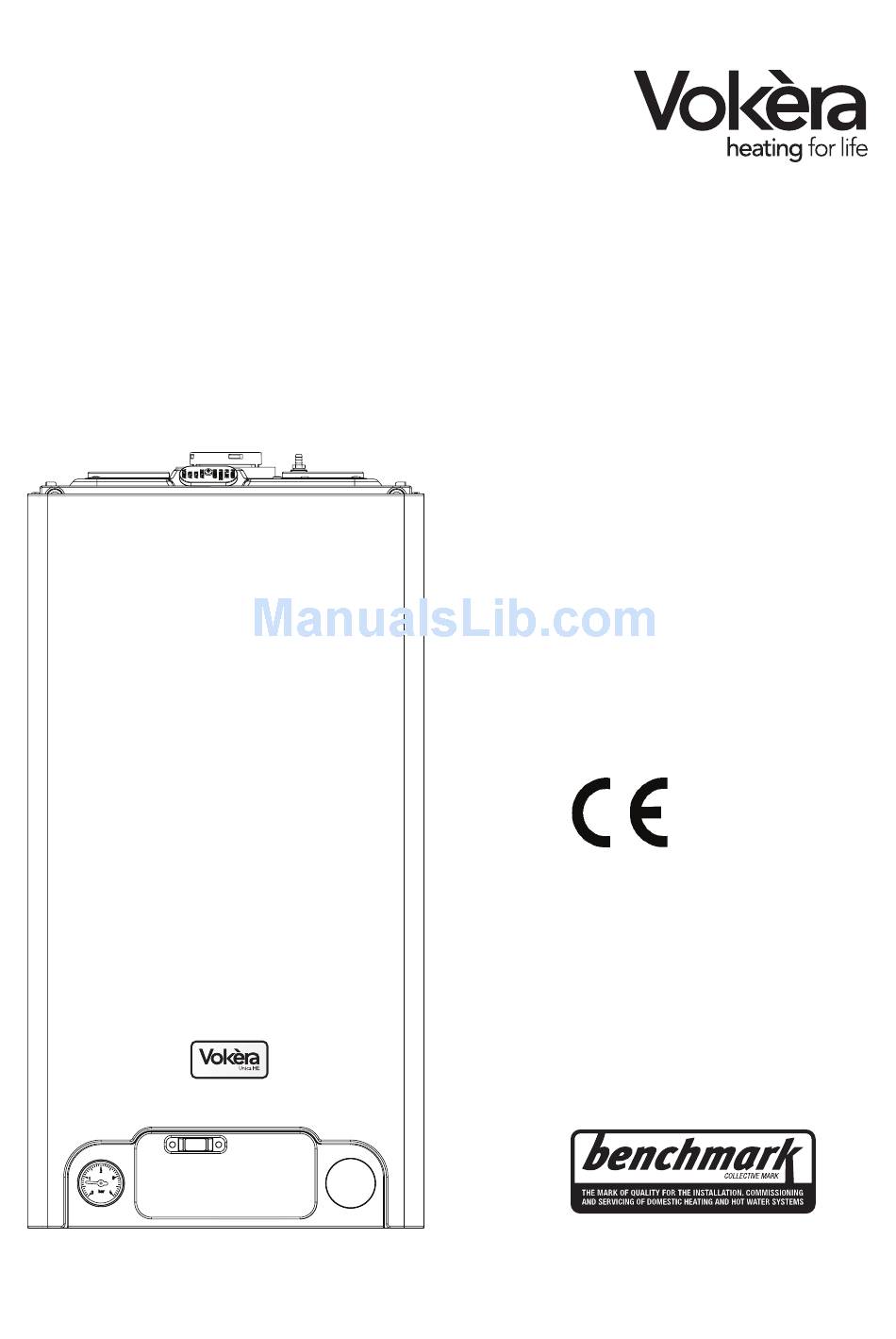

Unica HE
High efficiency combi boiler
Installation
& Servicing
Instructions
THESE INSTRUCTIONS
TO BE RETAINED
BY USER
Vokèra is a licensed member of the Benchmark scheme
which aims to improve the standards of installation and
commissioning of domestic hot water systems in the UK.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Unica HE and is the answer not in the manual?

Questions and answers

Summary of Contents for VOKERA Unica HE

  • Page 1 Unica HE High efficiency combi boiler Installation & Servicing Instructions THESE INSTRUCTIONS TO BE RETAINED BY USER Vokèra is a licensed member of the Benchmark scheme which aims to improve the standards of installation and commissioning of domestic hot water systems in the UK.
  • Page 2: Table Of Contents

    General requirements (EIRE) Page External wiring 3A.1 Related documents Typical control applications 3A.2 Location of appliance Other devices 3A.3 Gas supply Vokera twin-channel programmer 3A.4 Flue system 3A.5 Air supply Exploded diagrams Page 3A.6 Water circulation 3A.7 Electrical supply Table 1 3A.8 Mounting on a combustible surface...
  • Page 3 Domestic hot water heat exchanger DHW flow switch Gas valve Condensing drain Heating return connection Heating flow connection Gas connection Hot water outlet Cold water inlet The Unica HE is approved for use with C13 & C33 type flue applications.
  • Page 4 HEATING 2-digit LED RED LED TEMPERATURE GREEN LED TEMPERATURE display SELECTOR SELECTOR HYDROMETRE MODE SELECTOR SWITCH Fig. 1A Hot water only Select this position if you want the boiler to supply hot water only (no heating) Boiler at OFF/standby Select this position when you want the boiler to be switched off or short periods (days) or if the boiler requires to be reset (refer to users handbook) Heating &...
  • Page 5: Design Principles & Operating Sequence

    SECTION 1 DESIGN PRINCIPLES AND OPERATING SEQUENCE PRINCIPLE COMPONENTS electronic circuitry increases the gas rate to • A fully integrated electronic control board maximum or will modulate output to stabilise the featuring electronic temperature control, anti- temperature. cycle control, pump over-run, self-diagnostic fault indicator, full air/gas modulation.
  • Page 6: Technical Data Page

    2.5 Dimensions Unica 28HE Unica 32HE Unica36HE Height (mm) Width (mm) Depth (mm) Dry weight (kg) 2.6 Clearances UNICA HE Range Sides 12mm 150mm from casing or 25mm above flue elbow (whichever is applicable) Bottom 150mm Front 600mm 2.7 Connections UNICA HE Range Flow &...
  • Page 7: Pump Duty

    2.12 PUMP DUTY Fig. 3 shows the flow-rate available – after allowing for pressure loss through the appliance – for system requirements. When using this graph, apply only the pressure loss of the system. The graph is based on a 20 C temperature differential.
  • Page 8: General Requirements (Uk)

    SECTION 3 GENERAL REQUIREMENTS (UK) This appliance must be installed by a competent the appliance gas inlet connection must not be person in accordance with the Gas Safety used. The installation must be tested for (Installation & Use) Regulations. soundness in accordance with BS6891. RELATED DOCUMENTS If the gas supply serves more than one appliance, The installation of this boiler must be in accordance...
  • Page 9: Electrical Supply

    3.10 INHIBITORS fig.5 Vokera recommend that an inhibitor - suitable for use with copper and aluminium heat exchangers - is used to protect the boiler and system from 3.6.7 LOW PRESSURE SEALED SYSTEM the effects of corrosion and/or electrolytic action.
  • Page 10: Related Documents

    SECTION 3A GENERAL REQUIREMENTS (EIRE) such pluming must be considered. This appliance must be installed by a competent person If installed less than 2m above a pavement or in accordance with and defined by, the Standard platform to which people have access (including Specification (Domestic Gas Installations) balconies or flat roofs) the terminal must be Declaration (I.S.
  • Page 11: Electrical Supply

    Buildings’ gives specific advice on this type of installation. 3A.10 INHIBITORS Vokera recommend that an inhibitor - suitable for use with aluminium heat exchangers - is used to protect the boiler and system from the effects of corrosion and/or electrolytic action. The inhibitor must be administered in strict accordance with the manufacturers instructions*.
  • Page 12: Installation

    4.5.1 CONCENTRIC HORIZONTAL FLUE (For concentric vertical flue, see 4.5.2) (For twin flue applications, see 4.5.3) The appliance can be used with either the Vokera condensing 60/100mm concentric flue system or the optional 80/125mm concentric flue system. NOTE These instructions relate only to the Vokera condensing 60/100mm concentric flue system.
  • Page 13 “X” Fig. 10 4.5.2 CONCENTRIC VERTICAL FLUE The appliance can be used with either the Vokera condensing 60/100mm concentric flue system or the optional 80/125mm concentric flue system. NOTE These instructions relate only to the Vokera condensing 60/100mm concentric flue system.
  • Page 14 4.5.3 TWIN FLUE SYSTEM The Vokera twin flue system enables greater flue distances to be achieved (see 4.4.2) than that of a concentric flue system. It can be used for “X” “X” horizontal or vertical applications, however the 28/32/36 HE = 218 mm...
  • Page 15 connects to the exhaust connection on the screws – install the air inlet plate (B). • Using the hole in the exhaust connection manifold concentric to twin converter. as a guide, drill a 3mm hole in the appliance flue If necessary cut the plain ends (male) of the twin spigot and secure the exhaust manifold flue pipes to allow connection to the concentric to connection to the flue spigot using the screw...
  • Page 16: Connecting The Gas & Water

    The appliance is supplied with a fixing jig that includes service valves (fig. 14). The service valves are of the compression type. The accessories pack contains sealing washers etc, for use with the service valves. When connecting pipe work to the valves, tighten the compression end first then insert the sealing washers before tightening the valve to the appliance.
  • Page 17: Electrical Connections

    It is the installer’s responsibility to ensure that the external controls will be required please refer to the appliance is properly Earthed. Vokera Ltd. cannot be held responsible for any damages or injuries wiring diagrams in section 8 for more detailed caused as a result of incorrect Earth wiring.
  • Page 18: Commissioning

    SECTION 5 COMMISSIONING GAS SUPPLY INSTALLATION INITIAL FLUSHING OF THE SYSTEM Inspect the entire installation including the gas The whole of the heating system must be flushed meter, test for soundness and purge. Refer to BS both cold and hot as detailed in 5.8. Open all 6891 (I.S.
  • Page 19: Final Flushing Of The Heating System

    By completing the warranty registration fitted and the spare restrictors supplied in the card and posting to us using the envelope supplied accessory pack. Each restrictor is colour-coded • Online at: vokera.co.uk to enable identification. • For UK residents by calling: 0870 607 0281 5.11.2 CHANGING THE FLOW-RATE RESTRICTOR...
  • Page 20: General

    5, after replacing any component. it is essential that any worn or failed component ALWAYS TEST FOR GAS SOUNDNESS IF ANY be replaced only with a genuine Vokera spare GAS CARRYING COMPONENTS HAVE BEEN part. It should be remembered that although REMOVED OR DISTURBED.
  • Page 21: Safety Valve

    SAFETY VALVE (fig. 23) 6.11 PRINTED CIRCUIT BOARD (fig. 25) Carry out component removal procedure as Carry out component removal procedure as described in 6.4. Disconnect the outlet pipe (A) described in 6.4. Pull the control fascia forward from the safety valve, remove safety valve locking and lower it.
  • Page 22: Electrodes And Condense Sensor

    6.13 ELECTRODES & CONDENSE SENSOR (fig. 27) (D). Disconnect the electrode leads and ancillary wiring from their respective connectors. Remove Carry out component removal procedure as the retaining screws (A, fig. 29) for sensing described in 6.4. Unclip and remove the air chamber electrode and remove.
  • Page 23: Automatic By-Pass

    Fig. 31: To remove the fan burner assembly (A) locate and remove the 3 external nuts (B). Replace in the reverse order. Ensure all seals are in good condition, taking care to ensure they are replaced correctly. 6.17 AUTOMATIC BY-PASS & DHW NON-RETURN VALVE (fig.
  • Page 24 6.20.1 DHW FLOW RESTRICTOR (Fig. 35A) 6.20.4 DHW THERMISTOR (Fig. 35B) Carry out the component removal procedure as Carry out component removal procedure as described in 6.4. described in 6.4. Disconnect the cold water inlet pipe at the DHW Locate and remove the thermistor locking pin (H). flow switch (A).
  • Page 25: Checks, Adjustments And Fault Finding

    AUTOSTOP function, can be obtained from appliance. your local Vokera Sales Representative. • CO FUNCTION: The CO function when APPLIANCE MODES OF OPERATION activated, will allow the appliance to run at...
  • Page 26: Appliance Fan Speed

    CO mode for approximately 15-minutes Gas type and appliance fan speed (output) must (see 7.10). be set according to the specific appliance specification. Vokera accepts no responsibility if 7.4.1 GAS VALVE MAXIMUM SETTING the gas type and/or fan speed is not correctly...
  • Page 27: Combustion Analysis Test

    7.7.1 INSTALLATION FAULTS Maximum Symptom Possible cause screw Compensation No display/ignition Check wiring/check electrical pipe connection supply No hot water Check pipe-work No heating Check external controls Minimum screw Fault code Possible cause Check gas supply, check flue fig. 37 system, check polarity 7.4.2 GAS VALVE MINIMUM SETTING...
  • Page 28: Fault Finding

    These series of checks must be carried out before 7.12 COMPONENT VALUES & CHARACTERISTICS attempting any faultfinding procedures on the COMP ONENT VALUE appliance. On completion of any task that required 230Vac the disconnection and re-connection of any Pump 230Vac electrical wiring or component, these checks must Valve actuator (Combi only) 230Vac...
  • Page 29: Wiring Diagrams

    HC5/HC6 (www.energyefficiency.gov.uk). VOKERA MECHANICAL CLOCK (code ) The Vokera mechanical clock (product code) is entirely suitable for the Unica HE range and eliminates the need for an external time control. The kit is comprised of the following: • Mechanical clock •...
  • Page 30 FUNCTIONAL DIAGRAM Fig. 38 NOTE: L-N-E connection is advisable F Hv Fan power supply 230 V M3-M5 Terminal strip for supply in / clock / room thermostat F Lv Fan signal control M3a-M4 Terminal strip for esternal sensor / condense pump / low Pump temperature thermostat...
  • Page 31: Exploded Diagrams

    SECTION 9 EXPLODED DIAGRAMS Table 1 28 HE 30 HE/35 HE POS. DESCRIPTION 28 HE 32 HE 36 HE Frame assembly 01005403 01005446 01005406 Pressure gauge 2564 2564 2564 Cover assembly 10028554 10028554 10028554 Printed Circuit Board 10028558 10028558 10028558 Led light guide 10028557 10028557...
  • Page 32: Table 2

    Table 2 28 HE 32 HE/36 HE POS. DESCRIPTION 28 HE 32 HE 36 HE Condensing exchanger assembly 8037 1957 10024627 Fitting/union 10024640 10024640 10024640 Pressure switch 10028141 10028141 10028141 Non return valve 10025056 10025056 10025056 By-pass casing 10024641 10024641 10024641 Heating by-pass valve 2047...
  • Page 33: Table 3

    Table 3 28 HE 32 HE/36 HE POS. DESCRIPTION 28 HE 32 HE 36 HE Expansion vessel 2204 2573 2573 Pipe 10025188 10025188 10025188 Pump 10027571 10027571 10027571 Wiring harness (pump) 10028633 10028633 10028633 Pipe 10028428 10026264 10026264 Pipe 10027317 10027317 10027317 Pipe...
  • Page 34: Table 4

    Table 4 28 HE 30 HE/35 HE POS. DESCRIPTION 28 HE 32 HE 36HE Roomsealed chamber 10028341 10028447 10028447 Side 10026231 10026231 10026231 10028456 10028456 10028456 Burner 10028537 10028642 10028537 Spark/ignition electrode 10027864 10027864 10027864 Condense electrode 10026316 10026316 10026316 Gas pipe 10028620 10026318...
  • Page 35: Table 5

    28 HE Table 5 30 HE/35 HE POS. DESCRIPTION 28 HE 32 HE 36 HE Condensing exchanger assembly 01005443 01005366 01005369 Conveyor 10028536 10028623 10028623 Flue drain connection 10028421 10028421 10028421 Washer 10026323 10026323 10026323 Washer 10026366 10026366 10026366 Washer 10026345 10026345 10026345...
  • Page 36: Related Documents

    SECTION 10 LPG INSTRUCTIONS 10.1 RELATED DOCUMENTS BS 5440 PARTS 1 & 2 FLUES & VENTILATION REQUIREMENTS BS 5449 PART 1 FORCED CIRCULATION OF HOT WATER SYSTEMS BS 5482 PART 1 DOMESTIC BUTANE & PROPANE GAS BURNERS IN PERMAMENT DWELLINGS BS 5546 INSTALLATION OF GAS HOT WATER SUPPLIES FOR DOMESTIC PURPOSES...
  • Page 37: Appliance Fan Speed

    ATTENTION Gas type and appliance fan speed (output) must be set according to the specific appliance specification. Vokera accepts no responsibility if the gas type and/or fan speed is not correctly adjusted according to the respective appliance specification as detailed on the appliance data badge.
  • Page 38: Benchmark

    BENCHMARK No. GAS BOILER COMMISSIONING CHECKLIST C O L L E C T I V E M A R K BOILER SERIAL No. NOTIFICATION No. CONTROLS To comply with the Building Regulations, each section must have a tick in one or other of the boxes TIME &...
  • Page 39: Service Interval Record

    SERVICE INTERVAL RECORD It is recommended that your heating system is serviced regularly and that you complete the appropriate Service Interval Record Below. Service Provider. Before completing the appropriate Service Interval Record below, please ensure you have carried out the service as described in the boiler manufacturer’s instructions.
  • Page 40 Registered address: Vokèra Ltd Borderlake House Unit 7 Riverside Industrial Estate London Colney Herts AL2 1HG enquiries@vokera.co.uk www.vokera.co.uk www.vokera.ie Sales, General Enquires T 0844 391 099 F 0844 391 0998 Vokèra Ireland West Court, Callan Co Kilkenny T 056 7755057 F 056 7755060 Vokèra Limited reserve the right to change...
