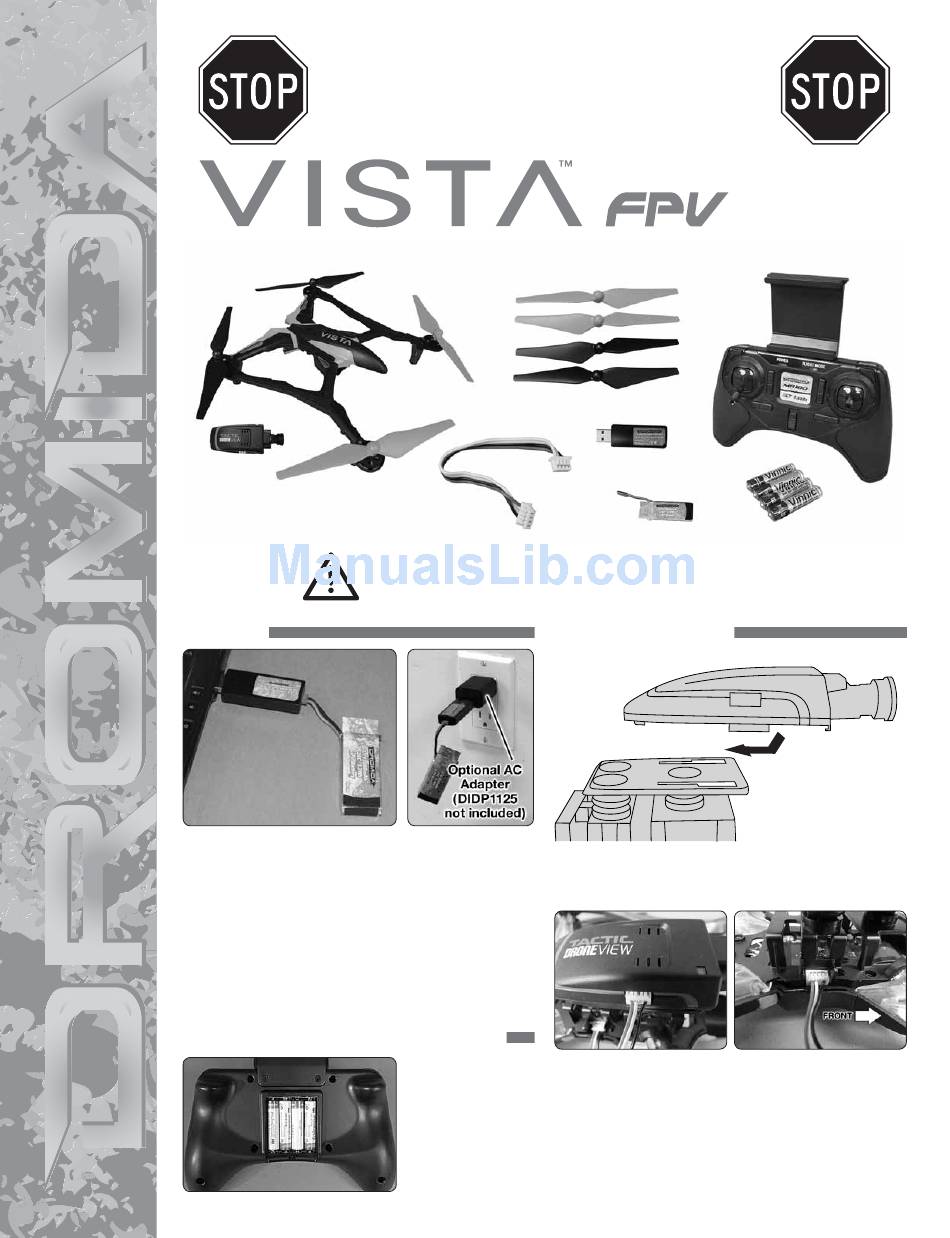

BEFORE FLYING, PLEASE
READ & UNDERSTAND
THESE INSTRUCTIONS!
and go to www.knowbeforeyoufly.org
Vista FPV Quadcopter
Camera
with
Memory
Card
CHARGING
Plug the charger into a USB port or AC adapter (not included) as
shown and connect the battery. The charger LED is steady on when
charging. The LED flashes when charge is complete.
● NEVER leave the battery unattended while charging.
● DO NOT allow the USB port to power down while the charger
is connected to the battery.
● ALWAYS unplug the charger from the USB port and the battery
when charging is complete.
● NEVER charge a puffed or damaged battery.
INSTALL BATTERIES IN THE CONTROLLER
Spare Blades
(2 black, 2 color)
Camera Wire
TO PREVENT MOTOR DAMAGE ALWAYS BE SURE THE THROTTLE IS
OFF WHEN THE BLADES ARE OBSTRUCTED OR CONTROL IS LOST.
Remove the screw and
slide the cover down to
insert the included 4
AAA batteries.
USB Charger
Flight Battery
INSTALL THE CAMERA
1. Carefully slide the camera onto the camera mount until you feel
it click into place.
2. Connect the included camera wire to the camera and to the
quadcopter. The plugs can only be connected one way. Look
closely at the photos to see the orientation of wire colors.
Radio Controlled
Quadcopter
Controller
AAA Batteries (4)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VISTA FPV and is the answer not in the manual?

Questions and answers

Related Manuals for Hobbico VISTA FPV

Summary of Contents for Hobbico VISTA FPV

  • Page 1 BEFORE FLYING, PLEASE READ & UNDERSTAND THESE INSTRUCTIONS! and go to www.knowbeforeyoufly.org Radio Controlled Quadcopter Spare Blades Vista FPV Quadcopter (2 black, 2 color) Controller Camera Wire USB Charger Camera with Memory Card Flight Battery AAA Batteries (4) TO PREVENT MOTOR DAMAGE ALWAYS BE SURE THE THROTTLE IS OFF WHEN THE BLADES ARE OBSTRUCTED OR CONTROL IS LOST.
  • Page 2 LINKING FLYING 1. Turn on the controller with the throttle at its lowest position. 2. Connect the battery to the Vista and place it on a level surface. The LED on the quad will flash rapidly when the quad is linked to the controller and ready to fly.

  • Page 3: Low Battery Indicator

    The LEDs on the Vista will fl ash slowly when the LiPo battery voltage is low. The NOTE: Avoid pressing and holding the video and picture buttons. A quick ‘press Vista FPV should be landed as soon as possible to avoid damaging the battery. and release’ is sufficient to activate the camera.
  • Page 4 NOTE: The DroneView camera’s maximum video length is 5 minutes. If video is recorded for longer than 5 minutes the DroneView camera will automatically close the video file and start a new file. There may be a short loss of video footage during this switch to a new file.

  • Page 5: Troubleshooting

    Vista relying solely on the FPV feed. Delays in the FPV feed can cause the image Changing the WiFi Name will change how the Camera is identified in the WiFi shown in the app to not represent the exact current position of the Vista. Any network list.

  • Page 6: Motor Replacement

    PROBLEM: The video button on the controller does not work or works intermittently. PROP SHAFT REPLACEMENT SOLUTION: The video button must be pressed and quickly released. The controller 1. Remove the rotor blade from the will beep when the button works properly. prop shaft.

  • Page 7: Battery Precautions

    BATTERY PRECAUTIONS canopy LED strip that must be unplugged from the control board. The Vista FPV uses a lithium polymer (LiPo) battery. Follow these 5. Remove the 3 screws holding the control board and remove the board. precautions to ensure safe and trouble-free operation.

  • Page 8: Safety Precautions

    Maintain a safe pilot-to-quadcopter distance while fl ying. • Your Vista FPV quadcopter should not be considered a toy, but rather a small, working model. If not operated correctly, the model could possibly cause injury to you or spectators and damage to property.

  • Page 9: Fcc Requirement

    EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. Hobbico, Inc. This equipment has been tested and found to comply with the limits for a 2904 Research Road Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are...

  • Page 10: Replacement Parts

    REPLACEMENT PARTS 1 DIDE1200 Canopy Green 1 DIDE1201 Canopy Blue 1 DIDE1202 Canopy Yellow 1 DIDE1203 Canopy Orange 2 DIDE1204 Prop Set Yellow/Black 2 DIDE1205 Prop Set Orange/Black 2 DIDE1171 Prop Set Blue/Black 2 DIDE1172 Prop Set Green/Black 3 DIDE1175 Bearing Set 4 DIDE1176 Gear Set...
  • Page 12 TO PREVENT MOTOR DAMAGE ALWAYS BE SURE THE THROTTLE IS OFF WHEN THE BLADES ARE OBSTRUCTED OR CONTROL IS LOST. dromida.com © 2015 Dromida, a Hobbico ® company DIDE04xx v1.2...
