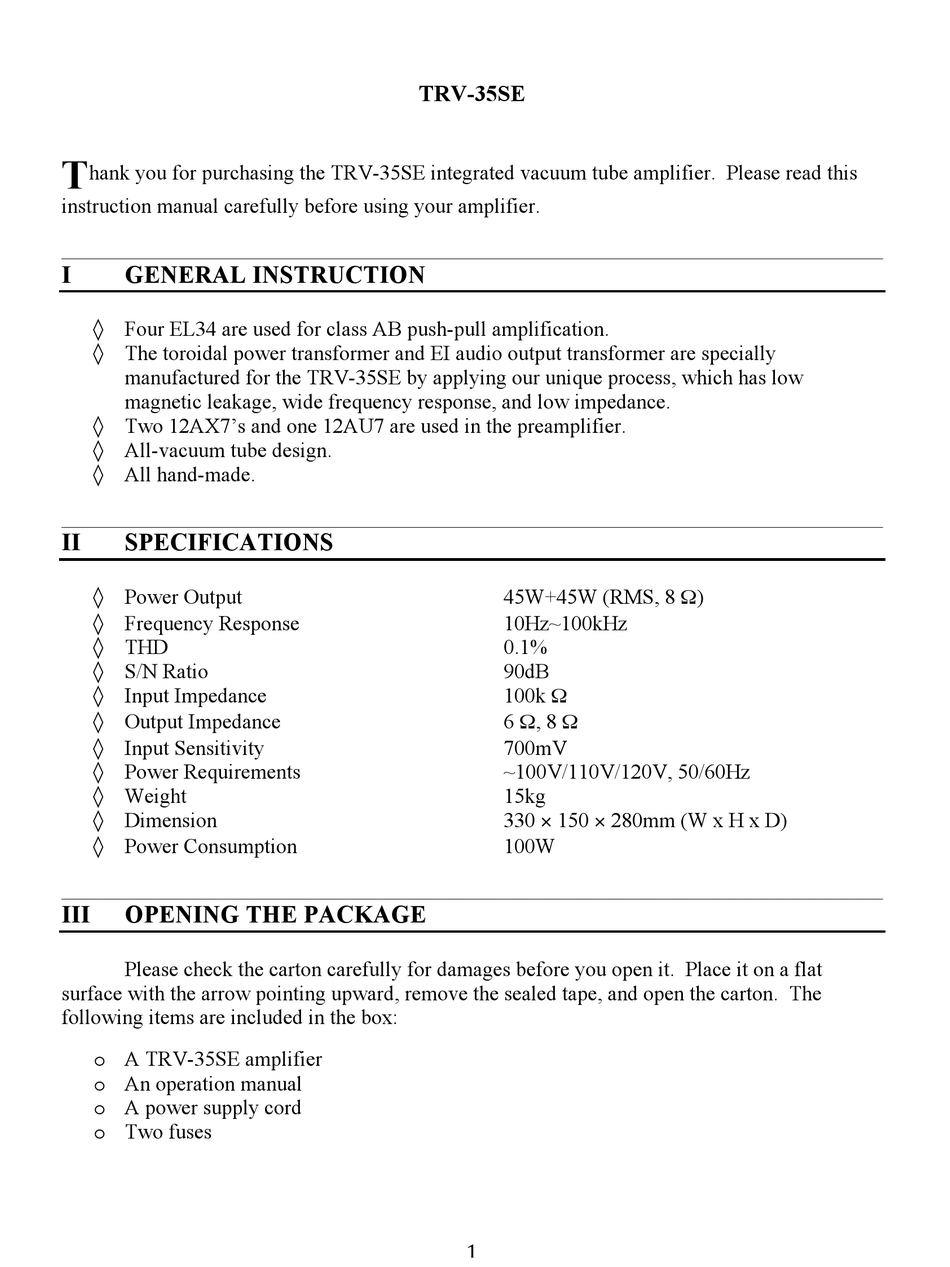

TRIODE trv-35se User Manual

T
hank you for purchasing the TRV-35SE integrated vacuum tube amplifier. Please read this
instruction manual carefully before using your amplifier.
______________________________________________________________________________
I

GENERAL INSTRUCTION

! Four EL34 are used for class AB push-pull amplification.
! The toroidal power transformer and EI audio output transformer are specially
manufactured for the TRV-35SE by applying our unique process, which has low
magnetic leakage, wide frequency response, and low impedance.
! Two 12AX7's and one 12AU7 are used in the preamplifier.
! All-vacuum tube design.
! All hand-made.
______________________________________________________________________________
II SPECIFICATIONS
! Power Output
! Frequency Response
! THD
! S/N Ratio
! Input Impedance
! Output Impedance
! Input Sensitivity
! Power Requirements
! Weight
! Dimension
! Power Consumption
______________________________________________________________________________
III OPENING THE PACKAGE
Please check the carton carefully for damages before you open it. Place it on a flat
surface with the arrow pointing upward, remove the sealed tape, and open the carton. The
following items are included in the box:
o A TRV-35SE amplifier
o An operation manual
o A power supply cord
o Two fuses
!
TRV-35SE
45W+45W (RMS, 8 ")
10Hz~100kHz
0.1%
90dB
100k "
6 ", 8 "
700mV
~100V/110V/120V, 50/60Hz
15kg
330 # 150 # 280mm (W x H x D)
100W
"!
