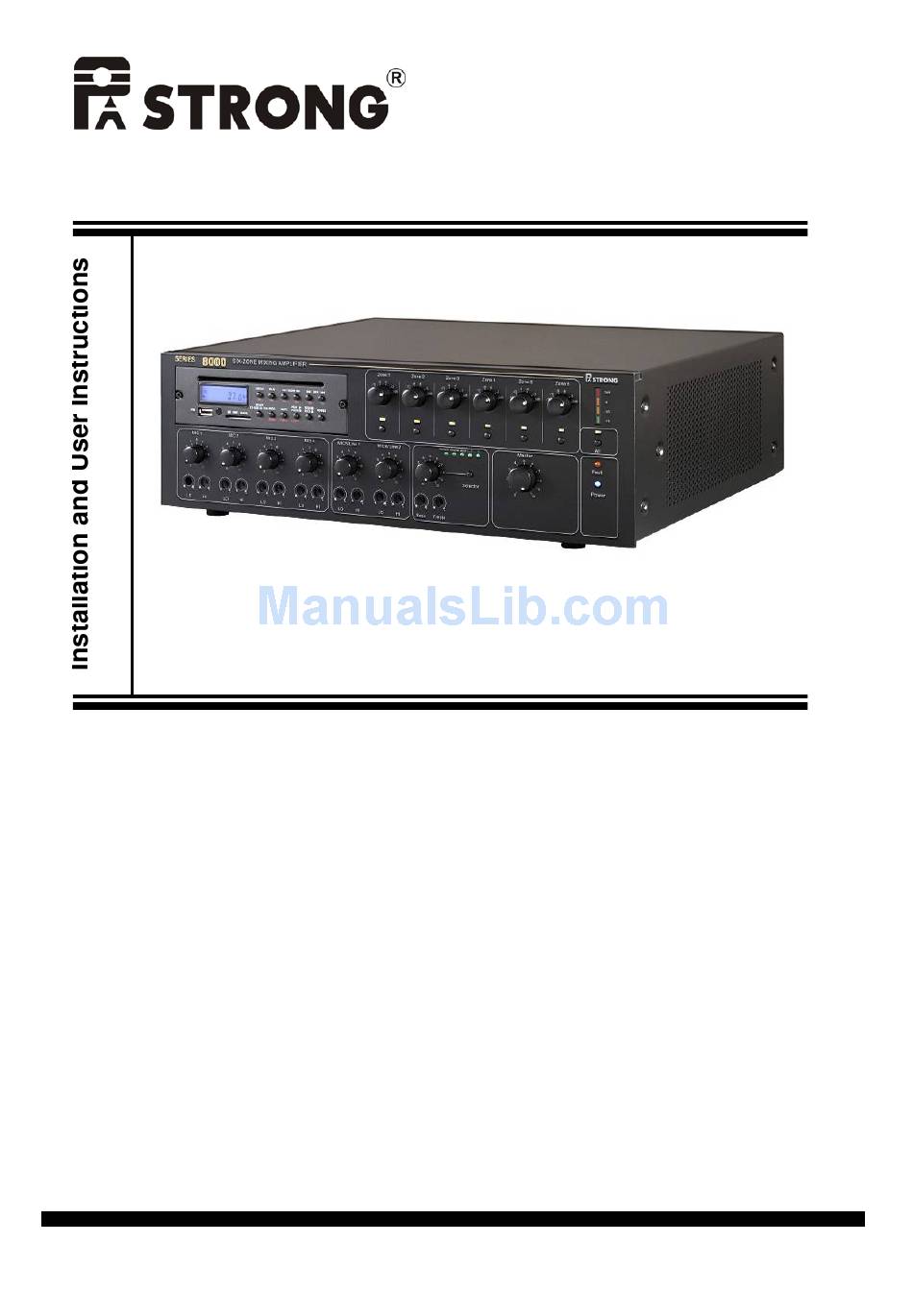

PUBLIC ADDRESS
8000
AMPLIFIER
SERIES
Six-Zone Mixing Amplifier
PX-8240
●
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PX-8240 and is the answer not in the manual?

Questions and answers

Related Manuals for PA Strong PX-8240

Summary of Contents for PA Strong PX-8240

  • Page 1 PUBLIC ADDRESS 8000 AMPLIFIER SERIES Six-Zone Mixing Amplifier PX-8240 ●...

  • Page 2: Table Of Contents

    IMPORTANT Before installing or operating this product, please always read this manual carefully. WARNING: To prevent the risk of fire or electric shock, never expose this product to rain or humidity. Table of contents Important safeguards----------------------------------------------------------------------------------2 Table of contents---------------------------------------------------------------------------------------2 Introduction --------------------------------------------------------------------------------------------3 Features -------------------------------------------------------------------------------------------------3 System Installation Diagram-------------------------------------------------------------------------4 Front Panel ---------------------------------------------------------------------------------------------4...

  • Page 3: Introduction

    Introduction PX-8240 is a MCU controlled six-Zone mixing amplifier. With the MCU in PX-8240 and other connected unit such as PPS-06, PWP-06, and PEX-8000 construct a MCU data communication system. It would be able to expand output Zones and to have different announce mode of background music (BGM) and call signal.

  • Page 4: System Installation Diagram

    System Installation Diagram Front Panel 1. MIC 1~4 Level Control. To adjust MIC 1~4 microphone level. 2. HI/LO Frequency Control for MIC 1~4 Adjust high and low frequency response of MIC 1~4. Set at center click, provides flat frequency response. 3.

  • Page 5: Master Volume Control

    4. HI/LO Frequency Control for MIC 5 ~ 6 or LINE 1 ~ 2 Adjust high and low frequency response of MIC 5 ~ 6 or LINE 1 ~ 2. Set at center click, provides flat frequency response. 5. REMOTE, SOURCE，AUX 1 ~ 3 Level Control To adjust SOURCE, AUX 1 ~ 3 level.

  • Page 6: Rear Panel

    Rear Panel 16. Power Switch Press rocker switch to switch on the unit. Press again to switch off the unit. 17. AC Line Voltage Selector. Set the slide switch to select the AC Line voltage (115V/230V AC). Note: Never set the switch to wrong AC Line voltage, it will cause damage to the unit. 18.
  • Page 7 24. Mode Selection Mode 1 Function Amplifier BGM/Call power amplifier Internal Not connected/Call Spare power External Mode 2 Function Amplifier BGM/Call Spare power amplifier Internal Call power amplifier External 25. 20KHz ON/OFF DIP Switch When set it at “ON”, pilot tone has 20 KHz signal; The spare amplifier can act as standby amplifier.
  • Page 8 33. MIC 5/ Phantom/ LINE 1 Switch By setting switch at LINE 1 or MIC 5, the input level can be switched. Set at phantom position, there will be phantom power on to the MIC input MIC 5 : 1.5mV, 600Ω, balanced LINE 1 : 200mV, 600Ω, balanced.
  • Page 9 45. BALANCED MOH Output Balanced MOH output terminal for monitoring source module or AUX1~3, ( 600Ω, balance signal. ) It is selected by (7) select switch. 46. TEL/EMG 100V-0 input 100V input of TEL/EMG signal, it is convenient for long distance broadcasting. 47.

  • Page 10: Installation

    3.2 Read the manual before install the system 3.3 (Optional) Install unit in rack The PX-8240 is designed for table top use. If user wants to use in the rack, please screw on the mounting bracket. Please refer to the drawing.

  • Page 11: Dip Switch Setting

    Set switch downward------mode1 Set switch upward--------mode2 For mode 1, the BGM and call signal will operate in the internal amplifier of PX-8240. The BGM signal will be muted when there is microphone or other higher priority signal is operating. For mode 2, you can add additional external amplifier at a call power amplifier.
  • Page 12 4.3 Set priority of Mic. 1～6. Set the priority switch of following. “0.0” MIC1>2>3>4>5>6 “0.1” The announcing MIC has the first priority. “1.0” The new announcing MIC Can override other MIC “1.1” All the MIC have the same priority Above are the four different priority modes of microphone input. 4.4 Set Chime mode There are 4 different chime modes.

  • Page 13: Microphone Installation

    The Chime signal can be activated by PPS-A unit, and PTT switch (40) of Mic. 1. Note: The paging station generate chime signal itself, it will not trigger chime signal of PX-8240. 5. Microphone Installation 5.1 MIC. 1 Input. There are two different way of MIC1 input.

  • Page 14: Phantom Power

    5.1.3. All call paging station a. Insert PPS-A to the RJ45 (32) b. Set the PTT at “ON” c. Press to give announcement. (There will be chime first when the PTT key of PPS-A is pressed .) d. Release the PTT key of PPS-A to stop operation The Mic1 with PPS-A will override and mute all the other inputs except TEL/EMER/100V input.

  • Page 15: Music Source Input

    5.4 MIC5/LINE1, MIC6/LINE2 a. Connect the I/P signal to MIC5 and MIC6 terminal. b. The LINE/phantom/MIC select switch is to select different input signal level. Set at LINE1/and LINE2, the sensitivity will be 200mV, it is available for music source signal input. c.

  • Page 16: Connection Of Tel Emg I

    7. Connection of TEL EMG I/P “+ /GND/ -”and“0/100V” 7.1 TEL EMG I/P “+ /GND/ -” The input of “+ /GND/ -”is a balanced input signal from telephone. 7.2 TEL EMG I/P “0/100V” The 0/100 pick up signal from output signal of amplifier, it is used for long distance broadcasting. Adjust TEL level to control the input signal level of TEL/EMEG..

  • Page 17: Connection Of Paging Station

    With RJ45 cable to connect wall control panel to the PX-8240 by wall control panel terminal (50). a. Press the activate push switch of PWP-06 and push the select switch of PX-8240 to select remote LED ON. b. The wall panel can control the PX-8240.

  • Page 18: Ext. Amp & Ext. Amp

    11. Ext Amplifier & EXT Amplifier in. An external amplifier can be connected to EXT. Amplifier XLR out (51) and EXT. AMP In (52) The external amplifier can act as a spare amplifier or call amplifier. It is decided by the mode settling dip switch (24). Please refer to the mode dip switch setting.

  • Page 19: Connection Of Output Zones

    The total equivalent load impedance should not be lower than the rated load impedance. 15. Power remote control Power remote control terminal can switch on the PX-8240 by external control switch. To implement this function, the power switch of PX-8240 should be at “OFF” position. 16. Back up battery connection...

  • Page 20: Battery Back Up Connection

    Two 12V batteries are connected to the DC24V terminal. It will back up the power source when AC power is power off. Note: Never connect to the wrong polarity of batteries. PX-8240 Six-Zone Mixing Amplifier Specifications...
  • Page 21 > 70 dB AUX 1 - 3: > 75 dB Tone Control Bass: ±10dB, 100Hz, Treble: ±10dB, 10KHz Wall control panel: RJ45 socket , operate under PX-8240 selector setting at “REMOTE” Remote Power: Dry contact terminal Control Input Open Voltage: 24V DC (when the unit's power is at "OFF"...
  • Page 22 Approx 18.0kg Mounting options Table Top or 19" Rack Mountable * 0dB = 1V * -20dB = 0.1V * -60dB = 1mV * Load: PX-8240: 42Ω Note: . The specification and design are subject to change without notice for improvement.
