Summary of Contents for Rydeen BVR400

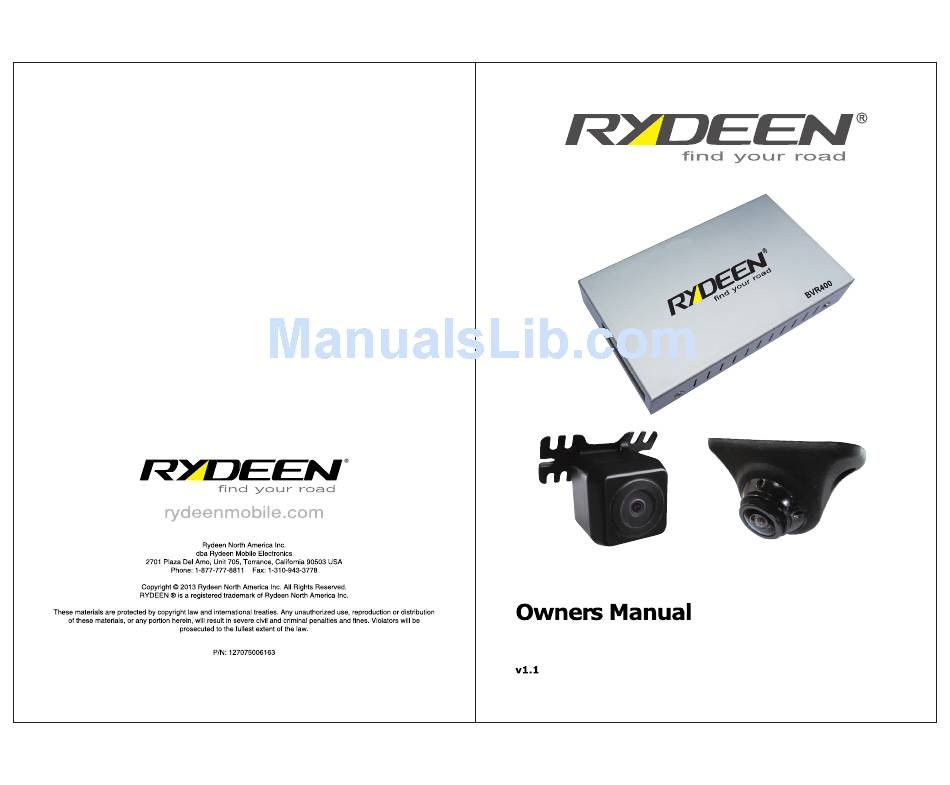

- Page 1 BVR400 SYSTEM 4 CH DVR System...
- Page 2 WELCOME STATEMENT & WARNINGS MAIN SPECIFICATIONS Congratulations and thank you for purchasing the RYDEEN BVR400 4 CH DVR Specification Item System. We hope you will enjoy using this exciting product and trust that it will 01.Video format Video format file: AVI make your driving experience more enjoyable and hassle-free.
- Page 3 CONTROL BOX INTRODUCTION (09)LEFT Key :The four pictures on video screen, press the LEFT key to always show the left optic camera screen, press the return key return and four screen on video interface. (10)RIGHT Key :The four pictures on video screen, press the RIGHT key to always show RESET Micro SD the right optic camera screen, press the return key return and four screen...
- Page 4 FEATURES OF CAMERAS (4PCS) WIRING DIAGRAM ILLUSTRATIONS The blue line: the original car left and right camera screen reversing trigger line Video interface and the camera connection line description: front and back camera A. black joint: infrared remote control receiving connection; B.
- Page 5 WIRING DIAGRAM ILLUSTRATIONS FOR THE ORIGINAL CAR REARVIEW SYSTEM SYSTEM SETTINGS (NOTE TO CONFIRM WHETHER THE ORIGINAL CAR CAMERAS CAN SUPPORT LONG TIME ELECTRICITY) In the remote control by pressing the "MENU" button to enter the system setup; The blue line: the original car Video interface and the camera connection line description: screen reversing trigger line Video player: play video files...
- Page 6 Reverse delay: set the car reversing off screen delay time, can be set to 10 seconds /20 seconds (default setting is 10 seconds). Format the memory card: "yes" or "no"; (such as "yes", will be on the memory card format). Version number: for viewing the host system version number PREVIEW OF THE SYSTEM WITH CAMERA IMAGES IN SPLIT SCREEN When driving :...
