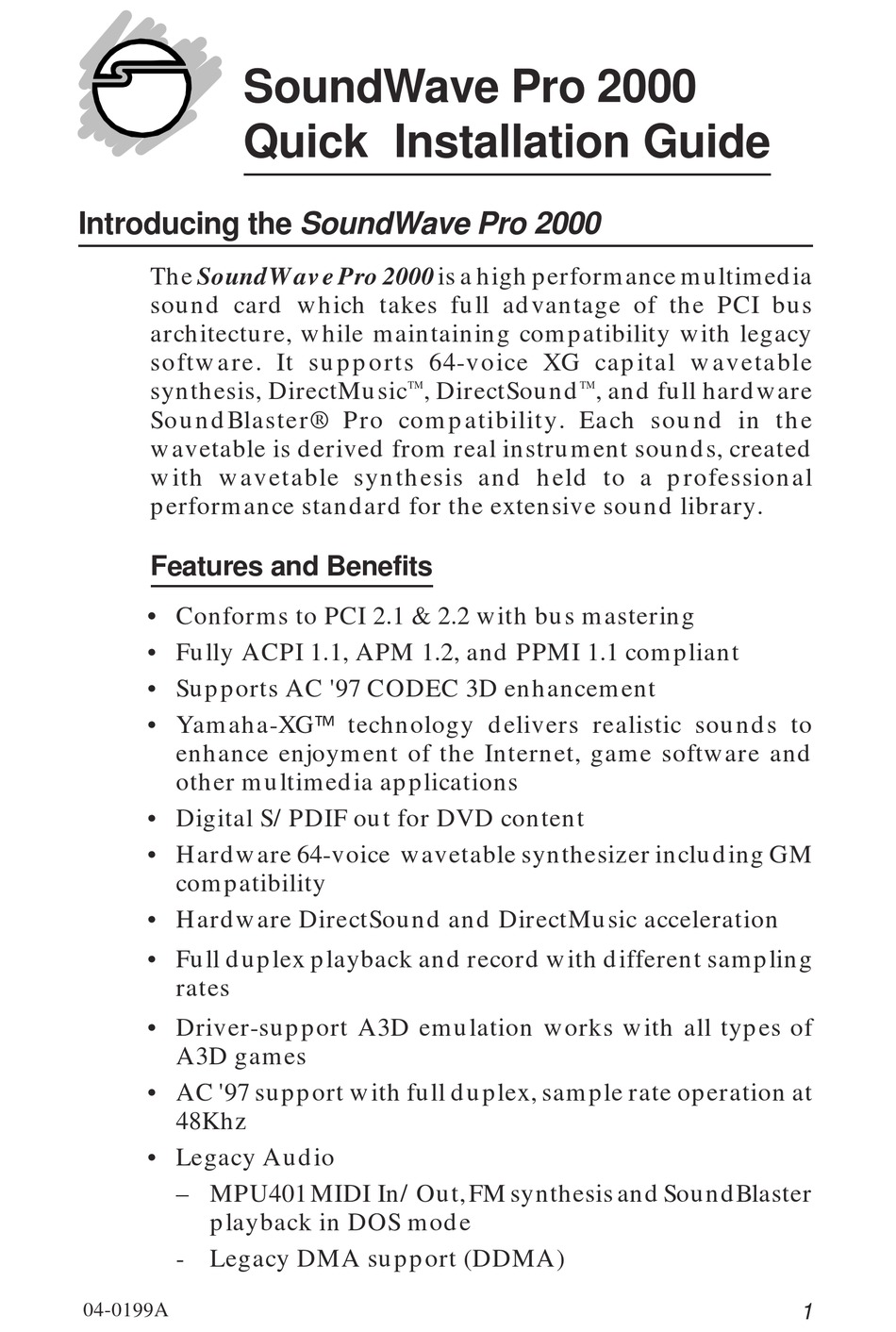

SoundWave Pro 2000
Quick Installation Guide
Introducing the SoundWave Pro 2000
The SoundWave Pro 2000 is a high performance multimedia
sound card which takes full advantage of the PCI bus
architecture, while maintaining compatibility with legacy
software. It supports 64-voice XG capital wavetable
synthesis, DirectMusic
SoundBlaster® Pro compatibility. Each sound in the
wavetable is derived from real instrument sounds, created
with wavetable synthesis and held to a professional
performance standard for the extensive sound library.
Features and Benefits
• Conforms to PCI 2.1 & 2.2 with bus mastering
• Fully ACPI 1.1, APM 1.2, and PPMI 1.1 compliant
• Supports AC '97 CODEC 3D enhancement
• Yamaha-XG technology delivers realistic sounds to
enhance enjoyment of the Internet, game software and
other multimedia applications
• Digital S/PDIF out for DVD content
• Hardware 64-voice wavetable synthesizer including GM
compatibility
• Hardware DirectSound and DirectMusic acceleration
• Full duplex playback and record with different sampling
rates
• Driver-support A3D emulation works with all types of
A3D games
• AC '97 support with full duplex, sample rate operation at
48Khz
• Legacy Audio
– MPU401 MIDI In/Out, FM synthesis and SoundBlaster
playback in DOS mode
- Legacy DMA support (DDMA)
04-0199A
, DirectSound
TM
, and full hardware
TM
1
Advertisement
Table of Contents
Related Manuals for Soundwave Pro 2000
Summary of Contents for Soundwave Pro 2000
- Page 1 SoundWave Pro 2000 Quick Installation Guide Introducing the SoundWave Pro 2000 The SoundWave Pro 2000 is a high performance multimedia sound card which takes full advantage of the PCI bus architecture, while maintaining compatibility with legacy software. It supports 64-voice XG capital wavetable...
- Page 2 • Windows 95/98/98 SE/2000/NT4.0 • 16MB of available disk space • 32 MB system memory • CD-ROM drive • Speakers or headphones Package Contents SoundWave Pro 2000 board • • Driver software CD • One 5-year warranty card • This quick installation guide...
-
Page 3: Hardware Installation
Hardware Installation General instructions for installing the card are provided below, since the design of computer cases and motherboards vary. Refer to your computer’s reference manual for further information, if needed. Caution: Static electricity discharge may permanently damage your system. To avoid possible static electricity discharge during the installation, please follow the guidelines below: •... -
Page 4: Software Installation
Software Installation This section will guide you through the installation of the following software drivers: • Windows 95 • Windows 98/98 SE • Windows 2000 • Windows NT 4.0 Windows 95/98/98 SE Driver Installation 1. After inserting the soundcard start the computer. Windows will detect the soundcard and show the Add New Hardware Wizard dialog box. - Page 5 Windows 2000 Driver Installation 1. After inserting the soundcard start the computer. Windows will detect the soundcard and display the Found New Hardware dialog box. By-pass the PnP installation by clicking Cancel in the dialog box. 2. Insert the Xwave CD into your CD-ROM drive. If the CD autostarts close the autostart window then proceed with the installation.
-
Page 6: Utilities Software
Utilities Software This section provides information on how to use your SoundWave Pro 2000 with the utilities software provided on the Xwave CD. The bundled software will give clear enhance quality sound and allow advance editing for greater output. The CD includes Yamaha's S-YXG50 SoftSynthesizer,... - Page 7 The YStation comes with the main control, Wave Player, MIDI Player, Mixer, and Multi Player. The main control have seven buttons to select from. Each will activate different players in the YStation. For example, to activate the CD Player, click CD button. The Wave Player plays and records Wave format files.
- Page 8 Note The XGStudio requires a minimum of Pentium II 233 MHz, 64MB RAM or better. Installing XG Studio Before proceeding, make sure the SoundWave Pro 2000 and drivers are installed. To install XG Studio, follow the instructions below: 1. Insert the Xwave CD into your CD-ROM. Auto-run should start automatically.
- Page 9 S-YXG50 SoftSynthesizer Installation S-YXG50 is a software synthesizer that provides 676 different sounds, 21 drum kits, and 128-note simultaneous polyphony with three sound effects (reverb, chorus, and variation). To install S-YXG50 follow the instruction below: 1. Insert the Xwave CD into your CD-ROM. Auto-run should start automatically.
-
Page 10: Technical Support
Technical Support QUESTIONS? SIIG’s Online Support has the answers! Simply visit our web site at www.siig.com and clickon ONLINE SUPPORT. Our online support database is updated daily with new drivers and solutions. The answers to your problems could be just a few clicks away Return Merchandise Authorization (RMA) SIIG warrants to the original buyer of the product that the hardware is free of defects in materials and workmanship for a period of five... -
Page 11: Fcc Notice
This product requires the use of shielded cables in order to comply with FCC requirements. SoundWave Pro 2000 is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. Microsoft, Windows, and Windows NT are registered trademark of Microsoft Corporation. Pentium is registered trademark of Intel Coporation.
