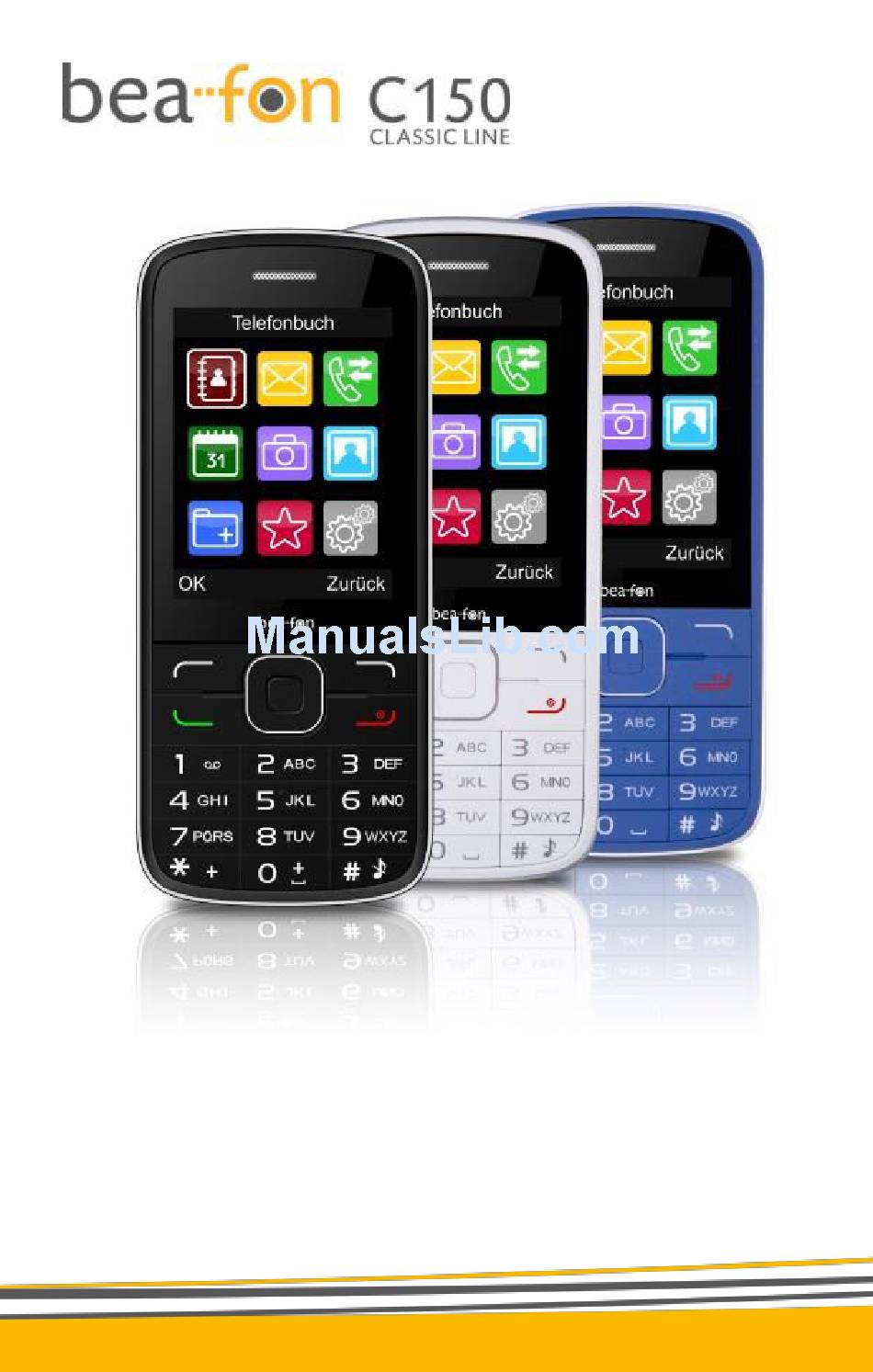

Page 1: User Manual
User Manual Thank you for choosing Bea-fon C150 This user guide will provide you with the general information and operation instructions. -
Page 2: General Information
General Information This color screen phone is designed for the 2G GSM network environment. Enjoy good call connecting quality and high speed data access over the network. The package includes a chargeable battery, a charger and other accessories. Please refer to the Accessory section for details. -
Page 3: For Your Safety
For your safety Switch off the phone in hospitals and aircraft. Obey any restrictions. Wireless devices can affect the medical treatment and cause interference in aircraft. Some medical devices such as hearing aids and pacemaker may be sensitive to external radio frequency emissions. - Page 4 SIM card or phone, and change passwords when necessary. Do not remove the battery without turning off the phone. Failure to follow this instruction may result in data lost. When you leave your vehicle, take the phone with you or place it in the glove compartment to avoid theft.
- Page 5 your phone. Do not use alcohol, thinner, benzene or other chemicals or abrasive cleaner to clean your phone. The phone will become warm under normal use and while in battery charging. Do not leave the phone with battery uninstalled or with the battery empty for a long period of time.
-
Page 6: Traffic Safety
with fresh water and go to the hospital immediately. If the leaked liquid of the battery touches the skin, it can burn the skin. Please wash your skin with fresh water and go to the hospital immediately. Never put the battery in your month. The liquid of the battery can be toxic. -
Page 7: Certification Information (Sar)
0,612 W / kg. While there may be differences between the SAR levels of various phones and at various positions, they all meet the EU requirements for RF exposure. If you want a copy of the Declaration of Conformity, please contact us: support@beafon.com... - Page 8 My Phone...
- Page 9 Left menu key Perform actions indicated at the bottom – left of the display Dial key (green key) Make or answer a call; In standby mode, retrieve recently dialed, missed, or received numbers; * Key Press this key on the starting screen to enter the following symbols : * /+ /P / W.
- Page 10 Icon Description Signal Strength The vertical bars show the network connection strength. SIM1 or SIM2 card has signals. New messages This icon shows when you receive a new message. SIM Card has an unread message The inbox is full. This icon flickers when the inbox is full and you need to delete messages to receive new messages.
- Page 11 GPRS This icon shows when the GPRS connection is available or active. Turn alarm on This icon shows when you turn alarm on. Roaming This icon shows when your phone is in roaming state. SIM card is roaming. Bluetooth This icon shows when the Bluetooth is active.
-
Page 12: Install The Sim Cards
Install the SIM cards Please turn off your mobile device and disconnect it with charger before removing the battery. Note: turn off your mobile device and disconnect it with charger or any other device before removing battery door. Place the door on the phone before store and use your mobile phone. -
Page 13: Install The Memory Card
Install the memory card Carefully slide the memory card into the slot with the gold connectors face down. Your phone accepts microSD™ or microSDHC™ memory cards up to 8 GB Charging the Battery Insert the charger connector into the telephone. Connect the charger to a power outlet. -
Page 14: Turn Your Phone On Or Off
goes up. When charging is finished, unplug the charger. Turn your phone on or off Make sure that the SIM card is in the telephone and that the battery is charged. Press and hold the red key for 2-3 seconds to switch on the phone. -
Page 15: Lock Screen
Lock screen In order to avoid involuntary pressing the keys, press the red key to activate the key lock. In order to exit lock screen mode, select unlock (left menu key) and press the red key within 2 seconds. In order to answer a call when the keys are locked, press the call key. -
Page 16: Make A Call
Select right, left, up or down selection key and select a function from the list. The device functions are grouped into menus. Not all menu functions or option items are described here. Make a call In standby mode, enter an area code and a phone number. -
Page 17: Headset/Bluetooth Mode
Set numbers: Up to 8 numbers can be saved as speed dial numbers (2-9). Select Set numbers and press OK. Select the desired No. (2-9) and press Edit. Select desired name from Phonebook and press OK (the desired name must already be stored under Contacts). On the default screen, press 2.3 seconds the desired number (2-9) and the assigned number will be called. -
Page 18: Adjust The Volume
Adjust the volume. Press arrow key up or down to change the volume during a call or when listening to the radio. Change phone tones In Menu mode, select Settings - Profiles. Scroll to the profile you are using. Select customize and edit the phone tones To switch to another profile, select it from the list. - Page 19 corresponding number saved in the Voicemail server. Note: This service must be supported by the network operator.
-
Page 20: Main Menus
MAIN MENUS Phonebook Add new contact In Standby mode, press the “right menu” key Select “Add to Contacts - Select” Select preferred storage Enter contact information. Press the “Options” select “Save” to add the contact to memory. Messages Write message In Menu mode, select Messages →... -
Page 21: Call Center
Insert Symbol: Press „*“ key and use the navy key to move the Symbol which you want and press the “Ok” key. Send and receive MMS With the MMS function, you can send text messages and multimedia content such as pictures or audio files. Before you can send or receive MMS you have to adjust the MMS settings. -
Page 22: Image Viewer
Camera In Menu mode, select Camera to turn on the camera. Rotate the phone to landscape view. Aim the camera lens at a location or an object and press the OK key to take a photo. Important: Before you take a photo, make sure you have inserted a memory card (Micro SD card up to 8 GB). - Page 23 Organizer Tasks In Menu mode, select Extras Select Tasks and press OK Here you can enter tasks. Add tasks: Press Options and select Add. Enter the desired details. To save the event, press Options and Save. Alarm In Menu mode, select Extras Select Alarm and press OK Up to a maximum of 5 alarms can be set.
-
Page 24: File Manager
Call settings Restore settings Copy pictures to the computer To copy the pictures you took with the C150 camera into the computer, proceed as follows: Connect the telephone to the computer using the supplied micro USB cable. After that, a menu appears on the telephone -select “Mass storage”... -
Page 25: Menu Structure
Note: The photos are located in the telephone in the folder “Photos” Menu structure Phonebook Image viewer Extras Add new contact Messages Tasks Write message Alarm Inbox Calculator Outbox World clock Drafts Services Filemanager Sent messages Settings Settings Call history Profiles Missed calls Phone settings... -
Page 26: Specifications
Specifications: Dual Band Network: GSM 900/1800 Battery: Li-ion 3.7V - 600mAh Dimensions: 123x52.5x12 Standby time: < 200 hours* Talk time: < 240 minutes* * The operating life of the battery is dependent on the SIM card, network, settings applies and usage as well as the environment. - Page 27 The phone cannot be turned on When the battery is very low, the phone may not be turned on properly. Please charge the battery. Cannot make certain calls Check if Call Barring is set. If it is set, you may not be able to make calls or only certain calls are allowed.
- Page 28 the golden contacts of the SIM card by using a dry cloth. If it still is not working, please contact your network carrier. No service If you are in an area not covered by your network, or if a physical obstacle is present, such as in an enclosed area, the message “No service”...
- Page 29 SMS send failed Please check the SMSC-address and go to menu point: “Messages - Message settings – Text message – SIM – Profile settings – Profil1 –Profile settings – Edit - SMSC-Address” Note: Please contact your network operator, for information about the SMSC address MMS send failed Please check the MMS data account and go to menu point:...
-
Page 30: Liability Disclaimer
(including deliberate or accidental misuses by the user under these accidents or other unusual circumstances) which are beyond our liability scope, non-responsibility should be accounted on us. Information C150 distributed by Beafon For more Information, please visit the Bea-fon Homepage: www.beafon.com contact support@beafon.com...
