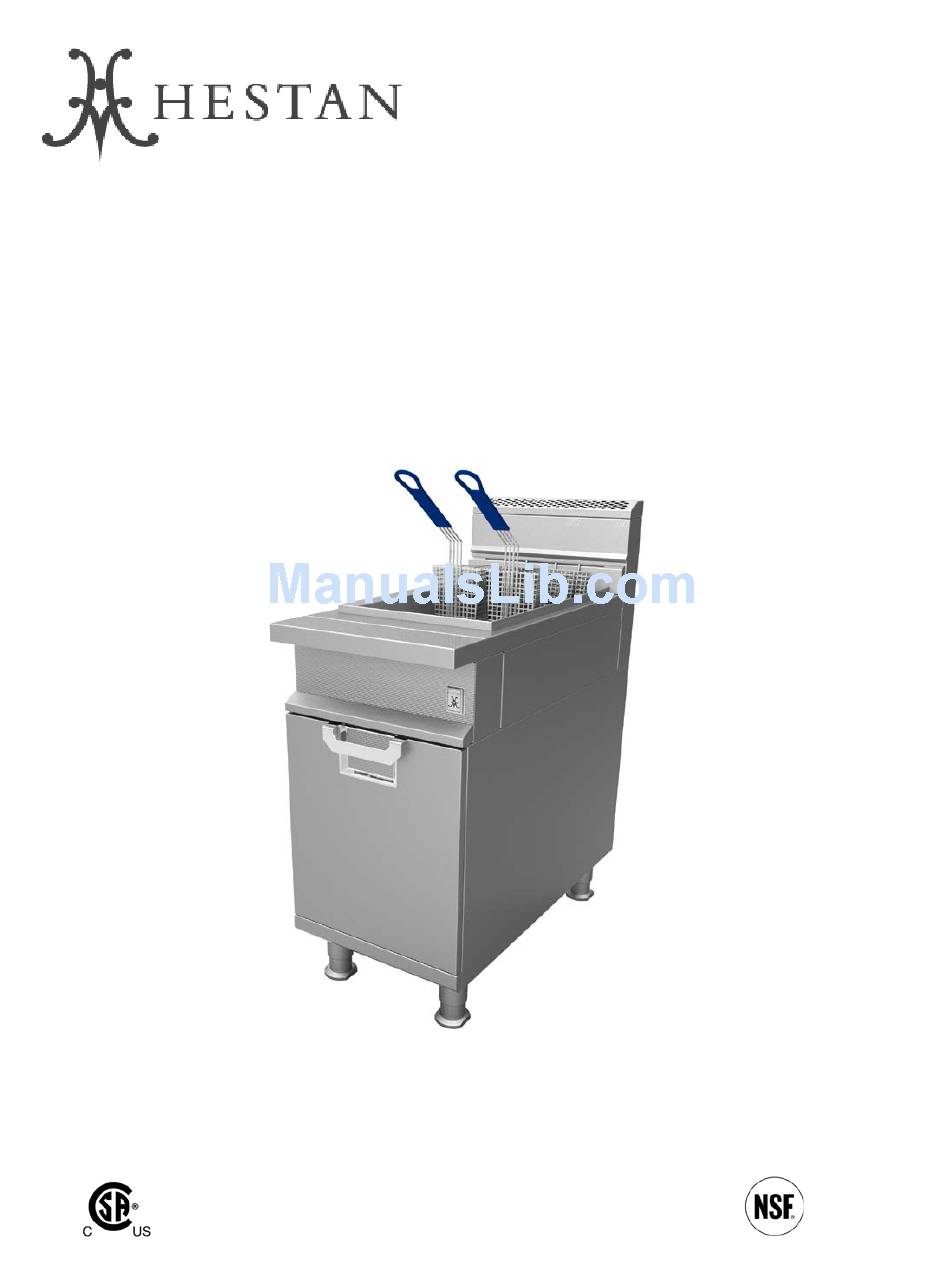

- Page 1 Owner’s Guide Installation & Operation Fryer HFR Series Hestan Commercial Corporation 3375 E. La Palma Ave Anaheim, CA 92806 (888) 905-7463 RETAIN THIS MANUAL FOR FUTURE REFERENCE P/N 002137 REV 1...
- Page 2 IN THE EVENT OF A POWER FAILURE, DO NOT ATTEMPT TO OPERATE THIS DEVICE. DO NOT OPERATE THE FRYER WITHOUT A TIPPING RESTRAINT IN PLACE. ATTEMPT MOVE FRYER WITH OIL/SHORTENING, ESPECIALLY WHEN HOT. IT COULD SPLASH/SPILL AND CAUSE SEVERE BURNS. DRAIN THE FRYER BEFORE MOVING. ©2015 Hestan Commercial Corporation...
-
Page 3: Table Of Contents
Ventilation Air / Flue Connections ..............9 Model / Serial / Rating Plate Location ..............9 Section 2: Operating Instructions ................Lighting and Shutdown Instructions ............... 10 Section 3: Cleaning and Maintenance ..............Gas-Fired Appliances ..................11 ....................Service Troubleshooting Guide .................. 12 ©2015 Hestan Commercial Corporation... -
Page 4: Installation
6” legs are mounted using four hex-head bolts per leg and each leg is adjustable simply by turning the inner cylinder leg, clockwise to lower and counter-clockwise to elevate. NOTE: A carpenter’s level can be used on the plate shelf for left to right leveling. ©2015 Hestan Commercial Corporation... -
Page 5: Riser Installation
National Fire Protection Association, on their web site: http://www.nfpa.org/ Canada 1) Local Codes 2) CSA B149.1 Natural Gas and Propane Installation Code. 3) CSA C22.1 Canadian Electrical Code 4) CSA C22.2 Canadian Electrical Code Canadian codes can be found on the CSA website: http://www.csa.ca ©2015 Hestan Commercial Corporation... -
Page 6: Appliances Equipped With Casters
NOTE: Please be aware, required strain relief restraint cable is attached to a bracket, and if disconnection of the restraint is necessary, be sure to reconnect the restraint after the appliance has been returned to its original installed position. ©2015 Hestan Commercial Corporation... -
Page 7: Gas Supply
.14 psig (1.0 kpa) coming out of the regulator. For liquid propane gas pressure coming into the regulator should be 11” WC or .4 psig (2.75kpa) and 10” WC .36 psig (2.5kpa) coming out of the regulator. 1” NPT Rear Gas Connection ©2015 Hestan Commercial Corporation... -
Page 8: Gas Pressure Regulator
All gas burners and pilots need sufficient air to operate. Large objects should not be placed in front of the appliance(s) that would obstruct the flow of air into the front. NOTICE: In the Commonwealth of Massachusetts all gas appliances vented by either mechanical systems or ventilation hoods shall comply with 248 CMR interlocking requirements. ©2015 Hestan Commercial Corporation... -
Page 9: Model / Serial / Rating Plate Location
Model / Serial / Rating Plate Locations Fryers Rating plate will be located above the front panel ©2015 Hestan Commercial Corporation... -
Page 10: Operating Instructions
– eliminating the potential of weld fracture from dry firing. For daily shutoff: If you do not want to relight the pilot the next day, turn thermostat dial “OFF” and gas valve dial to the “PILOT” position, pilot(s) will remain on. ©2015 Hestan Commercial Corporation... -
Page 11: Cleaning And Maintenance
5. Do not use sharp tools to clean the fryer; it can leave metal debris in the tank. 6. Keep your tank clean. Check for debris buildup at the bottom of the tank, and never allow too much build-up to occur. Excessive build up reduces the efficiency of the fryer. ©2015 Hestan Commercial Corporation... -
Page 12: Service
Pilot not lit Burner not working well/lazy or yellow flame Gas pressure incorrect / incorrect regulator Orifice sized incorrectly Burner ports are obstructed or dirty Poor combustion, air fuel mixture not adjusted properly ©2015 Hestan Commercial Corporation...
