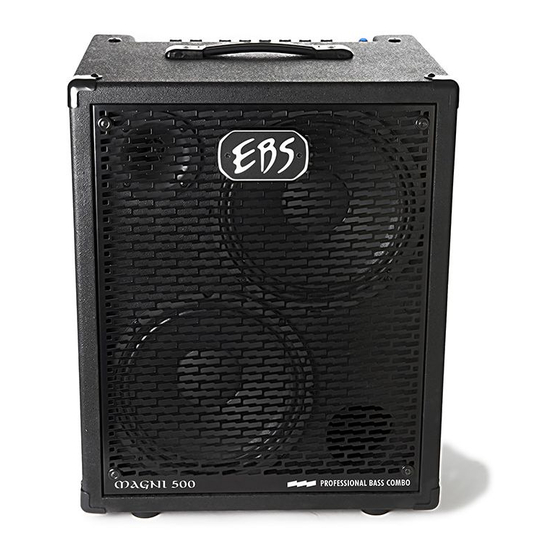

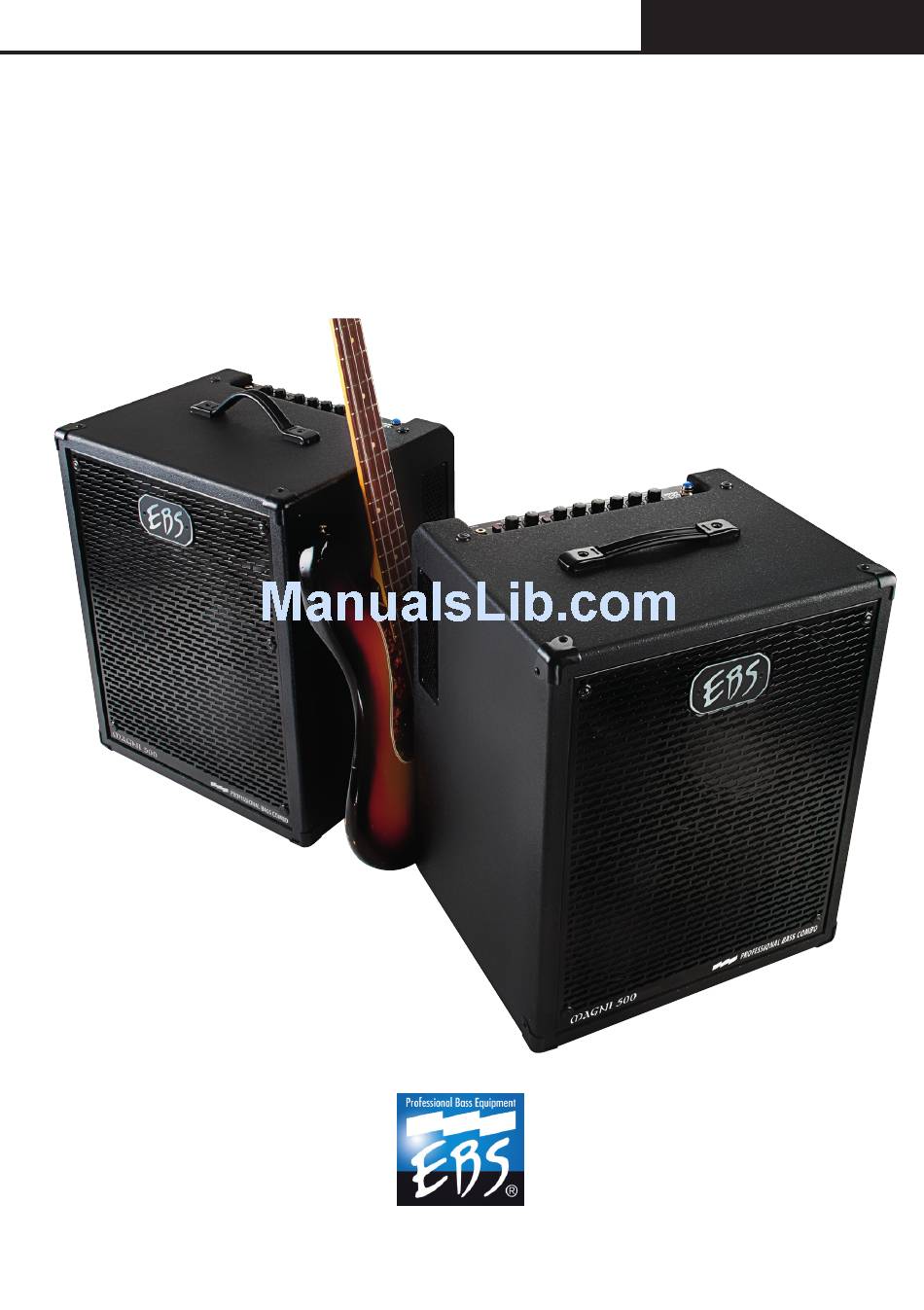

- Page 1 USERS MANUAL EBS MAGNI 500 MAGNI 500 PROFESSIONAL BASS COMBO w w w . e b s s w e d e n . c o m...
- Page 2 Magni 500 bass combos! 8. Enable the filters by pressing the Filter Active pushbutton and explore the filter The Magni 500 combo is based on the section. Play your bass. Note that there Reidmar 470 amp design. It is available in isn't any difference in sound yet.
- Page 3 USERS MANUAL EBS MAGNI 500 EBS MAGNI 500 – BLOCK DIAGRAM w w w . e b s s w e d e n . c o m...
- Page 4 Note: A correctly set GAIN is vital for the signal preamp functions. This gives the user the processing to work properly in the EBS Magni 500. opportunity to preshape the sound before the final processing with the other features 4.
- Page 5 USERS MANUAL EBS MAGNI 500 Midrange filters 6. FILTERS -The filter section contains four enhanced performance filters: BASS is a ’shelving’ type 12dB/oct slope phase compensated bass filter with a wide gain range. MIDDLE has an extended frequency range of 100-6000 Hz. This filter facilitates...
- Page 6 USERS MANUAL EBS MAGNI 500 EBS MAGNI 500 – REAR PANEL FEATURES 1. BALANCED OUTPUT 5. LINE OUT -A balanced output -This is a fullrange output that will functions as a high quality line box for drive multiple poweramps, extending the connecting to PA mixing consoles or to power of the system.
- Page 7 USERS MANUAL EBS MAGNI 500 EBS MAGNI 500 – AVAILABLE MODELS EBS MAGNI 500 - MA10 2x10” Speaker Configuration Freq. range: 50-20.000 Hz Weight: 21 kg / 46.7 lbs EBS MAGNI 500 - MA15 1x15” Speaker Configuration Freq. range: 30-20.000 Hz Weight: 20,5 kg / 45 lbs w w w .
- Page 8 Specifications are subject to change without notice! EBS MAGNI 500 - PROFESSIONAL BASS COMBO DESIGNED AND DEVELOPED BY EBS SWEDEN AB• GRINDSTUVÄGEN 44-46, SE-16733 BROMMA,SWEDEN PHONE +46 87350010, FAX:+4687350005 • E-MAIL: info@ebssweden.com WEB: www.ebssweden.com w w w . e b s s w e d e n . c o m...
