Summary of Contents for Gemsys NC 900

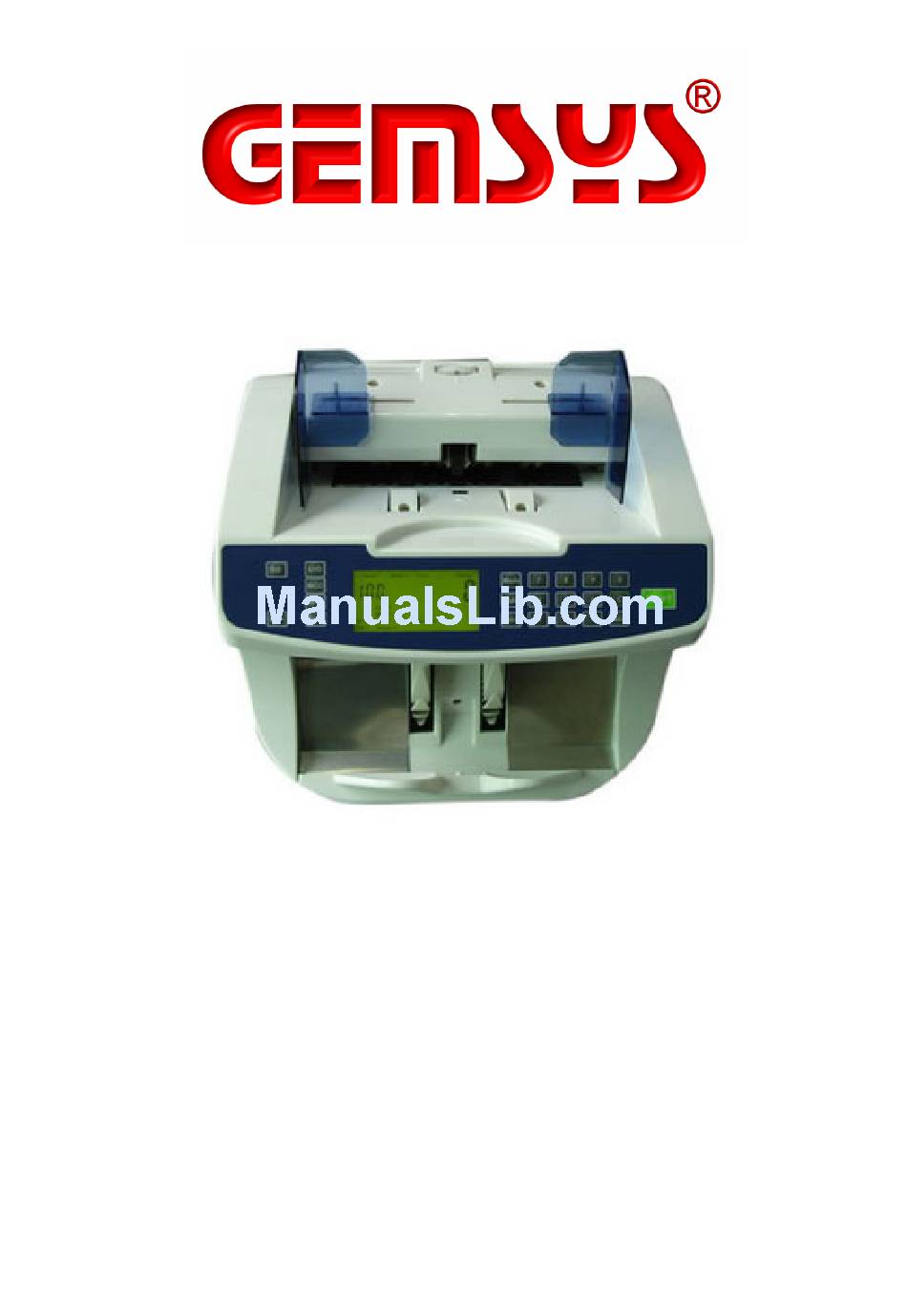

  • Page 1 NC 900 Series INSTRUCTION MANUAL www.gemsys-europe.com...
  • Page 2 Thank you very much for purchasing the GEMSYS NC series currency counter. This Instruction Manual contains its operating and necessary trouble shooting procedures. Please read carefully and understand the Manual before operating the Machine. Keep this Manual handy for ready reference.
  • Page 3: Safety Instructions

    1. SAFETY INSTRUCTIONS Be sure to read this “Safety Instructions” carefully before operation. Important instructions to be reminded are described in the “Safety Instructions”. Be sure to follow these instructions to use to Machine properly. Please note the Warning, Caution marks and descriptions below: In case the Machine is wrongly operated without respect to this Mark, there is a possibility of fatal or serious injury to the operator.
  • Page 4 The mark shows what must be done. The details are described in or near the mark. (This mark shows the necessity or proper grounding) warning If an adapter is used, proper grounding will Be required, Without proper grounding, there is an electric shock hazard if an electric leakage occurs.
  • Page 5: Before Operating The Machine

    While counting the notes, care should be taken to prevent your hand, hair, tie, etc. from getting into the Machine. 2. BEFORE OPERATING THE MACHINE 2-1. Cautions to be taken when operating the Machine Be sure not to put a glass or a vase with water on/near the Machine. In case water gets into the Machine, it may cause a machine trouble.
  • Page 6: Names And Functions Of Parts

    3. OVERAL DESCRIPTIONS 3-1. Names and Functions of Parts Front View 2Auxiliary Hopper Plates 1Hopper 4Display 3Keys 5Stacker 1.Hopper The counted notes are placed in it. 2.Auxiliary Hopper Plates Used for leading the notes to the feeding mechanism. 3.Keys Refer to Page 9 for description of each key. 4.Display The Display shows all the message .
  • Page 7: Rear View

    5.Stacker Counted notes are stacked onto the Stacker Rear View 6.Thickness Adjustment Knob 7. Carrying Handle 10.RS232 Interface Power Switch Power Inlet 1.Thickness Adjustment Knob Use to make the smooth counting operation, Use to turn the Knob with hand. If the Display shows “Ed”or“E1d”error during normal counting operation, adjust the Knob toward the “-“sign.
  • Page 8: Names And Functions Of Keys

    3-2. Names and Functions of Keys By this key, SHEETS COUNT mode or VALUE MODE COUNT mode can be selected. (option) Auto start and Manual start can be selected with MNL Key. An appropriate speed may be chosen by pressing this SPEED key, changeable in three steps (Fast, Normal, Slow).
  • Page 9 demonination note denomination details.(option) Note: VALUE function only work on the speed-1 or speed-11. Used to initiate a counting operation or to clear an RESTART error message. Used to set the machine to detect denominations in width. By this key the reference level for two sheets detection can be changed according to the degree of colour of notes to be counted.
  • Page 10: Modes And Functions

    Note: IRD function only work on the speed-1 or speed-11. 4. MODES and FUNCTIONS 4-1. Modes Mode Mode-1 SHEETS COUNT mode, a default mode, the machine will count out the notes in sheets result. Preset Mode key , “Mode-1” will be shown on MODE display.
  • Page 11: Add Function

    4-2. Functions The function described in this manual may not be available depending on the Model. ADD Function Preset ADD key to enter this mode, and Add will be shown on display. Add function is available in both Mode-1 and Mode-11.
  • Page 12 The Key functions to change four different levels in the following Sequence,The default setting is DEN-|: DEN-|→ DEN-|| →DEN-|||→ (Blank) DEN-| Level 1: To cunt for light colored (thin) notes. DEN-|| Level 2: To count notes with the middle of Level 1 and Level 3.
  • Page 13 When Speed is changed form SPEED-|| to SPEED-|||, IRD、3D Function automatically turn off and Mode-| automatically change form Mode-||, if speed is changed form SPEED-||| to SPEED-| or SPEED-||, The machine setting will be changed the previous setting. UVD Detection Function (option) This function is to detect the fluorescent on notes.
  • Page 14 MGD Detection Function (option) This function is to detect the magnetism on notes. Depending on key specification, operation is different as follow: Press MGD Key to enter the function. Through this function, the machine will detect the counterfeit note without the magnetism, When a counterfeit note is detected, the machine will stop at the message “CF2”...
  • Page 15 MTD Detection Function (option) This function is to detect the thread on notes. Depending on MTD key , operation is different as follow: Press MTD Key to enter the function and “MTD-|” will be shown on the display.Through this function, the machine will detect the counterfeit note without the metal thread, When a counterfeit note is detected, the machine will stop at the message “CF3”...
  • Page 16: Auto Start Function

    IRD Detection Function (option) This function is to detect the infrared mark on notes. Through this function, the machine will detect the counterfeit note which without the infrared mark. When a counterfeit note is detected, the machine will stop at the message “CF4” on the display. The suspected note is the last one in the stacker.
  • Page 17 pressing MNL Key. When the “MNL” is shown on the display, the Manual Start Function is activated. When the (blank) is shown on the display, the Auto Start will be selected. 3D Function ( Length Size) (option) Through this function, the size of the first counted note in Length will be memorized and if a smaller or a larger one is detected the machine will stop and the message “3d”...
  • Page 18: Operation

    DD Function ( Width Size) A width size detection function. The DD function will detect the passing note in the high size direction. When a smaller or note is detected, the machine will stop at the message “dd” . Three sensitivity levels are selectable in this function.
  • Page 19 Automatic Batch 100 sheets notes 5-2. Notes Examples of bad notes Do not count the following noter which may cause of jamming or count problems. Torn notes or notes with hole Worn-out or flabby notes Notes with tape Dirty notes Before loading notes Wrinkled note and dog ear note should Brick notes...
  • Page 20 Correcting for loading notes on the hopper ×...
  • Page 21: Basic Operation

    5-3. Basic Operation Step Turn on the Power Switch. Step Mode-| Mode-|| Set either and Doubles Detection Level. 1. Select either SHEETS COUNT Mode or VALUE COUNT Mode. Under the Mode-| (SHEETS COUNT Mode), you can freely count all the notes or batch by batch by setting a presset number.
  • Page 22 B. Freely count all the notes If the Batch Number is set to “0” (Blank), the machine will count all notes in the hopper without stopping. Under the Mode-|| (VALUE COUNT Mode). DD、3D Function automatically turn off, it will count all the notes in hopper and show the counted value.
  • Page 23 2. Set the Doubles detection Level with DEN Key. Step Set various functions if necessary 1. Set Count Speed. Refer to page13 2. Set Auto statr Function. Refer to page17 3. Set DEN Detection Function. Refer to page12 4. Set UVD Detection Function. Refer to page14 5.
  • Page 24: Accessories And Options

    Remove the counted notes from the Stacker after complete stop of counting. 6. ACCESSORIES and OPTIONS 6-1. Accessories 1. Power Cable…………………………………1 2. Instruction Manual…………………………..1 6-2.Options For details of option, please contact your local distributor. 1. External Display 2. Rs-232 3. NCC disk 7.
  • Page 25: Adjustment Of The Feed Gap

    8. ADJUSTMENT OF THE FEED GAP The correct Feed Gap setting of the Central Feed Roller assemblies is vitally important to the smooth functioning of the machine. After extremely long-term usage, the rubber components of both the Feed Roller and the Friction Roller may be subject to natural wear. Under this condition, the feed Gap may become too wide and, as a result, Error Codes will be generated and note feeding will become erratic.
  • Page 26: Daily Care

    9. DAILY CARE Clean the following Sensors with a brush periodically Use dry cloth to clean the outside cabinet. Hopper Sensors Stacker Sensor Count Sensors or CIS...
  • Page 27 10. ERRORS When an error occurs during counting, the Count Display will flash the error code. Clear the error in Accordanec With the following procedure. Error Code Cause of Error Remedial Measures Cover hopper sensor Remove the notes placed in the Hopper. The machine may clear itself. Take away jammed note(s) with hand.
  • Page 28 Error Code Cause of Error Remedial Measures Take away the last note from the stacker and make sure that it is the same note as the others. Depress RESTART key. Two notes are fed at a time or a dirty note is Recount all the notes taken away from the Stacker.
  • Page 29 Error Code Cause of Error Remedial Measures 1. Take away the last note from the stacker and make sure that it is the same note as the others. 2. Depress RESTART key. Suspected counterfeit note is fed by IRD 3. Recount the last notes taken away from the Stacker. function detecting When this error happens very often.
  • Page 30 GEMSYS NC 900-NC950 Nanknote Counter Ez a nyilatkozat Európai Unió területén érvényes, és megfelel az alábbi EU előírásoknak, direktíváknak The Manufacturer hereby declares that the equipment complies with he stipluations defined in the following guidelines and standards: Le fabricant déclare par la présente que I’ appareil est conforme aus réglements et normes en vigueur:...
