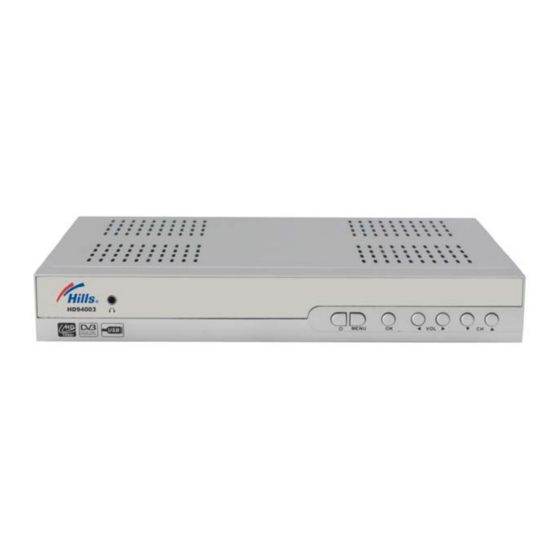

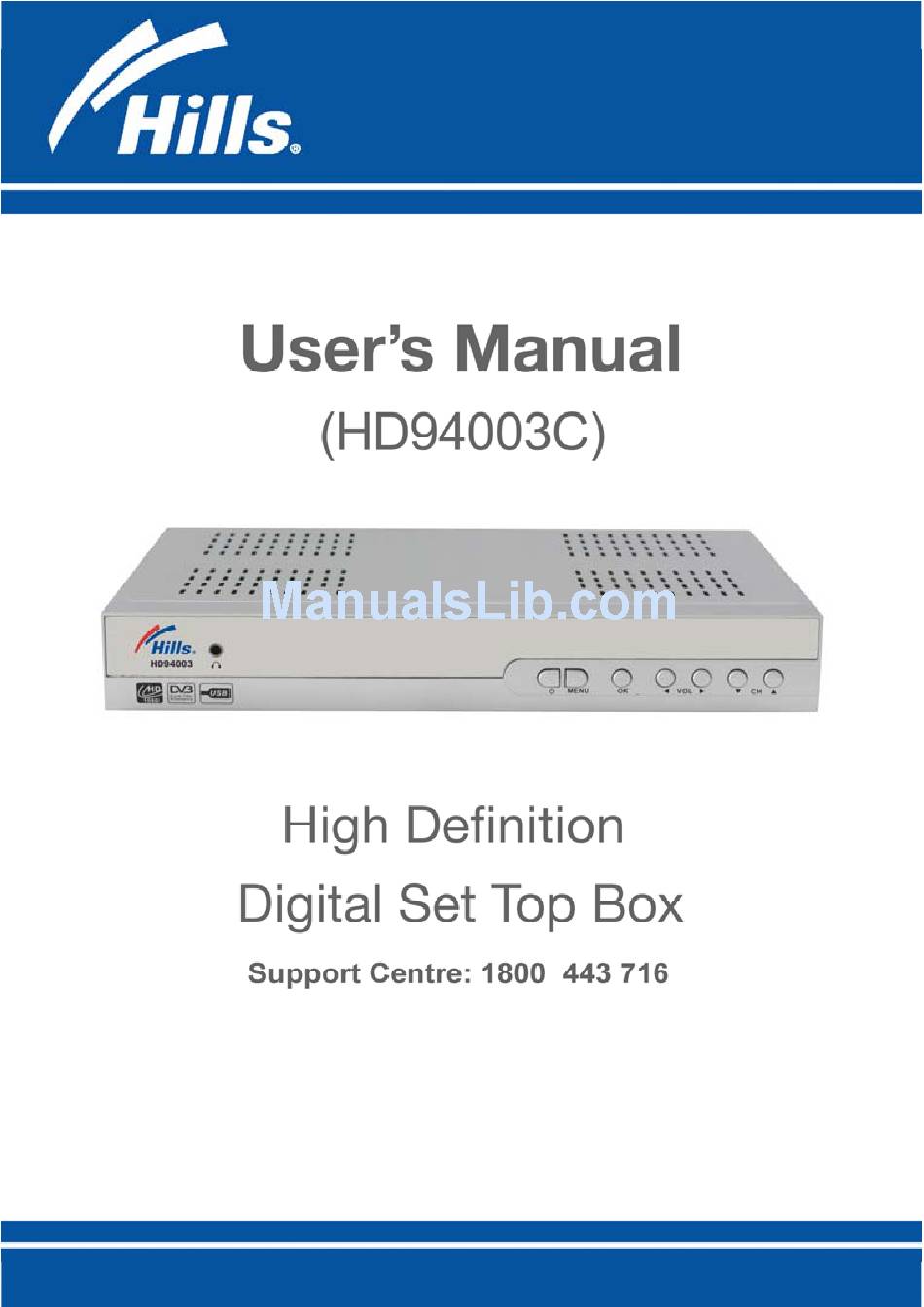

Hills HD94003C User Manaul

High definition digital set top box
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD94003C and is the answer not in the manual?

Questions and answers

Dave
March 8, 2025

Can I go to HDMI on this without a remote?

1

Summary of Contents for Hills HD94003C

  • Page 3: Table Of Contents

    INDEX INDEX ......................1 SAFETY AND INSTRUCTIONS ..............2 ASSEMBLY AND PARTS LIST ............... 3 1.1 Parts List ....................3 1.2 Front Panel ....................4 1.3 Rear Panel ....................5 1.4 Remote Control Unit .................. 6 1.5 Installing the batteries in the remote control ..........8 1.6 Connecting to Equipment ................

  • Page 4: Safety And Instructions

    SAFETY AND INSTRUCTIONS CAUTION: TO PREVENT ELECTRICAL SHOCK, DO NOT REMOVE THE COVER. THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol indicates that high voltage is present inside. It is dangerous to make contact with any part inside the case. This symbol alerts you of important information concerning operation and maintenance of this product.

  • Page 5: Assembly And Parts List

    ASSEMBLY AND PARTS LIST 1.1 Parts List Please make sure the following accessories are supplied with the STB. 1. High Definition Digital Set Top Box 2. Remote Control 3. RCA Video/Audio Cable 4. YPbPr Component Video Cable 5. Batteries (AAA Size) 6.

  • Page 6: Front Panel

    ASSEMBLY AND PARTS LIST 1.2 Front Panel 1. STANDBY Button ( ) Press to switch between operation and standby mode. 2. Menu Button (MENU) Press to display the Main Menu or to exit from the menu. 3. OK Press to select the item in the menu or to view a list the TV/Radio channels. 4.

  • Page 7: Rear Panel

    ASSEMBLY AND PARTS LIST 1.3 Rear Panel 1. ANT IN Used to connect the antenna. 2. ANT OUT Used to loop to another analogue or digital device. 3. USB USB port is used for viewing JPEG files or playing MP3 files on a memory stick, and for possible software upgrades.

  • Page 8: Remote Control Unit

    ASSEMBLY AND PARTS LIST 1.4 Remote Control Unit All features of the STB can be controlled with the remote control. 1. POWER: Press to switch between on and standby mode. 2. SCAN: Press to search for programs automatically. 3. MUTE: Press to mute the sound. 4.
  • Page 9 15 seconds the Set Top Box Remote Control will exit Learning Mode.) 3. Lay both the HD94003C Remote Control and the TV Remote control on a flat surface. Orientate both remotes so that the infrared receivers are facing one another within a distance of 1cm to 4cms.

  • Page 10: Installing The Batteries In The Remote Control

    ASSEMBLY AND PARTS LIST 1.5 Installing the batteries in the remote control 1. Place your finger or thumb under the holding catch and gently press upward and forward to release the cover. 2. Insert two AAA batteries into the recess. 3.

  • Page 11: Connecting To Equipment

    ASSEMBLY AND PARTS LIST 1.6 Connecting to Equipment 1. Connect your TV antenna cable to the “ANT IN” jack on the back of the STB using coaxial RF cable. Option 1- YPbPr connection (High Definition connection) 2. Connect the YPbPr out connectors (green, blue and red cable) and AUDIO L/R out connectors (white and red cable) on the back of the STB to the COMPONENT IN (green, blue and red) and audio in (white and red) on your television using RCA-type cables.
  • Page 12 ASSEMBLY AND PARTS LIST Option 3- COMPOSITE VIDEO (For all Standard Televisions) 4. Connect the yellow video lead and AUDIO L/R (white and red lead) out connectors on the STB to the AV in on the back of the TV. Optional: Instead of the audio Left and Right cables you may connect Optical S/PDIF out connector on the STB to the Audio-Amplifier using optical cable.

  • Page 13: Getting Started

    GETTING STARTED First time installation Note: Be sure to have the power cord connected to the mains. After all the connections have been established, switch on your TV. If you are using the STB for the first time or restored to factory default, a First Time Installation menu will be displayed and scanning of channels will automatically commence.
  • Page 14 GETTING STARTED Mute 1. Press the MUTE key to temporarily stop the sound. 2. To cancel mute, press the MUTE key again. Change screen aspect Press ASPECT RATIO key to switch screen aspect mode (16:9/4:3). The ASPECT RATIO Settings can also be adjusted in the main menu. Change TV/RADIO mode Press TV/RADIO key to change the program list mode between TV and Radio.
  • Page 15 GETTING STARTED Teletext service 1. Press TEXT key to open a teletext page (if teletext is available). 2. Press TEXT key again or press BACK key to close teletext. Audio Descriptor (AD) Audio Descriptor is a service carried in some broadcast streams of programs that provides a second sound track that specifically describes actions happening on the screen, this is carefully managed by the program provider so that the audio descriptor announcements do not interfere or overlay the original soundtrack.

  • Page 16: Menu Tree

    GETTING STARTED Navigation in the main menu 1. Press MENU key to bring up the main menu or return to LIVE TV from any Menu level. 2. Press VOL+/VOL- key to move left/right to the desired sub menu. 3. Press OK key to enter into the highlighted sub menu. 4.

  • Page 17: Instructions

    INSTRUCTIONS 2.1 Instructions < Starting up for the First Time > 1. Turn on your TV and STB. 2. Press the MENU button to display the following screen. Use the VOL+/VOL- keys to navigate through Main Menu items or press the corresponding numeric value displayed on that item to enter into the selected menu environment.

  • Page 18: System Settings

    INSTRUCTIONS Date / Start Time You can set the date and start time of the program you intend to switch to. Mode Select “Once, Daily or Weekly” to activate the timer event. Event You can set the action (Live Play/Power Off) that you would like the STB to perform when the timer is triggered.
  • Page 19 INSTRUCTIONS < Video Setting > Resolution You can select the display mode (1080i/720p/576p). Output Freq The default setting is 50Hz. Ratio You can switch aspect ratio between 4:3 and 16:9 Widescreen. (Available from the remote control) Note: Activate the AR Setting in Play Settings [ARConversion] Color Format You can set Color Format from a selection of Auto, PAL and NTSC.

  • Page 20: Channel Manager

    INSTRUCTIONS < Time Setting > In this menu, you can use the VOL+/VOL- button to change the Local Time and the settings, CH+/CH- to select the item or press BACK to cancel. Sys Mode: Use VOL+/VOL- button to toggle between available settings. In TDT mode you will need to manually set the time offset.

  • Page 21: Parental Control

    INSTRUCTIONS Delete: You can delete selected channels. Be aware that the function can completely delete the saved channel. When you delete a channel in Edit Channels, the channel is also deleted from the Favorite List. Move: You can move a channel position. First press the OK button to pick up the channel.

  • Page 22: Epg

    INSTRUCTIONS Parent Block Setting “Parent Block” will require you to input a correct PIN code to watch programs that you have locked. (No Block, Block ALL, G and Above, etc.) < Password Set > (The default password is 0000) To change the current PIN code, input the current PIN code then input the new PIN code you want to use.

  • Page 23: Installation

    INSTRUCTIONS 2.7 Installation Use VOL+/VOL- button to select the Installation Menu. Press OK, the following screen will appear. < Manual Search > 1. If you press OK in Manual Search of the Installation Menu, the following screen will appear. 2. Use the CH+/CH- button to select the item, and change the settings with the VOL+/VOL- and numeric (0~9) buttons.

  • Page 24: Usb Menu

    INSTRUCTIONS < Factory Default > Deletes all the data and settings currently saved. On completion of the Factory Default process the Band Width dialogue box will be displayed. Press OK to scan for channels. <Version Info> Display the hardware and software version. 2.8 USB Menu Use VOL+/VOL- button to select the USB Menu, press OK and the following screen will appear.
  • Page 25 It is highly recommended that you initiate the USB Disconnect function prior to removing a USB device from the USB port. Note: A Storage Media Must Be Connected to the HD94003C USB Port. Do not remove the USB device when viewing files in the USB storage device. Files must contain alphanumeric characters only.

  • Page 26: Ps1 Faq

    Ps1 FAQ What is a HD STB? A HDTV STB is a device that receives and decodes high definition TV signals. A HD STB is generally connected to televisions that are HD ready. Can I connect my HD STB to a CRT television? Yes this HD STB can be connected to a CRT television, as long as it supports the appropriate connections.

  • Page 27: Ps2 Trouble Shooting

    TROUBLE SHOOTING Ps2 Trouble Shooting Check the STB according to the procedures detailed below. If the STB does not work properly after conducting Problem Solving Protocols, please contact the technical department. This unit contains dangerous voltages, never remove the cover. When not in use for a long period, it is recommended that you unplug the unit from the main power socket.

  • Page 28: Ps3 Specification

    SPECIFICATION Ps3 Specification System Standard Fully DVB-T Compliant MPEG MPEG2 NP@ML, MPEG2 MP@HL, MPEG4 AVC/H.264 HP@L4 Video Decoding Resolution SD:480p HD:1080i 720p Aspect Ratio 4:3, 16:9 Decoding MPEG-1, MPEG-2, Dolby Digital, DTS, Mode Stereo, Left Mono, Right Mono Audio Decoding Sampling Rate 32K、44.1K、48K or 192KHz Digital Audio Output...

  • Page 29: Notes

    NOTES...
