Summary of Contents for MilesTsek 90-12116

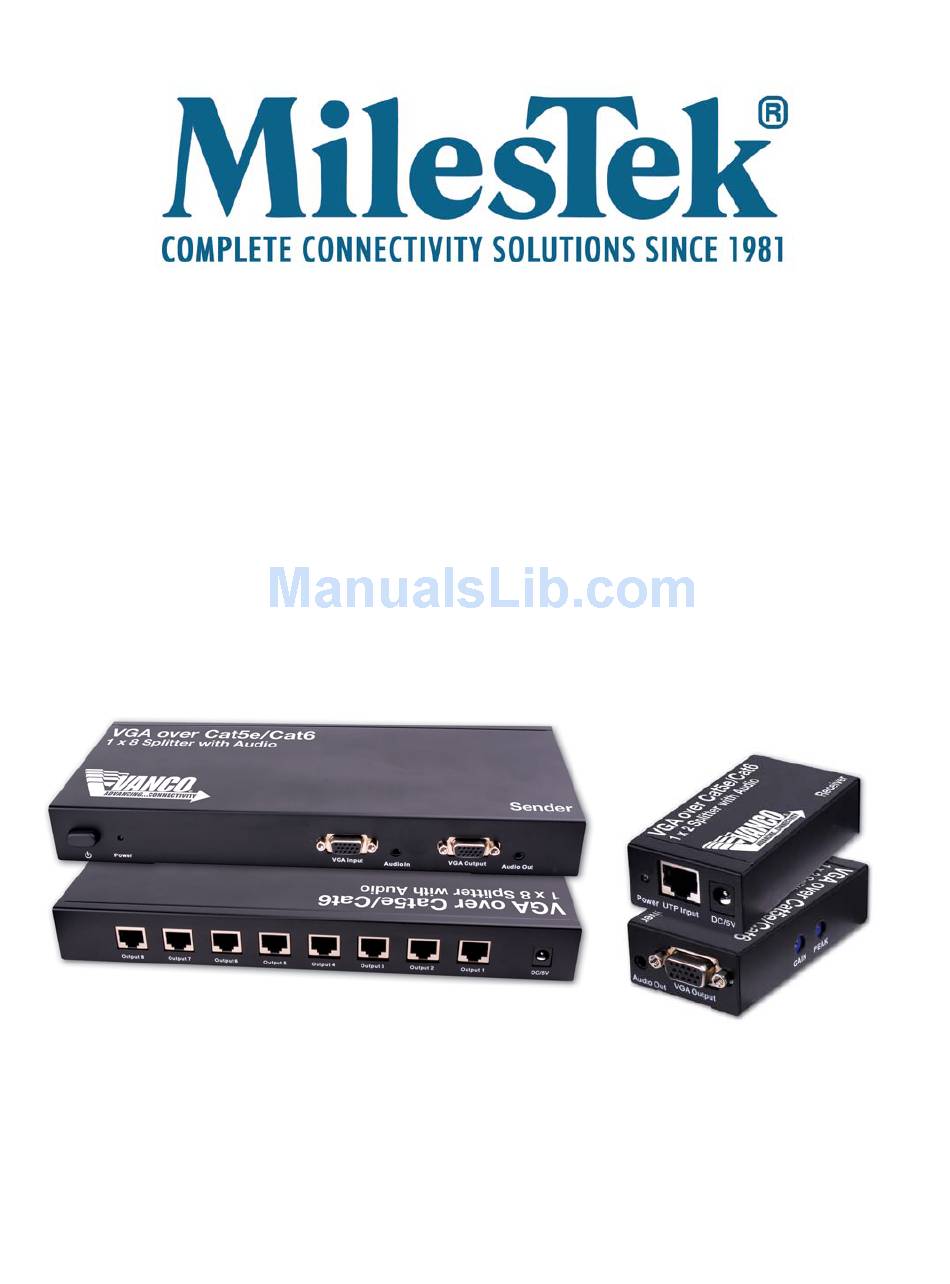

- Page 1 PRODUCT MANUAL Product Name: S-VGA Splitter/Extenders over Category 5e/Cat6 Cable Part Numbers: 90-12116: 1x2 Splitter/Extender 90-12112: 1x8 Splitter/Extender 90-12113: Receiver (Sold Separately)
-
Page 2: Table Of Contents
WARNING: 1. Do not expose this unit to water, moisture, or excessive humidity. 2. Do not install or place this unit in a built-in cabinet, or other confined space without adequate ventilation. 3. To prevent risk of electrical shock or fire hazard, due to overheating, do not obstruct unit’s ventilation openings. -
Page 3: Introduction
DEAR CUSTOMER, Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. INTRODUCTION Thank you for purchasing the Vanco S-VGA 1x2 or 1x8 Splitter over Category 5e/Cat6 Cable, These products allow for the transmission of longer audio and video signal distances being achieved between the sources and displays. -
Page 4: Specifications
SPECIFICATIONS Input /Output Connector Input connector VGA(Female 15pin), Stereo Audio Output connector VGA(Female 15pin), Stereo Audio, 2xRJ45 Operating Frequency Vertical Frequency Range 60/75/85Hz Resolutions(PC) 640X480 800X600 1024X768 1280X720 1280X768 1280X960 1280X1024 1600X900 1600X1200 1920X1080 1920X1200 Dimensions 1 x 2 Splitter 3.94”... -
Page 5: Package Contents
Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton: S-VGA 1 x 2 Splitter/Extender over Category 5e/Cat6 Cable 1. MilesTek Part # 90-12116 2. S-VGA 1x2 Splitter and One 5V DC, UL Listed Power Supply 3. Product Manual S-VGA 1 x 8 Splitter/Extender over Category 5e/Cat6 Cable 1. - Page 6 S-VGA 1 x 8 Splitter/Extender over Category 5e/Cat6 Cable Audio In VGA Output Audio Out Power VGA Input S-VGA Receiver over Category 5e/Cat6 Cable (Sold Separately, Part # 90-12113) VGA UTP Extender With Audio R e c e i v e r G A I N P E A K...
- Page 7 CONNECTION AND OPERATION 1) Connect the single S-VGA source to the main S-VGA Input using a S-VGA cable. 2) Connect VGA output of the Sender to a Local Display and Audio Output of the Sender to a Local Speaker. 3) Connect each CAT-5e/6 cable to both the Output of the S-VGA Splitter and Input of the Receivers 4) Connect Outputs of Receivers to Displays 5) Plug in all Power Supplies...
-
Page 8: Troubleshooting
S-VGA 1 x 8 Splitter/Extender over Category 5e/Cat6 Cable TROUBLESHOOTING If the product doesn’t appear to be functioning, make certain that the source and the destination device connected to the unit are functioning correctly by connecting both devices together using a VGA cable with a length 3 meters (10 ft or) less. -
Page 9: Technical Support
Manufacturer reserves the right to revise any of its hardware and software following its policy to modify and/or improve its products where necessary or desirable. This statement does not affect the legal rights of the user in any way. TECHNICAL SUPPORT In case of problems, please contact Vanco Technical Support by e-mail at support@Vanco1.com or call 1-800-626-6445 between the hours of 8am and 5pm central US time zone on Monday through Friday.
