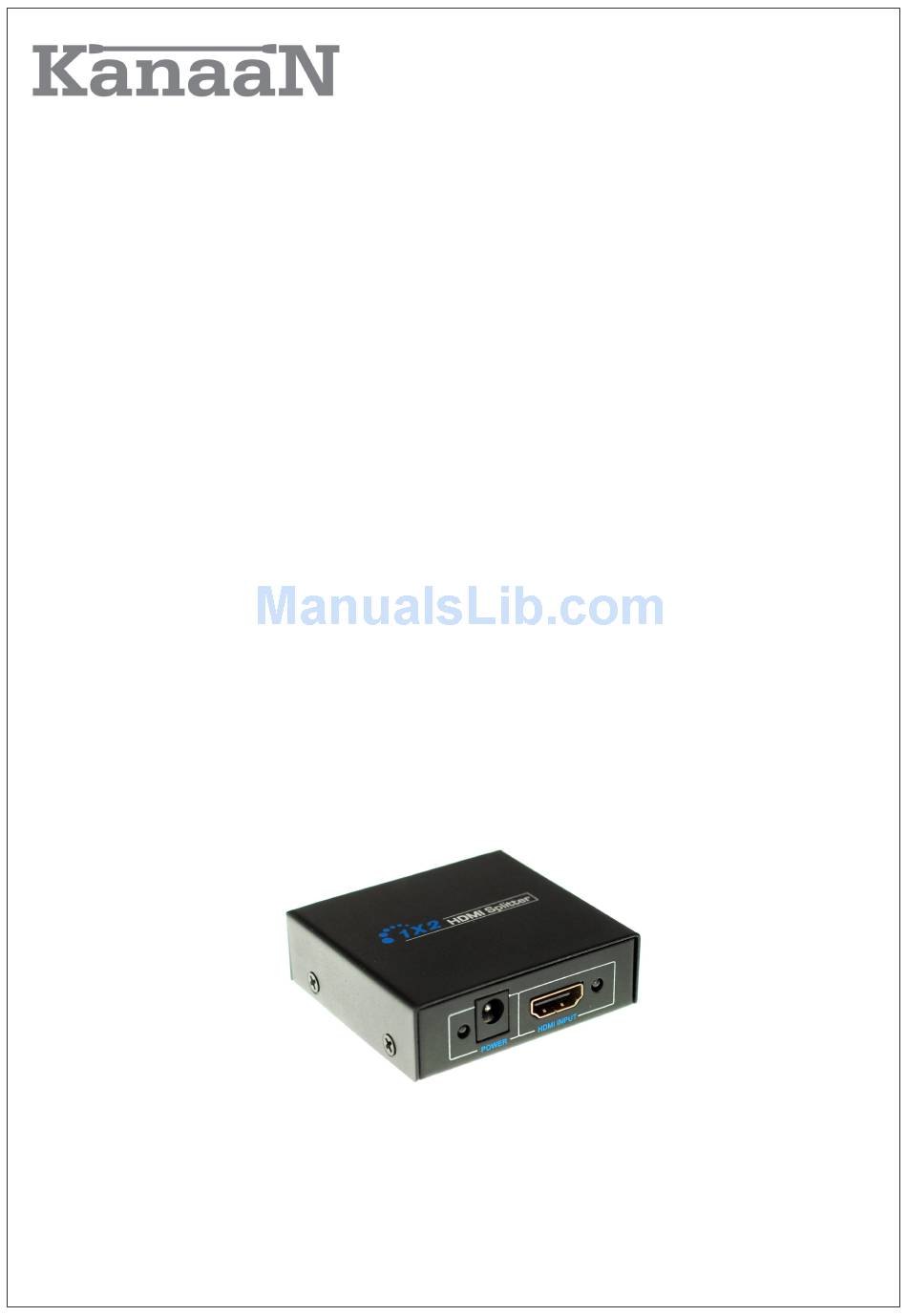

- Page 1 User Manual HDMI Splitter 1x2 Product number: KN39750...
- Page 2 Thank you for purchasing HDMI splitter from KanaaN. We hold several brands to produce and distribute our products: LEICKE (power adapters, batteries), KanaaN (adapters/converters, charging cables etc.), Sharon (iPad cases with keyboard, fans etc.), Hebron (protective cases, docking stations, screen protectors etc.) and Manna (notebook cases).
-
Page 3: Package Contents
Dear customer, our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentations, school and corporate training environments. The 1x2 HDMI Splitter accesses multiple HDMI devices using a single source. With this splitter two HDMI compatible monitors or projectors can be connected easily to one HDMI device. -
Page 4: Specifications
SPECIFICATIONS Max. single link range ca. 10m (depending on cable quality) HDMI resolution 480p/576p/720p/1080i/1080p, 3D (1080p/24Hz) HDMI version HDMI 1.3b DVI Resolution 480p/576p/720p/1080i/1080p Band width up to 225MHz Input video signal 0.5~1V p-p Input DDC signal 5V p-p (TTL) EDID duration 4 seconds CONNECTION AND OPERATION Step 1: Connect one cable from HDMI source device into HDMI splitter input. -
Page 5: Panel Explanation
PANEL EXPLANATION Figure 1: Front Panel Figure 2: Back Panel 1. Power LED 2. Power input 3. HDMI input 4. LED of HDMI input 5. 1st HDMI output 6. LED of 1st HDMI output 7. LED of 2nd HDMI output 8. -
Page 6: Troubleshooting
TROUBLE-SHOOTING Please check the connection carefully before turning power on. Make sure, that all interfaces are connected properly. Trouble description Possible cause and solution The splitter seems to be not First check if the power adapter is working and well working. - Page 7 Warning: Power adapters with a higher voltage may damage the splitter.
- Page 8 CONTACT If you have any questions, please feel free to contact us. PRODUCTION & WHOLESALE DISTRIBUTION LEICKE GmbH LEICKE Distributor (LEICKE GmbH) Dohnanyistr. 28 Dohnanyistr. 28 04103 Leipzig 04103 Leipzig Germany Germany Web: www.leicke.com Web: www.leicke-distributor.de Mail: info@leicke.com Mail: info@leicke-distributor.de...
