Fox FAI-8200 Instruction Manual

2-way color led fm technology security system
Hide thumbs

Advertisement

Quick Links

Download this manual
Features
1. 1 Two Way LED Remote Transmitter and 1 one way 2
2. Code Hopping and Code Learning Remote System
3. Up to 4 LED remote transmitters Programmable
4. Remote Engine Start
5. Remote Arm/Disarm
6. Mute Arm/Disarm
7. Starter Kill (500mA negative output) in arming mode
8. Remote Trunk Release
9. Passive or Active Lock Programmable
10. Auto Re-arm
11. Lock/Unlock on driving
12. Silent Car Searching
13. Vibrate or Audible Alert
14. Low level of Battery Indication
15. Audible Intrusion Zone Identification
16. Defective Zone Alert and By-pass
17. Back-up Memory for the Battery Power Failure
18. Keyless Entry While Ignition is on
19. Remote Panic
20. Remote Hijacking – Keeping Engine on.
21. Last Door Arming
22. Siren Chirp programmable for 30 or 60 seconds
23. Built-In Actuators Relay
24. Tach or Tachless Sensing
25. Central Lock Active Time selectable 0.5 or 3.5 seconds
26. Plug-In Dual Stage Shock Sensor
27. Pre-warn away
28. Vehicle Status Report
29. Triggered Report by chirp when disarmed
30. Ignition Auto Lock/Unlock
31. Siren or Horn selectable
32. 24hr Engine start
Key Function Table
Button
Press Button (1) once
Press Button (1) over 2 sec.
Press Button (2) once
Press Button (3) over 2 sec.
2-Way Color LED FM technology Security System
ARM
Arm
Panic
Disarm
Trunk Release
FAI-8200
nd
remote
DISARM
Arm
Panic
Disarm
Trunk Release
1
Ignition On
Lock
Panic
Unlock
Trunk Release

Advertisement

loading
Need help?

Need help?

Do you have a question about the FAI-8200 and is the answer not in the manual?

Questions and answers

Summary of Contents for Fox FAI-8200

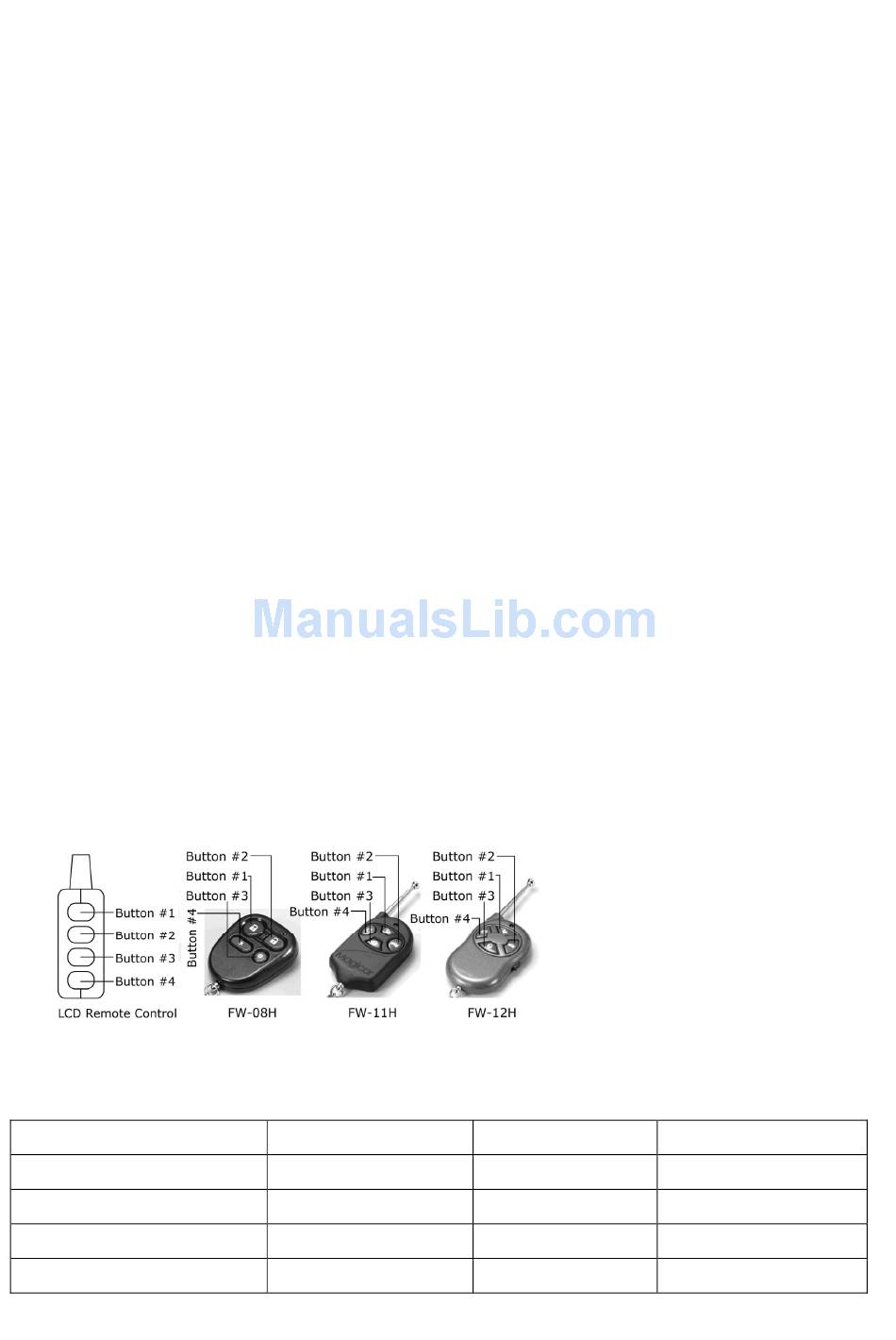

  • Page 1 FAI-8200 2-Way Color LED FM technology Security System Features 1. 1 Two Way LED Remote Transmitter and 1 one way 2 remote 2. Code Hopping and Code Learning Remote System 3. Up to 4 LED remote transmitters Programmable 4. Remote Engine Start 5.

  • Page 2: System Features

    Press Button (3) once Car Finder Car Finder Car Finder Press Button (4) once Lighted Display Lighted Display Lighted Display Press Button (4) over 3 sec. Remote Start On/Off Remote Start On/Off Press Button (1)+(2) once Mute Disarm Mute Arm Valet Mode Press Button (1)+(4) over 1 sec.
  • Page 3 and off in a cycle (30 seconds) to indicate the door is triggered. Hood or trunk open and then closed: The parking lights will flash and siren sound for one cycle 30 seconds. The LED wire will flash 2 times and off in a cycle (30 seconds) to indicate the ignition is triggered. The LED wire will flash 2 times and off in a cycle (30 seconds) to indicate the hood or trunk is triggered.
  • Page 4 Emergency Override Mode As an emergency situation happens like the remote transmitters lost, you can override the full security system. a) Open the door by your car key and the alarm will be triggered. b) Switch the ignition on/off 6 times, the siren will be off and the system is disarmed. Remote Valet Mode This mode is a convenient feature to use when you hand the remote transmitter to third person for valet parking or vehicle service.
  • Page 5 2. Pull up the parking brake. 3. Remove the key from the ignition. The engine will keep running. 4. Exit the vehicle and close the door after taking Step# 3. Then the engine will shut down and the reservation mode is set up. Important: Reservation mode must be set up every time before exiting manual transmission cars in order to remote start.

  • Page 6: Ignition Lock

    a) Under the disarm mode, open car door, and switch the ignition on-off, on-off, on-off and then stay On. b) Siren will chirp 2 seconds and LED will be on for 2 seconds to confirm entering the programming option mode. c) Within 20 seconds, press button (3) over 3 seconds, all programming options will be back as the factory defaults.
  • Page 7 Take the same procedure as above. When this feature is defaulted as enable (Select 120 or 180 seconds), the engine will be still running for 120(180) seconds after turning the ignition off in order to protect the engine life. When default Turbo Timer as 120 or 180 seconds, a.
  • Page 8 Dome Light Delay Steps to default Disable, 15 Seconds or 40 seconds: Take the same procedure as above. The central locking system has the various dome light delay time according to different makers, brands or years of the vehicle. Program the right default depending on the dome light delay time the vehicle has. Or just default the dome light delay disable and connect the instant wire of the vehicle to override the dome light delay time the vehicle has.
  • Page 9 Anti-Hijacking Delay Time Steps to default Anti-Hijacking Delay Time as 15 or 60 seconds: Take the same procedure as above. The anti-hijacking delay time will be activated only when Anti-Hijacking by Remote or Anti-Hijacking by Door is defaulted as enable. Please refer to the followings. Anti-Hijacking by Remote Steps to default Anti-Hijacking by Remote as enable or disable: Take the same procedure as above.
  • Page 10 a) When default Start Enable as Arm Mode, the remote engine start function can be activated when the system is armed. b) When default Start Enable as Normal, the remote engine start function can be activated either the system is armed or disarmed. c) After the remote engine start is successful, drivers can use transmitter to arm or disarm the system.

  • Page 11: Wiring Diagram
