StarMax J3 CUB Instruction Manual page 5

J3-CUB
INSTRUCTION MANUAL
2，

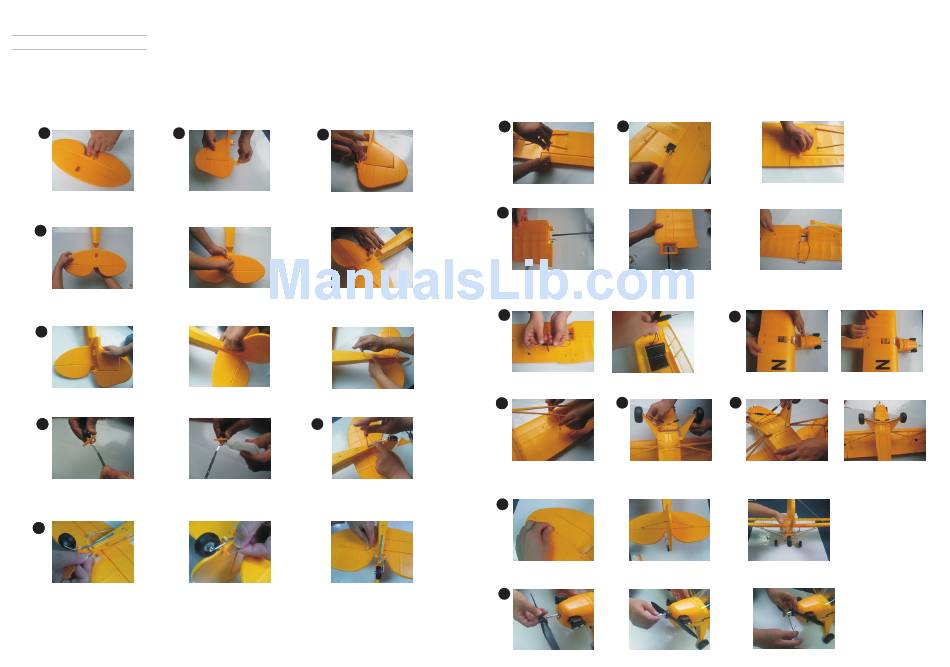

Assembly of horizontal tail & vertical tail and tail wheel:
1 2
Install the screw horns in the horizontal tail. Install the steering holder
(PA1.7X15mm 4pcs)
in the vertical tail.
4
Install the horizontal tail in fuselage with screw
5
Install the vertical tail in fuselage with screw
6 6
Install the rear landing gear with glue.
6 8
Fix one end of the spring in the steering holder, the other end to steering arm, close the chuck after leveling elevator.
0.5X4X24.8mm 2pcs
：
3
Install the screw horns in
the steering holder with screw.
PA1.7X15mm 2pcs
(PM3.0mmX30mm 2pcs)
.（PM3.0X45mm 1pcs, PM3.0X40mm 1pcs).
7
Fix the rear landing gear with screw.
(PA2.6X8mm 2pcs)
3，
Assembly of main wings, front landing gear and propeller:
1 2
Install the control horns of aileron. Install the steel wire with the second hole on servo arm, close the chuck after
(PA1.7X15mm 8pcs)
leveling aileron.(1.2X65mm 2pcs)
3
Put reinforcing rod into the holes on left and right wing with two ends. Then fasten reinforcing rod with screws.
4
Connect two steering devices with Y wire. the Y wire will
reach equipment bay after through the hole on cockpit.
6 6 7
Fix front landing gear with steel wire. Tighten diagonal draw bar and dam-board with screws.
Put inclined strut into the
right hole on main wing.
9
Fix the horizontal wing and vertical wing with stree wire spring
: 1.0X94mm 2pcs .
For horizontal
For vertical 1.0*94mm 2 pcs
10
Fix propeller into the spindle of motor. Then tighten it up with spacer and screw.
：
5
Install the main wing and cabin with screws.
(PM3.0X35mm 2pcs)
8
( P A 2 . 6 X 2 0 m m )
( :0.5X4X24.1mm 8pcs
