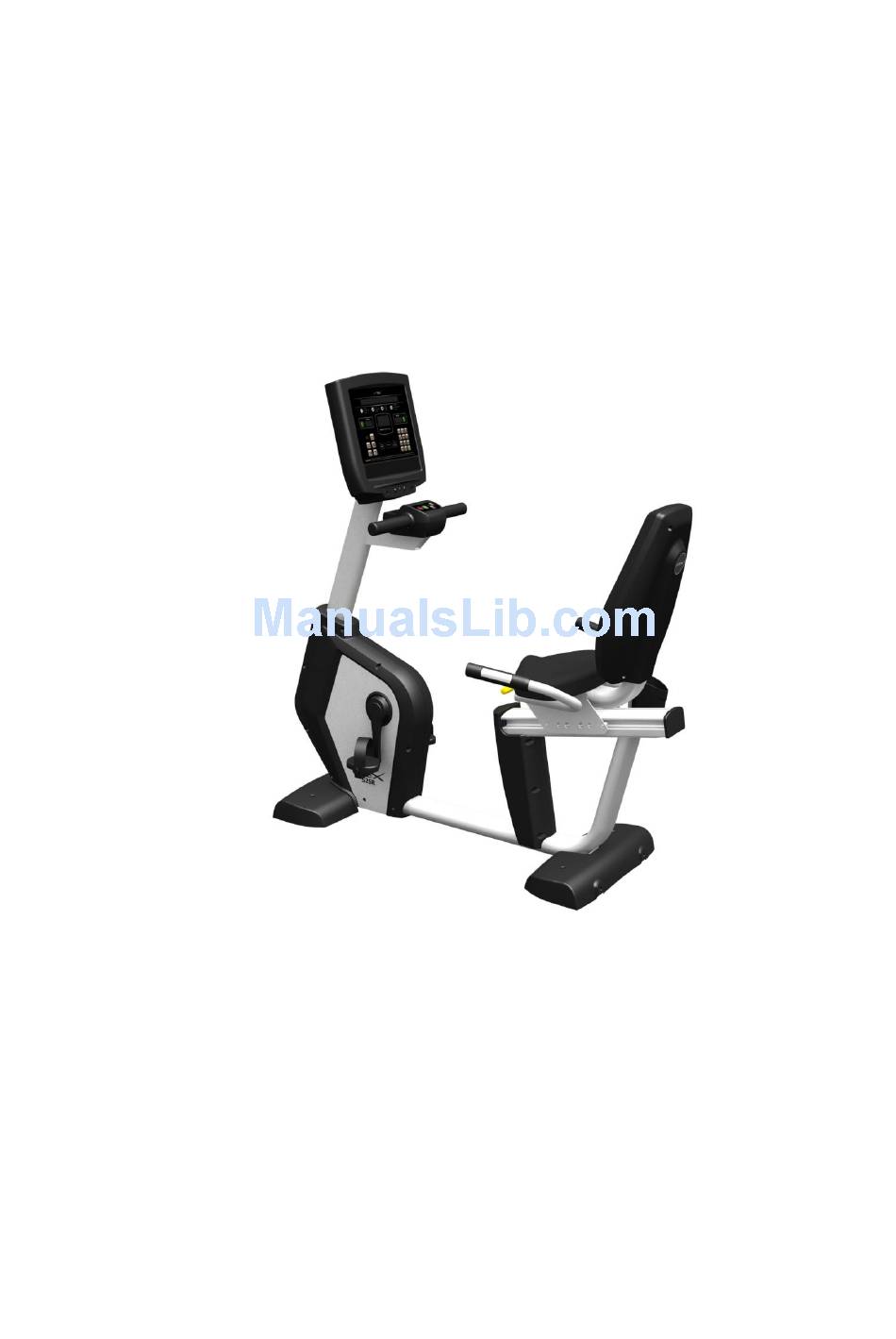

  • Page 1 S25R Recumbent Bike Customer Support Services Service manual...
  • Page 2 General Contents 1. Introduction 2. Component identification 3. Parts manual 4. Assembly instructions < 2 >...
  • Page 3 // If you have any problem ~~~ If you have any problem for STEX exercise new bikes, please contact our sales dealer or our service center by phone or E-mail. In order to speed our response to your particular situation, please have the following information available...
  • Page 4 3. Part manual 3-1 Leveller assembly (#1) – S25R Series 3-1 Description Parts Parts No. Q’TY Remark Leveling foot 301002 4 ea Moving wheel 301003 2 ea Hex head 300034 2 ea M10 x 45L Nut-Nylon Insert lock 300024 2 ea Pl_Footcap support.
  • Page 5 3-2 Crank shaft / Pulley assembly (#2) – S25R Series 3-2 Description Parts Parts No. Q’TY Remark Ass’y Crank housing 301006 1 ea Ball bearing 300157 2 ea 6205ZZ Ass’y Crank shaft 301007 1 ea Snapring 300152 1 ea Shaft 25...
  • Page 6 3-3 Motor / Idler assembly (#3) – S25R Series 3-3 Description Parts Parts No. Q’TY Remark Hybrid Generator 301037 1 ea Hex. Socket head 300089 4 ea M6 x 15L (SEMS) BRK_Idler 301012 1 ea Roller Idler 0001 32M2-MS031 1 ea...
  • Page 7 3-4 LM guide assembly (#4) – S25R Series 3-4 Description Parts Parts No. Q’TY Remark AL_ LM Guide 301141 1 ea PL Level guide 301142 1 ea Hex. Socket head 300093 2 ea M8 x 20L (SEMS) Hex. Socket head...
  • Page 8 3-5 Power board assembly (#5) – S25R Series 3-5 Description Parts Parts No. Q’TY Remark BRK Power board 301139 1 ea Power board 201006 1 ea Machine pan head 300057 4 ea M4 x 8L (SEMS) Machine pan head 300040...
  • Page 9 3-6 Rear cover assembly (#6) – S25R Series 3-6 Description Parts Parts No. Q’TY Remark Mold_ Rear cover R 301155 1 ea Mold_ Rear cover L 301156 1 ea Tapping pan head 300071 4 ea M5 x 10L < 9 >...
  • Page 10 3-7 Foot cover assembly (#7) – S25R Series 3-7 Description Parts Parts No. Q’TY Remark Mold Foot cover 301024 1 ea Machine pan head 300040 2 ea M5 x 12L (SEMS) Mold Foot cover 301024 1 ea Machine pan head...
  • Page 11 3-8 Seat assembly (#8) – S25R Series < 11 >...
  • Page 12 3-8 Description Parts Parts No. Q’TY Remark Ass’y Movable wheel 201069 7 ea Hex. Socket head 300095 4 ea M8 x 12L Ass’y Adjust roller shaft 201079 3 ea Snap ring 300149 3 ea Shaft 10 Hex. Socket head 300092 3 ea M8 x 15L (SEMS) Ass’y Latch(RE)
  • Page 13 3-9 Main cover assembly (#9) – S25R Series 3-9 Description Parts Parts No. Q’TY Remark Ass’y_ R Main cover R 201056 1 ea Mold_ Main cover cap 301037 1 ea Ass’y Ext. Input board 201013 1 ea Machine pan head...
  • Page 14 3-10 Pedal assembly (#10) – S25R Series 3-10 Description Parts Parts No. Q’TY Remark PL Crank connector 301050 2 ea Crank Arm L 201128 1 ea Crank Arm R 201127 1 ea Crank pedals 301049 2 ea Washer Flat 300010 2 ea Hex.
  • Page 15 3-11 Display console aseembly (#11) – S25R Series 3-11 Description Parts Parts No. Q’TY Remark Mold_ Fast Track bottom 301061 1 ea Machine pan head 300065 2 ea M5 x 12L (SEMS) Ass’y Front handle(RE) 201081 1 ea Hex. Socket head...
  • Page 16 3-12 Display console aseembly (#12) – S25R Series 3-12 Description Parts Parts No. Q’TY Remark Ass’y Display conlsole 201033 / 201035 / 1 set (S25R / S25RX / S25RXi) 201114 Machine pan head 300065 5 ea M5 x 12L (SEMS)
  • Page 17 3-13 Display console assembly (#13-1) – S25R 3-13 Description Parts Parts No. Q’TY Remark Mold_ Console front cover 01 301084 1 ea Display board 201039 1 ea Tapping pan head 300051 6 ea M4 x 8L Mold_ Front board cover 0002...
  • Page 18 3-14 Display console assembly (#13-2) – S25RX 3-14 Description Parts Parts No. Q’TY Remark Mold_ Console front cover 03 301085 1 ea Mold_ Front board cover 0002 201066 1 ea BRK Front board 301103 1 ea Multi board 201126 1 ea Machine pan head 300057 2 ea...
  • Page 19 3-15 Display console assembly (#13-3) – S25RXi 3-15 Description Parts Parts No. Q’TY Remark Mold_ Console front cover 03 301085 1 ea Mold_ Front board cover 0002 201066 1 ea BRK Front board 301103 1 ea Multi board 201126 1 ea Machine pan head 300057 2 ea...
  • Page 20 3-16 Circuit Diagram – S25R < 20 >...
  • Page 21 3-16 Description – S25R Parts Parts No. Q’TY Remark Display board 201039 1 ea Rev. 07 Membrane overlay 301082 1 ea Wire_D001 301086 1 ea iPOD Cable 200066 1 ea Front board 201044 1 ea Rev. F Wire_D002 301087 1 ea...
  • Page 22 3-17 Circuit Diagram – S25RX < 22 >...
  • Page 23 3-17 Description – S25RX Parts Parts No. Q’TY Remark Interface board 201040 1 ea Rev. L Wire_I005 301093 1 ea Wire_I004 301092 1 ea Wire_I003 301091 1 ea S_Scaler Comm Cable 300337 1 ea Wire_D005 301088 1 ea Wire_D003 301043 1 ea Wire_D002 301087...
  • Page 24 3-18 Circuit Diagram – S25RXi < 24 >...
  • Page 25 3-18 Description – S25RXi Parts Parts No. Q’TY Remark Interface board 201040 1 ea Rev. L Wire_I005 301093 1 ea Wire_I004 301092 1 ea Wire_I003 301091 1 ea S_Scaler Comm Cable 300337 1 ea Wire_D005 301088 1 ea Wire_D003 301043 1 ea Wire_D002 301087...

  • Page 26: Assembly Instructions

     DO read the entire operation manual prior to operating this machine as this is essential for proper use.  DO verify the contents of the delivery prior to setting the machine. If any parts are missing, contact STEX(Sales dealer or our service center) at the number listed in the operation manual. Save the shipping cartons in case of return.
  • Page 27 Accompanying parts Models Parts Q’TY S25R S25RX S25RXi ○ ○ ○ Display console support column ○ ○ ○ Hexagon socket head // (SEMS)M620L ○ ○ ○ Fast track_bottom cover ○ ○ ○ Pan head screw // (SEMS)M512L ○ ○ ○...
  • Page 28 Assembly procedures  S25R 1. Check the contents//Accompanying parts, required tools, & others… 2. Secure the DISPLAY CONSOLE SUPPORT COLUMN(1). 1) Open the FRONT CAP(a) of the base frame. 2) Feed the wires through the DISPLAY CONSOLE SUPPORT COLUMN(1). 3) Connect the HEART RATE CABLE(b) leading from the DISPLAY CONSOLE SUPPORT COLUMN to the wire(c) leading from the base frame.
  • Page 29 4. Secure the front HANDLEBAR(5). 1) Position the front HANDLEBAR(5) as shown. 2) Secure the HANDLEBAR to the upper DISPLAY CONSOLE SUPPORT COLUMN using four M615mm SCREWS(6). Note: Be careful not to pinch wires. 5. Secure the FAST TRACK_TOP COVER(7). 1) Position the FAST TRACK_TOP COVER(7) as shown.
  • Page 30 4) Position the REAR COVER(11) at the back of the DISPLAY CONSOLE and secure it using four M510mm TAPPING SCREWS(12). 7. Assembly the RECUMBENT SEAT ASSEMBLY. 1) Position the SIDE HANDLEBAR(13) as shown. 2) Connect the HEART RATE CABLE(h) leading from the SIDE HANDLEBAR to its respective location in the bottom of SEAT FRAME(B).
  • Page 31 9. Secure the LM GUIDE CAP(15) and insert the RUBBER(17). 1) Position the LM GUIDE CAP(15) as shown with the flat surface facing outside. 2) Secure the LM GUIDE CAP to the LM GUIDE using two M410mm SCREWS(16). Note: → Be careful not to over-tighten the screws. 3) Fasten the M820mm SCREW(F) as shown.
  • Page 32 12. Connect external wires. j: FITNESS NETWORK: RS-232(optional) k: 12V POWER < 32 >...
  • Page 33 Assembly procedures  S25RX//RXi 1. Check the contents//Accompanying parts, required tools, & others… 2. Secure the DISPLAY CONSOLE SUPPORT COLUMN(1). 1) Open the FRONT CAP(a) of the base frame. 2) Feed the wires through the DISPLAY CONSOLE SUPPORT COLUMN(1). 3) Connect the HEART RATE CABLE(b) leading from the DISPLAY CONSOLE SUPPORT COLUMN to the wire(c) leading from the base frame.
  • Page 34 1) Position the front HANDLEBAR(5) as shown near the upper DISPLAY CONSOLE SUPPORT COLUMN. 2) Secure the HANDLEBAR to the upper DISPLAY CONSOLE SUPPORT COLUMN using four M615mm SCREWS(6). Note: Be careful not to pinch wires. 5. Secure the FAST TRACK_TOP COVER(7). 1) Position the FAST TRACK_TOP COVER(7) as shown.
  • Page 35 3) Secure the DISPLAY CONSOLE on the CONSOLE BRACKET(A) using five M512mm SCREWS(10). 4) Position the REAR COVER(11) at the back of the DISPLAY CONSOLE and secure it using four M510mm TAPPING SCREWS(12). 7. Assembly the RECUMBENT SEAT ASSEMBLY. 1) Position the SIDE HANDLEBAR(13) as shown. 2) Connect the HEART RATE CABLE(k) leading from the SIDE HANDLEBAR to its respective location in the bottom of SEAT FRAME(B).
  • Page 36 9. Secure the LM GUIDE CAP(15) and insert the RUBBER(17). 1) Position the LM GUIDE CAP(15) as shown with the flat surface facing outside. 2) Secure the LM GUIDE CAP to the Aluminum LM GUIDE using two M410mm SCREWS(16). Note: → Be careful not to over-tighten the screws. 3) Fasten the M820mm SCREW(F) as shown.
  • Page 37 l: BROADCAST SUPPLY INPUT(COAXIAL) m: HDMI CABLE INPUT n: FITNESS NETWORK: RS-232(optional) o: 12V POWER Pre-operation check! ① Ensure that all screws are tight. ② Ensure that the recumbent exercise bike is properly leveled and stable. ③ Ensure that the leveler nuts are tight. ④...
