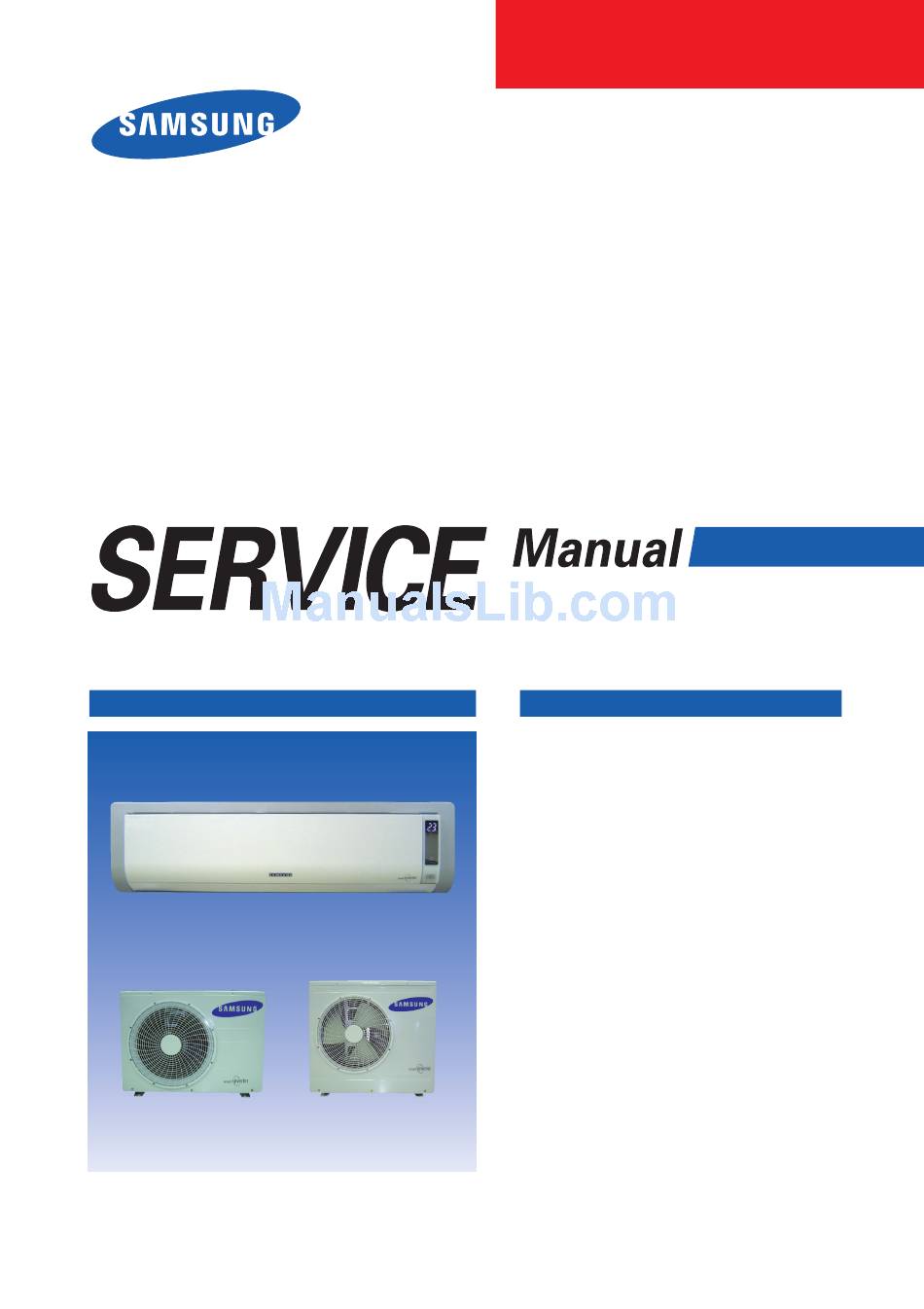

Samsung AS18BPAN Service Manual

Hide thumbs Also See for AS18BPAN:
Table of Contents

Advertisement

Quick Links

See also: User Manual
AIR CONDITIONER
AS18BPAN/AS24BPAN
AS18BPAX
For more information, Please access to our service web site(http://itself.sec.samsung.co.kr)
SPLIT-TYPE AIR CONDITIONER
Basic : AS18HPB/AS24HPB
Model : AS18BPA/AS24BPA
Model Code : AS18BPAN/AS24BPAN
■
■
■
■
■
■
■
AS24BPAX
AS18BPAX/AS24BPAX
THE FEATURE OF PRODUCT
Energy Saving Function
High Impressive & Elegant Design
Excellent Dust Collection Filter
: The metallic dust filter is used.
Multi Functional Cleaning System
: The anti allergy filter and activated deodorizing
filter are adopted.
Human Touch Remote control
