WARRANTY
This warranty has a term of two (2) years from the manufacturing date or one (1) year from the date of the
dealer's invoice, whichever expires first. It covers manufacturing defects that may arise during this period.
When verifying some manufacturing defect, you should take the product along with its purchasing
invoice to the store where you bought it, so that, after the dealer's analysis, your product can be either
repaired or replaced free of cost, except for any other freight expenses to the dealer store.
We do not accept complaints within the warranty term if:
a) The product has been installed without observing the INSTALLATION INSTRUCTIONS provided in
this manual;
b) The loudspeaker presents defect like torn, perforated or wet cone; installation in improper place;
distorted or smashed basket; moving coil burned due to use out of the specifications;
c) After being inspected, the product shows evidences of modifications or repairs made by unauthorized
personnel;
d) There is evidence that chemicals were used on the loudspeaker components;
e) The loudspeaker has been burned due to the use of amplifiers (power modules) not having protective
under-voltage (Battery voltage drop) circuit.
This warranty applies only to the first purchaser so that there is no conflict with the current law.
Should HINOR decide to modify the design and/or to make technical improvements on this product, it
shall not be obliged to include such changes in any product manufactured before.
The warranty offered herein covers only the repair or replacement of the product, and HINOR does not
take responsibility for any claim for indemnification of any kind.
NH INDÚSTRIA E COMÉRCIO LTDA
ROD. BR 470, 5640 – VALADA ITOUPAVA
89.160-000 RIO DO SUL (SC) BRAZIL - TELÉFONO: ++55 (47) 3531-8800
CNPJ 85776466/0001-36 - I.E.250170515
INDÚSTRIA BRASILEÑA - MADE IN BRAZIL
www.hinor.com.br
e-mail: hinor@hinor.com.br
Toll-free
0800-478002
Advertisement

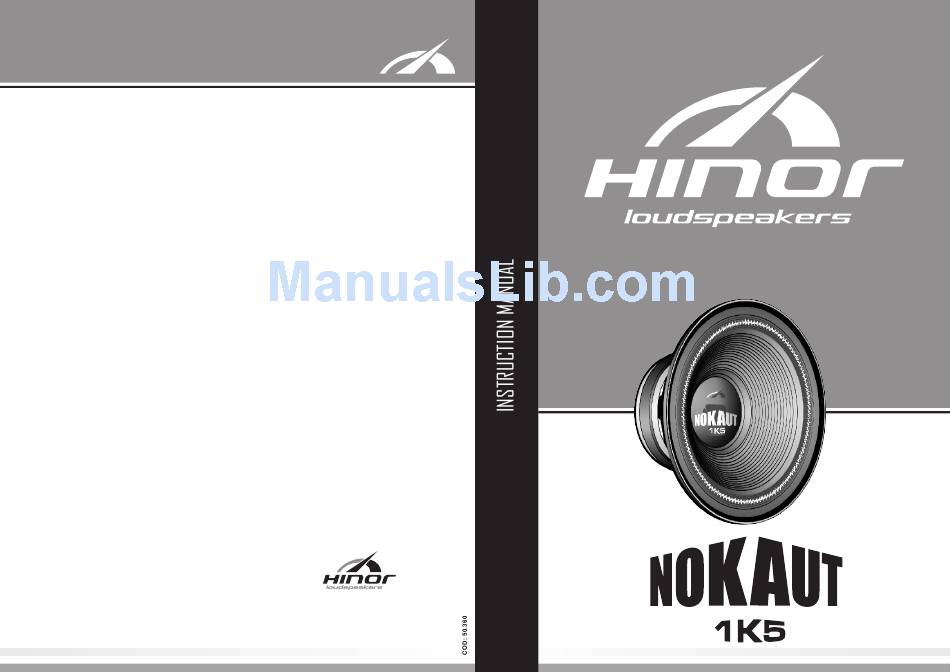

Summary of Contents for Hinor Loudspeakers NOKAUT 1K5
- Page 1 WARRANTY This warranty has a term of two (2) years from the manufacturing date or one (1) year from the date of the dealer's invoice, whichever expires first. It covers manufacturing defects that may arise during this period. When verifying some manufacturing defect, you should take the product along with its purchasing invoice to the store where you bought it, so that, after the dealer's analysis, your product can be either repaired or replaced free of cost, except for any other freight expenses to the dealer store.
- Page 2 Features Performance Graphs Frequency response The NOKAUT 1K5 subwoofer has been designed to reproduce sub-bass and bass with very The frequency response expresses the sensibility curve of the loudspeaker in all of its audible high quality. frequency. The data shown on the following graphs was obtained in an anechoic chamber with Features the help of imported dedicated software and hardware.
- Page 3 The loudspeaker has been developed with a single coil for a perfect compatibility with the 94,01 97,91 40-3000 15 NOKAUT 1K5 different amplifier modules available in the market. The following figure shows the possible way of connecting the coil and the resulting impedance. ATTENTION *This loudspeaker should be connected ONLY to the REAR output of the CD/DVD device plus a HPF filter rated to 50 Hz or above.
- Page 4 (cm) (cm) (cm) (cm) (cm) (cm) (cm) (cm) (Hz) (Hz) (dB) 15 NOKAUT 1K5 50,0 40,0 40,0 35,0 45,0 40,0 11,0 INSTALLATION INSTRUCTIONS BOX TYPE AIR DUCTS This loudspeaker should be connected ONLY to the REAR output of...
