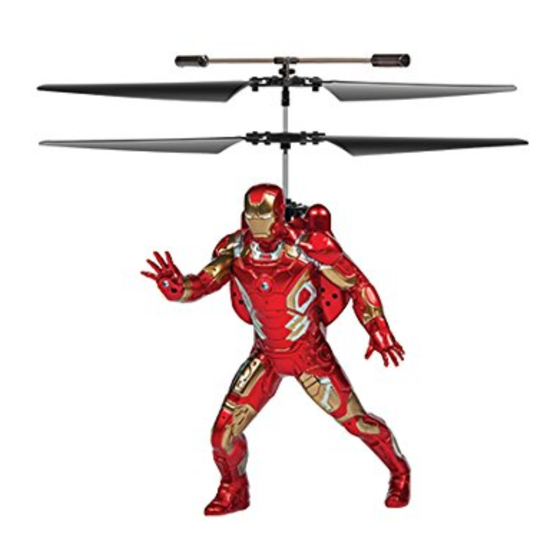

World Toy Tech ZX-34858 IRON MAN Instruction Manual

2ch flying figure ir helicopter
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

I N S T R U C T I O N
ITEM NO: 34858
Main Rotor Blades
LED Lights
PRODUCT INCLUDES:
- IR Helicopter
- Remote
- User Manual
- Main Rotor
- Stabilizer Link
- USB Charging Cable
- Spare Blades
Length: 3.25 Inches
Power Switch
Charging Port
Infrared Receiver
Width: 4 Inches
Height: 7.5 Inches
8+
FOR AGES 8 AND UP
IRON MAN 2CH
FLYING FIGURE
IR HELICOPTER
M A N U A L
Product Description:
Flight Altitude: 32 ft.
Flight Distance: 26-32 ft.
Flight Time: 5-7 Min
Internal Battery: 3.7V 220 mAh
Charging Time: 40-60 Min
WARNING:
Incorrectly storing this RC
helicopter may cause the rotor blades to bend
and/or warp, which may make it unable to fly
properly.
Stabilizer Bar
BACK VIEW

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZX-34858 IRON MAN and is the answer not in the manual?

Questions and answers

Summary of Contents for World Toy Tech ZX-34858 IRON MAN

  • Page 1 IRON MAN 2CH FLYING FIGURE IR HELICOPTER I N S T R U C T I O N M A N U A L ITEM NO: 34858 Stabilizer Bar Main Rotor Blades LED Lights BACK VIEW Power Switch PRODUCT INCLUDES: - IR Helicopter Charging Port - Remote...

  • Page 2: Transmitter Components

    TRANSMITTER COMPONENTS Infrared Emitter Band Selector (A. B. C.) Power Indicator Left Turn/Right Turn Throttle Power Switch Action Phrases Charging Cord Trim knob TRANSMITTER BATTERY INSTALLATION Battery Case INSTALLING THE BATTERIES: Open the Battery Case and insert 6 AA Batteries by the correct polarity.

  • Page 3: Flight Operation

    FLIGHT OPERATION To ensure a safe and stable flight, please follow these instructions: 1) On the transmitter, set the Channel Switch to A, B or C (avoid using the same frequency to other nearby RC devices). Turn the ON/OFF Switch on. 2) Switch the Helicopter on.

  • Page 4: Flight Tips

    FLIGHT OPERATION CONTINUED ADJUSTING THE TRIM When in flight, the helicopter may spin to the right or left without the pilot’s input. To correct this you will need to adjust the trim. If the helicopter is spinning to the left, slowly turn the trim knob to the right until the helicopter stops spinning.

  • Page 5: Battery Warning

    FLIGHT OPERATION CONTINUED - Read this instruction manual before flying the Helicopter. - This product is designed to be flown only indoors. - Only fly this Helicopter in open areas and keep clear of any obstacles. - Keep the Helicopter 3-6 feet away from all people and animals. - Always carefully watch the Helicopter to prevent it from crashing on yourself or other people.

  • Page 6: Troubleshooting

    TROUBLE SHOOTING PROBLEM CAUSE SOLUTION Helicopter blades - ON/OFF switch is off. - Set the switch to ON. do not move - Weak battery. - Charge the Battery. Stops operating - Weak Battery. - Charge the Battery. during flight The helicopter does not - Switch the channel - Change the transmitter react to input...
