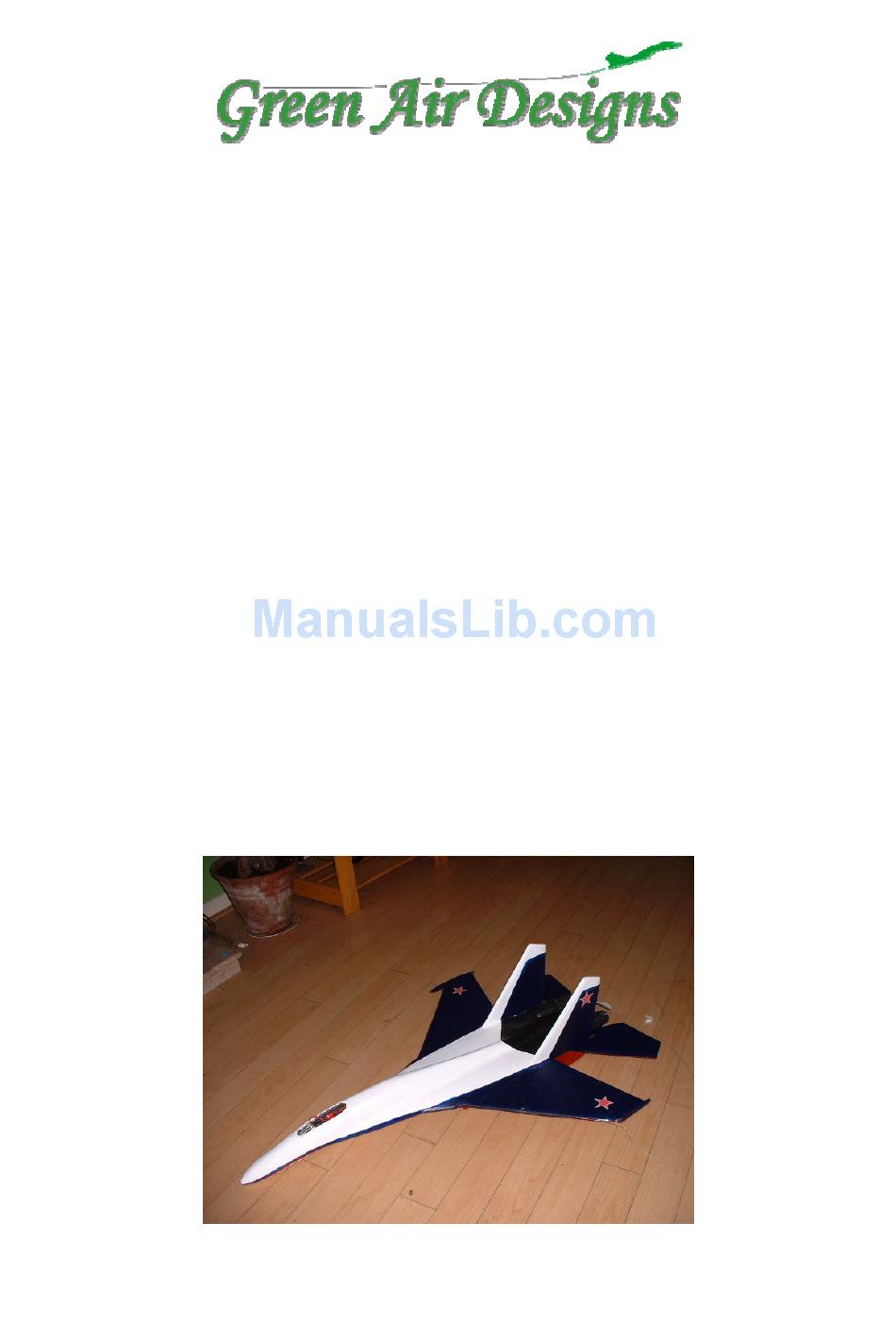

Su-27 Flanker Instruction Manual
We would like to thank you for purchasing our Green Air Designs Su-27
Flankers and hope you have as much fun building and flying yours as we
have ours.
Parts not supplied
•
Glue
•
Lightweight filler
•
Velcro
•
Paints – Water based acrylics/enamel LOW VOC applied thinly (no
responsibility for paints will be held by Green Air Designs.)
•
Micro Rx – i.e. Schultz 535, Corona 6ch
•
Micro servos – i.e. 9g Servos x 2
Power Train – Single pusher set-up:-
GAD 21g Brushless + 3s 1000-1500 Lipos
Micro 6 outrunner
Note: Our set-ups are a safe recommendation to give a fun safe aircraft. We
do not take any responsibility for damage to aircraft, persons or items, in the
use of this kit!
Advertisement
Summary of Contents for Green Air Designs Su-27 Flanker
- Page 1 Su-27 Flanker Instruction Manual We would like to thank you for purchasing our Green Air Designs Su-27 Flankers and hope you have as much fun building and flying yours as we have ours. Parts not supplied • Glue • Lightweight filler •...
- Page 2 Step 1 – Basic Fuse Construction Refer to Drawings on page “step one” for basic build. 1. Glue the carbon tube/Ally Box spar in to wing slot (trim to length If required). 2. Shape wing to aerofoil (shown on wing shaping page). 3.
- Page 4 7. Once set, trial fit the fuse to the base. Sand any inaccuracies so fuse fits snugly, pin, tape and then glue into place, allow to set completely before removing pins, tape etc. Great now you the basis of your Su-27 Flanker!!!!!
- Page 7 Step 3 – Taileron Mounts and Servos Refer to drawings on page “Step 3” for basic build. Fitting the business end of the flanker. 1. Glue in cross piece at rear of fuse. 2. Drill CENTRALY the wooden blocks for the taileron rods, 2mm drill. 3.
- Page 8 12.00...
- Page 9 Step 4 – Ducts Refer to drawings on page “Step 4” for basic build. Ducting and the art of ZEN! 1. Groove the inside of the ducts to allow them to roll. 2. Tape up ducts on the outside to stop cracking. 3.
- Page 11 Step 5 – Rear Fuse Refer to drawings on page “Step 5” for basic build. 1. Sand basic shape into engines before fitting to rear fuse. Refer to drawings. 2. Glue the 2 engines together and glue into place. 3. Sand rough shape into exhaust to match profile. 4.
- Page 13 Step 6 – Noses and Tails!!! Refer to drawings on page “Step 6” for basic build. 1. Sand shape into tailerons. You must complete all sanding to these as it is very difficult to sand them once they are fitted. 2.
- Page 14 14. Fit 3mm Depron cover over all electrics and tape down using invisible tape. 15. Shape and glue on wing tip rails. 16. Shape and fit dummy U.C covers. Plane is now built and just needs painting and setup.
- Page 16 VOC and will eat the foam! We take no responsibility for damage to planes through unsuitable paints used! DO NOT USE CELLULOSE BASED PAINTS!! We at Green Air Designs wish you many hours of fun with your new Su-27 Flanker.
