Connecting external audio/video devices

Connecting a DVD, VCR, STB or audio/video equipment

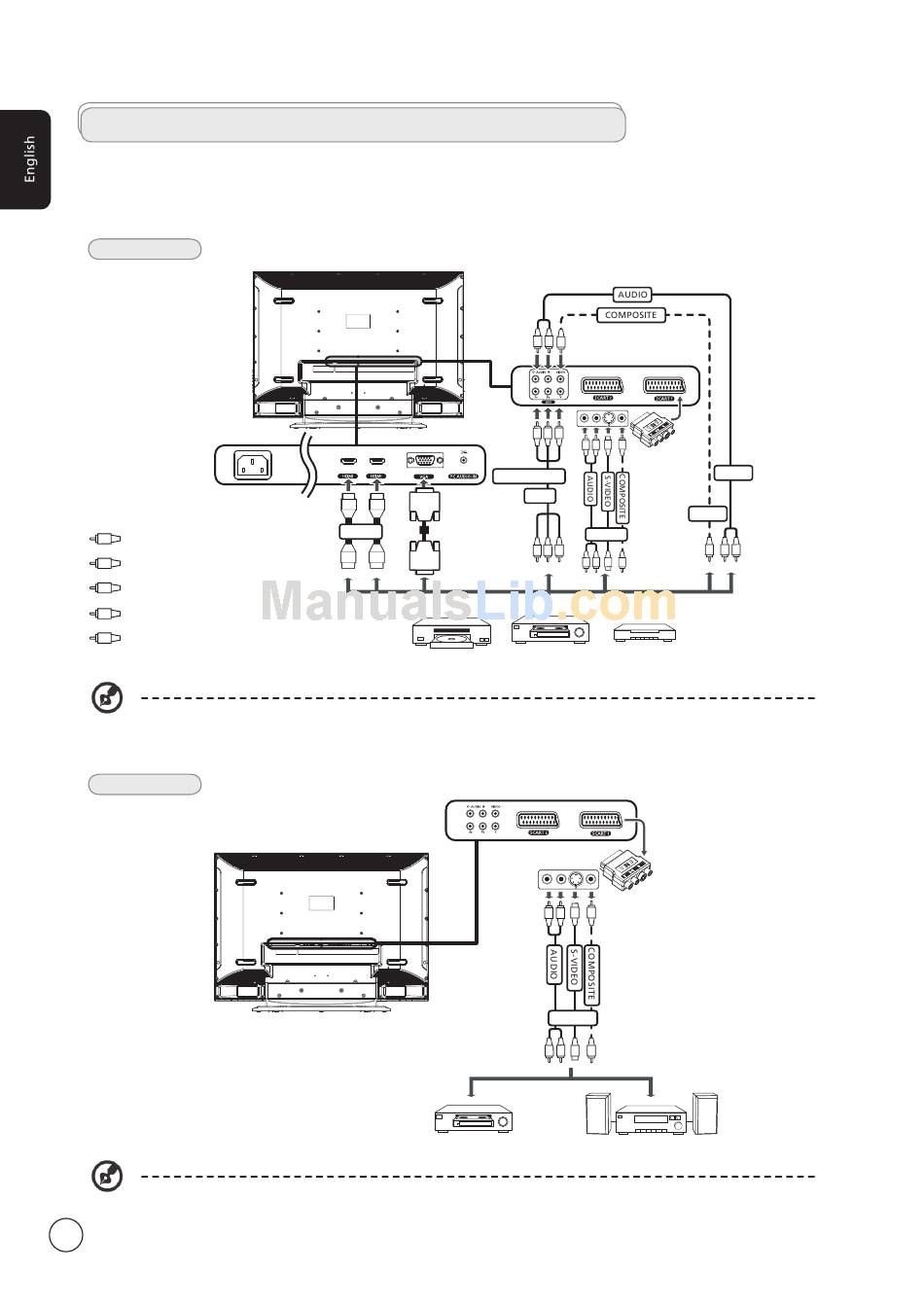

Connect your DVD player, VCR or audio/video equipment using the SCART port located at the rear of your LCD TV as shown
below.
Source-IN
Yellow
Y
Red
R
White
W
Blue
B
Green
G
* Acer recommends the following priority for connection types:
HDMI -> COMPONENT -> SCART -> Composite.
** For AV3, Composite and component inputs share the same audio ports.
TV-OUT
*SCART-out only works with analog broadcasts.
