Summary of Contents for Mecmesin MAHR MSP2

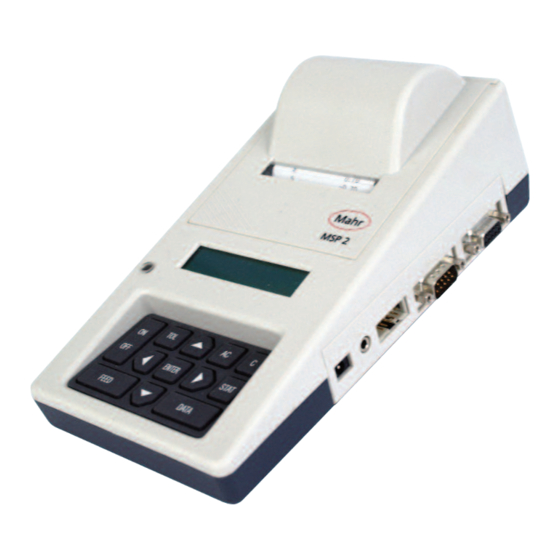

- Page 1 MAHR MSP2 Printer Instructions for use with Mecmesin Products...
-
Page 2: Table Of Contents
Contents MAHR MSP2 Printer Introduction Use as a Statistical Printer Selecting Digimatic Input Mode Selecting RS232 Input Mode Configuration of RS232 Input Mode Use as an ASCII Serial Printer Selecting ASCII Serial Printer Mode Configuration of ASCII Serial Printer Setup Mode... -
Page 3: Introduction
MAHR MSP2 Printer Introduction As a printer the MAHR MSP2 can be used in two formats: 1) Statistical Printer 2) ASCII Printer Note: See page 9 for Cables Required section to see which mode are available for Mecmesin instrument types. page 2... -
Page 4: Use As A Statistical Printer
Use as a Statistical Printer As a statistical printer the MAHR MSP2 can be operated in two modes with Mecmesin instruments: 1) Digimatic Input Mode 2) RS232 Input Mode Selecting Digimatic Input Mode a) Press ENTER button to display menu option... -
Page 5: Configuration Of Rs232 Input Mode
Use DATA button to change to different character set Use C button to clear character selected Use AC button to clear all text (See MAHR MSP2 printer operating instructions section 7.1 for further details) Press ENTER button to confirm the name. f) Setup pin contact layout as: buttons until above layout is selected Press ENTER button to confirm pin contact layout. - Page 6 Note: Baud does not have to be 9600 but it should be setup to be the same as the baud rate on the Mecmesin instrument (See instrument operating manual for details) Press ENTER button to confirm transmission parameters.
- Page 7 Use C button to clear character selected Use AC button to clear all text (See MAHR MSP2 printer operating instructions section 7.1 for further details) Press ENTER button to confirm request string. k) Setup Request impulse as: Req.
-
Page 8: Use As An Ascii Serial Printer
Use as an ASCII Serial Printer Selecting ASCII Serial Printer Mode This mode will need to be selected every time the printer is switched on. a) TURN ON b) PRESS ENTER c) PRESS RIGHT/LEFT ARROW KEY UNTIL ‘ASCII PRINTER’ IS DISPLAYED d) PRESS DATA Configuration of ASCII Serial Printer Setup Mode... - Page 9 Note: Baud does not have to be 9600 but it should be setup to be the same as the baud rate on the Mecmesin Instrument (See Instrument operating manual for details) Press ENTER button to confirm transmission parameters.
-
Page 10: Cables Required
Cables Required Printer Mode Statistical Printer Mode ASCII Printer Mode Instrument Digimatic Input Mode RS232 Input Mode RS232 Input Mode 351-077 351-077 BFG Mk4 351-055 351-054 351-054 AFG/AFTI Mk4 351-058 351-059 351-059 Tornado Mk2 351-058 351-059 351-059 Orbis Mk2 351-058 351-059 351-059 MultiTest-x... - Page 11 page 10...
- Page 12 Over 30 years experience in force & torque technology Formed in 1977, Mecmesin Ltd is today widely regarded as a leader in force and torque technology for quality control testing in design and production. The Mecmesin brand stands for excellent levels of performance and reliability, guaranteeing high quality results.
