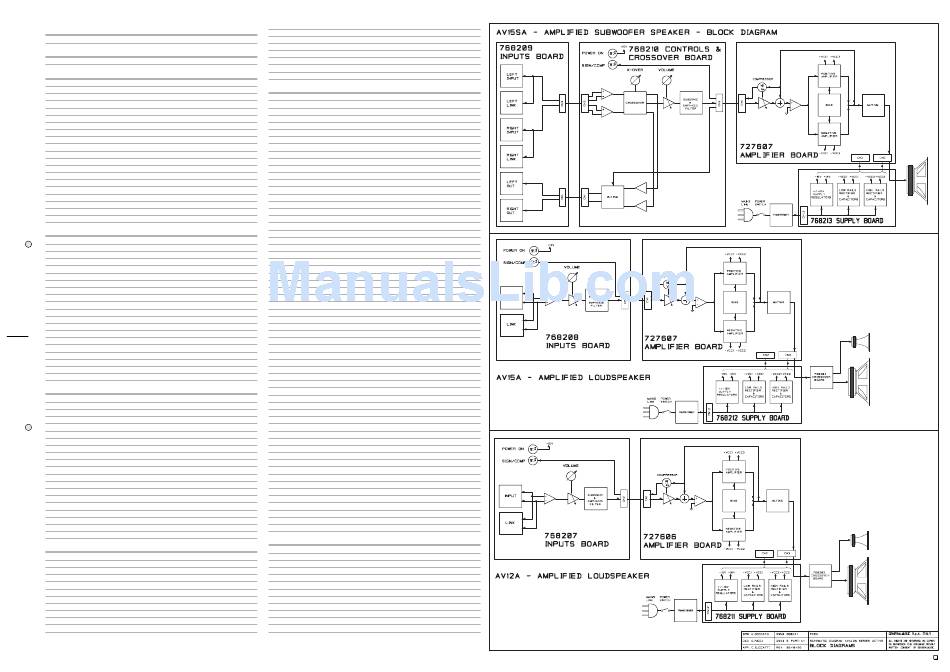

Spare Parts List; Block Diagram - LEM Avalon AV12-4 Service Manual

Spare Part List (PASSIVE VERSIONS) Spare Part List (PASSIVE VERSIONS) Spare Part List (PASSIVE VERSIONS) Spare Part List (PASSIVE VERSIONS) Spare Part List (PASSIVE VERSIONS)
Code Description
Accessories Accessories
Accessories Accessories Accessories
277334 Owner's Manual
AV-12 4 Ohm AV-12 4 Ohm AV-12 4 Ohm AV-12 4 Ohm AV-12 4 Ohm
778112 Cables Assembly
727601 Inputs Panel Assembly AV-12/4 Ohm
778144 * Jack-Speakon Cables Assembly
141200 ** Speakon Socket (NL4MP Neutrik)
140193 ** Jack Mono Socket
768202 768202 768202 768202 768202 * * * * * Crossover Filter Board (Pcb#313063) AV-12/4 Ohm Crossover Filter Board (Pcb#313063) AV-12/4 Ohm Crossover Filter Board (Pcb#313063) AV-12/4 Ohm Crossover Filter Board (Pcb#313063) AV-12/4 Ohm Crossover Filter Board (Pcb#313063) AV-12/4 Ohm
667692 * Rear Panel AV-12/4 Ohm
667702 Handle
667700 Grid
657270 EWT(TM) Elliptical Horn
657267 Box
229037 229037 229037 229037 229037 1" 4ohm Horn Tweeter 1" 4ohm Horn Tweeter 1" 4ohm Horn Tweeter 1" 4ohm Horn Tweeter 1" 4ohm Horn Tweeter
227056 227056 227056 227056 227056 12" 4ohm Woofer Speaker 12" 4ohm Woofer Speaker 12" 4ohm Woofer Speaker 12" 4ohm Woofer Speaker 12" 4ohm Woofer Speaker
210242 Filler for Speaker Box (Specify m²)
210217 Black Sealer (specify mt)
210215 Adhesive Rubber Foam 10x1.9mm (Specify mt)
210211 Gasket between Tweeter and Horn
120964 M4i M5e x17.5mm Threaded Pin for Woofer
120148 Screw M5x65mm for Handle
120147 Screw M4x8mm for Speakers
AV-12 8 Ohm AV-12 8 Ohm AV-12 8 Ohm AV-12 8 Ohm AV-12 8 Ohm
778112 Cables Assembly
727602 Inputs Panel Assembly AV-12/8 OHM
778144 * Jack-Speakon Cables Assembly
141200 ** Speakon Socket (NL4MP Neutrik)
140193 ** Jack Mono Socket
768203 768203 768203 768203 768203 * * * * * Crossover Filter Board (Pcb#313063) AV-12/8 Ohm Crossover Filter Board (Pcb#313063) AV-12/8 Ohm Crossover Filter Board (Pcb#313063) AV-12/8 Ohm Crossover Filter Board (Pcb#313063) AV-12/8 Ohm Crossover Filter Board (Pcb#313063) AV-12/8 Ohm
667693 * Rear Panel AV-12/8 Ohm
667702 Handle
667700 Grid
657270 EWT(TM) Elliptical Horn
657267 Box
229038 229038 229038 229038 229038 1" 8ohm Horn Tweeter 1" 8ohm Horn Tweeter 1" 8ohm Horn Tweeter 1" 8ohm Horn Tweeter 1" 8ohm Horn Tweeter
227057 227057 227057 227057 227057 12" 8ohm Woofer Speaker 12" 8ohm Woofer Speaker 12" 8ohm Woofer Speaker 12" 8ohm Woofer Speaker 12" 8ohm Woofer Speaker
210242 Filler for Speaker Box (Specify m²)
210217 Black Sealer (specify mt)
210215 Adhesive Rubber Foam 10x1.9mm (Specify mt)
210211 Gasket between Tweeter and Horn
120964 M4i M5e x17.5mm Threaded Pin
120148 Screw M5x65mm for Handle
120147 Screw M4x8mm for Speakers
AV-15 4 Ohm AV-15 4 Ohm AV-15 4 Ohm AV-15 4 Ohm AV-15 4 Ohm
778112 Cables Assembly
727603 Inputs Panel Assembly AV-15/4 Ohm
778144 * Jack-Speakon Cables Assembly
141200 ** Speakon Socket (NL4MP Neutrik)
140193 ** Jack Mono Socket
768204 768204 768204 768204 768204 * * * * * Crossover Filter Board (Pcb#313062) AV-15/4 Ohm Crossover Filter Board (Pcb#313062) AV-15/4 Ohm Crossover Filter Board (Pcb#313062) AV-15/4 Ohm Crossover Filter Board (Pcb#313062) AV-15/4 Ohm Crossover Filter Board (Pcb#313062) AV-15/4 Ohm
667694 * Rear Panel AV-15/4 Ohm
667703 Handle
667701 Grid
657270 EWT(TM) Elliptical Horn
657268 Box
229036 229036 229036 229036 229036 1" 8ohm Horn Compression Driver 1" 8ohm Horn Compression Driver 1" 8ohm Horn Compression Driver 1" 8ohm Horn Compression Driver 1" 8ohm Horn Compression Driver
227058 227058 227058 227058 227058 15" 4ohm Woofer Speaker 15" 4ohm Woofer Speaker 15" 4ohm Woofer Speaker 15" 4ohm Woofer Speaker 15" 4ohm Woofer Speaker
210242 Filler for Speaker Box (Specify m²)
210217 Black Sealer (specify mt)
210215 Adhesive Rubber Foam 10x1.9mm (Specify mt)
210211 Gasket between Tweeter and Horn
120965 M4i M5e x24mm Threaded Pin
120148 Screw M5x65mm for Handle
120147 Screw M4x8mm for Speakers
AV-15 8 Ohm AV-15 8 Ohm AV-15 8 Ohm AV-15 8 Ohm AV-15 8 Ohm
727604 Inputs Panel Assembly AV-15/4 Ohm
778144 * Jack-Speakon Cables Assembly
141200 ** Speakon Socket (NL4MP Neutrik)
140193 ** Jack Mono Socket
768205 768205 768205 768205 768205 * * * * * Crossover Filter Board (Pcb#313065) AV-15/8 Ohm Crossover Filter Board (Pcb#313065) AV-15/8 Ohm Crossover Filter Board (Pcb#313065) AV-15/8 Ohm Crossover Filter Board (Pcb#313065) AV-15/8 Ohm Crossover Filter Board (Pcb#313065) AV-15/8 Ohm
667695 * Rear Panel AV-15/8 Ohm
667703 Handle
667701 Grid
657270 EWT(TM) Elliptical Horn
657268 Box
229036 229036 229036 229036 229036 1" 8ohm Horn Compression Driver 1" 8ohm Horn Compression Driver 1" 8ohm Horn Compression Driver 1" 8ohm Horn Compression Driver 1" 8ohm Horn Compression Driver
227059 227059 227059 227059 227059 15" 8ohm Woofer Speaker 15" 8ohm Woofer Speaker 15" 8ohm Woofer Speaker 15" 8ohm Woofer Speaker 15" 8ohm Woofer Speaker
210242 Filler for Speaker Box (Specify m²)
210217 Black Sealer (specify mt)
210215 Adhesive Rubber Foam 10x1.9mm (Specify mt)
210211 Gasket between Tweeter and Horn
120965 M4i M5e x24mm Threaded Pin
120148 Screw M5x65mm for Handle
120147 Screw M4x8mm for Speakers
AV-15S 4 Ohm AV-15S 4 Ohm AV-15S 4 Ohm
AV-15S 4 Ohm AV-15S 4 Ohm
841208 Cables Assembly
727605 Inputs Panel Assembly AV-15S/4 Ohm
778144 * Jack-Speakon Cables Assembly
141200 ** Speakon Socket (NL4MP Neutrik)
140193 ** Jack Mono Socket
768206 768206 768206 768206 768206 * * * * * Crossover Filter Board (Pcb#313064) AV-15S/4 Ohm Crossover Filter Board (Pcb#313064) AV-15S/4 Ohm Crossover Filter Board (Pcb#313064) AV-15S/4 Ohm Crossover Filter Board (Pcb#313064) AV-15S/4 Ohm Crossover Filter Board (Pcb#313064) AV-15S/4 Ohm
667696 * Rear Panel AV-15S/4 Ohm
667703 Handle
667701 Grid
657269 Box
347393 Threaded Clog (to steady on the floor)
227060 227060 227060 15" 4ohm Woofer Speaker 15" 4ohm Woofer Speaker 15" 4ohm Woofer Speaker
227060 227060 15" 4ohm Woofer Speaker 15" 4ohm Woofer Speaker
210242 Filler for Speaker Box (Specify m²)
210217 Black Sealer (specify mt)
210215 Adhesive Rubber Foam 10x1.9mm (Specify mt)
177721 Fixing Plate (to fix the Floor Bracket)
120965 M4i M5e x24mm Threaded Pin
120148 Screw M5x65mm for Handle
120147 Screw M4x8mm for Speakers
667704 Floor Bracket with Threaded Knobs
Note: Note: Note: Note: Note:
Each spare part is single quantity unless otherwise specified.
Asterisk prefix explanation:
Omitted = First level spare part.
One asterisk = Second level, part of previous listed first level part.
Two asterisk = Third level, part of previous listed second level part.
Three asterisk = ............
Any request for not above mentioned part must encompass specific description including:
1) Model name,
2) Section name,
3) Module code,
4) Reference name,
5) Quantity number.
