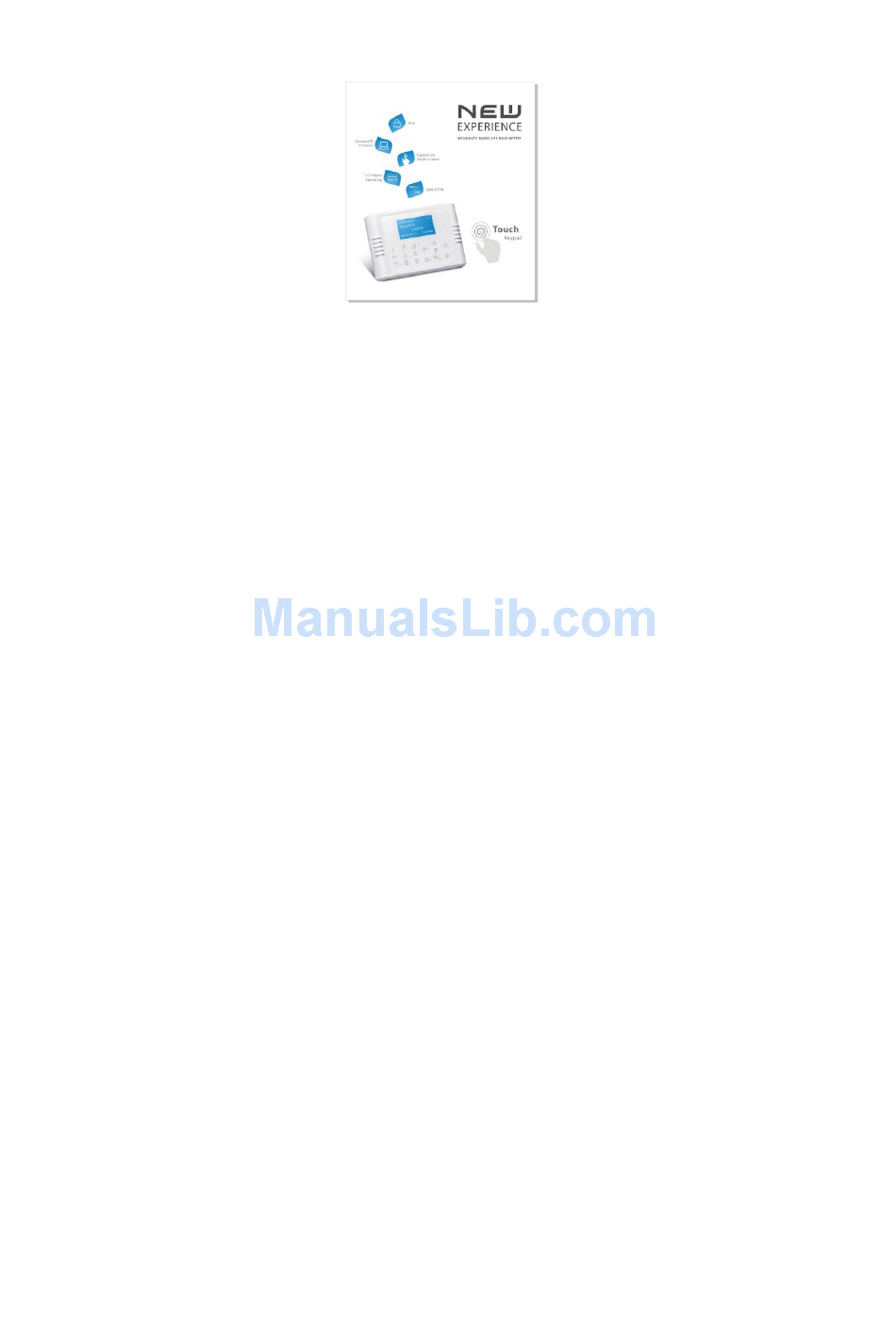

Dual-network Wired&wireless LCD Alarm System User Manual
1
Features and Technical Parameter..............................................................................Page 2
2
Zone Types and Definitions...................................................................................... .Page 2
3
Modes of arming......................................................................................................Page 2
4
Alarm Host Details...................................................................................................Page 3
5
Shortcut Keys and Prompt tone..................................................................................Page 4
Time, Date, Week setting ..........................................................................................Page 4
6
7
Alarm Phone No. Setting............................................................................................Page 4
8
SMS Information Setting.............................................................................................Page 5
8.1 AC Power off or recover inform
8.2 Arm or Disarm inform
8.3 PSTN off inform
8.4 Alarm Host Back-up Battery Low Level Inform
9
Record Setting.......................................................................................................Page 5
10 Arm Delay Setting...................................................................................................Page5
11 Alarm Delay Setting................................................................................................Page 5
12 Alarm Buzzer Sound Time Setting..............................................................................Page5
13 Activate and Disable Alarm Buzzer.............................................................................Page 5
14 Prompt Tone ON/Off...............................................................................................Page5
15 Call In Ring Setting.................................................................................................Page 6
16 Program and Delete Wireless Sensors........................................................................Page 6
17 Zone Attribute Setting...............................................................................................Page 6
17.1 "Activate" or "Deactivate" the zone
17.2 Change Sensors Name
18 Central Monitoring Center Upload................................................................................Page 8
19 User password Setting..............................................................................................Page 8
20 Program Password Setting.........................................................................................Page 9
21 Program Password Recover.......................................................................................Page 9
22 Alarm Host Reset.....................................................................................................Page 9
23 Arm/disarm via SMS.................................................................................................Page 10
24 Arm/disarm via Call................................................................................................. Page 10
25 Sensors Code and Name Table...................................................................................Page 7--8
Table of Contents
1
Advertisement
Table of Contents
Summary of Contents for Alarma 5200
-
Page 1: Table Of Contents
Dual-network Wired&wireless LCD Alarm System User Manual Table of Contents Features and Technical Parameter……………………………………………………………………Page 2 Zone Types and Definitions…………………………………..……………………………………… .Page 2 Modes of arming……………………….…………………..……………………………………………Page 2 Alarm Host Details……………………….…………………..…………………………………………Page 3 Shortcut Keys and Prompt tone……………………………………………………………………….Page 4 Time, Date, Week setting ….…………………..………………………………………………………Page 4 Alarm Phone No. -
Page 2: Zone Types And Definitions
Ⅰ、 Features Touch keypad; Big LCD displays（Capacitive touch screen times，New experience） GSM+PSTN dual network. If PSTN is disable, it will switch to GSM automatically Calendar+5 alarm call(SMS) No.+1 alarm center call No.+1 alarm SMS No.+ 10S record+ Arm Delay + Alarm Delay + Alarm Beep Setting+ Call-in time setting+ Wireless Program+ Zone Attribute Setting+ User password + Program Password + Reset +100 Alarm History and Status History 30 wireless zones + 8 wired zones, every zone attribute, name, bypass, alarm delay, intelligent door sensor function,... - Page 3 Alarm Host Fron Alarm Host Backside Ⅵ 、 LED Indicators ： Left Blue LED GSM Signal indicator Quick flash: No signal or the SIM Card don’t fix properly Slow flash : get signal, under workin...
-
Page 4: Alarm Phone No. Setting
Ⅶ、 Shortcut Keys ”, away arm activate ● Under standby, press “ ”, home arm activate ● Under standby, press “ ● ”+Password+” ”, disarm activate（User Password Default:1111） Under standby, press “ ● ” to check alarm or status history. Press “ ”... -
Page 5: Sms Information Setting
9．3 【 】 ： SMS Setting “ ” delete the original phone number, enter your new phone No. to save(only for SMS, no call) to select “AC Power off or recover inform”, and choose “Yes” or “No”. to save to select “Arm or Disarm inform”, and choose “Yes” or “No”. to save to select “PSTN off inform”, and choose “Yes”... -
Page 6: Call In Ring Setting
to choose “Yes” or “No”. to save. Default is “No” Arm or disarm internal siren: to choose “Yes” or “No”. to save. Default is “No” Arm or disarm wireless siren : Note that the wireless siren max. sound time is 59 minute 9．9 【... - Page 7 Zone Number Sensor Menu Name CID Code CID Name Code Medical Alarm E100 Medical Alarm Emergency E121 emergency alarm Emergency（ E120 emergency alarm Fire Alarm E110 fire alarm Smoke Alarm( E111 smoke alarm Kitchen E130 burglar alarm Gas Leak Alarm E112 gas alarm Tamper Alarm...
- Page 8 Sensor Door Wire Alar Defa less Type zone Delay 12 Car 13 PIR Drawing Drawing Bedro Doorb group Bedroom Bedroom House Room Room zone Wire Defa Type Alarm Delay zone 31/32/33(1 group zone) 06 Door 34/35 group group 13 PIR 13 PIR 03 Fire Emergen...
-
Page 9: Central Monitoring Center Upload
9．14 【 】 ： Pin setting Delete the original password, and enter new password(4 digits),delete and enter again to confirm the new password. save. Default is 1234 9．15 【 】 ： Reset Reset: “ ”--- “Yes” or “No”, to save. After reset all information will recover to default setting, include alarm phone No., SMS information setting, arm delay setting, zone attribute, delete all sensors, Central Monitoring Center Upload. -
Page 10: Arm/Disarm Via Sms
If start alarm: The alarm host will dial CID CMS to upload alarm information firstly via PSTN And then dial and send SMS to personal phone No’s in queue. If the PSTN and GSM are available, PSTN own priority. This mean will call via PSTN and send SMS via GSM. The SMS content is “XX zone YYYY is alarming”. - Page 11 Activate Sensors Alarm Host Passive Sensors Alarm Host Note:V1 mean +12V power source, A1 mean 31 to 38 zone. . Understanding of Basic Accessories (Wireless) Wireless Remote Away Features: To control the alarm host to arm and disarm. Disarm ...
- Page 12 Program sensor / Delete sensor a. Porgam sensor 1．1、 【SET + Progarmming code + “▲▼”to choose“Program&delete” + ENT + press“Delete/Left button + input YY+ “▲▼” to choose Program + ENT】 （LCD screen would say“programming” ） ； 1．2、Trigger door sensor 2 times，alarm host panel would say“study successfully” ，press“ENT”, and it means succefully in setting。...
- Page 13 ●SIM card unloaded ●Install SIM card ●SIM requires a password to dial ●Cancel the password of SIM ●GSM signal not good ●Change place of alarm panel to test signal ●SIM card not found,GSM not ●SIM card contact points not good ●Change other SIM for trial ●Voice calling disable ●Make sure voice calling and SMS messaging are...
