Summary of Contents for Aphex MICROPHONE X

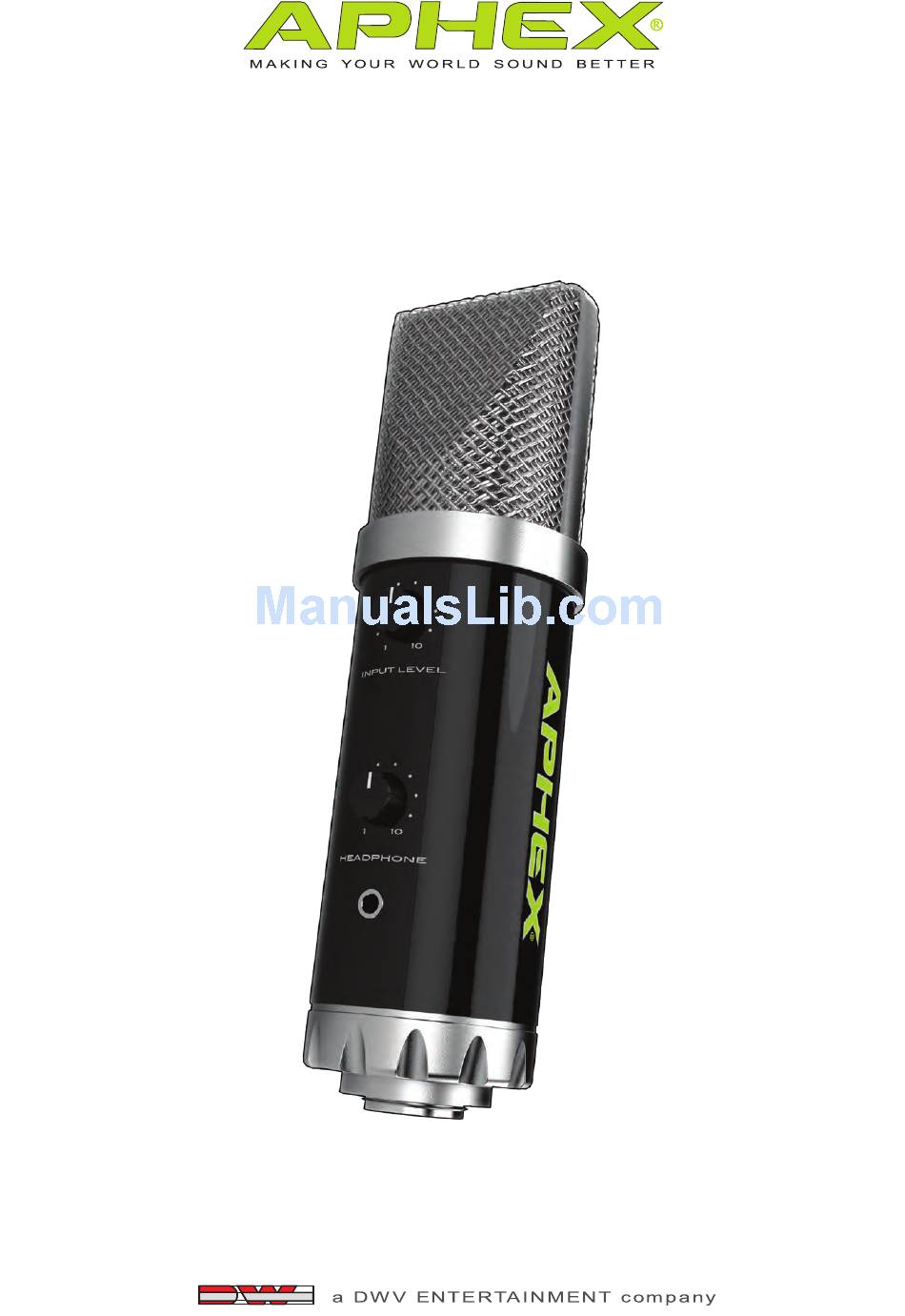

- Page 1 ™ MICROPHONE X usb mic with aphex analog processing OWNER’S MANUAL...
- Page 2 Microphone X Safety Declarations For protection against electric shock, do not remove the CAUTION: cover. No user serviceable parts inside. WARNING: This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful inter- ference when the equipment is operated in a commercial environment.
-
Page 3: Table Of Contents
7.1 Limited Warranty 7.2 Service Information Copyright © 2013 by Aphex LLC. All rights reserved. All Aphex LLC products are trademarks or registered trademarks of Aphex LLC. Other brand and product names are trademarks or registered trademarks of their respective holders. -
Page 4: Introduction
Microphone X 1.0 Introduction Microphone X is a USB condenser micro- phone featuring: • Mac OSX and Windows compatibility • 24-bit/96kHz A/D and D/A converters • Aural Exciter analog processing ® • Big Bottom analog processing ® • Analog optical compressor •... -
Page 5: Rear Controls
Owner’s Manual 3.0 Rear Controls OPTICAL COMPRESSOR ON/OFF Engaging the optical compressor will limit the dynamic range of the input signal providing a more consistent output level to your DAW. This will allow you to record hotter input levels without the fear of peak- ing the DAW’s input. -
Page 6: Installation
MAC OS ONLY: Microphone X does not require special drivers on OSX. Just connect Microphone X to the Mac with a high quality USB cable and it will be recognized automatically. Your OS should automatically switch the computer’s default audio outputs to be the USB port to which the Microphone X is connected. -
Page 7: Usb Connection
Audio Setup page. Please refer to your DAW’s documentation for information on where to select the ASIO or Core Audio driver. Once the Microphone X is set as the preferred Audio Device in your DAW, the following inputs and outputs will be available: INPUT = Front Left, OUTPUTS = Front Left and Front Right. -
Page 8: Microphone X And Ipad
Default. • Open a new session and select “Stereo Mix” in the I/O Settings drop down menu. Once this is done the Microphone X should work with your Pro Tools system. MICROPHONE X AND IPAD The Aphex Microphone X has been tested and found to work with... -
Page 9: Specifications
Please check www.aphex.com for up to date testing results with new iPads, new versions of iOS and other apps. Microphone X is powered via USB. A fully charged iPad can power Microphone X for approximately five hours before the iPad’s internal battery is completely drained. -
Page 10: Warranty & Service
EXCLUSION OF CERTAIN DAMAGES Aphex liability for any defective unit is limited to the repair or replacement of said unit, out our option, and shall not include damages of any kind, whether incidental, consequential, or otherwise. Some states do not allow limitations... -
Page 11: Service Information
7.2 SERVICE INFORMATION If it becomes necessary to return this unit for repair, you must first contact Aphex LLC for a Return Authorization (RMA number), which will need to be included with your shipment for proper identification. If available, repack this unit in its original carton and packing material. - Page 12 Rev. A - September 2013 MICROPHONE X OWNER’S MANUAL Copyright © 2013 by Aphex LLC. All rights reserved. Aphex LLC, 3500 N. San Fernando Blvd., Burbank, CA 91505 USA PH: (818) 767-2929 FAX: (818) 767-2641 www.aphex.com...
