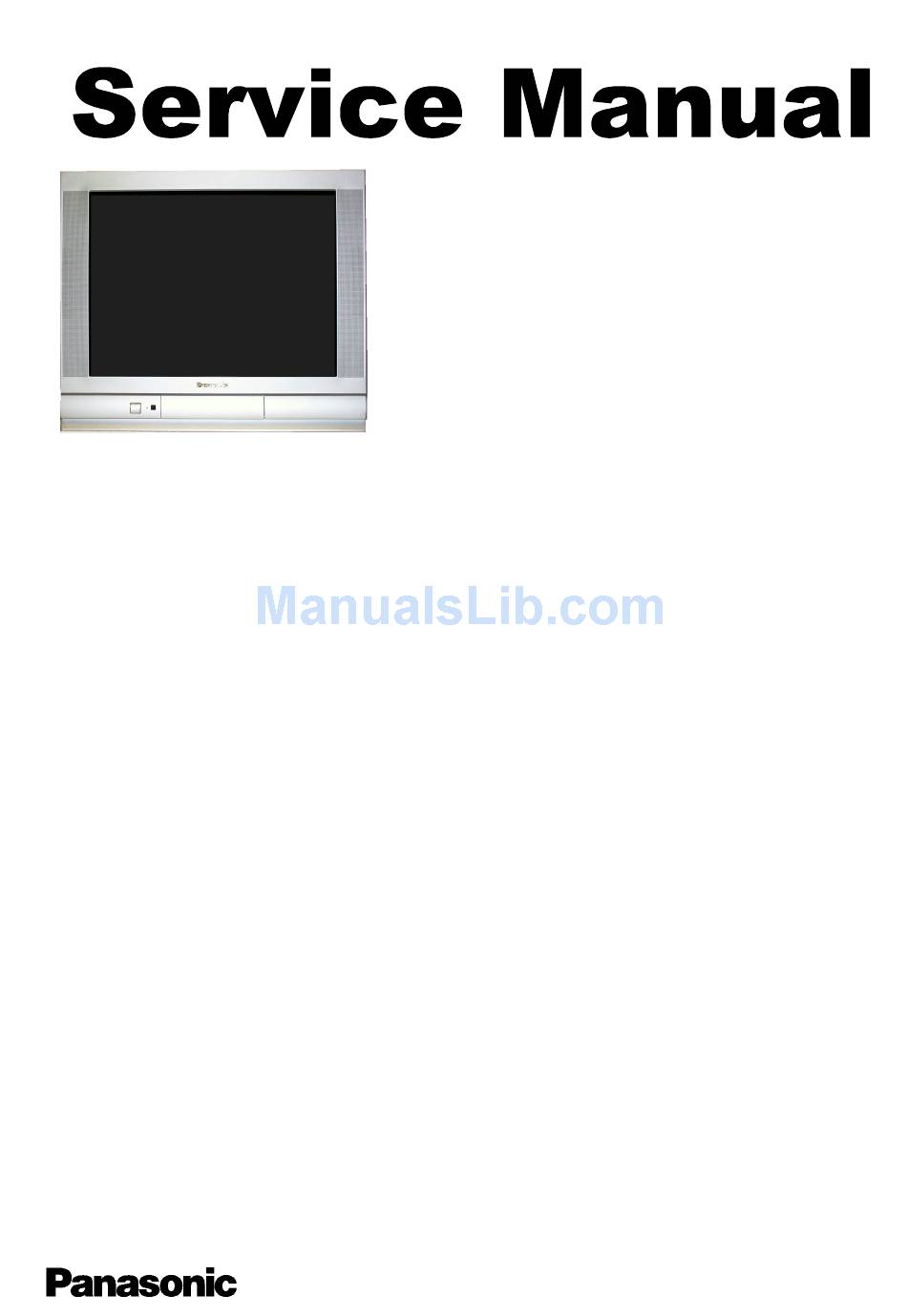

Panasonic TX-25AS10D/M Service Manual

SPECIFICATIONS

Power Source:
Power Consumption:
Stand-by Power
Consumption:
Aerial Impedance:
Receiving System:
Receiving Channels:
VHF E2-E12
VHF A-H (ITALY)
VHF R3-R5
UHF E21-E69
CATV S1-S10 (M1-M10)
CATV S21-S41 (HYPERBAND)
Intermediate Frequency:
Video/Audio
Video
Audio
Colour
Video/Audio Terminals:
AUDIO MONITOR OUT
AV1 IN
AV1 OUT
220-240V a.c., 50Hz
122W
1,4W
75Ω unbalanced, Coaxial Type
PAL-I, B/G, H, D/K, PAL-525/60
SECAM L/L', B/G, D/K
M.NTSC
NTSC (AV only)
VHF H1-H2 (ITALY)
VHF R1-R2
VHF R6-R12
CATV (S01-S05)
CATV S11-S20 (U1-U10)
38,9MHz, 34MHz
32,9MHz, 33,16MHz, 33,4MHz
40,4MHz, 32,4MHz (A2 Stereo)
33,05MHz, 34,05MHz (NICAM)
32,66MHz, 32,4MHz (Czech Stereo)
34,47MHz (PAL)
34,5MHz, 34,65MHz (SECAM)
Audio (RCAx2) 500mV rms 1kΩ
Video (21 pin) 1V p-p 75Ω
Audio (21 pin) 500mV rms 10kΩ
RGB (21 pin)
Video (21 pin) 1V p-p 75Ω
Audio (21 pin) 500mV rms 1kΩ

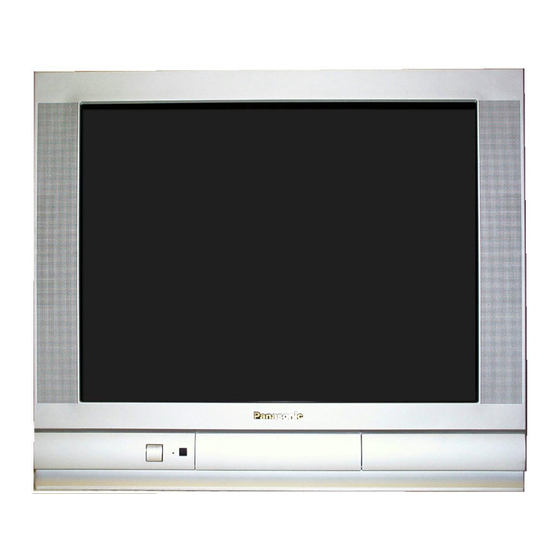

Colour Television

TX-25AS10D/M
TX-25AS10F/M
EURO-4H Chassis
AV2 IN Video (21 pin)
Audio (21 pin)
S-Video IN
(21-pin)
AV2 OUT Video (21 pin)
Audio (21 pin)
Selectable output (21 pin)
AV3 IN S-Video IN
(4-pin)
Audio (RCAx2)
Video (RCAx1)
30,5kV ± 1kV
High Voltage:
Picture Tube: A60LUQ085X05 59cm
Audio Output: 2 x 15W (Music Power)
8Ω Impedance
Headphones: 8Ω Impedance
3,5mm
Accessories
supplied : Remote Control
2 x R6 (UM3) Batteries
Dimensions:
Height: 528mm
Width: 626mm
Depth: 470mm
Net weight: 34,5kg
Specifications are subject to change without notice.
Weights and dimensions shown are approximate.
NOTE: This Service Manual should be used in conjunction with
the EURO-4H Technical guide.
ORDER No. SM-01007
1V p-p 75Ω
500mV rms 10kΩ
Y: 1V p-p 75Ω
C:0,3V p-p 75Ω
1V p-p 75Ω
500mV rms 1kΩ
Y: 1V p-p 75Ω
C: 0,3V p-p 75Ω
500mV rms 10kΩ
1V p-p 75Ω
