I N S T R U C T I O N
M A N U A L
ZP Wedge series
Passive and active foldback wedge monitors
M A N U A L
V E R S I O N
1 . 0
Plug & Play
Foldback monitor speakers
Passive and active models
Full range, two way design
8 Ohms impedance
Classic wedge shape
Pole mount
Carry handles
For the latest instruction manual updates and information on the entire Kam range visit:
www kam co uk
Kam products are manufactured by: Lamba plc, Unit 1, Southfields Road, Dunstable, Bedfordshire, United Kingdom LU6 3EJ
Telephone: (+44) (0)1582 690600 • Fax: (+44) (0)1582 690400 • Email: mail@lambaplc.com • Web: www.lambaplc.com
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for KAM ZP10
- Page 1 For the latest instruction manual updates and information on the entire Kam range visit: www kam co uk Kam products are manufactured by: Lamba plc, Unit 1, Southfields Road, Dunstable, Bedfordshire, United Kingdom LU6 3EJ Telephone: (+44) (0)1582 690600 • Fax: (+44) (0)1582 690400 • Email: mail@lambaplc.com • Web: www.lambaplc.com...
- Page 2 Speakon audio input and Speakon audio output/link Kam ZP10A active speakers 6.35mm jack line level input and 6.35mm jack line level output/link XLR microphone input Jack audio output Power On LED Master volume Microphone/line input gain Kam ZP10A active speaker input and output panels...

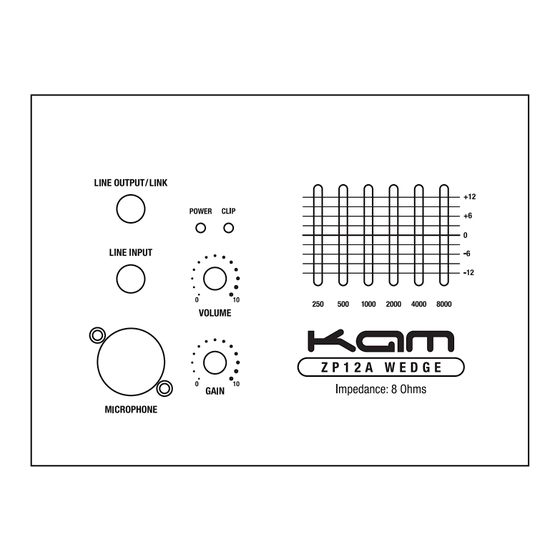

- Page 3 Graphic equaliser Kam ZP12A active speaker input Kam ZP12A active speaker output Important information on Kam ZP Active Wedge speakers - UK customers The wires in the mains lead are coloured in accordance with the following code: Green/yellow = earth...
- Page 4 Technical specifications ZP10 ZP12 ZP10A ZP12A Frequency response: 72-20KHz 55-20KHz 72-20KHz 55-20KHz Sensitivity 1w/1m: 96dB 97dB 96dB 97dB Max SPL: 116dB 119dB 117dB 119dB Power handling: 100w 150w 140w 200w Horn flare dispersion: 90º x 45º 90º x 60º 90º x 45º...
