DIR-890L
AC3200 Ultra Wi-Fi Router
Quick Install Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DIR-890L and is the answer not in the manual?

Questions and answers

Related Manuals for D-Link DIR-890L

Summary of Contents for D-Link DIR-890L

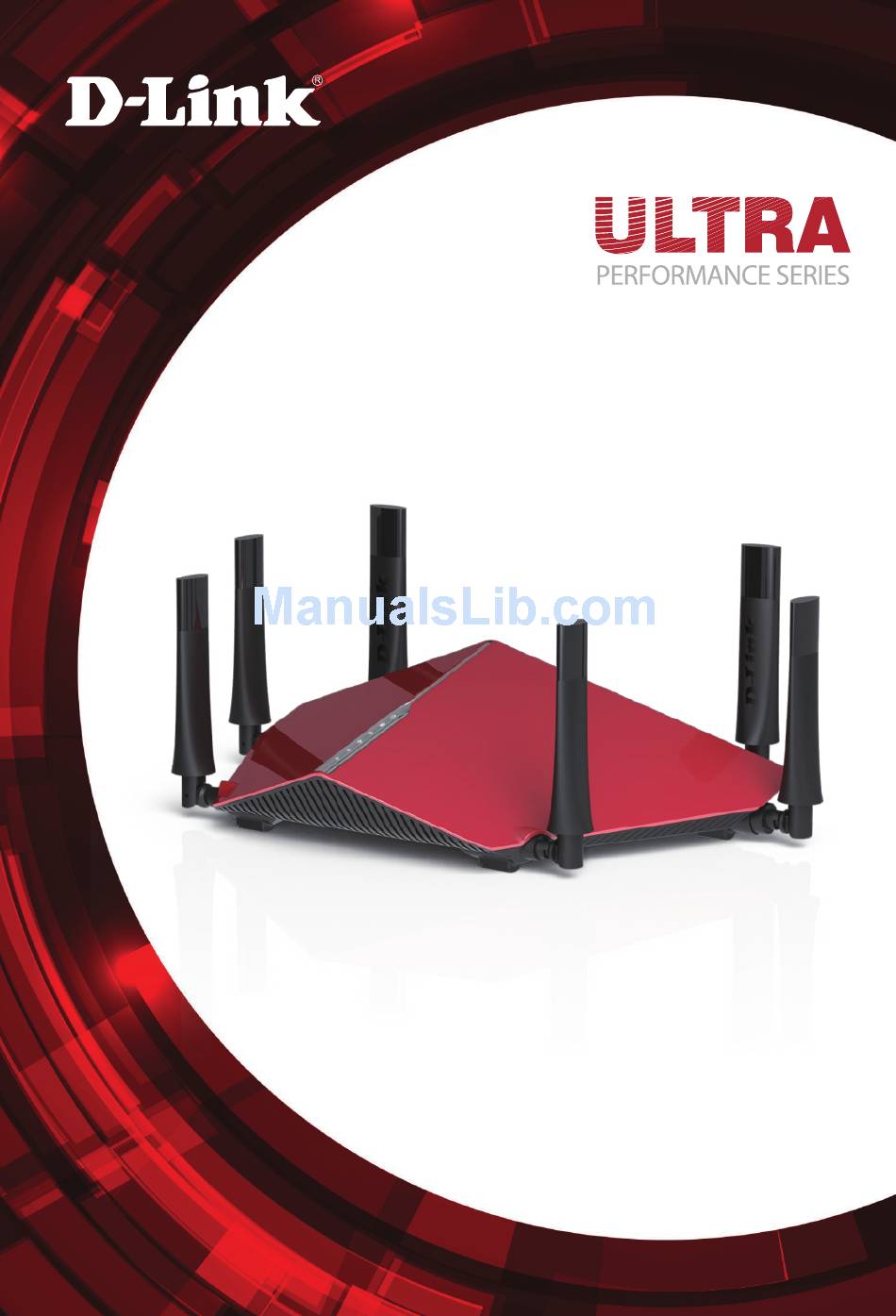

  • Page 1 DIR-890L AC3200 Ultra Wi-Fi Router Quick Install Guide...

  • Page 3: Package Contents

    Package Contents DIR-890L AC3200 Ultra Wi-Fi Router Power Adapter Ethernet Cable Wi-Fi Configuration Card Quick Install Guide If any of the above items are missing, please contact your reseller. Minimum Requirements Network Requirements: • An Ethernet-based broadband modem Web-based Configuration Requirements Computer with the following: •...

  • Page 4: Hardware Overview

    Hardware Overview 9 10 13 14 SS USB LED A solid white light indicates a USB 3.0 device is connected. USB LED A solid white light indicates a USB 2.0 device is connected. A solid white light indicates the 5GHz wireless function is working properly. 5G LED During the WPS process, this light will blink quickly.

  • Page 5: Connect

    • Advanced Users - If your ISP provided you with a modem/router combo, you will need to set it to “bridge” mode so the DIR-890L router can work properly. Please contact your ISP or refer to the user manual for your modem/router device.
  • Page 6 LAN ports on the router. USB 3.0 USB 2.0 RESET INTERNET DCN IN POWER 12V SA DIR-890L Computer Ethernet Cable Plug the power back into your DSL or cable modem. Please wait about one minute before continuing. USB 3.0 USB 2.0 RESET...

  • Page 7: Web Browser Configuration

    There are two ways to configure your router: A. Web Browser - Use a web browser from your computer. B. QRS Mobile app - Use a mobile device with the D-Link QRS Mobile app. Refer to the QRS Mobile Setup section for more information.
  • Page 8 When the Welcome screen appears, click Next to continue. The router will automatically detect your Internet connection type. If not, then select your Internet connection and click Next to continue. DSL (PPPoE) users enter your PPPoE user name and password supplied by your ISP.

  • Page 9: Antenna Orientation

    Congratulations! You have completed the router installation. Antenna Orientation The DIR-890L is designed to give you the fastest, most stable network connection possible. In order to maximize performance, orient the antennas at an angle, pointing outward and away from the base unit.
  • Page 10 Once connected, click on the QRS Mobile icon from your mobile device, then click Start to continue. Please follow the on-screen instructions to complete the setup. Informations pour la con guration Wi-Fi de D-Link Con guration par défaut Nom Wi-Fi (SSID)

  • Page 11: Troubleshooting

    Wi-Fi Configuration Card included for the default Wi-Fi Network Name and Wi-Fi Password. You can also connect wireless devices to the DIR-890L router using WPS: 1. Press the WPS button on the DIR-890L for three seconds.

  • Page 12: Gpl Code Statement

    Where such specific license terms entitle you to the source code of such software, D-Link will provide upon written request via email and/or traditional paper mail the applicable GPL and LGPLsource code files via CD-ROM for a nominal cost to cover shipping and media charges as allowed under the GPL and LGPL.
  • Page 13 Notes...
  • Page 14 Notes...
  • Page 15 Notes...
  • Page 16 Notes...
  • Page 17 Notes...
  • Page 18 Notes...

  • Page 20: Technical Support

    6DIR890LQ.01G ©2014 D-Link Corporation/D-Link Systems, Inc. All rights reserved. D-Link and the D-Link logo are registered trademarks of D-Link Corporation or its subsidiaries in the United States and other countries. iPhone, iPad, and iPod touch are registered trademarks of Apple Inc.
