Summary of Contents for axalto MagIC 6100

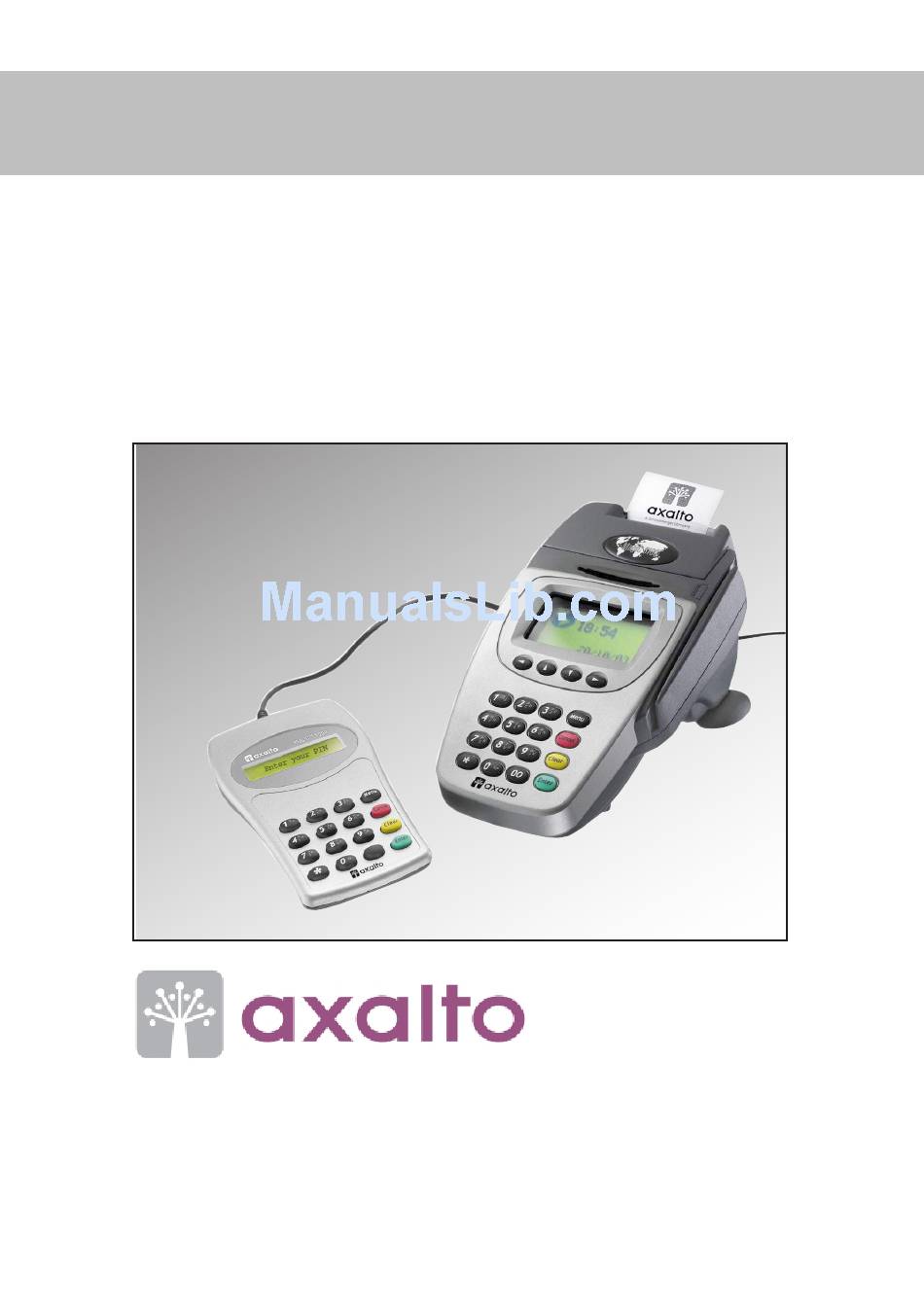

- Page 1 MagIC 6100 Installation Manual Point of Sales Terminals TD06014B...
-
Page 3: Table Of Contents
Contents Description Introduction Presentation of the MagIC 6100 terminal Technical Data Installation Unpacking Safety recommendations prior to connections Connecting the power supply Connecting the modem Connecting the PIN Pad (optional) Installing the printer paper Fitting the plastic foot Battery Installing the SIM sized SAM cards... - Page 4 © Axalto 2004...
-
Page 5: Description
Presentation of the MagIC 6100 terminal I Your MagIC 6100 is a stand alone point of sales terminal able to read both Magnetic Stripe Cards and Smart Cards. -
Page 6: Technical Data
L = 145 mm (5.7 in.) - W = 75 mm (3 in.) - H = 20 mm (0.75 in.) Weight 170 g (0.38 lb) Operating temperatures + 5°C (+40°F) to +45°C (+115°F) Storage temperatures -10°C (+12°F) to +55°C (+131°F) © Axalto 2004... -
Page 7: Installation
- a plastic foot. I If you have ordered a PIN Pad, it is delivered in a separate box. I Unpack carefully all these elements, then place your MagIC 6100 on a stable, horizontal surface next to a wall socket and phone outlet. - Page 8 Installation MagIC 6100 PIN Pad (optional) Printer paper Phone line cable * Power supply * Transformer Supply cable * The design of this equipment depends on the country standard. © Axalto 2004...
-
Page 9: Safety Recommendations Prior To Connections
I This terminal is not equipped with an On/Off switch: to switch off the terminal, remove the plug from the wall socket. I If the terminal is dropped accidentally, disconnect it from the main power supply, then call the maintenance centre for further assistance. © Axalto 2004... -
Page 10: Connecting The Power Supply
3 - Plug the supply cable into a standard wall socket with the 2 (or 3)-pin plug located at the other end of the cable. Notes: The MagIC 6100 terminal has no On / Off switch. This function can be performed by connecting / disconnecting the transformer from the power source. - Page 11 Installation Supply cable * Transformer Phone line cable * PHONE LINE PIN Pad (optional) * The design of this equipment depends on the country standard. © Axalto 2004...
-
Page 12: Installing The Printer Paper
The paper being in its proper place, close the printer cover until flush with the back of the unit. Note: The tickets will not be printed if the printer cover is not correctly closed. © Axalto 2004... -
Page 13: Fitting The Plastic Foot
This battery has to be replaced only by an authorized maintenance operator. Replacing the battery may be dangerous. The non respect of this rule would invalidate the terminal warranty. Dispose of batteries according to the environmental protection rules and the legislation in effect in your country. © Axalto 2004... -
Page 14: Installing The Sim Sized Sam Cards
4 - Insert the SAM card in the connector. 5 - Lock the connector. 6 - Close the terminal back cover and connect the power supply to the wall socket. 0165 PHONE LINE PHONE LINE SIM sized connectors Unlock Lock © Axalto 2004... -
Page 15: Cards Reading
I ICC SAM card (full sized smart card) Insert the card at the bottom of the terminal through the slot in the back cover, the card chip towards the terminal. Customer smart card ICC SAM card Magnetic card © Axalto 2004... -
Page 16: In Case Of Problem
- Check that the paper is suitable for your terminal and well positioned. - Verify that the printer cover is correctly closed. If the failure is not listed here, or if the problem is not solved after these checks, call your maintenance centre. © Axalto 2004... -
Page 17: Terminal Approvals
Terminal approvals EMV Level 1 approval MagIC 6100 has obtained EMV Level 1 approval. To check whether EMVCO has approved this terminal, you can refer to EMVCO web site (www.emvco.com) or to Axalto web site (www.axalto.com). Network compatibility declaration I Declaration following JOCE - L216/8 - Annex II:... -
Page 18: Ce Declaration Of Conformity
50, avenue Jean Jaurès 92542 Montrouge Cedex France Declare that the product of the MagIC 6100 family, if installed, maintained and used in the application for which it was made, with the manufacturer’s instructions, is in conformity with the following standards:... - Page 20 For further information refer to http://www.axalto.com Copyright © 2004, Axalto - All rights reserved. Neither this document nor portion of this document may be reproduced in any way form or fashion, whether mechanical or electronic. Axalto reserves the right to modify the...
