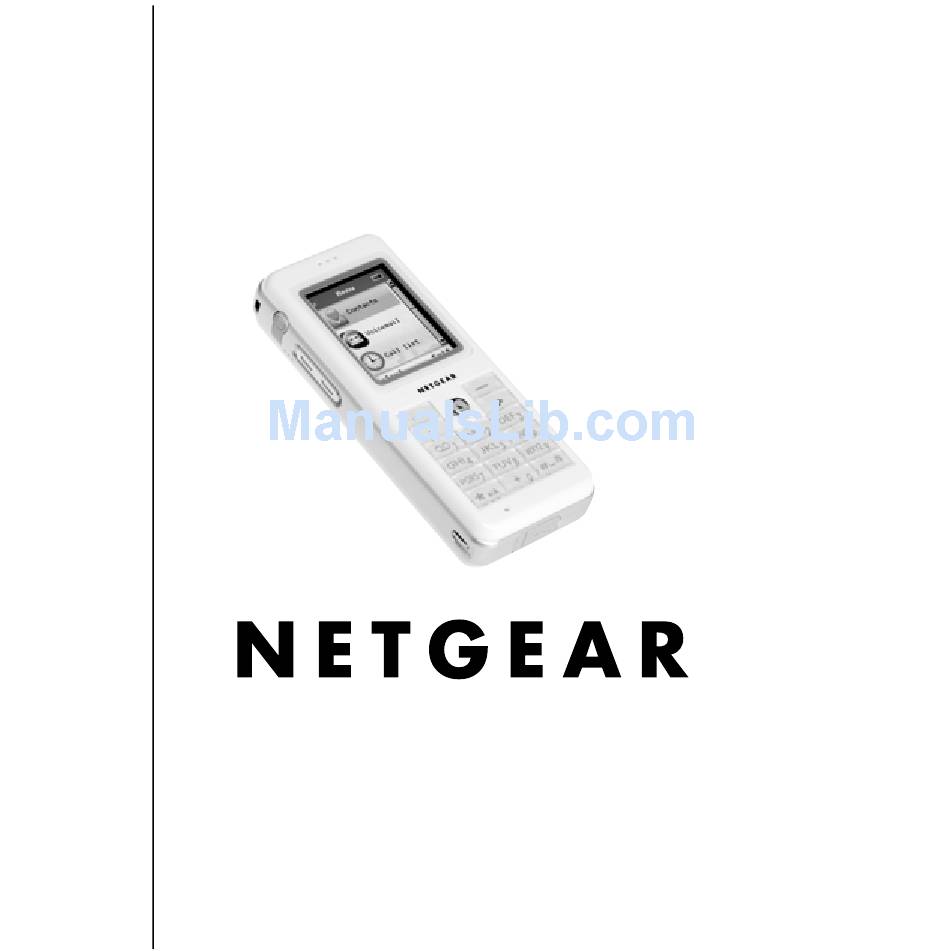

- Page 1 Skype™ WiFi Phone Model SPH101 Use Manual NETGEAR, Inc. 4500 Great America Parkway Santa Clara, CA 95054 USA...
-
Page 2: Customer Support
© 2006 by NETGEAR, Inc. All rights reserved. Customer Support NETGEAR, Inc. Support Information Phone: 1-888-NETGEAR, for US & Canada only. For other countries, see your support information card. E-mail: support@netgear.com North American NETGEAR website: netgear.com Translated Versions of This Manual... -
Page 3: Table Of Contents
Getting Started What Is in the Box ... 2 Charge the Battery ... 2 Join a Wireless Network ... 4 Sign In to Skype ... 6 Try Your WiFi Phone ... 7 Using the WiFi phone Controls ... 10 On/Off Button Menu ...11 Change Your Status ... - Page 4 Settings and Wireless Networks Settings Menu ... 26 Network ... 28 General ... 29 Advanced ... 30 Preferred Networks ... 31 Connect to a Network ... 32 Troubleshooting Find the Problem ... 35 Wireless Networks ... 36 Wireless Default Settings and Technical Specifications Related Documents Regulatory Compliance Contents...
-
Page 5: Getting Started
Warning: This WiFi phone will not work during a power failure, broadband Internet outage, or without a wireless connection. The WiFi phone connects wirelessly to Skype through your broadband Internet connection. You can use the WiFi phone to make and receive calls and to manage Skype. To set up and use your WiFi phone: 1. -
Page 6: What Is In The Box
• WiFi phone • Battery • Battery charger • Skype™ WiFi Phone Model SPH101 Use Manual • NETGEAR CD • Warranty card Charge the Battery For information about radio frequency (RF) exposure, FCC notices and regulatory information, see “Regulatory Compliance”... - Page 7 3. Connect the power cord, and plug it into an outlet. The battery charges, which can take up to 12 hours. 4. Push the On/Off button to turn on the WiFi phone. 5. Use the soft key to accept the No Emergency Calls message. The WiFi phone tries to connect to a network.
-
Page 8: Join A Wireless Network
Join a Wireless Network The WiFi phone scans for wireless networks in your area. It joins the first open network without wireless security that it finds. Then the display shows: • Sign in to Skype • Create new account Secure Networks If you want to join a particular network, or a network with wireless security, select Cancel with the soft key. - Page 9 The first time that you join a wireless network with security, you must know the password or WEP keys. When entering letters, tap the button to change from a, to b, and so on. After you have joined the network, the WiFi phone remembers the network settings and saves them in Preferred Networks.
-
Page 10: Sign In To Skype
Sign In to Skype After you join a network, you are prompted to sign in to Skype, or to create a new Skype account. Enter your Skype Name and Skype password. Use the *a/A button to change to lower- case, uppercase, or numeric entry. -
Page 11: Try Your Wifi Phone
Try Your WiFi Phone Your WiFi phone is now ready to use. Hold the phone as you would any other telephone with the antenna pointed up and over your shoulder. To make a call: 1. Enter the phone number. If you are making a SkypeOut call, press and hold down the zero (0) button to dial a plus sign (+) before entering the number. - Page 12 Getting Started...
-
Page 13: Using The Wifi Phone
Using the WiFi phone After you set up the WiFi phone, you can use it to make and receive calls. The WiFi phone controls are shown below. Headphone connector Volume control Select or Options Scroll Call *a/A button On/Off Speaker phone control Back or Cancel... -
Page 14: Controls
Controls The controls on the WiFi phone are described in this section. • Volume control. Change the volume for the WiFi phone. • Speaker phone control. Turn the speaker phone on or off. • Select or Options. This soft key works with the display as Select, or Options. -
Page 15: On/Off Button Menu
On/Off Button Menu The On/Off button is located at the top of the WiFi phone. After the WiFi phone starts up, you can use this button to display a menu. The menu offers these options: • Switch off. Switch off the WiFi phone. •... -
Page 16: Change Your Status
Change Your Status Normally, the WiFi phone is Online. To view or change the status: 1. Push the On/Off button located at the top of the WiFi phone. 2. Select Change status. The WiFi phone shows the following options: • Offline. Exit Skype, but stay connected to your wireless network. -
Page 17: Skypeout, Skypein, And Skype Voicemail
SkypeOut, SkypeIn, and Skype Voicemail The WiFi phone is optimized for Skype. With Skype you can make free calls to anyone else using Skype. If you have already signed up for the following you can also use them immediately on your WiFi phone: •... -
Page 18: Contacts
Contacts Select Contacts. Then scroll and select a contact. Either select the contacts icon, or choose Contacts with the soft key. You can use these options: • Call. Call a contact. • Send voicemail. Send voicemail to a contact. • View Profile. View details about a contact. •... - Page 19 Call a Contact To call a contact: 1. Select a contact. You can press a letter key on the phone to go to contacts whose names begin with that letter. 2. Select Options with the soft key. Then select call. 3.
-
Page 20: Options During A Call
Options During a Call Choosing Options lets you manage your call and work with contacts. • Hold. Put the person you are calling on hold. The phone puts a call on hold if there is another incoming call. • Mute microphone/Unmute. Turn off the sound and turn it back on again. -
Page 21: Advanced Options
Advanced Options Select a contact. Select Options, and then select Advanced. Scroll and select an advanced option. • Rename. Change a contact’s name. • Remove. You can remove any contact from your contacts list. • Block. You can block or unblock a contact. A blocked icon shows which contacts are blocked. - Page 22 Add a Contact You can add a Skype contact or a SkypeOut contact. Choose by Skype To add a Skype contact: 1. From the contacts list, select Options, and then select Advanced. 2. Scroll down and select Add Contact. 3. Choose By Skype Name. 4.
- Page 23 By SkypeOut Number Tip: You may need to purchase Skype credit to make a Skype Out call. To add a SkypeOut contact: 1. From the contacts list, select Options, and then select Advanced. 2. Scroll down and select Add Contact. 3.
- Page 24 Search for Users You can search by Skype Name, by full name, or by e-mail. To search: 1. Select Search from the menu, or select it on the Options menu with the soft key. 2. Type your search criteria with the keypad. To stop a search, use the soft keys to choose Stop or Cancel.
-
Page 25: Authorization
Authorization If you want to let other Skype users know when you are online, then you need to authorize them. If someone adds you to his or her contact list, that person is listed as Authorization waiting. You can use the privacy settings in Skype to receive incoming calls only from people with authorization. - Page 26 Authorization Waiting These contacts are waiting for you to authorize them so that they will be notified when you are online. 1. From the contacts display, select Options with the soft key. 2. Select Authorization waiting. 3. Any contacts who are waiting are listed here. You can accept, decline, or decline and block them.
-
Page 27: History
History View the calls that have been made, received, and missed from this WiFi phone since the last time it was reset. You can also view Authorizations here. To can go to this screen, you can use the History button or the History menu selection. -
Page 28: Voicemail
Voicemail If you have purchased Skype Voicemail, then you can access it from the main menu or the History menu. Either select the Voicemail icon, or Voicemail from History. Tip: From the main menu you can press and hold down the 1 button to go directly to Voicemail. -
Page 29: Settings And Wireless Networks
Settings and Wireless Networks You can use the Settings menu on the WiFi phone to view or adjust the following: • Skype My profile settings, notifications, and privacy • Wireless network setup and security • WiFi phone settings including sound, ring tone, time, language, and back light •... -
Page 30: Settings Menu
Settings Menu Select Settings to view or adjust the settings for the WiFi phone. You can scroll to display the items at the bottom of the list. The following options are available: • My profile. Enter optional My profile settings for your Skype account, including full name, birthday, gender, country, province, city, and home phone. - Page 31 • Sound devices. Set the Audio In, Audio Out, and auto adjustments. • Tones. Set the ringing tone, ringing volume, sound alerts, vibrator, key tones, and default. • Time and Date. Set the date, clock, time zone, clock format, date format, and date separator. •...
-
Page 32: Network
Network From the Settings menu, select Network. The Network menu has these options: • Wireless networks in range. Scan for networks in your area, and display them. • Preferred networks. You have connected to these networks with your WiFi phone. See “Preferred Networks” on page 31. •... -
Page 33: General
General From the Settings menu, select General. The General menu has these options: • Change password. Change your Skype sign-in password. • Auto sign in. Automatically sign in to Skype when you use the WiFi phone (recommended). • Language. Select a language. •... -
Page 34: Advanced
Advanced From the Settings menu, choose Advanced. You should not need to change most of these settings. The Advanced menu has these options: • Software updates. Check to see if a software update is available for your WiFi phone. • Proxy. Set proxy and connect to Skype. •... -
Page 35: Preferred Networks
Preferred Networks When you connect to a wireless network, the WiFi phone remembers the network and puts it into Preferred Networks. To view or manage Preferred Networks: 1. On the Settings menu, select Preferred Networks. 2. With the soft key, select Options. The options are as follows: •... -
Page 36: Connect To A Network
Connect to a Network The WiFi phone scans for wireless networks when you turn it on. If no network is available, you can scan for the network again, or try later. See “Network” on page 28. Also see “Wireless Networks” on page 4-36. - Page 37 4. Follow the prompts to enter the passphrase or keys. Tip: Passphrases and keys are case-sensitive. NETGEAR is not the same as Netgear. Use the *a/A button to change to lowercase, uppercase, or numeric entry. Settings and Wireless Networks...
- Page 38 Settings and Wireless Networks...
-
Page 39: Troubleshooting
Use the following suggestions to locate the source of a problem. Find the Problem To make and receive calls, the WiFi phone must do the following: 1. Respond when turned on. If the phone does not respond, see “Charge the Battery” on page 2. -
Page 40: Wireless Networks
• The SSID, passwords, and WEP keys are case-sensitive. NETGEAR is not the same as Netgear and A1 is not the same as a1. • Hidden networks do not broadcast their SSID. The first time that you connect to a hidden network you must enter its SSID, which is case-sensitive. - Page 41 • If you have connected to a network before, the phone remembers the settings unless you sign out or the phone is reset. You can view and manage your Preferred Networks as described in “Preferred Networks” on page 31. Wireless Range and Interference Wireless networks have one or more access points or routers that send out wireless signals.
- Page 42 Troubleshooting...
-
Page 43: Wireless Default Settings And Technical Specifications
Wireless Default Settings and Wireless communication Wireless network name (SSID) Security Network type Transmission speed Country/Region Operating mode Maximum wireless signal rate (IEEE Standard 802.11). Actual through- put will vary. Volume of network traffic, building materials, and network overhead, reduce actual data throughput rate Technical Specifications Wireless Default Settings Enabled... - Page 44 Antenna Radio data rate Frequency Emissions Interface Weight with battery Dimensions (W x H x D) Operating temperature 32°–104°F (0°–40°C) Encryption Wireless Default Settings and Technical Specifications Technical Specifications Internal 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 2.4–2.4835 GHz FCC, CE USB, for charging only...
-
Page 45: Related Documents
You may find the following online documents useful. Use the following links to read more about wireless technology. Document Wireless Communications Preparing a Computer for Network Access Glossary Related Documents Link http://documentation.netgear.com/reference/ enu/wireless/index.htm http://documentation.netgear.com/reference/ enu/wsdhcp/index.htm http://documentation.netgear.com/reference/ enu/glossary/index.htm... - Page 46 Related Documents...
-
Page 47: Regulatory Compliance
Regulatory Compliance Certificate of the Manufacturer/Importer It is hereby certified that the WiFi phone has been suppressed in accordance with the conditions set out in the BMPT-AmtsblVfg 243/1991 and Vfg 46/1992. The operation of some equipment (for example, test transmitters) in accordance with the regulations may, however, be subject to certain restrictions. - Page 48 FCC RF Exposure Information WARNING!! Read this information before using your phone. In August 1986 the Federal Communications Commission (FCC) of the United States with its action in Report and Outer FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters.
- Page 49 Those standards were based on comprehensive and periodic evaluations of the relevant scientific literature. For example, over 120 scientists, engineers, and physicians from universities, government health agencies, and industry reviewed the available body of research to develop the ANSI Standard (C95.1). Nevertheless, we recommend that you use a hands-free kit with your phone (such as an earpiece or headset) to avoid potential exposure to RF energy.
- Page 50 EN 301 489-1 V.1.3.1 (2001), EN 301 489-17 V.1.2.1 (2002) EN 50361: 2001 EN 60950-1: 2001 IC (WLAN) To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.”...
- Page 51 Directive 1999/5/EC. Español [Spanish] Por medio de la presente NETGEAR, Inc. declara que el WiFi phone cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
- Page 52 [Portuguese] requisitos essenciais e outras disposições da Directiva 1999/5/CE. Slovensko NETGEAR, Inc. izjavlja, da je ta WiFi phone v skladu z bistvenimi [Slovenian] zahtevami in ostalimi relevantnimi doloèili direktive 1999/5/ES. Slovensky [Slovak] NETGEAR, Inc. týmto vyhlasuje, že WiFi phone spåòa základné...
- Page 53 FCC RF exposure guidelines. SAR Statement The Netgear SHP101 has been tested for body-worn Specific Absorption Rate (SAR) compliance. The FCC has established detailed SAR requirements and has established that these requirements have been met when used at the ear and worn on the body as described in this manual.
- Page 54 Regulatory Compliance...
- Page 55 NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein. Product and Publication Details...
- Page 56 NETGEAR, Inc. 4500 Great America Parkway Santa Clara, CA 95054 USA June 2006...
