INSTALLATION, USER
AND SERVICING INSTRUCTIONS
for
EURA
Condensing

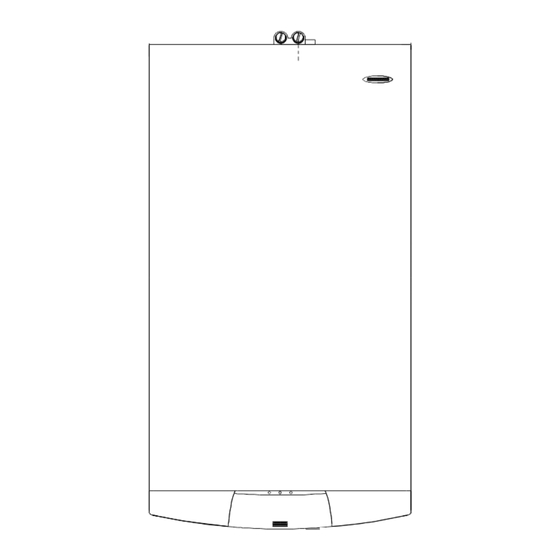

WALL HUNG COMBINATION BOILER
IMPORTANT
THE FIRST IGNITION OF THE BOILER MUST BE EXECUTED BY AN
AUTHORIZED TECHNICIAN ACCORDING TO THE LAW 46/90.
Assigning all the operations for the first ignition to a Hermann Authorized Service
Center the particular and exclusive Hermann Conventional Warranty is activated.
For further information consult the coupon which you can find in the boiler's
documents envelope.
Assigning all the operations for the first ignition to a Hermann Authorized Service Center the particular and exclusive Hermann Conven-
tional Warranty is activated. For further information consult the coupon which you can find in the boiler's documents envelope.
Advertisement
Table of Contents
Related Manuals for Hermann Eura Condensing
Summary of Contents for Hermann Eura Condensing
- Page 1 Assigning all the operations for the first ignition to a Hermann Authorized Service Center the particular and exclusive Hermann Conven- tional Warranty is activated. For further information consult the coupon which you can find in the boiler’s documents envelope.
- Page 2 MANUFACTURER DECLARATION Hermann boilers have obtained the CE certification (DM dtd. April 2 1998, Law 10/91, art. 32) and meet minimum efficiency requirements, both at normal and 30% load, provided by DPR 412/93 (ac- cording to Law 10/91, art. 4, sub-section 4). They are in conformity with following Directives: Directive on appliances burning gaseous fuels (90/396), Directive on electro-magnetic compatibility (CE 89/ 336), Efficiency Directive (CE 92/42), Low Voltage Directive (CE 73/23), and relevant modifications.
-
Page 3: Table Of Contents
Servicing warnings ......44 Electrical connections ......17 Boiler internal components ....45 Connections to the chimney Electrical diagram ....... 46 EURA Condensing ......19 Flue options User instructions ......47 EURA Condensing ......23 Warnings for boiler System with secondary zone ....25 commissioning ...... -
Page 4: Warning
ARNING The instructions manual is an essential and complementary part of the product and it is supplied together with the boiler. Carefully read the manual, achieving all important information for a safe installation, use and servicing. — Carefully keep the manual for any further consultation you may need. —... -
Page 5: The Condensing Boiler
CONDENSING innovative technology: your HERMANN EURA Condensing. In this booklet you will find also the instruction for the installation, the conduction and the maintenance of the parts, which are stricly connected with the condens. - Page 6 (usually a syphon trap which must be firstly filled with water). The EURA Condensing is equipped with a special device which works dry also, limiting almost completely this risk, although the seal is guaranteed only when it’s filled with liquid.
- Page 7 It is mandatory and necessary to use original flue components, espe- cially designed for EURA Condensing and properly signed, to realize the outlet duct, be- cause they are integral part of the same component. See “Chimney connections” for further details about it.
-
Page 8: Technical Data
ECHNICAL DATA i t r c i f ° n . t u ° 0 ° 0 ° 0 ° 0 . t u ° 0 ° 0 ° 0 ° 0 y t i ° 0 ° 0 h / l y t i °... - Page 9 DIMENSIONS l t u Technical data Dati tecnici...
- Page 10 AVAILABLE PUMP CAPACITY EURA CONDENSING pump speed selector on position I, II and III (automatic by-pass) 1000 1200 1400 1600 Water flow l/h excluded by-pass automatic by-pass Technical data...
- Page 11 BOILER SCHEMATIC WARNING: This scheme is made for in- formation only. To make boiler hydrau- lic connection either use fixing jig or the drawing inserted in the section “Instal- Drain valve lation”. Manometer By-pass Three way motorised valve Loss of water switch Heating system safety valve 3 bar Pump Expansion vessel...
-
Page 12: Installation
NSTALLATION Safety laws and rules referred to technicians assigned to boilers installation Place here all necessary advices according to national rules about WORK SAFETY Exemple: Law number XXXX “Actuation of 89/391/CEE; 89/655/CEE, 90/296/CEE, 90/934/CEE, 90/679/CEE, (work safety)” Law number XXXX “Actuation of 89/686/CEE (21 Dec 1989)”... -
Page 13: Boiler Location
Boiler location INSTALLATION ROOM When having an heat ouput lower than 35 kw (about 30000 Kcal/h), particular features for the installation room are not required. Shortly, all installation rules assuring a safe and regular gas boiler operation, must be strictly respected. Place here all necessary advices according to national rules about: - Installation room requirements... -
Page 14: Fixing The Boiler
Fixing the boiler For the installation proceed as follows: Appliance size and clearances for maintenance: 50mm from both sides and 300mm from the bottom are reccommended. — Attach template to the wall (see figure below) with two brackets suitable to carry boiler weight; —... -
Page 15: Hydraulic Connections
— Connect the safety evacuation ducts of the boiler to an evacuation funnel. If safety valves are not connected to an evacuation device, their intervention could flood the room. Hermann can- not be held responsible for any damage arising from that situation. -
Page 16: System Filling
CONDENSE OUTLET Insert the flexible pipe of condense outlet inside the outlet funnel (or other fitting inspectable mechanism) properly adapted as foreseen by UNI EN 677, or in the outlet funnel of the safety valve, in case of the above mentioned outlet is able to receive the acid liquids of the condense as foreseen by UNI EN 677 and/or UNI 11071. -
Page 17: Gas Connection
Gas connection ESEMPIO DI COLLEGAMENTO Remark: If gas cock position is foreseen near the WALL, install first gas cock, then water inlet tap. Boiler installation must be carried out from a qualified technician, [exemple: as indicated by the Law XXXXX] because an incorrect installation can cause damages to people, animals or things, for which the manufacturer cannot be held responsible. - Page 18 Remark: HERMANN Ltd. declines any responsibility for damages to persons, animals or things caused by the non-connection of the boiler earthing and by failure to comply with the rules.
-
Page 19: Connections To The Chimney Eura Condensing
Original Hermann remote control (optional kit) must NOT be connected to green connector. Special interface card, supplied in the remote control kit, must be used. All low-voltage wirings (e.g. TA, SE and original Hermann remote control) must be kept separate from power supply cables, as to avoid boiler malfunctionings due to electrical noise. - Page 20 We give you some correct and wrong examples of installation of inlet and outlet duct (the slope are voluntarily represented in an exaggerated way). A = Inlet; S = Outlet. 1: the most functional and economic solution is to let the condense come back towards the boiler.
- Page 21 Air inlet and flue outlet terminals should be protected by suitable approved flue accessories, to avoid environmental elements penetration. Carefully follow the indications foreseen by the specific laws in force. Place here all necessary advices according to national rules about CHIMNEY CONNECTIONS of CONDENSING boilers The outlet duct is the assembly components necessary to connect the boiler to the point where the flues are discharged, and being an integral part of the appliance, it must be original.
- Page 22 In case of evacuation to wall, the positions indicated in the following drawing and table must be respected: a i l c i t l a t o i t d l i d l i o l f i t r y l l y l l h t i...
-
Page 23: Flue Options Eura Condensing
Flue options EURA Condensing AIR INLET AND PRODUCTS OUTLET THROUGH SEPARATE PIPES CA = Inlet duct; CS = Outlet duct CA+CS = min. 2 m – max 18 m CS = max. 9 m Each supplementary bend at 90° corresponds to 1 linear meter of pipe Each supplementary bend at 45°... - Page 24 AIR INLET AND PRODUCTS OUTLET THROUGH COAXIAL SYSTEM LO = Length of the duct (inlet + outlet) horizontal coaxial: min. 1 m – max 10 m LV = Length of the duct (inlet + outlet) vertical coaxial: min. 1 m – max 11 m Each supplementary bend at 90°...
-
Page 25: System With Secondary Zone
System with secondary zone Eura Condensing is pre-arranged for the management of two zone at high and low temperature, controlled by two thermostats or cronothermostats. The system solutions can be multiple, but here we present an example particularly suitable to the EURA Condensing features and which uses the specific optional kit for systems with two zone at high+low temperature. -
Page 26: Servicing Instructions
IRST FIRING REGULATION AND SERVICING INSTRUCTIONS WARNING: Hereby described operation can be performed by qualified technicians only. When regulation/measuring is over, remember to tighten pressure tapping point screws and to verify the absent of gas leakages only from net pressure plug (PIN, see the picture of the gas valve) and from the connection upwards the gas valve. -
Page 27: First Ignition Operations
First ignition operations The first ignition operations consist in verifying the correct installation and functioning, and in the eventual regulations which are necessary: — verify that the data of the plate correspond to those of the net supply (electrical, water, gas); —... -
Page 28: Maintenance Operations
Maintenance operations The periodically maintenance operations consist in cleaning the main parts of the boiler, in the further functioning proof (especially those described by the laws in force), and in the eventual regulations, which could be necessary: — verify the absent of the gas leakages from the connections upwards the boiler; —... -
Page 29: Gaining Access To Manual Regulation Devices
Gaining access to manual regulation devices 1. Unscrew screws located above boiler, shift small blocking plate 1, remove front cover 2 lifting it up. 2. To remove lower grid, if any, unscrew screws [3], push, lower and shift it forward. Note: lower grid is spare inside packing, not assembled. -
Page 30: Cleaning The Combustion Group
Cleaning the combustion group Switch off the boiler and disconnect it from the electrical supply. Be sure that the parts are not hot and eventually wait the time necessary to cool them; Because some contacts with the fine dust and acid condense may occur, we recom- mend to wear the proper devices for the personal protection (i.e. - Page 31 Remark: an excessive quantity of residual is an indicator of malfunctioning or in any case it is not a normal situation. Locate the reasons and solve the problem, so remove the funnel unscrewing the superior and lateral connectors, and the screw [9] of the bracket support. Accurately clean the funnel and be sure that its inlet pipes [5] and outlet condense [7] are free ( it could be obstructed by the residuals).
-
Page 32: Checking And Combustion Regulation
Checking and combustion regulation Before checking the combustion, clean the burner and the ex- changer as described in the para- graph “ Cleaning of the combus- P.R. R.Q. tion group” (excluding the first ig- ADJ. ADJ. nition process). To check and regulate the boiler you need a differential micromanometer with a resolution of 1 Pa and a flue ana- lyser, which are together correctly... - Page 33 5) select the PARAMETER 12 pushing the bottom buttons . The predefined value is 1. Select the value 0 pushing the button 6) verify that in the centre of the display a value between 179 and 181 is written (indicating that the fun turns at 1800 +/- 10 laps/min –...
-
Page 34: Regulation Programming
Regulation programming All these operations must be performed by QUALIFIED TECHNICIANS ONLY. Operations performed by not qualified persons can cause MALFUNCTIONS and/or DAMAGE. Hermann cannot be considered liable for eventual damages caused by not qualified persons. Do not modify default settings if not necessary GENERAL PROCEDURE —... - Page 35 In Eura Condensing boilers this parameter must be kept to 0. 1: Type of gas used: natural gas = 0 / LPG = 1. Factory setup: 0. Since Eura Condensing is forecasted to be used with natural gas only, this parameter must be kept to 0.
- Page 36 10 External probe indication (not modifiable): No probe / disconnected = 0; Probe detected = 1. See ‘Other boiler programming’ for more info. 11 Parameter for company test. Factory setup:0. Do not modify the company set up. 12 Calibration OFF –SET: Minimum = 0 / Maximum = 1. Factory setup: 1. This parameter pushes the burner ignition to the nominal and reduced flow for the regulation of the CO and the off-set.
-
Page 37: Slow Opening Regulation
— while boiler is not working (green light flashing), select parameter 4 and push once knob . The burner will ignite. Push the buttons until you reach the required value; — store pressure pushing POWERS - PARAMETERS - TURNS TABLE — EURA Condensing Regulation and servicing... -
Page 38: Excluding Automatic By-Pass
Excluding automatic by- pass EURA are equipped with automatic by pass. In case of complete opening, a flowrate sufficient for normal boiler working is guaranteed. However, it is possible to disconnect by pass, proceeding as follows: 1. Switch off boiler by pressing 2. -
Page 39: Other Boiler Programme
— when water pressure is COMPLETELY drained, you can open radiators air vents, to allow air inlet and complete plant draining; — when everything is over, close taps and air vents. In the primary exchanger a certain quantity of water of the heating system remains. If you want to remove the boiler from the wall, we advice you to close with plugs the hydraulic inlet/ outlet heating system connections. - Page 40 Delay before re-ignition after reaching heating flow temperature set: (in minutes, default setting = 3): In heating mode, when boiler reaches set temperature ( ), burner switches off. Then tem- perature drops down and burner ignites again. This parameter sets the minimum delay time between a switching off (at set) and the following re-ignition.
- Page 41 17 Regulation of the inlet temperature with request of the only Secondary room Thermo- stat (TA2) (Company set up = 20 °C). EURA Condensing can manage two room thermostats installed in two distinct zones working with different temperatures. For example ( with opportune hydraulic system devices to send the heating to the various zones) we can foresee a zone heated with slow temperature sys- tems (i.e.
-
Page 42: Crypt Warnings For Technical Experts
18 Permanently visualization of the fan turns (Company set up = 0): Setting to 1 this parameter, the actual fan speed is showed permanently, in the centre of the display, in turns/minutes (x10). So i.e. if you read “555” means that the fun is turning at 5550 turns/minutes. - Page 43 E31 Remote control* (Hermann optional kit only) not working * This applies to Hermann Remote Control optional kit only, and not to third parties chrono thermostats. Cause: Control PCB has verified the presence of a remote control but data are not readable.
-
Page 44: Servicing Warnings
— Clean casing with soapy water only. Do not clean casing, other painted or plastic surfaces with thinner. — In any case of parts replacement, it is mandatory to use HERMANN original spare parts. HERMANN declines any responsibility in case of non-original spare parts utilization. -
Page 45: Boiler Internal Components
Boiler internal components Automatic Venting Device (Heating) 17 Priority Flussostat Plug for Combustion proof (A=air) 18 Electronic Valve to fill the System Plug for Combustion proof (F=flue) 19 Outlet System Tap Automatic Venting Device (Domestic 20 Manometer Hot Water Exchanger) 21 By-Pass Temperature Sensor DHW Micro 22 Syphon for Condense Outlet... -
Page 46: Electrical Diagram
Electrical diagram MULTIZONE HEATING Note: if optional Remote Control is installed, (same temperature multizone heating wiring is different. Refer to range) multizone heating diagram supplied with WIRING Remote Control kit. EXAMPLE Pump Room Thermostat unique zone or main zone (take off the jumper to install) Ignition Electrode TA2 Room Thermostat secondary zone Colours... -
Page 47: User Instructions
SER INSTRUCTIONS Warnings for boiler commissioning First ignition must be carried out by qualified technicians (in example HERMANN Authorized Servicing Centres). It is necessary that the technician verifies: a) the label technical data of the gas boiler correspond to those of the gas, water and electrical supply lines;... -
Page 48: Warnings
BOILER OPERATION AND SERVICING The user (owner or tenant of the flat where the boiler is installed) or the administrator of the block of flats (in case of a central heating system) are responsible for the appliance operation and serv- icing;... -
Page 49: Gaining Access To Control Panel
Gaining access to control panel To gain access to control panel it is sufficient to softly push in the lower part of control cover, as shown. Switching on/off and running boiler SWITCHING ON — Turn main electrical switch on; green light flashes —... - Page 50 If an external probe has been installed (optional Hermann kit), heating system temperature is automatically controlled by boiler depending on external temperature. Pressing knobs can vary a “dispersion coefficient” (please refer to technical documentation included with said kit). PLUS FUNCTION...
-
Page 51: Control Panel Details
Control panel details 16 15 14 13 12 11 630B ON/STAND BY knob • Pressing allows switching boiler on (on mode, green light on) • Pressing once more boiler switches off (stand by mode, green light flashing), leaving anti freezing protection on. SUMMER/WINTER knob •... - Page 52 RESET knob • Before pressing this knob, please refer to “Boiler blocking and alarm codes” to under- stand what happened and prevent future problems. • Pressing this knob allows to reset boiler after a failure (that could be reset by end user); when such type of failure occurs, warning writing ‘reset’...
-
Page 53: Boiler Blocking And Alarm Codes
• While flashing, boiler is heating radiators. 17 REMOTE displayed • It is shown only if the original Hermann Remote Control Panel is installed (Remote Con- trol). Most of controls are now available on to remote control only. Please refer to remote control instruction manual. - Page 54 Solution: Wait 20/30 minutes to cool boiler down then press ‘reset’. If block happens again, please contact a [Hermann Technical Centre] [qualified technician] (see Cause 2 also). Cause 2: If the block repeats always and immediately after a heat request (heating or DHW) the safety thermostat on the system return may have triggered.
- Page 55 (radiators included). Anyway, it is recommended to call a [Hermann Technical Centre] [qualified technician] case this operation is very usual. Be careful that if boiler is filled with anti freezing solution, any automatic filling with water will dilute solution.
- Page 56 E31 Remote control* not working Red light: flashing Alarm type: service * This applies to Hermann Remote Control optional kit only, and not to third parties chrono thermostats. Solution: call a [Hermann Technical Centre] [qualified technician].
-
Page 57: Boiler Inactivity
Boiler inactivity The effects of the periods of inactivity can be relevant in particular situations such as in flats used only for some months per year, most of all in cold places. The user will have to decide to put the boiler in the SAFETY LOCK OUT state disconnecting all the supplies, or to leave it in stand-by and use the Anti Freezing Function. -
Page 58: Eventual Problems
In case of particular water hardness, a water softener must be installed. Do not try to repair boiler by yourself. For any problem related to electric circuit, hydraulic circuit, gas circuit, a Hermann techni- cal centre must be contacted. All boilers must be equipped with original spare parts. -
Page 59: Warning While Using
HERMANN CONVENTIONAL GUARANTEE CONDITIONS Hermann offers to the customer a particular and exclusive CONVENTIONAL GUARANTEE, which is automatically activated asking the First Ignition to a Hermann Authorized Service Center. The conditions of the HERMANN CONVENTIONAL GUARANTEE don’t prejudge nor invalidate the rights indicated by the European Rule 1999/44/CE actuated with Italian Laws by the Decree 02 Februar 2002 N°24 of which the User is the Owner. - Page 60 Hermann Ltd. declines any responsibility for eventual printing and/or transcription errors in the present manual. In order to constantly improve its products, Hermann Ltd. has the right to change features and data 09/2005 COD. 982180005 / REV. 007 written in the present manual, at any time and without notice; therefore, this manual cannot be (UKENG) considered as a contract towards third parties.
