1. Technical Specifications :
Particular
Key Matrix For Flashing
Chipset
Android Version
Frequency
Network Mode
ROM
RAM
Internal SD Card memory
Expandable Memory
Factory mode code
2. CAUTIONS
I. Flashing & Servicing must be undertaken by qualified personnel only.
II. Ensure all work is carried out at an anti-static workstation and that an anti-static wrist strap is worn.
III. Use only approved Tools & components as specified in the parts list.
IV. Ensure all components, modules, screws, and insulators are correctly re-fitted after servicing and
alignment
V. Ensure all cables and wires are repositioned correctly if Handset disassembled
VI. Electrostatic discharge can easily damage the sensitive components of electronic products. Therefore,
Service Centre must adhere the precautions which mentioned above.
3. L2 Level trouble shooting
Remarks
0-9 NUM ,* ,#,Function key
SC6531DA
NA
900MHZ/1800MHZ
GSM
32MB
32MB
32MB
MB can support up 16 GB T card
*#2020#
L2 Service Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the x081 and is the answer not in the manual?

Questions and answers

Related Manuals for Micromax x081

Summary of Contents for Micromax x081

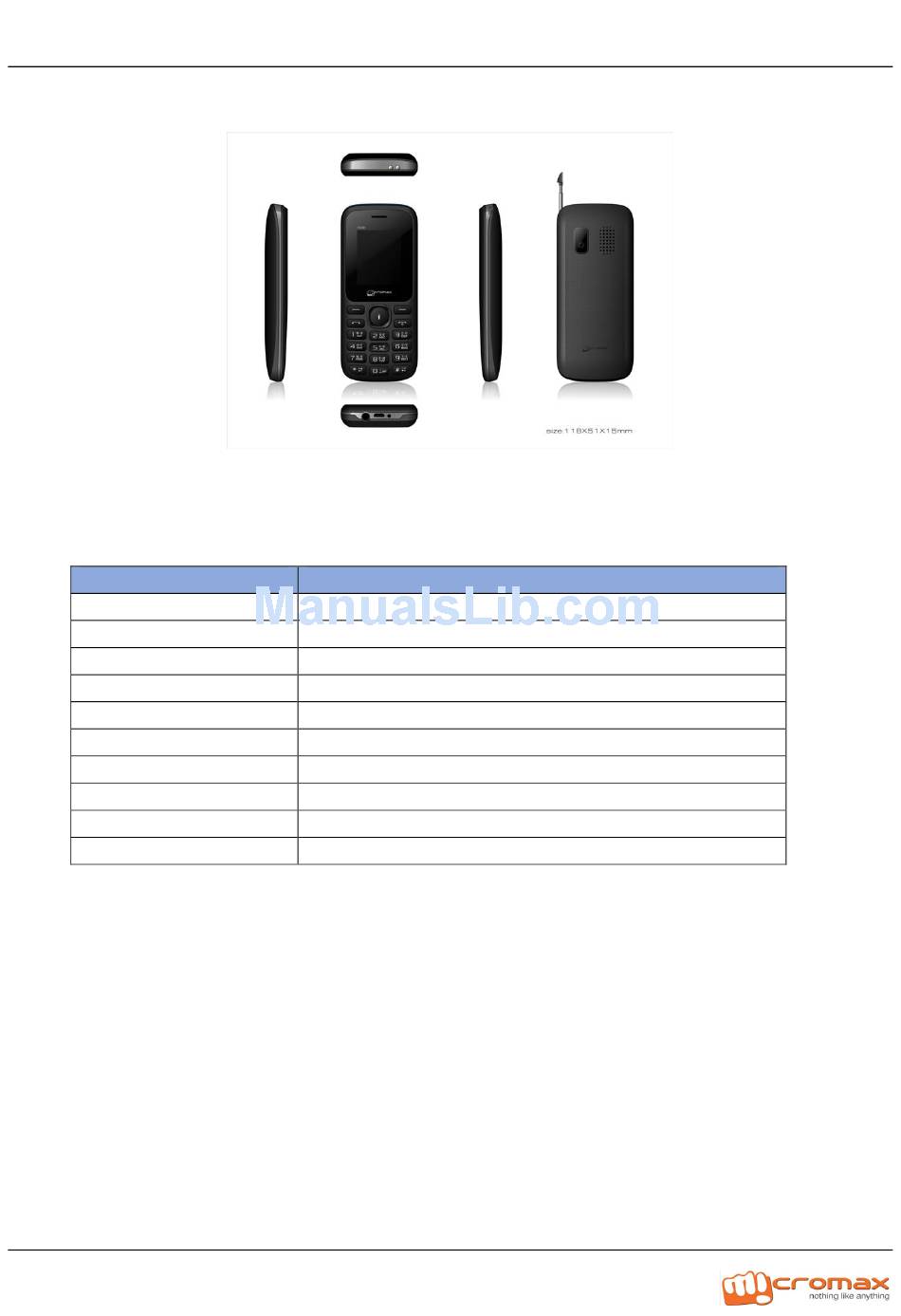

  • Page 1 X081 L2 Service Manual 1. Technical Specifications : Particular Remarks Key Matrix For Flashing 0-9 NUM ,* ,#,Function key Chipset SC6531DA Android Version Frequency 900MHZ/1800MHZ Network Mode 32MB 32MB Internal SD Card memory 32MB Expandable Memory MB can support up 16 GB T card...
