isvi IC-M29S-CL Operation Manual

High-speed high-resolution camera technology
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

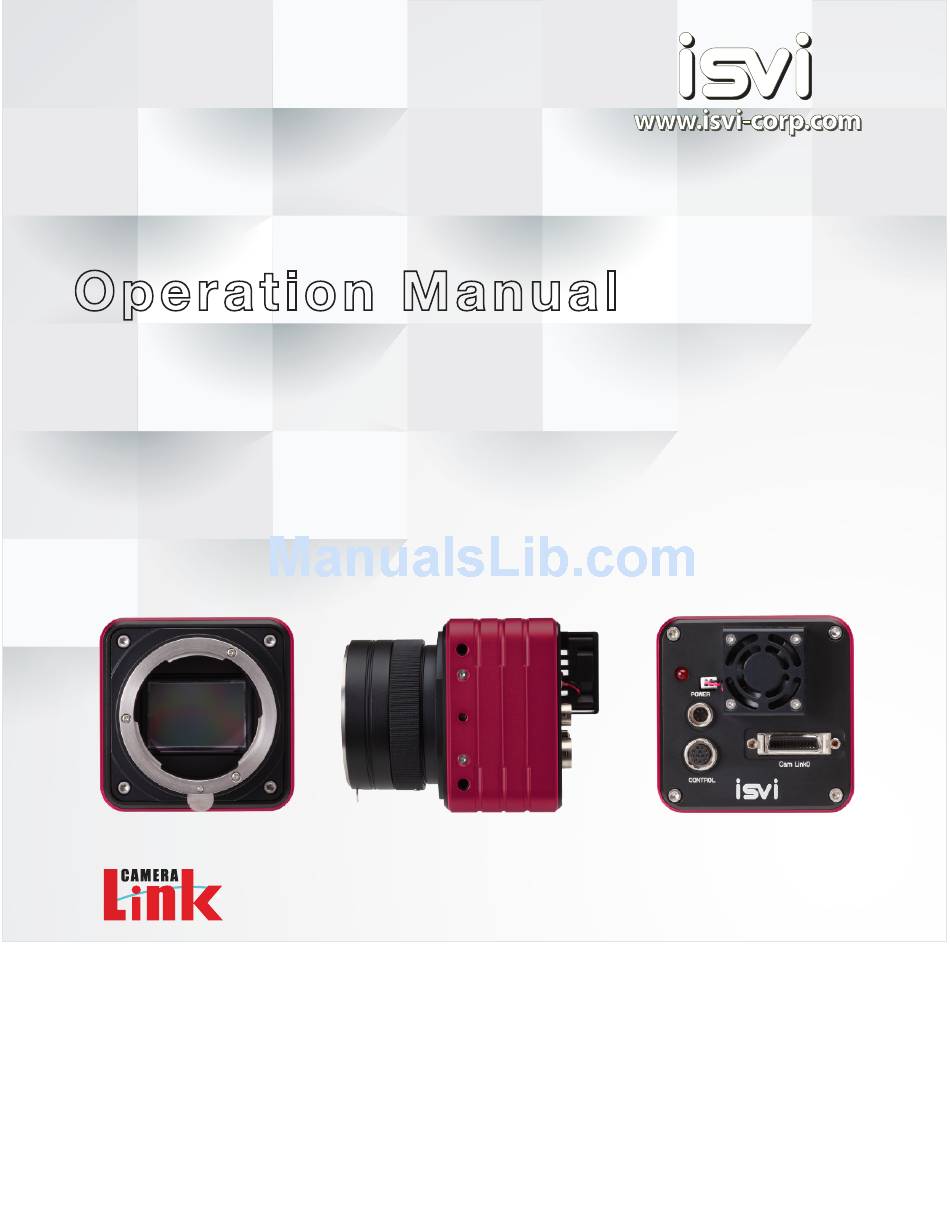

O pera ti on M a n ua l
IC-M29S-CL
High-Speed High-Resolution Camera Technology
Revision 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IC-M29S-CL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for isvi IC-M29S-CL

  • Page 1 O pera ti on M a n ua l IC-M29S-CL High-Speed High-Resolution Camera Technology Revision 1.0...
  • Page 2 Revision History Revision Date Description 20.07.2015 Initial Release Power Connector Drawings Correction 05.08.2015...

  • Page 3: Introduction

    Limitation of Liability and Indemnity Statement This camera has been built to the high quality standards of ISVI Corp. and is delivered in full working order with factory default settings. Please read and understand this manual and follow all safeguards and cautions for your safety and to prevent damage to the camera.

  • Page 4: Precautions

    Failure to comply with any of the following precautions will void the user’s warranty. DO NOT attempt to disassemble, modify or repair the camera. Please contact your local ISVI Global Sales Partner if you require repair or modification.

  • Page 5: Conformity

    IC-M2S-CL 1.3. Standards Conformity CE marking and certification (as per EN 50022-Class A Device) The CE mark is a declaration by a manufacturer that European Union directives and regulations controlling a specific product have been certifiably met. This camera fulfills the requirements of current EU regulations relating to EN 50022.

  • Page 6: Table Of Contents

    IC-M29S-CL Contents 1. Introduction ............... 3 1.1. Statement of Intended Use and Liability ............3 1.2. Precautions ....................4 1.3. Conformity ....................5 1.4. Ordering Information ..................5 2. Overview ................9 2.1. Main Features ....................9 2.2. Specifications ....................10 2.3.
  • Page 7 IC-M29S-CL 5.3. Data Bits ..................... 26 5.4. Image Processing ..................26 5.5. Test Pattern ....................26 5.6. Readout Mode .................... 26 5.7. Version Information ..................29 5.8. Communication Window ................29 5.9. Temperature Sensor ..................29 5.10. Trigger Mode .................... 29 5.11.
  • Page 8 IC-M29S-CL - Trigger mode ..................... 39 - Overlap mode ................... 39 - Trigger source ................... 39 - Trigger polarity ..................40 - Exposure time ................... 40 - Strobe out offset ..................40 - Strobe out polarity ..................40 - VGA Gain ....................40 - VGA Gain offset ..................

  • Page 9: Overview

    The IC-M29S-CL combines the best possible CCD image quality with a very high resolution and extremely simple connectivity to provide its user with the highest possible performance for the most demanding applications.

  • Page 10: Specifications

    IC-M29S-CL 2.2. Specification Sensor High-Sensitivity, Low-Noise CCD, Onsemi KAI-29050 6576(H) x 4384(V) Active Pixels Resolution Pixel Area Size 5.5µm(H) x 5.5µm(V) Frame Rate 4.45Hz Full Frame (224.7 msec) Active Area Size Diameter : 43.7mm, 36.17mm(H) x 24.11mm(V) , 35mm Optical Format...

  • Page 11: Mechanical Dimensions

    IC-M29S-CL 2.4. Mechanical dimension F Mount Mounting Hole Screw specification Figure 2.3 Outline drawings (F Mount) High-Speed High-Resolution Camera Technology...
  • Page 12 IC-M29S-CL M58 Mount Figure 2.4 Outline drawings (M58 Mount) M72 Mount Figure 2.5 Outline drawings (M72 Mount)
  • Page 13 IC-M29S-CL LM (Leica M) Mount Figure 2.6 Outline drawings (LM Mount)

  • Page 14: Installation

    IC-M29S-CL 3. Installation In this section you will find information on the proper means of mounting your camera in your system, connecting the camera to a frame grabber and power supply, as well as ensuring proper electrical connections to the camera’s I/O signals.

  • Page 15: Camera Connections

    3.4. Camera connections The camera connections are laid out on the back panel of the camera as follows: Power input connection (Hirose 6-pin) Power Camera link connection Control I/O connection (MDR-26) (Hirose 12-pin) Cam Link0 Control Figure 3.1 Camera connectors 3.4.1 Camera Link0 connection The Camera Link0 connection adheres to the latest Camera Link Standard.
  • Page 16 Figure 3.4: Power input connector The reserved pins are used by the ISVI Camera Firmware Upgrade Cable for field firmware upgrading. Do not connect these pins – damage to the camera may occur! See seperate manual provided for more detailed informa- tion about firmware upgrading.

  • Page 17: Trigger Input Schematic

    Do not apply any voltage to the Strobe Output pins – damage to the camera will occur and the warranty will be voided! User Recommand Application ISVI Camera 3.3V STROBE OUTPUT Opto Coupler...

  • Page 18: Image Acquisition

    • Trigger Slave Overlap Each acquisition mode is selectable using the ISVI Camera Control Tool for this camera. A red LED status light is on the back panel of the camera (see Figure 4.1) and indicates through its on/off timing which acquisition mode the camera is currently in.

  • Page 19: Freerun Mode

    4.2. Free-run Mode In Free-Run mode the camera creates its own internal trigger and continuously acquires images without the need for any external triggers. The exposure time is selectable by the user and it determines the cycle time of the inter- nally generated trigger.

  • Page 20: Trigger Master Mode

    4.3. Trigger Master Mode In Trigger Master mode the camera controls the Exposure period (Master condition) which is programmed in the camera by the user. The camera then waits for an external trigger to be applied to CC1 of the Camera Link connec- tion or to the External Trigger pin of the I/O connection.

  • Page 21: Trigger Master Overlap Mode

    4.4. Trigger Master Overlap Mode In Trigger Master Overlap mode the camera controls the Exposure period (Master condition) which is programmed in the camera by the user. The camera then waits for an external trigger to be applied to CC1 of the Camera Link connection or to the External Trigger pin of the I/O connection.

  • Page 22: Trigger Slave Mode

    IC-M29S-CL 4.5. Trigger Slave Mode In Trigger Slave Mode the Exposure period is controlled by the pulse width of the applied trigger signal (Slave condition). The camera waits for an external trigger to be applied to CC1 of the Camera Link connection or to the External Trigger pin of the I/O connection.

  • Page 23: Trigger Slave Overlap Mode

    IC-M29S-CL 4.6. Trigger Slave Overlap Mode In Trigger Slave Overlap Mode the Exposure period is controlled by the pulse width of the applied trigger signal (Slave condition). The camera waits for an external trigger to be applied to CC1 of the Camera Link connection or to the External Trigger pin of the I/O connection.

  • Page 24: Camera Control And Features Description

    The features of this camera are controlled using the ISVI Camera Control Tool designed for this camera model. The use of the Camera Control Tool is described in this section.

  • Page 25: User Workpace

    5.2. User Workspace The User Workspace shown Figure 5.2 provides the user COM4 Scan Factory Save Reset with a Factory Default area and 2 areas to which settings Factory User 1 can be saved. User 2 Main Trigger Gain Gamma FFC/DPC The settings for each area is stored in the camera’s non-volatile memory.

  • Page 26: Data Bits

    5.3. Data Bits The Data Bit Resolution feature provides the user with the choice of 8-bit, 10-bit or 12-bit digital resolution for the image data output. The user must ensure that the proper frame grabber camera file is used to capture the selected bit resolution.
  • Page 27 ing either the X- or the Y-ROI or both will result in a reduction in the amount of data transmitted to the frame grab- ber. The user can choose to set the desired ROI by adjusting the pixel offset in the X-direction and the line offset in the Y-direction.
  • Page 28 offset the ROI from the left edge of the full frame. Adjusting the X-Offset Left value automatically changes the ROI X-Width. Symmetric Enables/disables Auto-Symmetry. When enabled, the user enters only the X-Offset Left and Y-Offset Top values and the ROI will automatically be changed and centered within the full frame and the calculated offsets displayed.

  • Page 29: Version Information

    • An increase in the dynamic range of the sensor resulting from the larger charge capacity of the summing node (typically 1.65-2 times increase in well depth). The tradeoff for the gains due to binning are: • A loss of image resolution equal to the binning level. - 2x2 Binning resolution is: 3288 x 2192 pixels - 4x4 Binning resolution is: 1644 x 1096 pixels •...

  • Page 30: Exposure Time

    • Camera Link: The camera expects the trigger to arrive over the Camera Link interface from the frame grabber on the camera control pin CC1. • External: The camera expects a direct input trigger to arrive over pins 1&2 of the 12-pin Hirose I/O Control Connector on the back panel.

  • Page 31: Gain

    5.14. Gain COM4 Scan Factory Save Reset Main Trigger Gain Gamma FFC/DPC VGA Gain (0-700) VGA Gain Offset (0-700) 0.0000 dB Black Clamp Level (0-700) Black Clamp Level Offset (0-700) Max. Log Files 37.22 ℃ Clear Figure 5.9. Gain Tap Window The sensor in this camera is a 4-Tap design meaning that 4 quadrants of the sensor are read out simultaneously.

  • Page 32: Log Files

    IC-M29S-CL • VGA Gain (Variable Gain Amplifier) o Sets the overall Gain factor globally to all sensor taps. o The Gain range is from 0-700 units or 0-24.5dB, 1 unit = 0.035dB. o Press Enter to confirm entry. • VGA Gain Offset o Sets the Gain factor for each sensor tap individually.

  • Page 33: Gamma Lut

    IC-M29S-CL 5.16. Gamma LUT COM4 Scan Factory Save Reset Main Trigger Gain Gamma FFC/DPC 4095 Gamma LUT Gamma 1.00 Load from *.csv File 3071 Save to *.csv File 2047 LUT #1 LUT #2 Download to Camera 1023 Apply LUT Save to Flash Backup to *.csv File...

  • Page 34: Ffc / Dpc

    IC-M29S-CL 5.17. FFC / DPC Flat Field Correction (FFC) is a calibration procedure COM4 Scan Factory Save Reset used to correct for pixel-to-pixel sensitivity differences on the imaging sensor and aberrations caused by the Main Trigger Gain Gamma FFC / DPC optical path.
  • Page 35 Press ‘Restore and Save FFC and DPC Data from Factory Default’ (7) to erase current user-saved calibration data and restore Factory Default data to the camera. This is useful if attempts at user calibration are unsuc- cessful. If you are having problems calibrating the camera, please contact your ISVI agent.

  • Page 36: Command Codes

    All camera setting commands requiring data transmission are delivered in Hexadecimal format. The camera can be set up from a PC running a terminal emulator software, user applications with emulation function or using the ISVI Camera Control Tool as described in Section 5. 6.2. Communication Settings...

  • Page 37: Roi Horizontal Area

    ROI Horizontal Area Type Command Response Description <0-6574> “<0-6574> <1-6575> “gha<\r>” starting point <\r><\n>” “Sha <0-6574> <1-6575> “OK<\r><\n>” <1~6575> <\r>” Endpoint ROI Vertical Area Type Command Response Description <0-2190> “gva<\r>” “<0-2190><\r><\n>” starting point “OK<\r><\n>” “sva <0-2190><\r>” Binning Mode Type Command Response Description 0 = 2 by 2 binning...

  • Page 38: Lut Mode

    LUT Mode Type Command Response Description 0 = Off “gls<\r>” “<0|1|2><\r><\n>” 1 = LUT1 2 = LUT2 “OK<\r><\n>” “sls <0|1|2><\r>” Reset Type Command Response Description 0 = EPCS 1 = SDR “rst <0|1><\r>” “OK<\r><\n>” Defective Pixel Correction Type Command Response Description 0 = Disable “gdc<\r>”...

  • Page 39: Generate Flat Field Data

    Generate Flat Field Data Type Command Response Description <1-16> “OK<\r><\n>” “ggd <1-16><\r>” Number of frames Save Flat Field Data Type Command Response Description Save Flat Field Data “sgf <1-16><\r>” “OK<\r><\n>” to nonvolatile memory Trigger Mode Type Command Response Description 0 = Free-Run Mode “gtm<\r>”...

  • Page 40: Trigger Polarity

    Trigger Polarity Type Command Response Description 0 = Active-Low “gtp<\r>” “<0|1><\r><\n>” 1 = Active-High “OK<\r><\n>” “stp <0|1><\r>” Exposure Time Type Command Response Description Min. Exposure Time “get<\r>” “<100-7000000><\r><\n>” 100 = 100 usec Max. Exposure Time 7000000 = 7 sec “OK<\r><\n>” “set <0|1><\r>”...

  • Page 41: Vga Gain Offset

    VGA Gain Offset Type Command Response Description <0|1|2|3> “OK<\r><\n>” “sgo <0|1|2|3> <0-700><\r>” 0 = Channel A 1 = Channer B 2 = Channel C 3 = Channel D <0-700> 0 = 0 dB (Min.) 700 = 25.06 (Max.) Optical Black Clamp Level Type Command Response...

  • Page 42: Load & Save Config

    IC-M29S-CL Load & Save Config Type Command Response Description 0 = Factory Default Load “1cf <0|1|2><\r>” 1 = User 1 “<0|1|2><\r><\n>” 2 = User 2 0 = User 1 Save “OK<\r><\n>” 1 = User 2 “sct <1|2><\r>” Current Temperature Type...
  • Page 43 IC-M29S-CL High Speed - High Resolution Camera Technology...
  • Page 44 High-Speed High-Resolution Camera Technology Camera Technology I S V I K O R E A ISVI CORP. HEADQUARTERS I S V I E M E A + 8 2 . 3 1 . 4 2 7 . 3 4 0 5 3 M o r s e R d , 2 A , O x f o r d , C T 0 6 4 7 8 U S A + 4 9 .
