MD7-v2

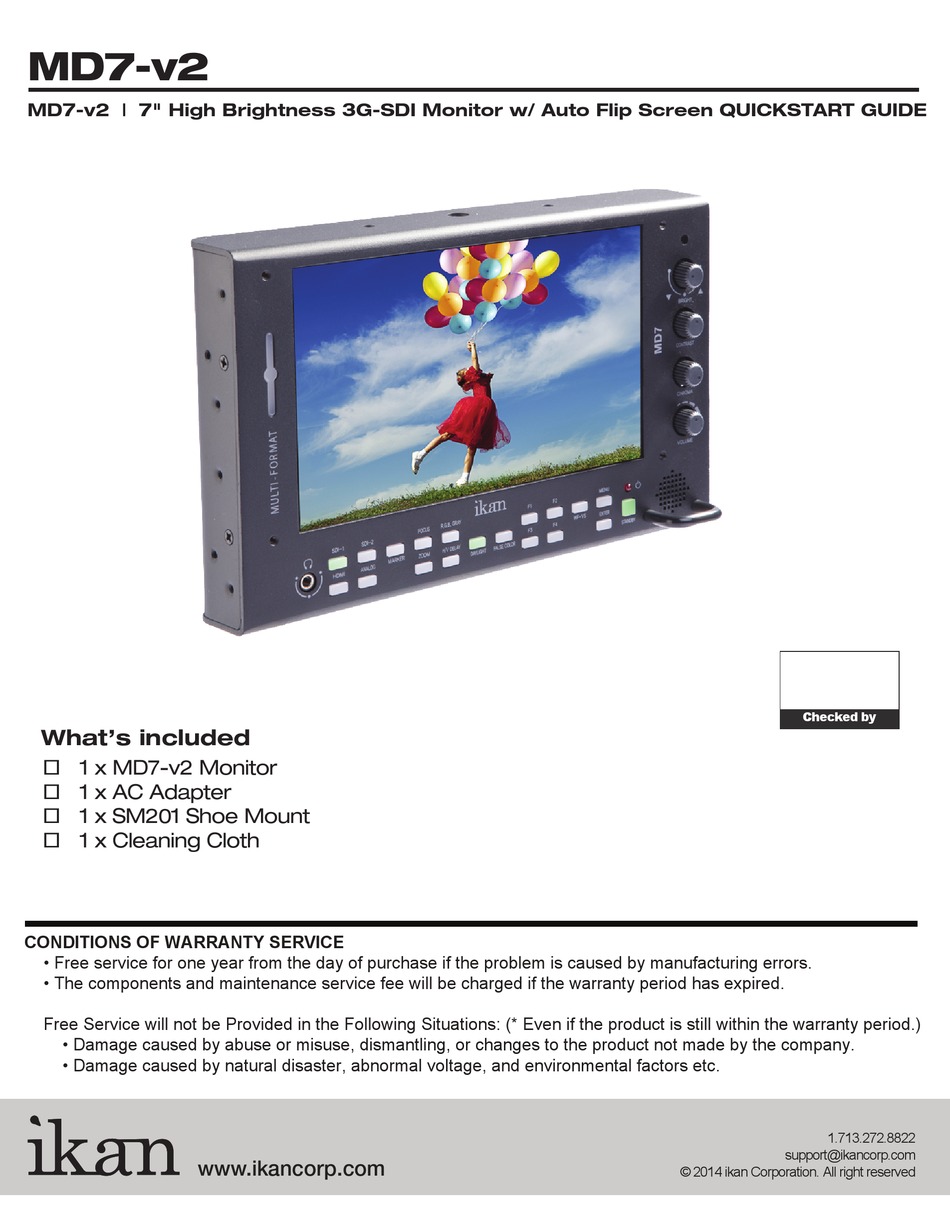

MD7-v2 | 7" High Brightness 3G-SDI Monitor w/ Auto Flip Screen QUICKSTART GUIDE
What's included
 1 x MD7-v2 Monitor
 1 x AC Adapter
 1 x SM201 Shoe Mount
 1 x Cleaning Cloth
CONDITIONS OF WARRANTY SERVICE
• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.
• The components and maintenance service fee will be charged if the warranty period has expired.
Free Service will not be Provided in the Following Situations: (* Even if the product is still within the warranty period.)
• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.
• Damage caused by natural disaster, abnormal voltage, and environmental factors etc.
www.ikancorp.com
Checked by
1.713.272.8822
support@ikancorp.com
© 2014 ikan Corporation. All right reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MD7-v2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ikan MD7-v2

  • Page 1 MD7-v2 MD7-v2 | 7" High Brightness 3G-SDI Monitor w/ Auto Flip Screen QUICKSTART GUIDE Checked by What’s included  1 x MD7-v2 Monitor  1 x AC Adapter  1 x SM201 Shoe Mount  1 x Cleaning Cloth CONDITIONS OF WARRANTY SERVICE •...
  • Page 2 MD7-v2 MD7-v2 | 7" High Brightness 3G-SDI Monitor w/ Auto Flip Screen QUICKSTART GUIDE Front View BRIGHT Resolution 1024 x 600 CONTRAST CHROMA VOLUME MENU SDI-1 SDI-2 FOCUS RGB GRAY MARKER WF•VS ZOOM H/V DELAY ENTER HDMI ANALOG FALSE LIGHT...
  • Page 3 MD7-v2 MD7-v2 | 7" High Brightness 3G-SDI Monitor w/ Auto Flip Screen QUICKSTART GUIDE Rear View Update Port (RJ-11 Jack) SDI-1 SDI-2 DC 7V~24V HDMI-IN HDMI-OUT AUDIO DC 7V~24V Control Port DC Power Internal Power Port www.ikancorp.com 713-272-8822...
