NetComm Wireless Network Device NP643 User Manual

NetComm Wireless Network Device NP643 User Manual

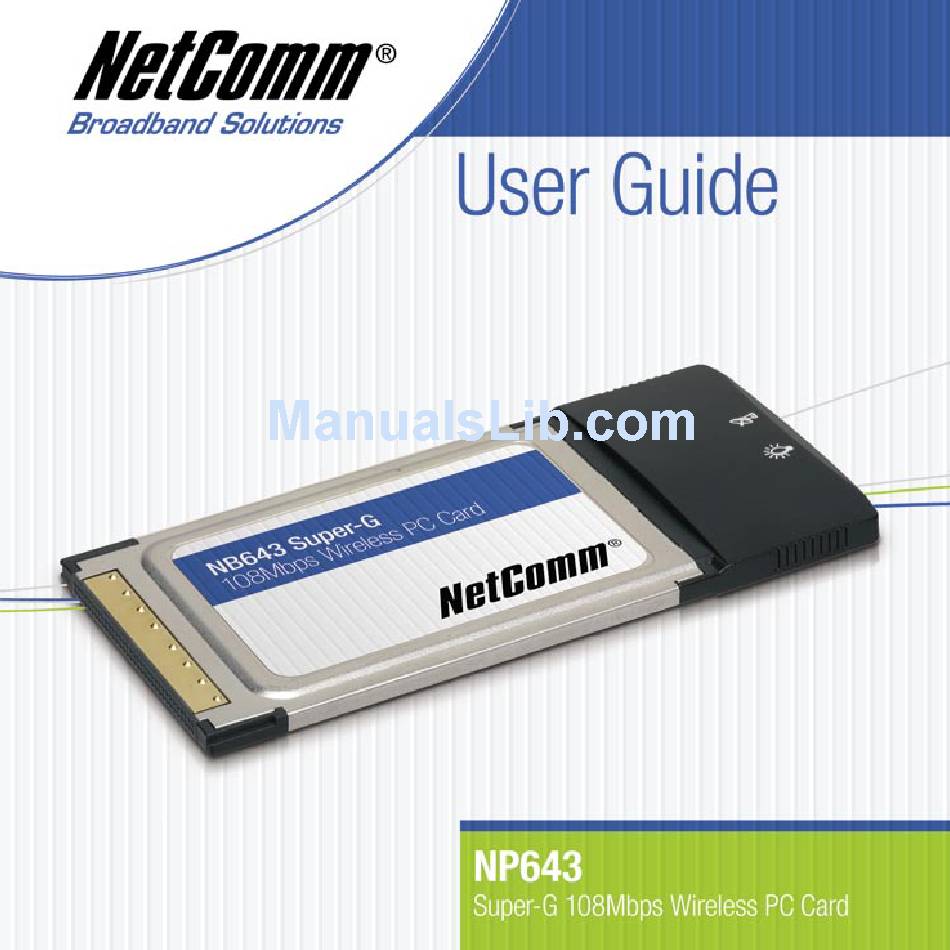

Super-g 108mbps wireless pc card
Hide thumbs Also See for Wireless Network Device NP643:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Wireless Network Device NP643 and is the answer not in the manual?

Questions and answers

Related Manuals for NetComm Wireless Network Device NP643

Summary of Contents for NetComm Wireless Network Device NP643

  • Page 2: Table Of Contents

    Contents INTRODUCTION ... 3 Wireless Terminology ... 5 GETTING TO KNOW YOUR NP643 ... 7 Package Contents ... 7 NP643 LED Indicators ... 8 SOFTWARE INSTALLATION ... 9 Windows 98se/ME/2000/XP Utility and Driver Installation ... 9 HARDWARE INSTALLATION ... 11 Installation Check ...

  • Page 3: Introduction

    INTRODUCTION Congratulations on your purchase of the NP643 108Mbps IEEE 802.11g Wireless PC Card Adapter. This manual is designed to help familiarise users with the product and offers detailed operational and installation instructions, so please keep it for future reference. With the NP643 Wireless (IEEE 802.11g) PC Card Adapter, a laptop or notebook computer can communicate with another computer wirelessly.

  • Page 4: System Requirements

    System Requirements • Laptop computer with an available 32 bit Cardbus slot • Windows 98SE/ME/2000/XP/2003 • 128 MB memory and a 500MHz Processor • CR-ROM Drive • 20Mb spare disk storage NP643IEEE 802.11g PC Card Adapter YML786 Rev1...

  • Page 5: Wireless Terminology

    Wireless Terminology Wireless Standards 802.11, 802.11b and 802.11g all refer to a series of standards which govern a common method of creating wireless local area networks (WLANs). 802.11b and 11g are the most common WLAN types, with 11g being the later and faster of the two standards with a maximum transmission rate of 54Mbps.
  • Page 6 WPA stands for Wi-Fi Protected Access - authorizes and identifies users based on a secret key that changes automatically at a pre-defined interval. This is called TKIP (Temporal Key Integrity Protocol) to change the temporal key every 10,000 packets (= unit of data.) Keys can either be pre-shared or established by a RADIUS Server.

  • Page 7: Getting To Know Your Np643

    GETTING TO KNOW YOUR NP643 This chapter provides unpacking and setup information for the NP643 Wireless PC Card Adapter. Package Contents Open the box of the Wireless PC Card Adapter and carefully unpack it. The box should contain the following items: One 108Mbps IEEE 802.11g Wireless PC Card Adapter One Driver &...

  • Page 8: Np643 Led Indicators

    NP643 LED Indicators Indicator The PWR indicator lights green to indicate that it is receiving Power (PWR) power from the PC Card slot. If the PWR indicator light is off, it is not receiving power. The ACT indicator blinks green while the Wireless PC Card is ACT (Activity) transmitting data.

  • Page 9: Software Installation

    SOFTWARE INSTALLATION This section will guide you through the driver and utility installation procedure for the NP643. Windows 98se/ME/2000/XP Utility and Driver Installation 1. Insert the Driver & Utility CD-ROM into the CD-ROM Drive. The driver and utility setup menu should start up and install the driver. In some cases you may need to install the software manually.
  • Page 10 Icon Description If the icon is completely green, you have excellent coverage and performance. If the icon is yellow, the signal strength has a fair coverage and performance. If the icon has no color, signal strength is poor. NP643IEEE 802.11g PC Card Adapter YML786 Rev1...

  • Page 11: Hardware Installation

    HARDWARE INSTALLATION Installation Check The LEDs of the Wireless PC Card Adapter are clearly visible and the status of the network link can be seen instantly: 1. Once the device is plugged in to the PC Card slot, the Power LED will light up indi- cating a normal status.

  • Page 12: Using The Wireless Utility

    USING THE WIRELESS UTILITY I. Link Information Launch the utility program by double clicking the utility icon in the Windows task bar. The default page is as below after launching the Utility program. Field Description Shows the BSSID (or Mac address) of the adaptor, which can be Status: used to identify it on the wireless network.
  • Page 13 Field Description Shows the current wireless mode used for wireless Wireless Mode: communication. Shows the current encryption mode used in the wireless network. Encryption: Shows the current data rate used for transmitting. TxRate: Shows the current communication channel. Channel: Shows the link quality of the NP643 Wireless PC card with the Link Quality: Access Point when operating under Infrastructure mode.

  • Page 14: Configuration

    II. Configuration In the configuration page you can change the basic settings of the PC card to implement a secure wireless network. Field Description Service Set Identifier, which is a unique name shared among SSID: all clients and nodes in a wireless network. The SSID must be identical for each client and node in the wireless network.
  • Page 15 Field Description ● Ad-Hoc – to establish peer-to-peer wireless communication There are three bands available for selection- 11B, 11G and 11G Ad-Hoc Band: Turbo. Choice depends on the type of wireless equipment you wish to connect to. Check the documentation of the associated equipment to verify details.
  • Page 16 Field Description Select Long Preamble or Short & Long Preamble type. Leave as Preamble: default unless advised otherwise by your Network Administrator. Support Band: There are three functions for you to select, including 11B, 11G and eXtended Range. The default setting is 11B, 11G and eXtended Range enabled, which is interoperable with both 11B and 11G devices, and provides a connectivity range of 500m.

  • Page 17: Advanced

    III. Advanced In the Advanced page you can configure advanced settings for the 108Mbps wireless LAN PC card. Field Description There are four options available: Disable (WEP), Enable Encryption: (WEP), WPA and WPA-PSK. The default setting is set to “Disable”. Enable and Disable refer to WEP data encryption feature.
  • Page 18 Select the certificate that you wish to use and enter the server name and login name; this refers to RADIUS Server technology which is generally not in use in the home environment; check with your Network Administrator if you are required to enter this in order to log on to a secure network.
  • Page 19 Field Description Please enter a key. If you are joining an existing network, ask the Administrator for the key. If you are setting up the network, create a key; any combination of letters and numbers up to 32 characters with no spaces. There are three modes available to choose from: Auth.

  • Page 20: Site Survey

    IV. Site Survey This page allows you to enable the site survey function, which scans for available wireless networks (wireless clients & access points) and establishes a wireless communication with one. Field Description Displays the wireless networks (wireless clients and Access Available Network: Points) that are in your signal range.
  • Page 21 Field Description You can create and manage profiles for Home, offices or public Profile: areas. Double-Click on one of the created profiles. The settings will adapt to the configuration such as SSID, channel, and WEP settings saved by that particular profile. To remove the selected profile Remove: To view and change settings.

  • Page 22: About

    V. About This page displays some information about the NP643 108Mbps Wireless PC Card Adapter. It contains the Driver & Utility Version as well as the MAC address. This feature is useful when you need to identify utility and driver versions as updates become available.

  • Page 23: Appendix A: Glossary

    APPENDIX A: Glossary Access Point: An internetworking device that seamlessly connects wired and wireless networks. Ad-Hoc: An independent wireless LAN network formed by a group of computers, each with a network adapter. AP Client: One of the additional AP operating modes offered by a 54Mbps Access Point, which allows the Access Point to act as an Ethernet- to-Wireless Bridge, thus a LAN or a single computer station can join a wireless ESS network through it.
  • Page 24 Shared Key: Shared Key authentication supports authentication of stations as either a member of those who knows a shared secret key or a member of those who does not. Backbone: The core infrastructure of a network, which transports information from one central location to another where the information is unloaded into a local system.
  • Page 25 Channel: The bandwidth which wireless Radio operates is divided into several segments, which we call them “Channels”. AP and the client stations that it associated work in one of the channels. CSMA/CA: In local area networking, this is the CSMA technique that combines slotted time -division multiplexing with carrier sense multiple access/ collision detection (CSMA/CD) to avoid having collisions occur a second time.
  • Page 26 DSSS: Direct Sequence Spread Spectrum. DSSS generates a redundant bit pattern for each bit to be transmitted. This bit pattern is called a chip (or chipping code). The longer the chip, the greater the probability that the original data can be recovered. Even if one or more bits in the chip are damaged during transmission, statistical techniques embedded in the radio can recover the original data without the need for retransmission.
  • Page 27 Fragmentation: When transmitting a packet over a network medium, sometimes the packet is broken into several segments, if the size of packet exceeds that allowed by the network medium. Fragmentation Threshold: The Fragmentation Threshold defines the number of bytes used for the fragmentation boundary for directed messages.
  • Page 28 ISM Band: The FCC and their counterparts outside of the U.S. have set aside bandwidth for unlicensed use in the ISM (Industrial, Scientific and Medical) band. Spectrum in the vicinity of 2.4GHz, in particular, is being made available worldwide. MAC Address: Media Access Control Address is a unique hex number assigned by the manufacturer to any Ethernet networking device, such as a network adapter, that allows the network to identify it at the...
  • Page 29 Preamble: The ‘preamble’ is a sequence of bits transmitted at 1Mbps that synchronises wireless transmission within the network. The Short Preamble and header may be used to minimize overhead and, thus, maximize the network data throughput. However, the Short Preamble is supported only by the IEEE 802.11b (High- Rate) standard and not by the original IEEE 802.11standard;...
  • Page 30 TCP/IP: Transmission Control Protocol/ Internet Protocol. The basic communication language or protocol of the Internet. It can also be used as a communications protocol in a private network, i.e. intranet or internet. When you are set up with direct access to the Internet, your computer is provided with a copy of the TCP/IP program just as every other computer that you may send messages to or get information from also has a copy of TCP/IP.

  • Page 31: Appendix B: Registration And Warranty Information

    User Guide. However some products have an extended warranty option (please refer to your packaging). To be eligible for the extended warranty you must supply the requested warranty information to NetComm within 30 days of the original purchase by registering on-line via the NetComm web site at: www.netcomm.com.au...

  • Page 32: Copyright Information

    NetComm Limited reserves the right to change the specifications and operating details of this product without notice. NetComm is a registered trademark of NetComm Limited. All other trademarks are acknowledged the property of their respective owners.

  • Page 33: Customer Information

    NetComm. Failure to do so may cause damage to this product, fire or result in personal injury.

  • Page 34: Product Warranty

    The warranty is automatically voided if: You, or someone else, use the product, or attempts to use it, other than as specified by NetComm; The fault or defect in your product is the result of a voltage surge subjected to the product either by the way of power supply or communication line, whether caused by thunderstorm activity or any other cause(s);...

  • Page 35: Limitations Of Warranty

    To the extent permitted by the Relevant Acts, in relation to your product and any other materials provided with the product (“the Goods”) the liability of NetComm under the Relevant Acts is limited at the option of NetComm to: •...
