Summary of Contents for Esel EL-2703

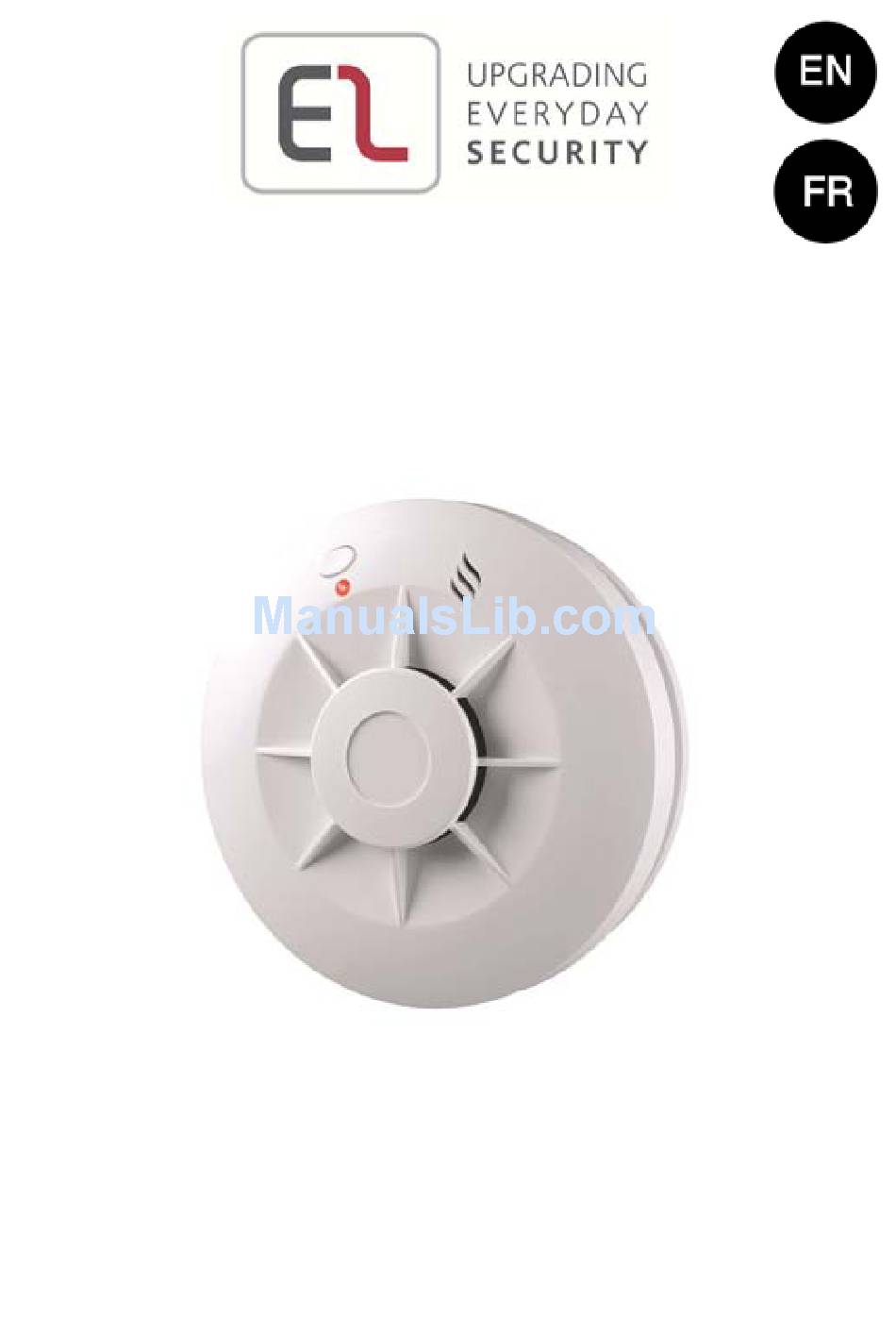

- Page 1 WIRELESS SUPERVISED PHOTOELECTRIC SMOKE DETECTOR DÉTECTEUR DE FUMÉE PHOTOÉLECTRIQUE SUPERVISÉ SANS FILS Model: EL-2703 INSTALLATION INSTRUCTIONS INSTRUCTIONS D’INSTALLATION...
-
Page 2: General Description
GENERAL DESCRIPTION Electronics Line's smoke detector is single station, photoelectric smoke detector with a built-in supervised wireless transmitter. When sufficient smoke is detected, or the test feature is operated, the detector will sound its alarm horn and the transmitter will send an ALARM message. The Alarm output in the receiver will remain activated until the alarm condition clears. -
Page 3: Selecting A Location
SELECTING A LOCATION Smoke detectors should be installed in accordance with the NFPA Standard 74 (National Fire Protection Association, Batterymarch Park, Quincy, MA 02169). For complete coverage in residential units, smoke detectors should be installed in all rooms, halls, storage areas, basements, and attics in each family living unit. Minimum coverage is one detector on each floor and one in each sleeping area and attics in each family living unit. - Page 4 ♦ If ceiling mounting is not possible and wall mounting is permitted by your local and state codes, put wall-mounted detectors between 4 and 6 inches (10 ~ 15 cm) from the ceiling, also see Figure ♦ If some of your rooms have sloped, peaked, or gabled ceilings, try to mount detectors 3 feet (0.9 meter) measured horizontally from the highest point of the...
- Page 5 Where to Install Your Smoke Detectors in Mobile Homes and RVs Mobile homes and RVs built after about 1978 were designed and insulated to be energy-efficient. In mobile homes and RVs built after 1978, smoke detectors should be installed as described above. Older mobile homes and RVs may have little or no insulation compared to current standards.
- Page 6 ♦ In very cold or very hot areas, including unheated buildings or outdoor rooms. If the temperature goes above or below the operating range of smoke detector, it will not work properly. The temperature range for your smoke detector is 4°C to 38°C (40°F to 100°F).
-
Page 7: Installation
Smoke Detectors sections in this Manual before installing. To install the detector, perform the following steps (see Figure 7). Registration The EL-2703 must identify itself to the EL wireless system receivers as follows: Set the system to registration mode. Go to the main menu and select [9]>[1]>[1] (Programming >... - Page 8 Mounting a Detector Locking Pin ♦ Detector Select the installation location. ♦ Remove locking pin securing the mounting bracket to the unit (see Figure 7). Bracket ♦ Remove the mounting bracket Screws from the unit by rotating it counterclockwise. ♦ Use the bracket as a template for marking the mounting holes ♦...
-
Page 9: Red Indicator
RED INDICATOR When the red LED indicator (see Figure 9) flashes once in 30 seconds, it indicates the detector is under normal operation. When the red LED flashes very frequently and an audible alarm sounds simultaneously, it indicates that the detector senses smoke. -
Page 10: Taking Care Of Your Smoke Detector
TAKING CARE OF YOUR SMOKE DETECTOR To keep your detector in good working condition, you must test the detector weekly, according to the “Testing Your Smoke Detector” section. CLEANING THE SMOKE DETECTOR Clean the housing with a dry or damp cloth to remove dust and dirt. If necessary, open the smoke chamber and clean the interior of the detector. -
Page 11: Specifications
Specifications Operating Voltage: 6VDC Typical Average Standby 0.010 mA Current: Typical Test Current: 55mA Typical Alarm Current: 55mA Peak Trouble Pulse Current: 4.73mA Peak Pulse Current: 0.074mA Battery Life: At least 3 year under normal conditions with Lithium Batteries Battery Type: 2xCR123 3V Lithium battery Low Battery Threshold: 5.2VDC... -
Page 12: Rtte Compliance Statement
RTTE Compliance Statement Hereby, Electronics Line declares that this equipment is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. For the CE Declaration of Conformity please refer to our website: www.riscogroup.com. - Page 13 Electronics Line Limited Warranty EL and its subsidiaries and affiliates ("Seller") warrants its products to be free from defects in materials and workmanship under normal use for 24 months from the date of production. Because Seller does not install or connect the product and because the product may be used in conjunction with products not manufactured by the Seller, Seller can not guarantee the performance of the security system which uses this product.
