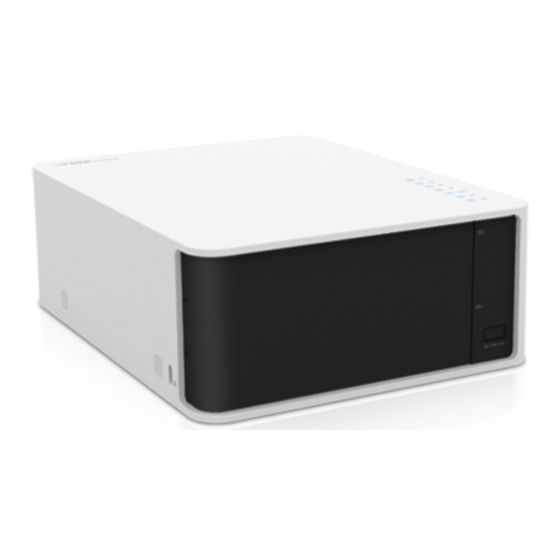

ipTime NAS 2 Installation Manual

Hide thumbs

Table Of Contents

< NAS system >

< USB cable >

All specifications and figures are subject to change without notice.

Box Contents

Thank you for buying ipTIME NAS

Thank you for buying ipTIME

Box Contents

According to this document,

check the contents in the box. (This Guide)

Installation Guide

Install the utility software package

and setup the NAS system using the system setup wizard.

Using NAS

Access shared folders of NAS using PCs or smart-phones

through internet or local network.

User'

< Software CD >

< DC Adapter >

NASⅡ!!! !!!

s Guide for Web console

※ The box contents below are only for reference.

< Manuals >

< Screw x 8 >

< LAN cable, 2m >

Table of Contents

Need help?

Do you have a question about the NAS 2 and is the answer not in the manual?

Questions and answers

Summary of Contents for ipTime NAS 2

Page 1 Box Contents Thank you for buying ipTIME Thank you for buying ipTIME NAS NASⅡ!!! !!! Box Contents According to this document, check the contents in the box. (This Guide) Installation Guide Install the utility software package and setup the NAS system using the system setup wizard.
Page 2 Installation Guide Thank you for buying ipTIME NAS Thank you for buying ipTIME NASⅡ!!! !!! The utility software for NAS The utility software for NASⅡ can be run on can be run on Windows 2000, XP, Vista and Windows 7 OS environment.
Page 3 One. Installing the HDD Install HDD as the pictures below. Open the front panel. Unlock the screws from the tray. Pull out the tray. Insert the HDD into the tray. Lock the HDD with screws. Plug the tray to the system. - The other HDD can be installed as the same way.
Page 4 Connect cables as numbered as pictures below. <ipTIME IP router> <ipTIME NASⅡ> Use ipTIME IP router with firmware higher than 7.40 when connect NAS to network. Click Power button on the rear panel of NAS and check the LEDs as above.
Page 5 Installing Utility Software Some Stages are omitted. Insert CD Install the Utility Click [ipTIME NAS Utility Install] when The utility software for NASⅡ can the CD launcher program is started. be run on Windows 2000, XP, Vista and Windows 7 OS environment.
Page 6 Finish the configuration Fill Service ID and E-mail. Review the configurations Select ipDISK(FTP) port as an Auto. and click [Next] button to finish. ※ To select ipDISK port as an Auto, use ipTIME IP router with firmware higher than 7.40.
Page 7 The configuration done by system wizard can be reviewed by the web console. ※ Click [ipTIME NAS Console] icon to login to the web console. ※ Adding a user, creating a folder and other jobs can be done in the web console.
Page 8 7 OS environment. In the smart-phone environment and windows 7 OS environment. In the smart-phone environment ipTIME NAS ipTIME NASⅡ can be easily accessed using smart-phone apps also available. can be easily accessed using smart-phone apps also available. Box Contents According to this document, check the contents in the box.
Page 9: Table Of Contents
Contents. - This guide contains topics as below. - Please choose the topic about the service wanted to be used. One. LEDs & Buttons It explains how to use Power button, Reset/USB button & LEDs. Two. Windows File Sharing with NAS It explains how to use NAS in windows file sharing environment.
Page 10: One. Leds & Buttons
One. LEDs & Buttons This system has 2 buttons and 7 LEDs. Power button It is for system power on/off. Reset/USB Copy button To make system with factory default configuration, 1. Keep this button pushed for more than 5 seconds. Ready LED shows fast blinking.
Page 11: Two. Windows File Sharing With Nas
Opening NAS web console Login Choose Web console and enter the user account and password. Double click the [ipTIME NAS Console] icon Select the NAS from the searched list. Click the [LOG IN] to start the web console. in the desktop window.
Page 12: Three. Ipdisk Service
Opening NAS web console Login Choose Web console and enter the user account and password. Double click the [ipTIME NAS Console] icon Select the NAS from the searched list. Click the [LOG IN] to start the web console. in the desktop window.
Page 13: Four. Nas Browser In Web Console (In Local Network)
Opening NAS web console Login Choose Web console and enter the user account and password. Double click the [ipTIME NAS Console] icon Select the NAS from the searched list. Click the [LOG IN] to start the web console. in the desktop window.
Page 14: Five. Nas Browser In Web Console (Through The Internet)
Five. NAS Browser in Web Console (Through the internet) Connecting Web Console via the internet Enter the ipDISK service URL and HTTP port number ipDISK service URL can be found in the address field of internet browser as above. in the [System Information] menu. The HTTP port number can be omitted when port number is 80.
Page 15: Six. Url Service
Connecting Web Console (via the internet) Login Select URL service radio button and enter the user account Double click [ipTIME NAS Console] in the desktop window. Enter the ipDISK service URL and HTTP port number and the password. Select the NAS and click [Run] from the NAS list in the address field of internet browser as above.
Page 16: Seven. Using Public Url
Opening NAS web console Login Choose Web console and enter the user account and password. Double click the [ipTIME NAS Console] icon Select the NAS from the searched list. Click the [LOG IN] to start the web console in the desktop window.
Page 17: Eight. Smart-Phone Ipdisk Service
Eight. Smart-phone ipDISK service ※ ipDISK APP can be downloaded from the Android market and Apple App-store using the searching keyword “ipDISK” . Android Phone iPhone Selecting ipDISK Running ipDISK Login Selecting ipDISK Running ipDISK Login Touch Touch Touch Touch Select ipDISK icon.
Page 18 User’ s Guide for Web console Thank you for buying ipTIME NAS Thank you for buying ipTIME NASⅡ!!! !!! All control and configuration for NAS can be done with web console management system. All control and configuration for NAS can be done with web console management system.
Page 19 One. Login to Web console Run ipTIME NAS console Select NAS Double Click [ipTIME NAS console] Choose NAS from searching list. in the Desktop screen. Chose [Open NAS Web Console]. Click [Run] button. Login Web console management system Login to the selected NAS as a “admin”account.
Page 20 Two. User Management Adding a User Check to assign administrator authority. Select [Folder/User] > [User] menu. Click [New User] icon then the user account field will be activated. Enter account name and password for the new user. Click [Save]. Deleting a User Changing Information Select [Folder/User] >...
Page 21: Folder Management
Three. Folder management Creating a Folder User can be assigned to the folder when it is created. Select [Folder/User] > [Folder] menu. Select the partition where a folder will be created and click [New Folder] icon. New Folder will be created and information field for it will be activated below. Enter a name for new folder and check the service for it.
Page 22: Windows File Sharing
Four. Windows/FTP server management Windows File Sharing Select [Server] > [Windows File Sharing] menu. Turn on or off windows file sharing service. Click [Save]. The windows file sharing service for each folder can be enabled from [Folder] menu. FTP Server Select [Server] >...
Page 23 Five. iTunes service Setup for Media(DLNA) server is also same. Select [Server] > [iTunes Server]. Enter iTunes server name and turn on it. Select a folder and click [Set] icon to assign it as an iTunes folder. Select a folder and click [Clear] icon to deassing it from the iTunes service. Click [Save].
Page 24 Six. Torrent management Setup Torrent Select [Torrent] > [Torrent Setup] menu. Turn on the Torrent service. Select the folder where files will be downloaded and click [Set Download Folder]. Click [Save]. Using Torrent Select [Torrent] > [Torrent] menu. Click [ADD TORRENT] icon. Select the torrent file for download.
Page 25 Seven. Controlling FAN Select [System] > [Misc] menu. Select [HDD Temperature & FAN control]. Select FAN mode or speed as Click [Save]. On-Line Help ※ Refer on-line manual for the menu not mentioned in this guide. Click [Help] icon to see the on-line help.
