Exibel wre6505 User Manual

WiFi Repeater
Art.no 38-6814 Model WRE6505
Please read the entire instruction manual before using the product and
then save it for future reference. We reserve the right for any errors in
text or images and any necessary changes made to technical data.
In the event of technical problems or other queries, please contact our
Customer Services.
Note: The repeater can either be used as a range extender or an access
point. This quick guide only describes the repeater function. If you wish to
use the repeater as an access point, read the manual on the included CD
or visit the manufacturer's homepage (www.zyxel.com) for information.

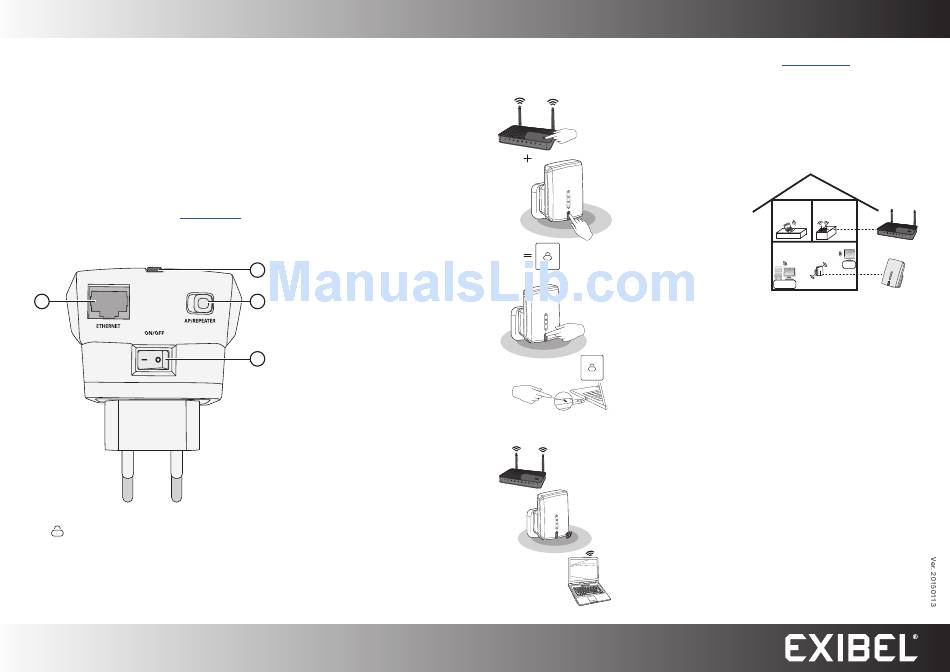

Buttons and functions

1
1. LAN port for connecting a network cable
2. [ ] WPS button (WiFi Protected Setup)
3. [ AP/REPEATER ] Access point / Repeater selector switch
4. [ l/0 ] On/off switch
GREAT BRITAIN - CUSTOMER SERVICE contact number: 020 8247 9300 e-mail: customerservice@clasohlson.co.uk

WPS connection

Connect the repeater to your router/access point

1. Set the [ l/0 ] switch (4) on
the underside of the repeater to ON.
2. Connect the repeater to
an electrical socket.
3. Wait about 1 minute until the green
LED indicator on the front of
the repeater comes on.
4. Activate the WPS function on your
router or access point.
5. Hold in the WPS button (2) on
the receiver for 2 seconds.
6. Wait about 2 minutes until
the WPS indicators on the devices
have stopped flashing (the devices
are connected).
2
Connecting a wireless device
3
to the repeater
1. Press the WPS button (2) on
the receiver twice in quick
succession.
4
2. Activate the WPS function on
your device.
3. The device will now be connected
to the repeater.

Non-WPS connection

1. Set the [ l/0 ] switch (4) on
the underside of the repeater to ON.
2. Connect the repeater to
an electrical socket.
3. Wait about 1 minute until the green
LED indicator on the front of
the repeater comes on.
4. Note the SSID and password of
your wireless network.
5. Connect your computer to one
of the pre-configured router
networks: SSID: Zyxe_2.4GEXT or
SSID: Zyxe_5GEXT.
English
WPS
Flashing
WPS
Flashing
WPS
internet: www.clasohlson.co.uk
6. Open you web browser. Go to: http://zyxelsetup/
7. Write admin in the "Username" field and 1234 in the "Password" field.
8. Open the list of available networks in the device which you wish to
connect to the repeater.
9. Select your network and enter the SSID and password.
Follow the on-screen instructions to complete the connection.
Connecting to the new network which the repeater
has created
1. The repeater creates
a new network which
uses the original
network name
plus the suffix
" _2.4GEXT" or
" _5GEXT"
2. Open the list of
available networks
in the device that
you wish to connect
the repeater to.
3. Connect to the new network using the same password that you
used for the original network.

Care and maintenance

• Use a dry cloth to wipe the repeater clean when needed.
• The repeater should be unplugged from the wall socket if it is not
to be used for a long time.
• If you need to reset the repeater to its default factory settings,
hold in the WPS button (2) for 5–10 seconds until the LED
indicator starts to flash.

Disposal

This product should be disposed of in accordance with local regulations.
If you are unsure how to proceed, contact your local council.

Specifications

100–240 V, 50/60 Hz
Power supply
750 Mbit/s
Transfer rate
2.4/5 GHz
Dual band
LAN port
WPS support
IP address 192.168.1.2
