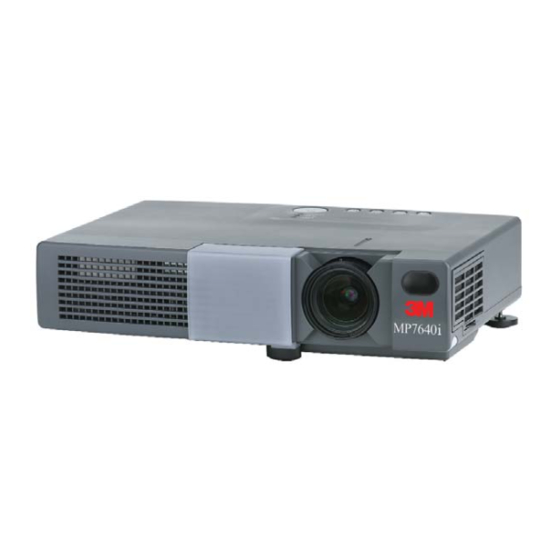

3M MP7740i Operator's Manual

Hide thumbs Also See for MP7740i:
Table of Contents

Advertisement

Quick Links

Document téléchargé sur www.lampe-videoprojecteur.info
MP7740i
Multimedia Projector
Operator's Guide
MP7740i Projecteur multimedia - Guide de L' opérateur
MP7740i Multimedia-Projektor - Benutzerhandbuch
MP7740i Proyector de Multimedia - Guía del usuario
MP7740i Proiettore Multimediale - Guida dell' operatore
MP7740i Multimedia Projector - Gebruiksaanwijzing
MP7740i Projector dos Multimedia - Guia da operador
MP7740i Multimedia Projektør- Brukerhåndbok
© 3M 2002. All Rights Reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP7740i and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for 3M MP7740i

Summary of Contents for 3M MP7740i

  • Page 1 Document téléchargé sur www.lampe-videoprojecteur.info MP7740i Multimedia Projector Operator's Guide MP7740i Projecteur multimedia - Guide de L' opérateur MP7740i Multimedia-Projektor - Benutzerhandbuch MP7740i Proyector de Multimedia - Guía del usuario MP7740i Proiettore Multimediale - Guida dell' operatore MP7740i Multimedia Projector - Gebruiksaanwijzing MP7740i Projector dos Multimedia - Guia da operador MP7740i Multimedia Projektør- Brukerhåndbok...
  • Page 2 3M™ Multimedia Projector MP7740i...

  • Page 3: Table Of Contents

    Options Menu ........14 Table 11. Symptom ........21 No Signal Menu ........15 MAINTENANCE ......16 Table 12. Specifications ......22 Lamp.............16 ..................Air Filter Maintenance......18 For "TECHNICAL", see the end of this Other Maintenance .......18 manual. © 3M 2002. All Rights Reserved. ENGLISH-1...

  • Page 4: Features

    MP7640i / MP7740i Projecteur multimedia - Guide de Sécurité de Produit MP7640i / MP7740i Multimedia-Projektor - Sicherheitsanleitung des Geräts MP7640i / MP7740i Proyector de Multimedia - Guía de Seguridad del Producto MP7640i / MP7740i Proiettore Multimediale - Guida di Sicurezza del Prodotto...

  • Page 5: Part Names

    Rear / Right View Terminal Panel (Refer below) Remote Control Sensor RGB Terminal CONTROL Terminal COMPONENT Y Terminal AUDIO Terminal Terminal AUDIO Terminal R Terminal L Terminal S-VIDEO Terminal VIDEO Terminal Terminal Panel © 3M 2002. All Rights Reserved. ENGLISH-3...

  • Page 6: Loading The Battery

    • Keep the battery away from children and pets. • When not to be used for an extended period, remove the battery from the remote controller. NOTE Replace the batteries when remote control transmitter operation becomes difficult. ENGLISH-4 © 3M 2002. All Rights Reserved.

  • Page 7: Installation

    The projection distances shown in the table below Screen are for full size (MP7640i : 800 x 600 dots / MP7740i : 1024 x 768 dots). a: Distance from the projector to the screen. (±10%) b: Distance from the lens center to the bottom of the screen.

  • Page 8: Cabling

    • Refer to the “TECHNICAL” section for the pin assign ment of connectors. • Refer to manual of the optional RS-232C cable, for the communication data. • For others, consult your dealer. ENGLISH-6 © 3M 2002. All Rights Reserved.

  • Page 9: Power Connection

    • This projector is recognized as a plug & play monitor. Use the standard display drivers. • Plug & play may not operate by the computer to connect. © 3M 2002. All Rights Reserved. ENGLISH-7...

  • Page 10: Operations

    Providing a RS-232C cable is connected, turn on the computer before the projector. • When a projector continues projecting the same image, the image may remain as an afterimage. Please do not project the image same for a long time. ENGLISH-8 © 3M 2002. All Rights Reserved.

  • Page 11: Basic Operation

    NOTE • Use the remote controller at a distance of approximately 3m from the sensor on the front of the projector, and within a range of 30° left-right. Strong light and obstacles will interfere with operation of the remote controller.
  • Page 12 "BRIGHTNESS". MENU SELECT Normal menu Single menu (MENU SELECT) SETUP INPUT IMAGE OPT. BRIGHT CONTRAST V POSIT H POSIT H PHASE H SIZE COLOR BAL R COLOR BAL B ASPECT CONTRAST ENGLISH-10 © 3M 2002. All Rights Reserved.

  • Page 13: Setup Menu

    Select Position of Image : ✔ ✔ Press the button while 16:9[ ]/4:3 small[ is selected. → → → Center Down Up ( Center • 4:3 small may not be displayed correctly with some input signals. © 3M 2002. All Rights Reserved. ENGLISH-11...

  • Page 14: Input Menu

    Select HDTV Mode: Select the 1080i mode or 1035i mode suitable for the HDTV input signal with the button. • When the selected HDTV mode is incompatible with the input signal, the image may incorrect (eg. the display position or color is incorrect). ENGLISH-12 © 3M 2002. All Rights Reserved.

  • Page 15: Image Menu

    Operation Start/Stop: Press the button. GAMMA Select Gamma Mode : Select the gamma mode with the button. Operation Start/Stop: Press the button. COLOR Select Color Temperature: TEMP Select the color temperature mode with the button. © 3M 2002. All Rights Reserved. ENGLISH-13...

  • Page 16: Options Menu

    Set/Clear Wisper Mode: Press button. When the WHISPER is WHISPER selected, the WHISPER mode is active. In the WHISPER mode, acoustic noise level from the unit is reduced, brightness level on screen is a little lower. ENGLISH-14 © 3M 2002. All Rights Reserved.

  • Page 17: No Signal Menu

    Set/Clear Wisper Mode: Press button. When the WHISPER is WHISPER selected, the WHISPER mode is active. In the WHISPER mode, acoustic noise level from the unit is reduced, brightness level on screen is a little lower. © 3M 2002. All Rights Reserved. ENGLISH-15...

  • Page 18: Maintenance

    The LAMP indicator is also red when the lamp unit reaches high temperature. Before replacing the lamp, switch power OFF, wait approximately 20 minutes, and switch power ON again. If the LAMP indicator is still red, replace the lamp. ENGLISH-16 © 3M 2002. All Rights Reserved.

  • Page 19: Replacing The Lamp

    Do not reset the lamp timer without replacing the lamp. Reset the lamp timer always when replacing the lamp. The message functions will not operate properly if the lamp timer is not reset correctly. © 3M 2002. All Rights Reserved. ENGLISH-17...

  • Page 20: Air Filter Maintenance

    • Do not use detergents or chemicals other than those noted above (e.g. benzene or thinners). • Do not use cleaning sprays. • Do not rub with hard materials, or tap the equipment. ENGLISH-18 © 3M 2002. All Rights Reserved.

  • Page 21: Troubleshooting

    Service Infomation For product infomation,product assistance,service infomation,or to order accessories,please call: In U.S.or Canada :1-800-328-1371 In other locations,contact your local 3M sales office. OSD Message The messages as described below may appear on the screen at power ON. Take the appropriate measures when such messages appears.

  • Page 22: Indicators Message

    When the internal temperature becomes excessive power is switched OFF automatically for safety reasons, and the indicator is extinguished. Set the power switch to [O] and wait for 20 minutes until the equipment has cooled sufficiently. ENGLISH-20 © 3M 2002. All Rights Reserved.

  • Page 23: Symptom

    The lamp is nearing the end of 16,17 Replace with a new lamp. its service life. Focus or H PHASE is out of 8,11 Images are blurred. Adjust the focus or H PHASE. adjustment. © 3M 2002. All Rights Reserved. ENGLISH-21...

  • Page 24: Specifications

    Drive system TFT active matrix crystal MP7640i : 480,000 pixels (800 horizontal x 600 vertical) panel Pixels MP7740i : 786,432 pixels (1024 horizontal x 768 vertical) Lens Zoom lens F=2.0 ~ 2.3 f=18 ~ 21 mm Lamp 150 W UHB Speaker 1.0 W...

  • Page 25: Accessories

    Mac adapter ..................78-8118-3308-2 Deluxe Mouse Emulation Kit ............78-6969-9233-4 How to Order Please order these parts through your dealer, or contact 3M Customer Service at the following number : In U.S. or Canada : 1-800-328-1371 In other locations,contact your local 3M sales office.

  • Page 26: Dimension Diagram

    Vertical sync Ground Green SCL(DDC) Ground Blue 2. Mini Din 4-pin Connector (S-VIDEO) Pin No Signal Color:0.286Vp-p (NTSC, burst signal),75Ω terminator 0.300Vp-p (PAL/SECAM, burst signal),75Ω terminator Brightness:1.0Vp-p, 75Ω terminator Ground Ground © 3M 2002. All Rights Reserved. TECHNICAL - 1...

  • Page 27: Example Of Computer Signal

    • The image might be something wrong with computer by computer on the digital RGB mode. In this case, it is recommended to reduce the resolution and / or reflesh rate. TECHNICAL - 2 © 3M 2002. All Rights Reserved.
  • Page 28 XGA (70Hz) 13.7 XGA (70Hz) XGA (75Hz) 13.0 XGA (75Hz) XGA (85Hz) 10.8 XGA (85Hz) 1152×864 (75Hz) 10.7 1152×864 (75Hz) 1280×960 (60Hz) 11.9 1280×960 (60Hz) 1280×1024 (60Hz) 11.9 1280×1024 (60Hz) 1024 © 3M 2002. All Rights Reserved. TECHNICAL - 3...
  • Page 29 BIOS setting to select an external mouse. Also, some computers may not have a utility program to operate a mouse. Refer to the computer hardware manual for detail. TECHNICAL - 4 © 3M 2002. All Rights Reserved.

  • Page 30: Communications Setting

    Action (byte_0 - 1) Action Classification Content Change setting to desired value. Read projector internal setup value. INCREMENT Increment setup value by 1. DECREMENT Decrement setup value by 1. EXECUTE Run a command. © 3M 2002. All Rights Reserved. TECHNICAL - 5...
  • Page 31 • Provide an interval of at least 40ms between the response code and any other code. • The projector outputs test data when the power supply is switched ON, and when the lamp is lit. Ignore this data. • Commands are not accepted during warm-up. TECHNICAL - 6 © 3M 2002. All Rights Reserved.
  • Page 32 01 00 05 30 07 00 Japanese BE EF 06 00 37 D4 01 00 05 30 08 00 BE EF 06 00 C4 D3 02 00 05 30 00 00 © 3M 2002. All Rights Reserved. TECHNICAL - 7...
  • Page 33 01 20 00 00 Increment BE EF 06 00 57 D3 04 00 01 20 00 00 Volume Decrement BE EF 06 00 86 D2 05 00 01 20 00 00 TECHNICAL - 8 © 3M 2002. All Rights Reserved.
  • Page 34 01 22 00 00 Increment BE EF 06 00 97 72 04 00 01 22 00 00 Sharpness Decrement BE EF 06 00 46 73 05 00 01 22 00 00 © 3M 2002. All Rights Reserved. TECHNICAL - 9...
  • Page 35 01 00 B0 30 00 00 BE EF 06 00 6B F4 01 00 B0 30 01 00 COLOR TEMP. BE EF 06 00 C8 F5 02 00 B0 30 00 00 TECHNICAL - 10 © 3M 2002. All Rights Reserved.
  • Page 36 The use of other replacement lamps, outdoor operation, or different voltages has not been tested and could damage the projector peripheral equipment and/or create a potentially unsafe operating condition. 3M Multimedia projectors and Wall Display Systems are designed to operate in a normal office environment. • 16˚ to 29˚C (60˚ to 85˚ F) •...
