ASUSTeK COMPUTER A63x Assembly And Disassembly Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
ASUSTeK COMPUTER A63x Assembly & Disassembly
INC.
Rev. Modification
V101
English
V101
English
V101
English

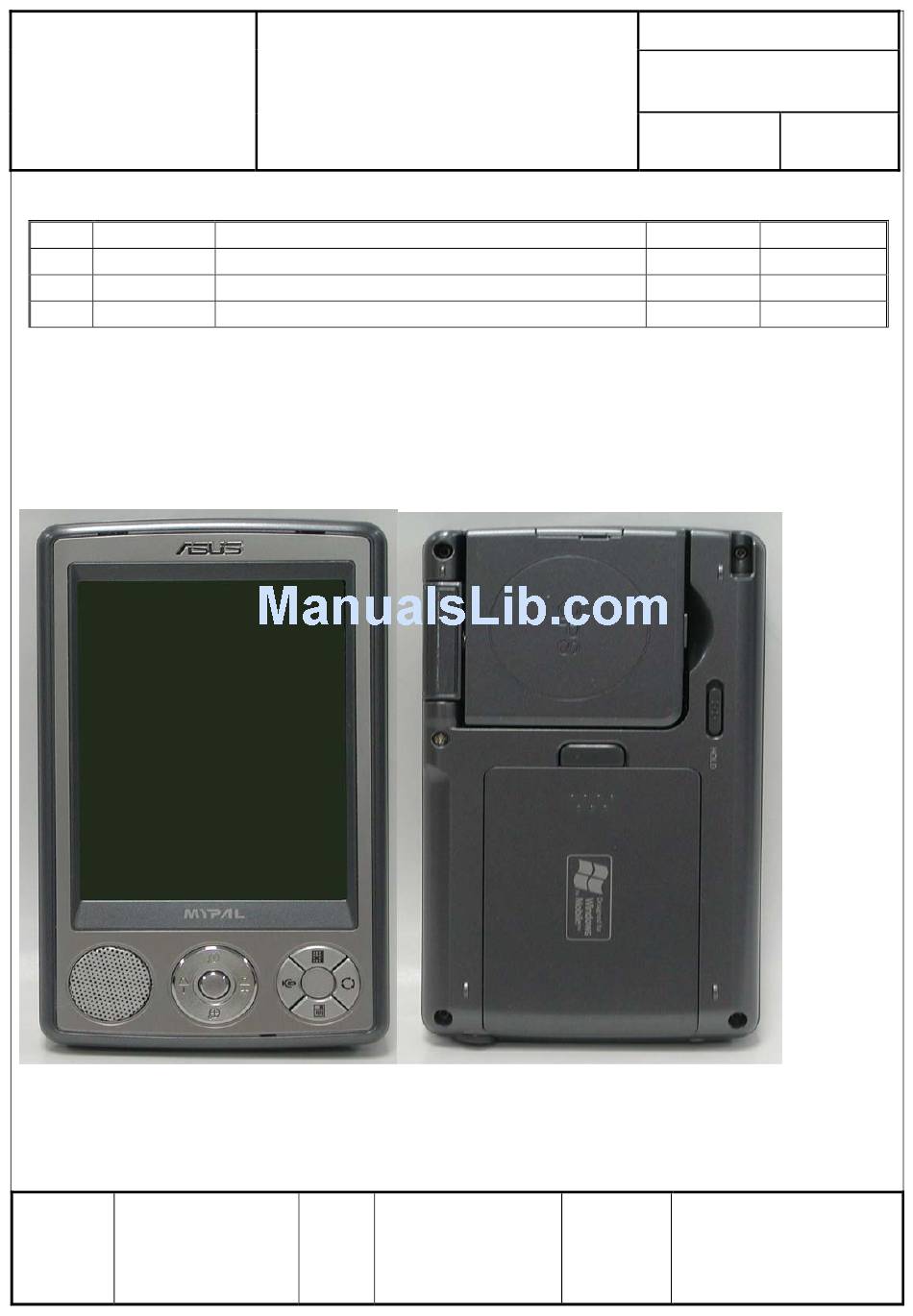

Purpose
：
This SOP is separated into three parts：(1)Overview(2) Disassembly(3) Assembly。
This purpose of this SOP is to help engineer assemble & disassemble more easily。
1. Overview
2. Disassembly
1. Remove SD card (PIC1.1, PIC1.2)
Authorize
by
Guide
Modify description
1 X #1 Phillips-head Screwdriver
1 X T-5 Torx Screwdriver
1 X Plastic Knife
Review
by
Doc. No:
Date:
Revision:
Page:
Issue div.
Originator
Jonathan
by
Form No : D2-001-11 Rev.01
Grade:
Originator
Jonathan
