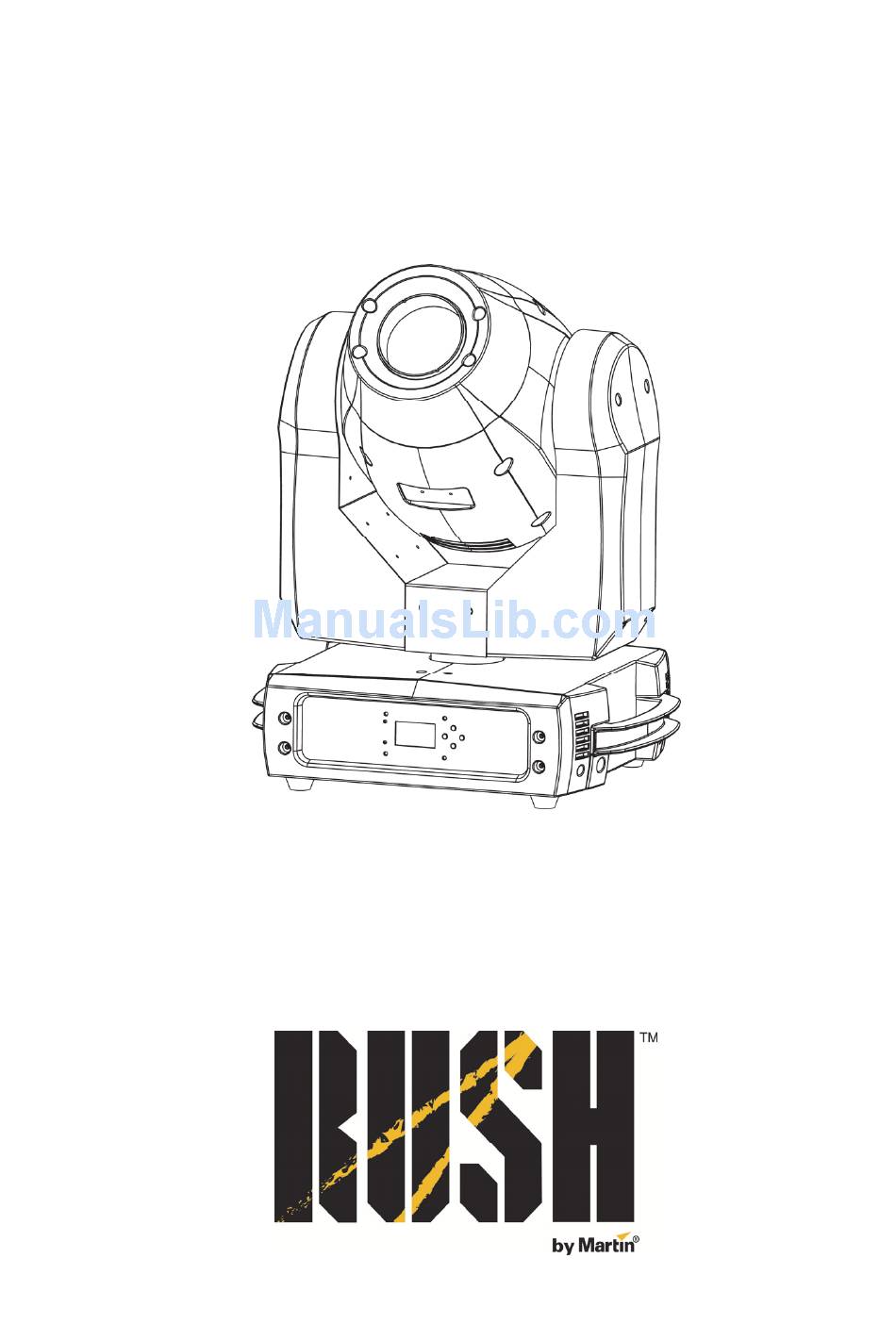

Page 1: User Manual
MH 1 Profile User Manual Professional Entertainment Technology... - Page 2 The Martin logo, the RUSH by Martin logo, the RUSH by Martin name, the Martin name and all other trademarks in this document pertaining to services or products by Martin Professional or its affiliates and subsidiaries are trademarks owned or licensed by Martin Professional or its affiliates or subsidiaries.
-
Page 3: Table Of Contents
Table of contents Safety information ......................4 Introduction ........................9 Before using the product for the first time ..............9 Physical installation ..................... 10 Fastening the fixture to a flat surface ............... 10 Mounting the fixture on a truss ................. 10 Securing with a safety cable .................. -
Page 4: Safety Information
Keep this manual for future use. If you have questions about how to operate the fixture safely, please contact your RUSH by Martin™ dealer or call the Martin™ 24-hour service hotline on +45 8740 0000, or in the USA on 1-888-tech-180. - Page 5 If you replace this cable and also use the replacement cable to supply only one fixture with mains power, the replacement cable must also be rated 6 A minimum, have three conductors 18 AWG or 0.75 mm² minimum conductor size, have RUSH MH 1 Profile User Manual...
- Page 6 MAINS OUT throughput socket to MAINS IN input socket, but do not link more than: • four (4) RUSH MH 1 fixtures in total at 100-120 V, or • eight (8) RUSH MH 1 fixtures in total at 200-240 V.
- Page 7 Check that all external covers and rigging hardware are securely fastened. Block access below the work area and work from a stable platform whenever installing, servicing or moving the fixture. RUSH MH 1 Profile User Manual...
- Page 8 Do not attempt to use a fixture that is obviously damaged. Do not modify the fixture or install other than genuine RUSH by Martin™ parts. Refer any service operation not described in this manual to a qualified technician.
-
Page 9: Introduction
Introduction The MH 1 Profile is a small, powerful profile fixture incorporating a 180 W long-life LED engine. It provides two gobo wheels, the first with seven rotating gobos and the second with eight fixed gobos. The fixture has two color wheels, each with eight colors (including white), smooth electronic dimming, rotating prism effects, a mechanical focus and iris, as well as strobe effects. -
Page 10: Physical Installation
B securely to each bracket A. When installing the fixture hanging vertically, open-type clamps B can be used. When installing in any other orientation, half-coupler clamps C that completely encircle the truss chord must be used. RUSH MH 1 Profile User Manual... -
Page 11: Securing With A Safety Cable
(arrowed in illustration on right) and around a secure anchoring point. RUSH by Martin™ can supply suitable safety cables and rigging clamps (see Accessories on page 39). RUSH MH 1 Profile User Manual... -
Page 12: Ac Power
Brown The fixture has an auto-ranging power supply that accepts AC mains power at 100-240 V at 50/60 Hz. Do not apply AC mains power at any other voltage or frequency to the fixture. RUSH MH 1 Profile User Manual... -
Page 13: Linking Fixtures To Power In A Chain
Using 12 AWG or 2.5mm cables from Martin™, you can link: • Maximum four (4) RUSH MH 1 fixtures in total at 100-120 V, or • Maximum eight (8) RUSH MH 1 fixtures in total at 200-240 V. Fixture overview... -
Page 14: Control Data Link
5-pin XLR connectors are not used in the fixture but are available for possible additional data signals as required by the DMX512-A standard. Standard pin-out is pin 4 = data 2 cold (-) and pin 5 = data 2 hot (+). RUSH MH 1 Profile User Manual... -
Page 15: Connecting The Dmx Data Link
The DMX address, also known as the start channel, is the first channel used to receive instructions from a DMX controller. The fixture can be controlled using signals sent by a DMX controller over 17 channels. Each DMX controlled RUSH MH 1 Profile User Manual... -
Page 16: Show Settings
3. Use the DOWN and UP buttons to select M/S, HOLD, or BLACKOUT. 4. Once the offline mode has been selected, press the ENTER button to set (or, to return to the higher level of the menu structure without any change press the MENU button). RUSH MH 1 Profile User Manual... - Page 17 To turn on sound activation: 1. Select SHOW SETTINGS and press the ENTER button to confirm. 2. Use the DOWN and UP buttons to select SOUND TRIGGER and press the ENTER button to confirm. RUSH MH 1 Profile User Manual...
-
Page 18: Fixture Settings
To deactivate, or activate this function use the FIXTURE SETTINGS→P/T FEEDBACK menu. Iris inversion To invert the iris settings: 1. Select FIXTURE SETTINGS and press the ENTER button to confirm. RUSH MH 1 Profile User Manual... -
Page 19: Display Settings
By default the display is lit when the power is applied to the fixture. It can be set to automatically dim if the buttons and menus have not been used for a period: 1. Select DISPLAY SETTINGS and press the ENTER button to confirm. RUSH MH 1 Profile User Manual... -
Page 20: Fixture Test
3. To return to a higher level of the menu press the MENU button again. Fixture information Fixture operating hours counter To see how many hours the fixture has been used: 1. Select FIXTURE INFORMATION and press the ENTER button to confirm. RUSH MH 1 Profile User Manual... -
Page 21: Reset Functions Or Effects
Press the ENTER button to select it. 3. The present indexed home position will appear blinking in the display. Use the DOWN and UP buttons to adjust the home position of the function or effect. RUSH MH 1 Profile User Manual... -
Page 22: Effects
11. The fixture can be set to automatic blackout during gobo changes. Iris The fixture provides an adjustable iris, allowing the diameter of the projected beam to be adjusted. RUSH MH 1 Profile User Manual... -
Page 23: Motorized Focus
The fixture incorporates two color wheels, each with seven colors plus open. Slots can be individually selected, or the wheels can be rotated at varying speeds, clockwise or counter-clockwise. The fixture can be set to automatic blackout during color changes. RUSH MH 1 Profile User Manual... -
Page 24: Maintenance
The user may carry out the service operations described in this manual. All other service operations must be carried out by an authorized RUSH by Martin service technician. Do not try to repair the fixture yourself, as you may create a safety risk or cause damage that is not covered by the product warranty. -
Page 25: Changing The Primary Fuse
If in doubt, consult your RUSH by Martin dealer about a suitable maintenance schedule. Use gentle pressure only when cleaning, and work in a clean, well-lit area. Do not use any product that contains solvents or abrasives, as these can cause surface damage. - Page 26 5. Reinstall the head cover and be ready for the head to move during a reset before reapplying power. RUSH MH 1 Profile User Manual...
-
Page 27: Dmx Protocol
Color wheel 2 Color 1 – Open 8-15 Color 2 – Pink 16-23 Color 3 – CTO 3200 K 24-31 Color 4 – Purple 32-39 Color 5 – Yellow 40-47 Color 6 – Green RUSH MH 1 Profile User Manual... - Page 28 Gobo 7 shake 128-189 Wheel rotation, clockwise, fast-slow 190-193 Stop 194-255 Wheel rotation, counter clockwise, slow-fast Gobo rotation (wheel 1) 0-127 Indexed position, 0°-360° 128-189 Clockwise rotation, fast-slow 190-193 Stop 194-255 Counter-clockwise rotation, slow-fast RUSH MH 1 Profile User Manual...
- Page 29 Clockwise rotation, fast-slow 190-193 Stop 194-255 Counter-clockwise rotation, slow-fast 0-255 Iris, maximum-minimum 0-255 Focus, close-distant Settings and fixture control 0-69 No function 70-79 Blackout during pan & tilt 80-89 Disable blackout during pan & tilt RUSH MH 1 Profile User Manual...
- Page 30 Color reset 160-169 Gobo reset 170-179 No function 180-189 Focus reset 190-199 No function 200-209 Reset all 210-219 Blackout during pan/tilt or color/gobo change 220-229 Disable blackout during pan/tilt or color/gobo change 230-255 No function RUSH MH 1 Profile User Manual...
-
Page 31: Control Menus
Focus 1 0-255 gobo wheel 1 (rotating gobos) Focus setting for Focus 2 0-255 gobo wheel 2 (fixed gobos) Sound activation off Sound Trigger Sound activation on Sound activation Sound Sensitivity 0-100 microphone sensitivity (low-high) RUSH MH 1 Profile User Manual... - Page 32 Information Light Use Hour Reset service Reset Time countdown timer Currently installed Firmware Version firmware version Pan & Tilt Yes/No Color Yes/No Gobo Yes/No Reset Functions Prism Yes/No Iris Yes/No Focus Yes/No Yes/No RUSH MH 1 Profile User Manual...
- Page 33 -128...127 Color 2 -128...127 Gobo 1 -128...127 Wheel with rotating gobos R Gobo 1 -128...127 Rotating gobos Offset Gobo 2 -128...127 Wheel with fixed gobos Iris 0-255 Prism 0-255 R prism -128...127 Focus 0-255 RUSH MH 1 Profile User Manual...
-
Page 34: Error Messages
Tilt Reset Error to sensors or components. If error persists, Tilt Encode Error contact Martin support. Shutter Reset Fail Dimmer Reset Fail Color Reset Fail Gobo Reset Fail RUSH MH 1 Profile User Manual... -
Page 35: Troubleshooting
DMX setup or DMX link See next section. channels is fault. unresponsive or only Damaged step motor or Contact your RUSH by responds cable connection Martin authorized intermittently. between head and body. distributor or service center for assistance. RUSH MH 1 Profile User Manual... - Page 36 Check that all components on DMX link use standard DMX polarity. Attempt to control the fixture with another DMX control device. Move or shield link if it is close to an unshielded high-voltage installation. RUSH MH 1 Profile User Manual...
-
Page 37: Specifications
Color wheel 2 ......... 7 colors (incl. 1 x UV, 2 x CTC) plus open, ............rotation with variable direction and speed Rotating gobo wheel ........7 gobos plus open, wheel rotation, ..............gobo indexing, rotation and shake RUSH MH 1 Profile User Manual... - Page 38 Location ....Indoor use only, must be fastened to surface or structure Orientation....................Any Connections AC power input ..............Neutrik PowerCon AC power throughput ............Neutrik PowerCon DMX data in/out ............3-pin & 5-pin locking XLR Electrical RUSH MH 1 Profile User Manual...
- Page 39 Power relay cable, 2.5 mm , H05VV-F, with PowerCon connectors, 2.25 m (7.4 ft.) ......P/N 11541009 Power relay cable, 2.5 mm , H05VV-F, with PowerCon connectors, 3.25 m (10.7 ft.) ......P/N 11541010 RUSH MH 1 Profile User Manual...
-
Page 40: Ordering Information
(Waste Electrical and Electronic Equipment), where applicable. Help preserve the environment! Ensure that this product is recycled at the end of its life. Your supplier can give details of local arrangements for the disposal of RUSH by Martin products. RUSH MH 1 Profile User Manual... - Page 44 Innovation Quality Performance...
