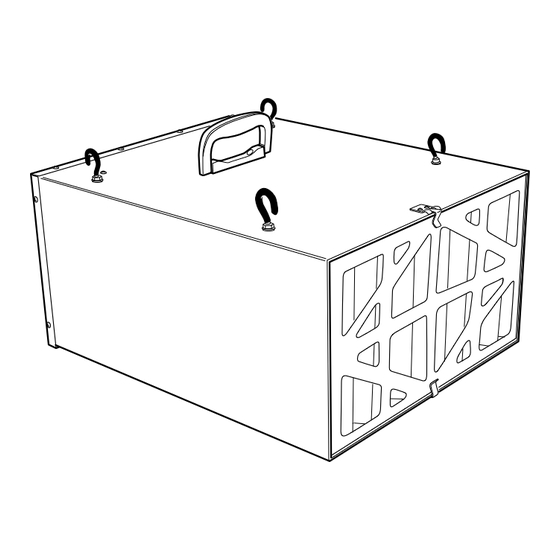

Model No. AF4000 Owner’s Manual AIR FILTRATION SYSTEM QUESTION... 1•877•393•7121 Visit us on the web at www.southerntechllc.com You will need this manual for safety instructions, operating procedures, and warranty. Put it and the original sales invoice in a safe, dry place for future reference. -
Page 2: Table Of Contents
TABLE OF CONTENTS PRODUCTION SPECIFICATIONS SECTION PAGE SAFETY RULES Horsepower (Maxmum Developed) ... . . 1/6 HP Voltage ........120 V Hertz . -
Page 3: Safety Rules
SAFETY RULES Be aware of general power tool safety. Make sure all the • To reduce the risk of electrical shock, do not expose air safety rules are understood. filtration to water or rain. • Never dust a machine directly into the air filtration system. • Disconnect the machine from power source whenever adjusting or replacing any parts. • To avoid a potentially dangerous situation, do not use this machine to filter flammable vapors or smoke. • Do not plug planer in unless switch is in the “OFF”... -
Page 4: Unpacking
• If you notice any transport damage while unpacking, Figure 2 notify the supplier immediately, • Dispose of the packing in an environmentally friendly manner. You should take into consideration how and where you will place the unit: • It can be placed on a bench or be hung from the ceiling. • This unit will work best if it is located away from corners, and heating/cooling vents. • If using on sawhorses the air filtration unit should be clamped in place. • This unit is specifically designed to circulate and filter non-metallic dust, which is generated trhoughout the work area. -
Page 5: Power Source
POWER SOURCE Do not permit fingers to touch the terminals of plug when installing or removing from outlet. WARNING • Inspect tool cords periodically, and if damaged, have it Do not connect to the power source until the machine is repaired by an authorized service facility. completely assembled. • The conductor with insulation having an outer surface that is green with or without yellow stripes is the The machine is wired for 120 volts, 60 HZ alternating cur- equipment-grounding conductor. -
Page 6: Operation
OPERATION WARNING Figure 7 REMOTE CONTROL Refer to Figure 7 TIME button controls the three different timer settings. (Figure 7) • 1 H will light up on the back of the unit by pressing the time button once. The machine will operate for 1 hour then turn off. • 2 H will light up on the back of the unit by pressing the time button twice. -
Page 7: Troubleshooting
TROUBLESHOOTING SYMPTOM POSSIBLE CAUSE(S) CORRECTIVE ACTION Motor does not run. 1. Machine not plugged in 1. Plug power cord into electrical receptacle 2. Power switch in "OFF" position 2. Lift switch to "ON" postion 3. Power switch or cord is faulty 3. -
Page 8: Parts Illustration
AIR FILTRATION SYSTEM PARTS ILLUSTRATION Figure 10... -
Page 9: Motor
AIR FILTRATION SYSTEM PARTS LIST Key No. Part No. Description Specification Key No. Part No. Description Specification 1 AF4000001 Hex Nut 61 AF4000061 Fan Housing Cover-R 2 AF4000002 Flat Washer Ø4 62 AF4000062 Hex Cap Screw M5X25 63 AF4000063 Eye Bolt 3 AF4000003 Lock Washer Ø4 64 AF4000064... -
Page 10: Warranty
WARRANTY Thank you for investing in a POWERTEC power tool. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This guarantee does not affect your statutory rights. In case of any malfunction of your tool (failure, missing part, etc.), please contact one of our service technician at our service line at 1-877-393-7121 from 9 AM to 5 PM, Monday to Friday, Central time. - Page 11 ADDITIONAL LIMITATIONS To the extent permitted by applicable law, all implied warranties, including warranties of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE, are disclaimed. Any implied warranties, including warranties of merchant- ability or fitness for a particular purpose, that cannot be disclaimed under state law are limited to one year from the date of purchase.
