Avanza aSmart aS.1001 Installation Manual

Hide thumbs Also See for aSmart aS.1001:

Advertisement

Quick Links

Download this manual
aS.1001
aSmart
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the aSmart aS.1001 and is the answer not in the manual?

Questions and answers

Related Manuals for Avanza aSmart aS.1001

Summary of Contents for Avanza aSmart aS.1001

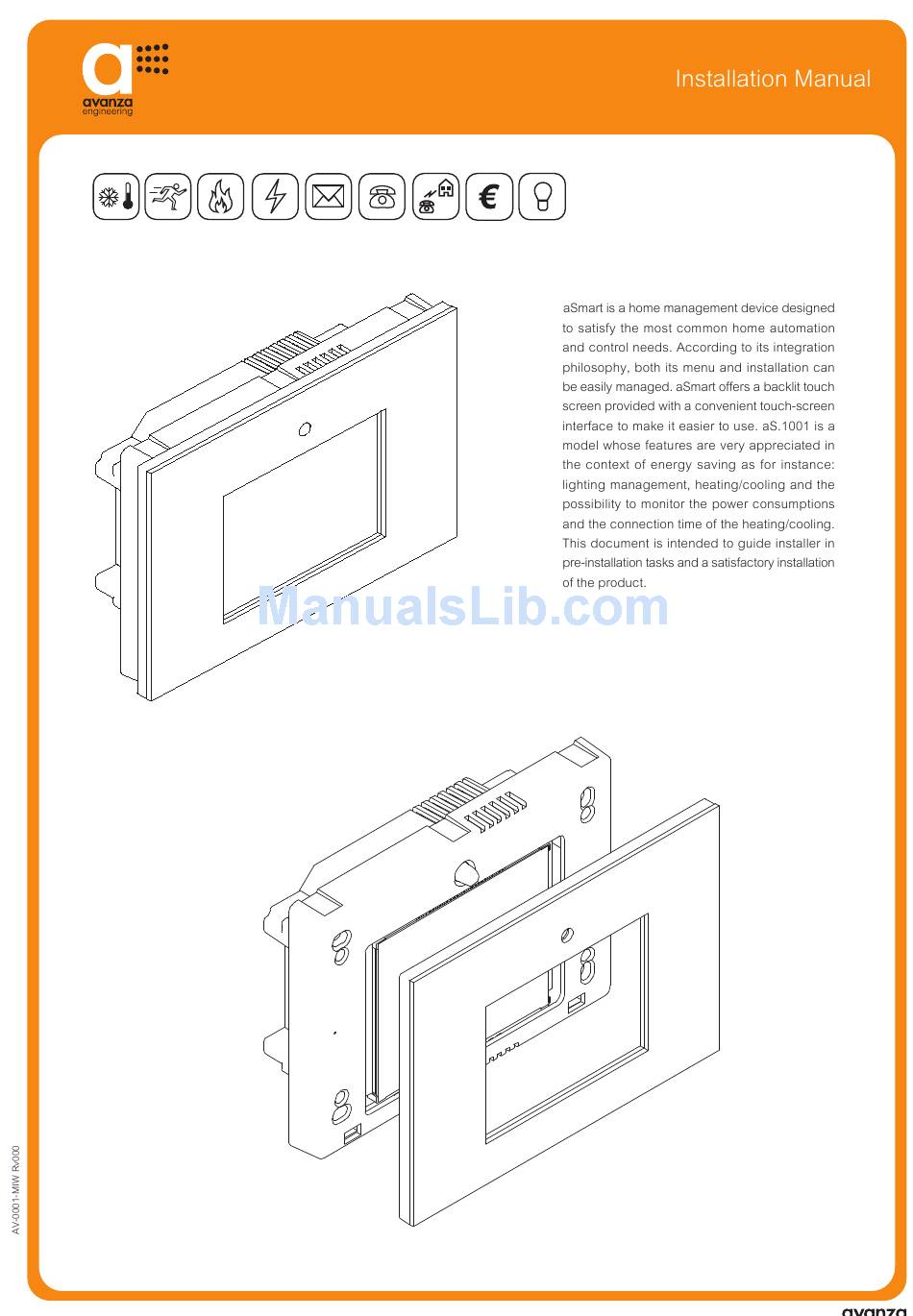

  • Page 1 aS.1001 aSmart...
  • Page 2 Installation Manual aSmart aS.1001 RECOMMENDATIONS GUARANTEE DESCRIPCIÓN BOX CONTENT I N S L A C I O N R I O...
  • Page 3 Installation Manual aSmart aS.1001 PREINSTALLATION (Fig. 1) Tubes external diameter (mm) Conductor cross sections (mm (Fig. 2)
  • Page 4 Installation Manual aSmart aS.1001 INSTALLATION DIAGRAM USE AFTER PROTECTIONS aSmart BOILER Thermostat Connections Contactor usually closed ELECTRIC CONNECTION LIGHTING CIRCUIT BREAKER Current Sensor DIFFERENTIAL TELEPHONE LINE...
  • Page 5 Installation Manual aSmart aS.1001 aS.1001 WIRING Home electrical distribution panels aSmart Flux mounted box aSmart Communication Box...
  • Page 6 Installation Manual aSmart aS.1001 INSTALLATION SEQUENCE Step 1 Step 2...
  • Page 7 Installation Manual aSmart aS.1001 INSTALLATION SEQUENCE Step 3 Step 4 click click click...
  • Page 8 Installation Manual aSmart aS.1001 INSTALLATION OF ADITIONAL SENSORS (optional) FIRE SENSOR 12 V Supply MOTION SENSOR 12 V Supply (Fig. 2) (Fig. 1)
  • Page 9 Installation Manual aSmart aS.1001 CONFIGURATIONS CONFIGURATION BB (ON-OFF) CONFIGURATION BC (Thermostat) CONFIGURATION SEQUENCE...
  • Page 10 Installation Manual aSmart aS.1001 TECNICAL DATA FEATURES TERMINALS DESCRIPTION POWER SUPPLY INPUT EXTERNAL SENSORS INPUTS VOLTAGE OF THE POWER SUPPLY OUTLET TO EXTERNAL SENSORS OUTLETS DIMENSIONS OPERATION TEMPERATURE LEVEL...
