The solar home system is specialized to design for the village domestic
expenses of the without electric region. It is a set of solar power the equipments,
having to sweep free from pollution, safety credibility, the service life is long and
circulates the expenses low, do not need maintenance of advantage and so on .
1、 、 、 、 Solar home system operating principle

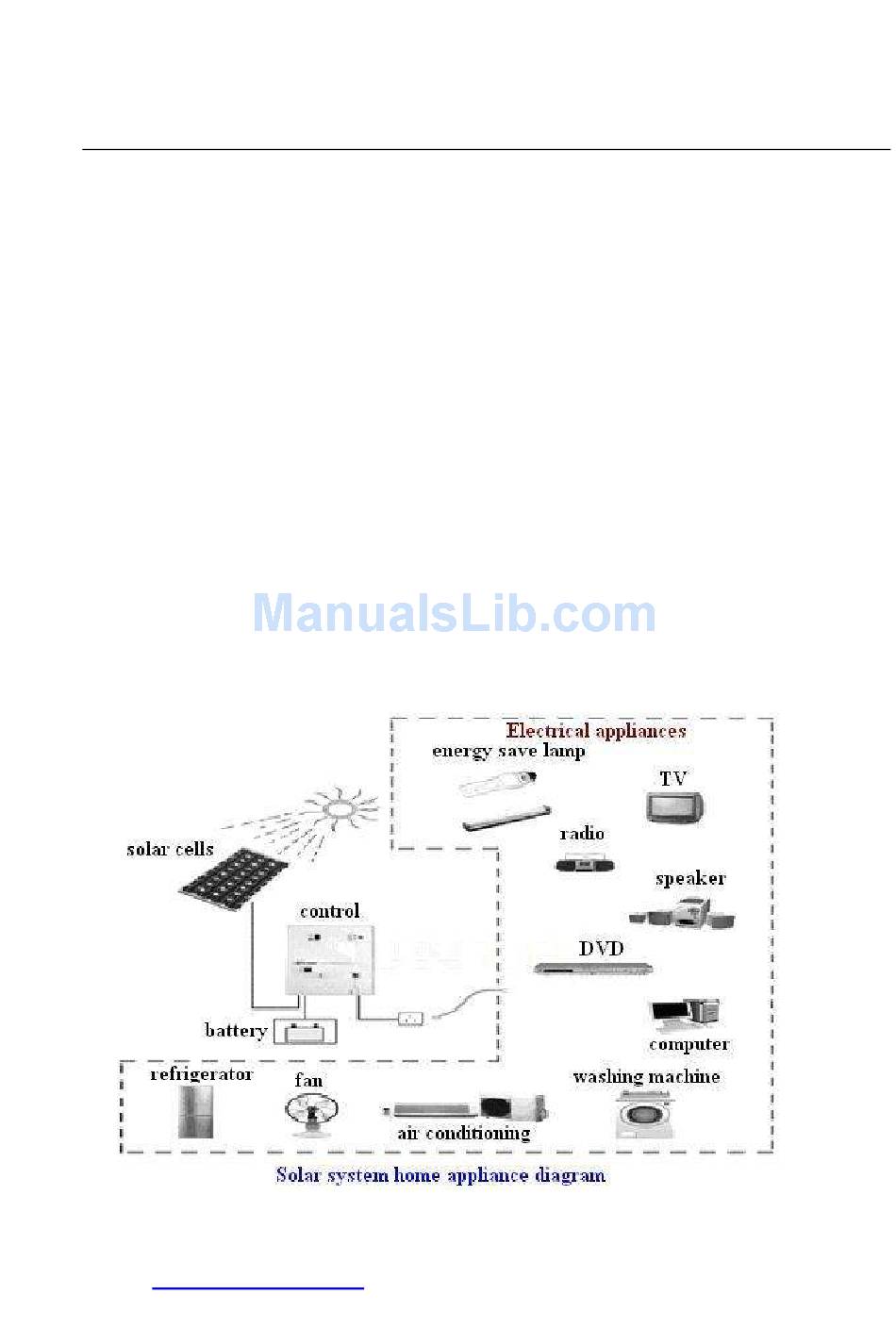

The solar home system include: solar panel, solar panel bracket, battery, solar charge
controller, inverter and so on.
Add: 9F, 568, Ju ngjen g Road, Sin di an Ci ty Tai p ei Coun ty, Taiwan
Contact Person: Jack
E-mail:jack@sunsumsolar.com
Tel: +886-2-8667-3692,
SunSumSolar
旭和光電股份有限公司
旭和光電股份有限公司
旭和光電股份有限公司
旭和光電股份有限公司
Solar Generator System
50W solar home system
Fax: +866-2-8667-3618
Advertisement
Summary of Contents for SunSumSolar SPM45-P
- Page 1 SunSumSolar 旭和光電股份有限公司 旭和光電股份有限公司 旭和光電股份有限公司 旭和光電股份有限公司 Solar Generator System 50W solar home system The solar home system is specialized to design for the village domestic expenses of the without electric region. It is a set of solar power the equipments, having to sweep free from pollution, safety credibility, the service life is long and circulates the expenses low, do not need maintenance of advantage and so on .
- Page 2 SunSumSolar 旭和光電股份有限公司 旭和光電股份有限公司 旭和光電股份有限公司 旭和光電股份有限公司 Solar Generator System Store light can convert into the electric power, through power box (refresh the control and go against to change the device) electric power in the storage battery through the solar cell module, pass the power box toward the load power supply.
- Page 3 SunSumSolar 旭和光電股份有限公司 旭和光電股份有限公司 旭和光電股份有限公司 旭和光電股份有限公司 Solar Generator System Power box : include the controller and battery. Add: 9F, 568, Ju ngjen g Road, Sin di an Ci ty Tai p ei Coun ty, Taiwan Contact Person: Jack E-mail:jack@sunsumsolar.com Tel: +886-2-8667-3692,...
- Page 4 SunSumSolar 旭和光電股份有限公司 旭和光電股份有限公司 旭和光電股份有限公司 旭和光電股份有限公司 Solar Generator System 3、 、 、 、 The component of solar system 1. Solar panel Add: 9F, 568, Ju ngjen g Road, Sin di an Ci ty Tai p ei Coun ty, Taiwan Contact Person: Jack E-mail:jack@sunsumsolar.com...
- Page 5 SunSumSolar 旭和光電股份有限公司 旭和光電股份有限公司 旭和光電股份有限公司 旭和光電股份有限公司 Solar Generator System 2. Controller Battery State-of-Charge display LCD Charge and discharge status display Acoustic load disconnect pre-warning Acoustic load disconnect pre-warning Choose between 5 load disconnect algorithms boost/absorption/float PWM-regulation (series type) Integrated temperature compensation...
- Page 6 SunSumSolar 旭和光電股份有限公司 旭和光電股份有限公司 旭和光電股份有限公司 旭和光電股份有限公司 Solar Generator System The CX series is a sophisticated solar charge controller family with exceptional features for its price range. Beside a perfect PWM regulation with integrated temperature compensation the controllers provide extraordinary display, programming and safety functions.
- Page 7 SunSumSolar 旭和光電股份有限公司 旭和光電股份有限公司 旭和光電股份有限公司 旭和光電股份有限公司 Solar Generator System 3. Battery 1. SIZES: Dimension Length 261mm ± 2 Width 168mm ± 2 Height 203mm ± 2 Total Height 220mm ± 2 2. CHARATERISTIC: Properties Data Voltage 12 V Capacity 75AH Weight ca.22.3 Kg...
- Page 8 SunSumSolar 旭和光電股份有限公司 旭和光電股份有限公司 旭和光電股份有限公司 旭和光電股份有限公司 Solar Generator System 3. DISCHARGE CURVES： ： ： ： LIFE: type life depth of discharge: 100% > 500 cycles cycle life depth of discharge: 50% > 1200 cycles depth of discharge: 30% > 2000 cycles UPS (20℃)
- Page 9 SunSumSolar 旭和光電股份有限公司 旭和光電股份有限公司 旭和光電股份有限公司 旭和光電股份有限公司 Solar Generator System 4. Fan 1. If need perfect wind orientation, please hand adjust orientation by adjusting the wind cover, to be sure the fan is closed before adjustment. If it couldn’t be turned during adjustment, it should be on the biggest point of orientation.
- Page 10 SunSumSolar 旭和光電股份有限公司 旭和光電股份有限公司 旭和光電股份有限公司 旭和光電股份有限公司 Solar Generator System V. Caution Please don’t assemble or restructure the circuit board configuration, and strictly prohibit to put the fan in dank place or beside the causticity substance, or it probably will cause an electric shock, meanwhile, it’...
- Page 11 SunSumSolar 旭和光電股份有限公司 旭和光電股份有限公司 旭和光電股份有限公司 旭和光電股份有限公司 Solar Generator System 6. Led Add: 9F, 568, Ju ngjen g Road, Sin di an Ci ty Tai p ei Coun ty, Taiwan Contact Person: Jack E-mail:jack@sunsumsolar.com Tel: +886-2-8667-3692, Fax: +866-2-8667-3618...
- Page 12 SunSumSolar 旭和光電股份有限公司 旭和光電股份有限公司 旭和光電股份有限公司 旭和光電股份有限公司 Solar Generator System Add: 9F, 568, Ju ngjen g Road, Sin di an Ci ty Tai p ei Coun ty, Taiwan Contact Person: Jack E-mail:jack@sunsumsolar.com Tel: +886-2-8667-3692, Fax: +866-2-8667-3618...
