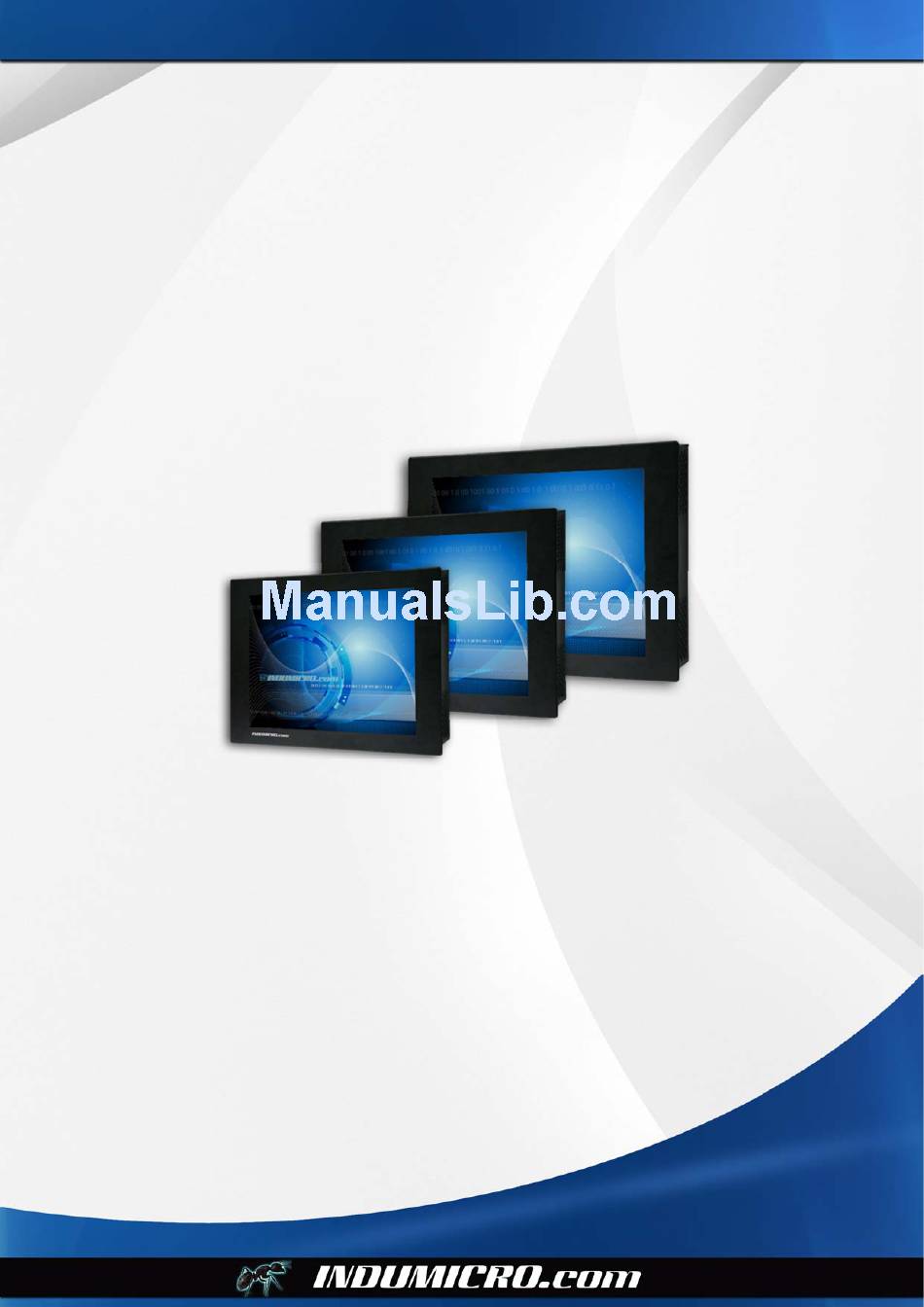

- Page 1 Industrial Panel PCs IMP-A1x1 Series User Manual...
- Page 2 This information in this document is subject to change without notice. In no event shall Indumicro.com be liable for damages of any kind, whether incidental or consequential, arising from either the use or misuse of information in this document or in any related...
-
Page 3: Table Of Contents
2.2 Wiring diagrams serial ports ......................4 Chapter 3: Touch screen configuration 3.1 Configuring a resistive touch screen ................... 5 Chapter 4: Dimension drawings 4.1 Dimension drawing IMP-A151[G]T .................... 17 4.2 Dimension drawing IMP-A171[G]T .................... 18 4.3 Dimension drawing IMP-A191T ....................19... -
Page 5: Specifications
1.1 Specifications Model IMP-A151[G]T IMP-A171[G]T IMP-A191T System ® Intel Atom™ Cedar View D2550 1.8GHz Dual Core Processor System chipset Intel NM 10 Express System memory 2 x 204-pin DDR3 SO-DIMM 800/1066MHz, up to 4GB I/O Ports 4 x USB 2.0 type A... -
Page 6: Features Of The Imp-A1X1 Series
Chapter 1: System description 1.2 Fea tures of the IMP-A1x1 series The IMP-A151/A171/A191 are fanless / compact panel-mount industrial PCs, which come with a 15" (luminance of 400 cd/m²), 17" (luminance of 350 cd/m²) or 19" (luminance of 350 cd/m²) TFT LCD. ®... -
Page 7: Chapter 2: Configuring The System
Chapter 2: Configuring the system 2.1 Installing a PCI add-on card There are 2 screws to open the cover giving you access to the PCI expansion slot. Shown in the picture is the PCI expansion slot as circled. It can be inserted with any half-size PCI add-on card. -
Page 8: Wiring Diagrams Serial Ports
Chapter 2: Configuring the system 2.2 Wiring diagrams serial ports COM1/COM2 RS-232 Pin# Signal Name DCD (Data Carrier Detect) RXD (Received Data) TXD (Transmit Data) DTR (Data Terminal Ready) Ground DSR (Data Set Ready) RTS (Request To Send) CTS (Clear To Send) (Ring Indicator) COM3 RS-422/485... -
Page 9: Chapter 3: Touch Screen Configuration
Chapter 3: Touch Screen configuration 3.1 Configuring the touch screen PenMount Control Panel The functions of the PenMount Control Panel are Device, Multiple Monitors ,Tools and About, which are explained in the following sections Device In this window, you can find out that how many devices are detected on your system. Calibrate This function offers two ways to calibrate your touch screen. - Page 10 Chapter 3: Touch Screen configuration To calibrate your touch screen: 1. Please select a device then click “Configure”. You can also double click the device too. 2. Click “Standard Calibration” to start calibration procedure. IMP-A1x1 User Manual...
- Page 11 Chapter 3: Touch Screen configuration NOTE: The older the touch screen, the more Advanced Mode calibration points you need for an accurate calibration. Use a stylus during Advanced Calibration for greater accuracy. Please follow the step as below: 3. Come back to “PenMount Control Panel”, select Device to calibrate, then click Advanced Calibration.
- Page 12 Chapter 3: Touch Screen configuration Check this function to have touch panel linearity comparison graph Plot Calibration Data appear when finish Advanced Calibration. The black lines reflect the ideal linearity assumed by Penmount’s application program while the blue lines show the approximate linearity calculated by Penmount’s application program as the result of user’s execution of Advanced Calibration.
- Page 13 Chapter 3: Touch Screen configuration Setting Operation Mode This operating mode will send left button down function when user Mouse Emulation presses, and left button up function when user release its touch. This operating mode will send a mouse click only on user’s touch. Click On Touch Dragging is disabled in this mode.
- Page 14 Chapter 3: Touch Screen configuration Beep Sound Turns beep function on or off. Enable Beep Sound Beep occurs when pen comes down. Beep on pen down Beep occurs when pen is lifted. Beep on pen up Beep occurs when pen comes down and when it’s lifted. Beep on both Modifies sound frequency.
- Page 15 Chapter 3: Touch Screen configuration About This panel displays information about the PenMount controller and driver version. IMP-A1x1 User Manual...
- Page 16 Chapter 3: Touch Screen configuration Multiple Monitors Multiple Monitors support from two to six touch screen displays for one system. The PenMount drivers for Windows 2000/XP support Multiple Monitors. This function supports from two to six touch screen displays for one system. Each monitor requires its own PenMount touch screen control board, either installed inside the display or in a central unit.
- Page 17 Chapter 3: Touch Screen configuration 2. When the mapping screen message appears, click OK. 3. Touch each screen as it displays “Please touch this monitor”. Following this sequence and touching each screen is called mapping the touch screens. 4. Touching all screens completes the mapping and the desktop reappears on the monitors. 5.
- Page 18 Chapter 3: Touch Screen configuration 6. “Touch this screen to start its calibration” appears on one of the screens. Touch the screen. 7. “Touch the red square” messages appear. Touch the red squares in sequence. 8. Continue calibration for each monitor by clicking Standard Calibration and touching the red squares.
- Page 19 Chapter 3: Touch Screen configuration You can opt to display the Mouse Icon in the System Tray instead of on the desktop. To do so follow these steps: 1. Open the PenMount Control Panel. 2. Select the Tools tab. 3. Select the System Tray option. The Mouse Icon will then appear in the System Tray.
- Page 20 Chapter 3: Touch Screen configuration Configuring the Rotate Function 1. Install the rotation software package. 2. Choose the rotate function (0°, 90°, 180°, 270°) in the 3rd party software. The calibration screen appears automatically. Touch this point and rotation is mapped. NOTE: The Rotate function is disabled if you use Monitor Mapping IMP-A1x1 User Manual...
-
Page 21: Chapter 4: Dimension Drawings
Chapter 4: Dimension drawings Panel Cut-out Dimensions of the IMP-A15 1 IMP-A1x1 User Manual... -
Page 22: Dimension Drawing Imp-A171[G]T
Chapter 4: Dimension drawings Panel Cut-out Dimensions of the IMP-A17 IMP-A1x1 User Manual... - Page 23 Chapter 4: Dimension drawings Panel Cut-out Dimensions of the IMP-A19 1 IMP-A1x1 User Manual...
- Page 24 This page intentionally left blank...
- Page 25 This page intentionally left blank...
- Page 26 Edition 2.0 ©Indumicro.com...
