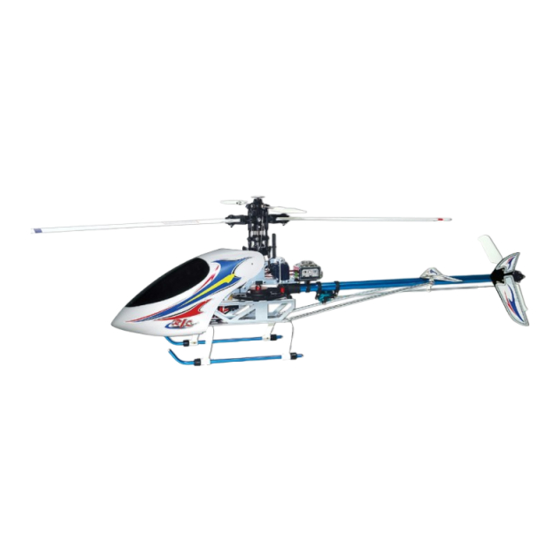

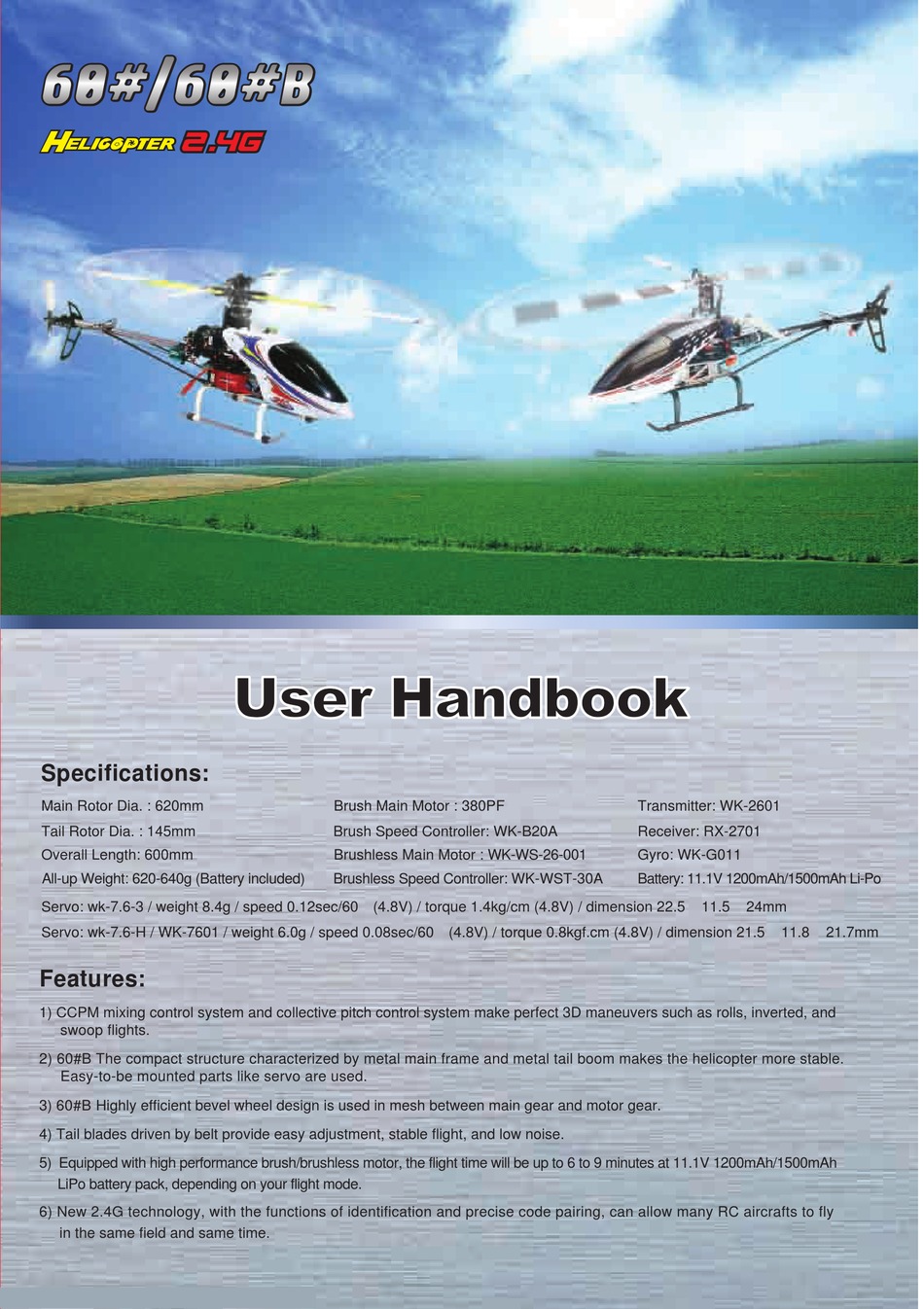

Walkera 60# User Handbook Manual

Specifications:

Main Rotor Dia. : 620mm
Tail Rotor Dia. : 145mm
Overall Length: 600mm
All-up Weight: 620-640g (Battery included)
Servo: wk-7.6-3 / weight 8.4g / speed 0.12sec/60e (4.8V) / torque 1.4kg/cm (4.8V) / dimension 22.5
Servo: wk-7.6-H / WK-7601 / weight 6.0g / speed 0.08sec/60e (4.8V) / torque 0.8kgf.cm (4.8V) / dimension 21.5

Features:

1) CCPM mixing control system and collective pitch control system make perfect 3D maneuvers such as rolls, inverted, and
swoop flights.
2) 60#B The compact structure characterized by metal main frame and metal tail boom makes the helicopter more stable.
Easy-to-be mounted parts like servo are used.
3) 60#B Highly efficient bevel wheel design is used in mesh between main gear and motor gear.
4) Tail blades driven by belt provide easy adjustment, stable flight, and low noise.
5) Equipped with high performance brush/brushless motor, the flight time will be up to 6 to 9 minutes at 11.1V 1200mAh/1500mAh
LiPo battery pack, depending on your flight mode.
6) New 2.4G technology, with the functions of identification and precise code pairing, can allow many RC aircrafts to fly
in the same field and same time.
Brush Main Motor : 380PF
Brush Speed Controller: WK-B20A
Brushless Main Motor : WK-WS-26-001
Brushless Speed Controller: WK-WST-30A
Transmitter: WK-2601
Receiver: RX-2701
Gyro: WK-G011
Battery: 11.1V 1200mAh/1500mAh Li-Po
h h
11.5 24mm
h h
11.8 21.7mm
