深圳市讯拓科盛电子科技有限公司
KESON ELECTRONICS CO., LTD.

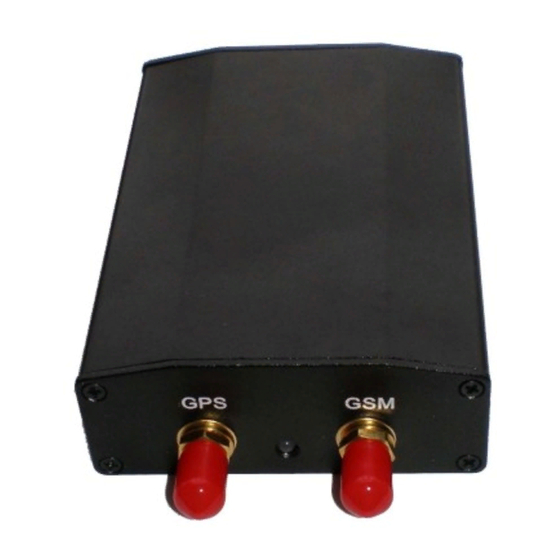

KS168 GPS Vehicle Tracker

User Manual

Preface
Thank you for purchasing our products KS168 GPS Vehicle Tracker. This deliberately edited manual is
to introduce the tracker with the complete technical data and the instructions showing how to operate
the device smoothly and correctly. Make sure to read this manual carefully before using this product.
Most problems could be solved through the explanations and the troubleshooting tips. Once you finish
reading it, keep it handy for necessary reference. Please note that specification and information are
subject to changes without prior notice in this manual. Any change will be integrated in the latest release.
The manufacturer assumes no responsibility for any errors or omissions in this document.
Http: //www.kesongps.com
Tel: 0755-83751711/83697773/82585968
Fax: 0755-83751711-8015
Add: No. 615, Huajian Industry Building, Luohu District, Shenzhen, Guangdong, China

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KS168 and is the answer not in the manual?

Questions and answers

Summary of Contents for Keson KS168

  • Page 1: User Manual

    User Manual Preface Thank you for purchasing our products KS168 GPS Vehicle Tracker. This deliberately edited manual is to introduce the tracker with the complete technical data and the instructions showing how to operate the device smoothly and correctly. Make sure to read this manual carefully before using this product.

  • Page 2: Main Function

    深圳市讯拓科盛电子科技有限公司 KESON ELECTRONICS CO., LTD. Content Ⅰ. Preface…………………………………………... 1 Ⅱ. Attentions……………………………………….. 2 Ⅲ Hardware description…..…………………….… 3 Ⅳ. Main function……………………………….….. 3 Ⅴ. Set up………………………………………...….. 4 Ⅵ. Installation diagram………………………...….. 7 Ⅶ. Installation……………………………….….…... 7 Ⅷ. Application…………………………………….… 9 Ⅸ.Specification………………………………..……10 Ⅹ.Command set………………………………………11 Attention 1. Make sure to read this manual carefully before using this product.

  • Page 3: Hardware Description

    6. The host of GPS tracker is a low-power wireless transmitter and receiver. It receives and sends radio frequency signal when it is working. 7. To avoid electromagnetic interference or uncompatible configuration, please stop using your tracker in the noticed place. KS168 GPS Vehicle Tracker ◆Hardware Description 1. Host Tracker 2. Start up Put the SIM card in place and installed the tracker in the car, the red indicator is on.
  • Page 4 深圳市讯拓科盛电子科技有限公司 KESON ELECTRONICS CO., LTD. 1. Positioning and Tracking: Through the on-line Positioning Platform or the cell phone to locates at times, and get the working status. You can choose the Positioning Platform by yourself. 2. Triggering Emergency Alarm: When there is a emergency happened on the vehicle, you can put on the button and the installed unit will send out alarm to the authorized numbers.
  • Page 5 深圳市讯拓科盛电子科技有限公司 KESON ELECTRONICS CO., LTD. Send SMS: “password + old password + space + new password” to change the password. For example: Send SMS “Password123456 138138”. "password" as instruction, "123456"as old password, "138138" as new password. Password must be six digits. Tracker’s initial password is 123456.
  • Page 6 深圳市讯拓科盛电子科技有限公司 KESON ELECTRONICS CO., LTD. Cancel: Send SMS “nomove+password” to deactivate the movement alert. 10. Overspeed alert Set up: Send SMS “speed+password+space+080” to the unit (support the speed is 80km/h). For example, send SMS “speed123456 080”. "speed" as instruction, "80" as limit speed, “123456”as password.
  • Page 7 深圳市讯拓科盛电子科技有限公司 KESON ELECTRONICS CO., LTD. GPS data to IP address. If you want to send GPS data to telephone, you can send SMS “telephone + password” to device, the device will reply “set telephone ok”. And then, the device will send GPS data to your telephone by SMS.
  • Page 8 深圳市讯拓科盛电子科技有限公司 KESON ELECTRONICS CO., LTD. 23. Set ACC open and close send SMS notify You can set the SMS notify of when ACC on and off. The format of set is “accnotify + 1 or 0”. For example “accnotify 1” stand for when ACC on and off send SMS to authorized numbers. “accnotify 0” stand for close send SMS notify.
  • Page 9 深圳市讯拓科盛电子科技有限公司 KESON ELECTRONICS CO., LTD. ◆GPS Vehicle Tracker Installation Description GPS tracker should be installed by technical professional of local service centre. Without permission, the user cann’t repair and move the tracker randomly. If users do, any unfortunated damage should be compensated by himself.
  • Page 10 深圳市讯拓科盛电子科技有限公司 KESON ELECTRONICS CO., LTD. ◆Specs. Content Specs. Dim. 87 * 64 * 26 (mm) Weight 495g Network GSM/GPRS/GPS Band 900/1800MHz or 850/900/1800/1900MHz GPS chip U-Blox Frequency L1 1575.42MHz, C/A code GSM/GPRS Module SIM800W or SIM840W Protocol standard NMEA 0183 ver. 3.0/SiRF Binary...

  • Page 11: Command Set

    深圳市讯拓科盛电子科技有限公司 KESON ELECTRONICS CO., LTD. Standby Time 48 hours Port 1 analog input, 2 digital output, 3 digital input Storage Capability minimum 10000 ◆Command Set Function Reply Initialization Begin123456 Begin ok Add Number Admin123456 13612345678 Admin ok Delete Number Noadmin123456 13612345678...
  • Page 12 深圳市讯拓科盛电子科技有限公司 KESON ELECTRONICS CO., LTD. Restart tracker Reboot123456 System will reboot Enquiry position position GPS info At30sum5 Auto track set ok Auto track Noat123456 Cancel auto track ok Tracker123456 Tracker ok Set call response Monitor123456 Monitor ok Telephone123456 Set telephone ok...
