App. A PIN ASSIGNMENTS

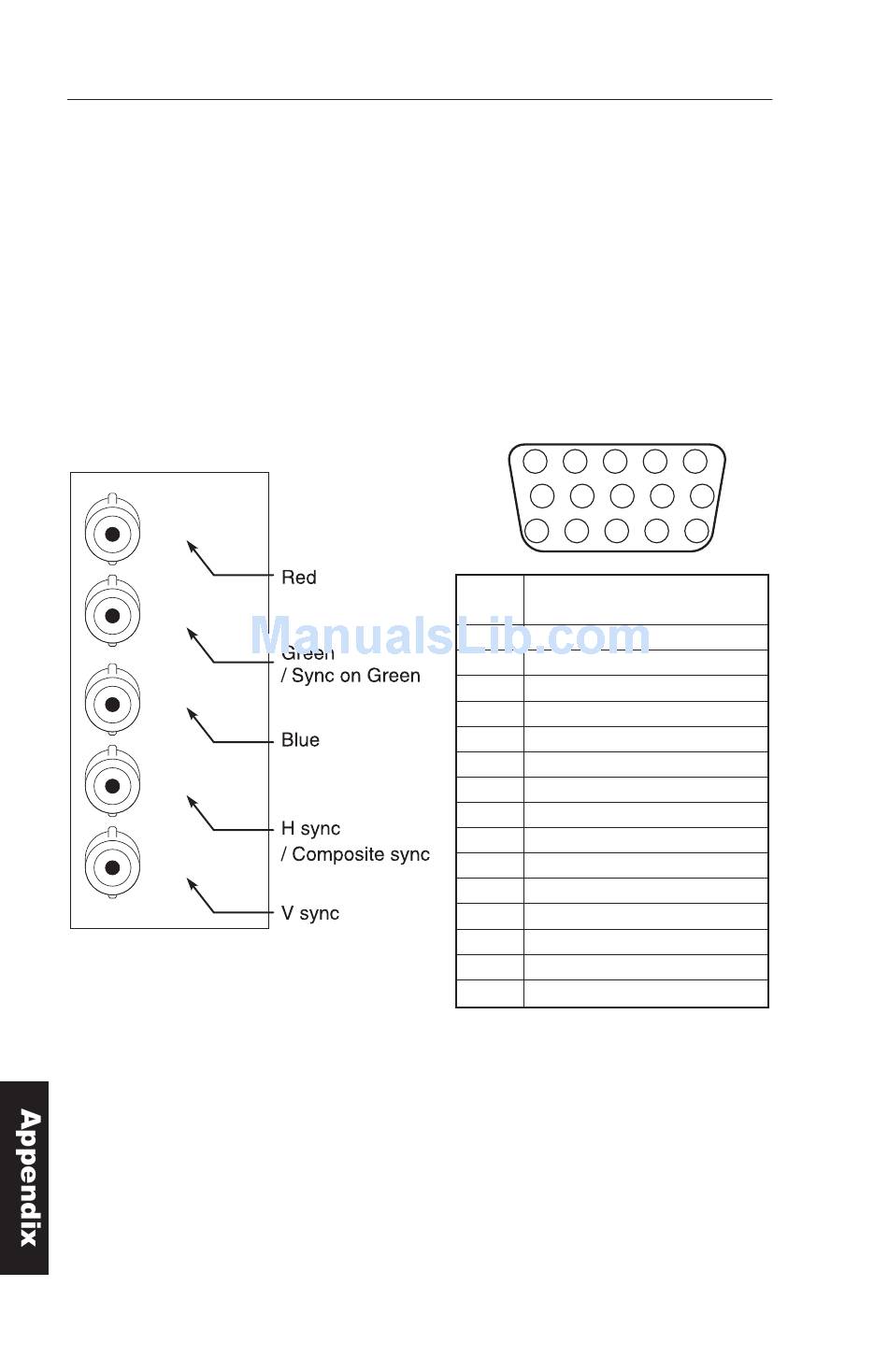

LCD 2110 SIGNAL INPUT CONNECTOR
BNC connector
R
G ( /SYNC)
B
HS/CS
VS
App. A PIN ASSIGNMENTS
MINI D-SUB 15 PIN
5 4 3
10 9 8
15 14 13
Pin mini D-sub 15pin
No. (female)
1 RED
2 GREEN
3 BLUE
4 GROUND
5 GROUND
6 GROUND
7 GROUND
8 GROUND
9 + 5 V (DDC)
10 GROUND
11 GROUND
12 SDA
13 H. SYNC. ,H / V SYNC.
14 V. SYNC.
15 SCL
